dB Technologies FMX15 Wedge Stage Monitor Foldback Active 1200W

Description

FMX is an active 2-way coaxial stage monitor series encompassing 3 models (10,12 and 15”) equipped with 400 RMS (for FMX 10) or 600 RMS (for FMX 12 and 15) Class D amplifiers.

The wedge’s coaxial acoustic design, together with its custom horn design and its advanced DSP featuring linear phase FIR filters, provides an even, highly-intelligible sound.

In facts, FMX’s horn design allows a very precise dispersion pattern (60° horizontal and 90° vertical) which can be easily reversed (90° horizontal and 60° vertical) by rotating the horn, adapting the wedge to the habits of the user.

Moreover, 8 on-board presets optimize EQ for different needs making FMX a skilful yet easy-to-use tool for performers of every kind.

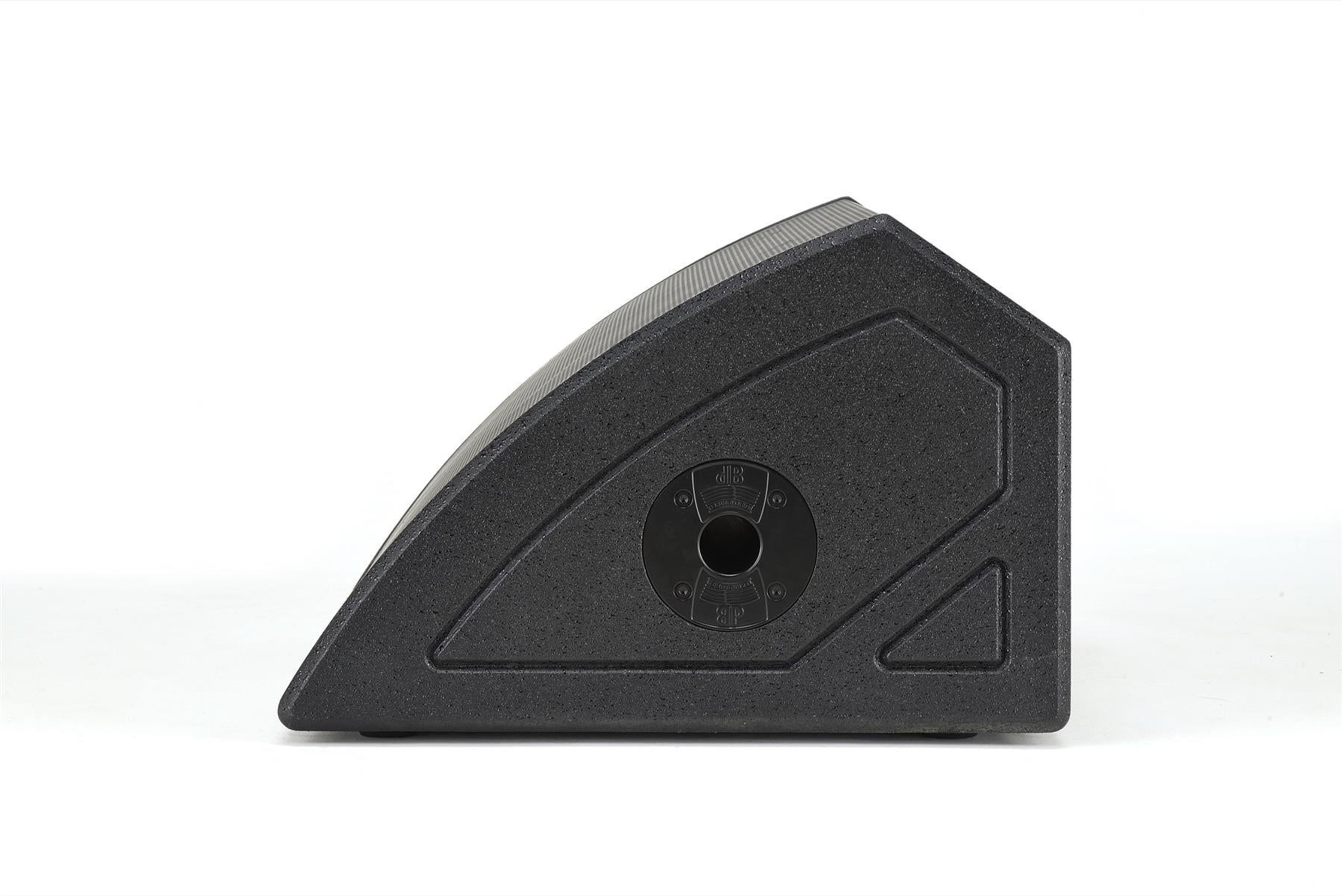

All wedges of the series feature a peculiar front-rear grille design, a single handle integrated on the bottom side of the plywood cabinet and a 36mm pole mount on side panel which further enhance FMX versatility.

Frequency Response [- 10 dB] 46 - 19.000 Hz
Max SPL128 dB
HF 1", 1.3" v.c.
Directivity 60°X90°
Horn Rotatable
LF15", 2" v.c.
Amplifier
Amp Class Class D
Peak Power 1200 W
Processor
Controller DSP 28/56 bit
AD/DA Converter 24 bit/48 Hz
System Presets 8 presets
Limiter Peak, RMS, Thermal
Advanced DSP Funtion FIR Filters
Crossover Frequency 1740 Hz
Slope LF/HF 24 dB/oct
Mechanics
Housing Plywood
Housing Design Multifunctional
Handles 1 integrated on bottom side
Pole mount 36 mm
Width 500 mm (19.68 in)
Height 340 mm (13.38 in)
Depth 500 mm (19.68 in)
Weight 16.9 kg (37.2 lbs)
