DB Technologies DVX DM12 Active 2-Way Class D Stage Monitor 1500w

Description:

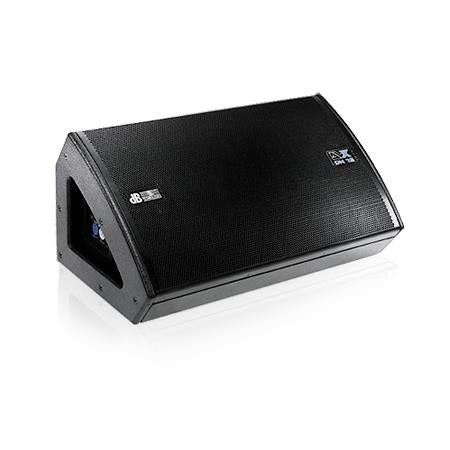

Featuring a discrete, unobtrusive design, the ultra low-profi le enclosure sports a high-performance 12“ neodymium woofer paired with a 1.4“ neodymium compression driver and rotatable aluminum CD horn precision matched for on-stage monitoring.

Unlike conventional multifunctional speakers, the DVX DM 12 is a prograde performer developed specifically for use as a floor monitor. Optimized to resist feedback even at extremely high levels, it delivers the true-to-nature response and dynamic balance that today’s artists demand.

The integrated digipro digital power amps deliver the requisite output. The switched-mode power supplies with PFC ensure touring rigs get all the juice they need to perform at their peak even when a venue’s mains power is weak and voltage is low.

The onboard controller encompasses an active equalizer,
active x-over including phase and time alignment, limiters, and switchable system presets that adapt the monitor’s performance to suit the given application.

Made of rugged multiplex and coated with tough black lacquer, the cabinet sets up at two different angles.

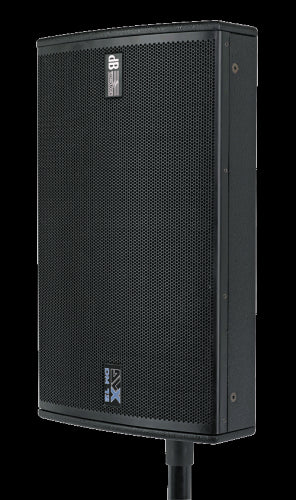

It is also equipped with a pole mount, enabling the DVX DM12 to be set on a tripod or speaker pole

Specifications:

Technical Data

Speaker Type: 2-Way Active Stage Monitor

Acoustical data

Frequency Response [-10dB]: 55 - 20,000 Hz
Frequency Response [+/- 3dB]: 68 - 19,000 Hz
Max SPL: 131 dB
HF: 1.4"
Type HF: Neodymium Compression Driver
Voice Coil HF: Titanium 2.5"
Directivity: 40x90°
Horn: CD Horn Aluminium
Rotatable Horn: Yes
LF: 12"
Type LF: Neodymium
Voice Coil LF: 3"

Amplifier

Amp Technology: Digipro®
Amp Class: Class D
Power RMS: 750 W
Peak Power: 1500 W
Cooling: Convection

Processor

Controller: DSP 24 Bit/48 kHz
System Presets: Flat, Monitor
Limiter: RMS, Peak, Thermal, Multiband
Crossover Frequency MF-HF: 1320 Hz
Slope MF-HF: 24 dB/Octave

Mechanics

Housing: Multiplex plywood
Housing Design: Low Profile Multifunctional
Angles Up: 35, 55°
Rigging Points: 6x M10, 4x Quick-Release Pins
Width: 660 mm (25.9 in)
Height: 305 mm (12 in)
Depth: 378 mm (14.8 in)
Weight: 17.5 kg (55.12 lbs)
