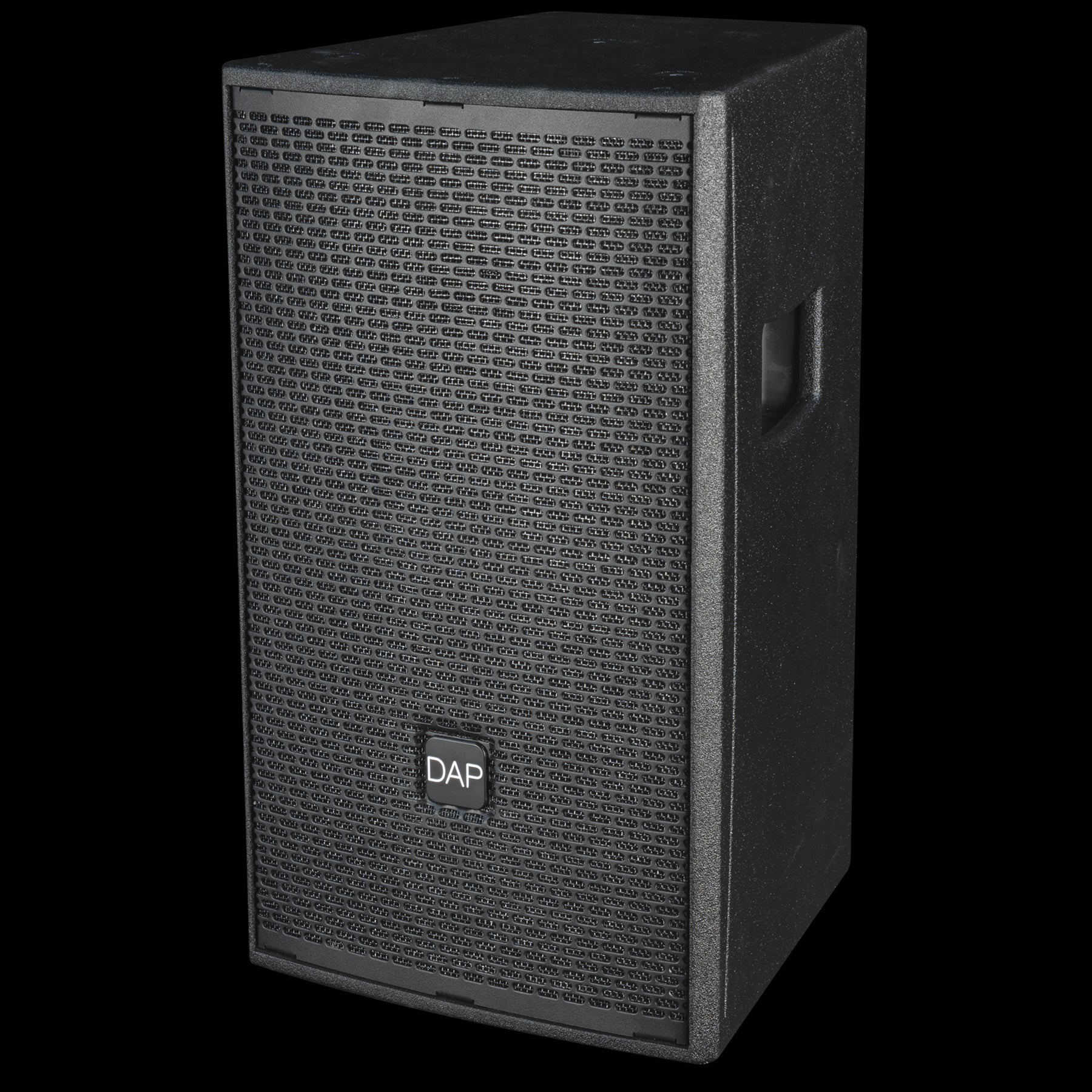

DAP NRG-8 Passive 8” Full-range Speaker 400w Peak

Description:

The DAP NRG-8 is a passive full-range loudspeaker rated at 400 watts peak (120 watts continuous RMS). It uses an 8” woofer and a 1” compression driver. With a sensitivity of 93 dB/W/m, the NRG-8 comfortably plays up to 114 dB with peaks of up to 126 dB. The compression driver is coupled to a rotatable horn with a directivity of 90°x 60°. The woofer has a low cut-off point of 80 Hertz (-6 dB).

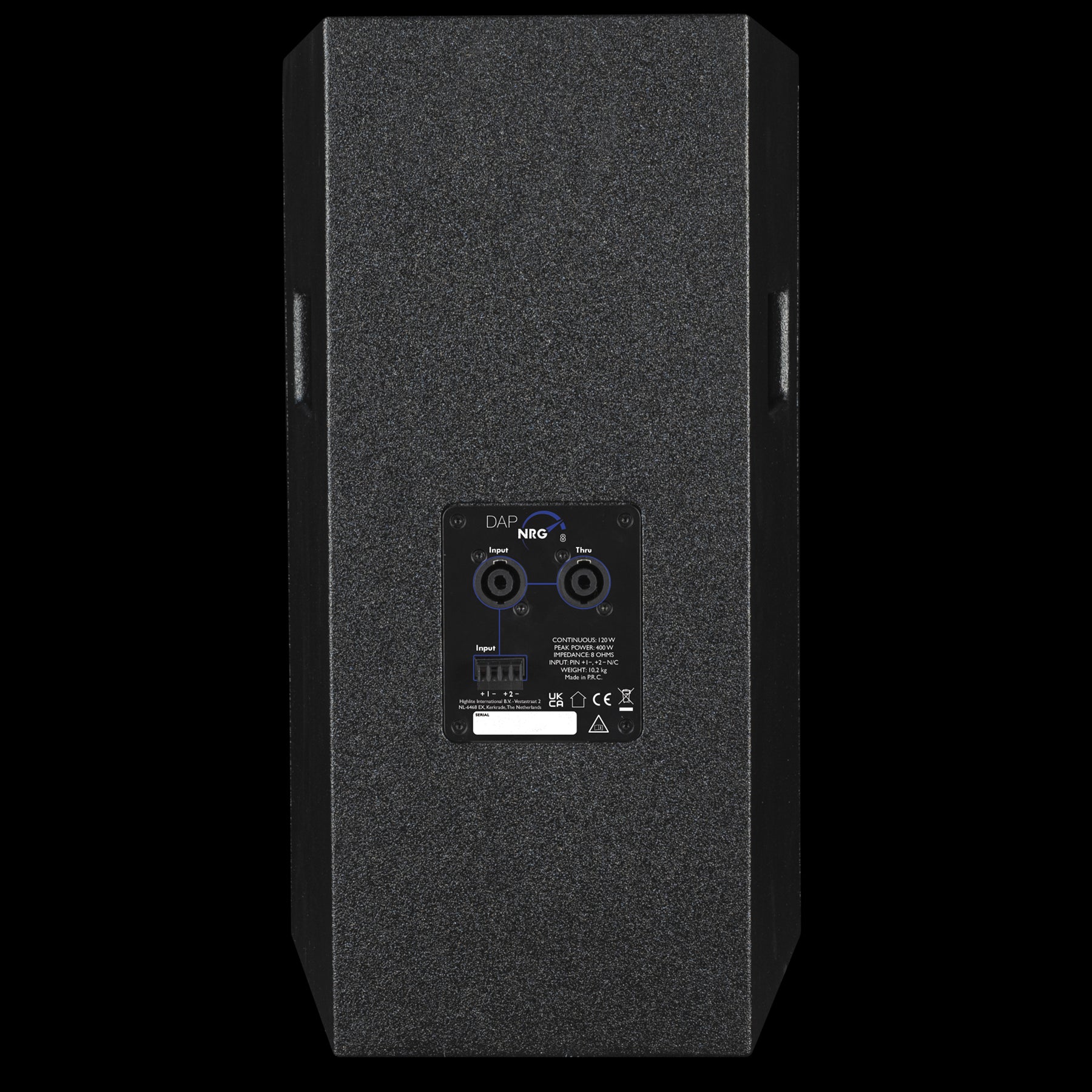

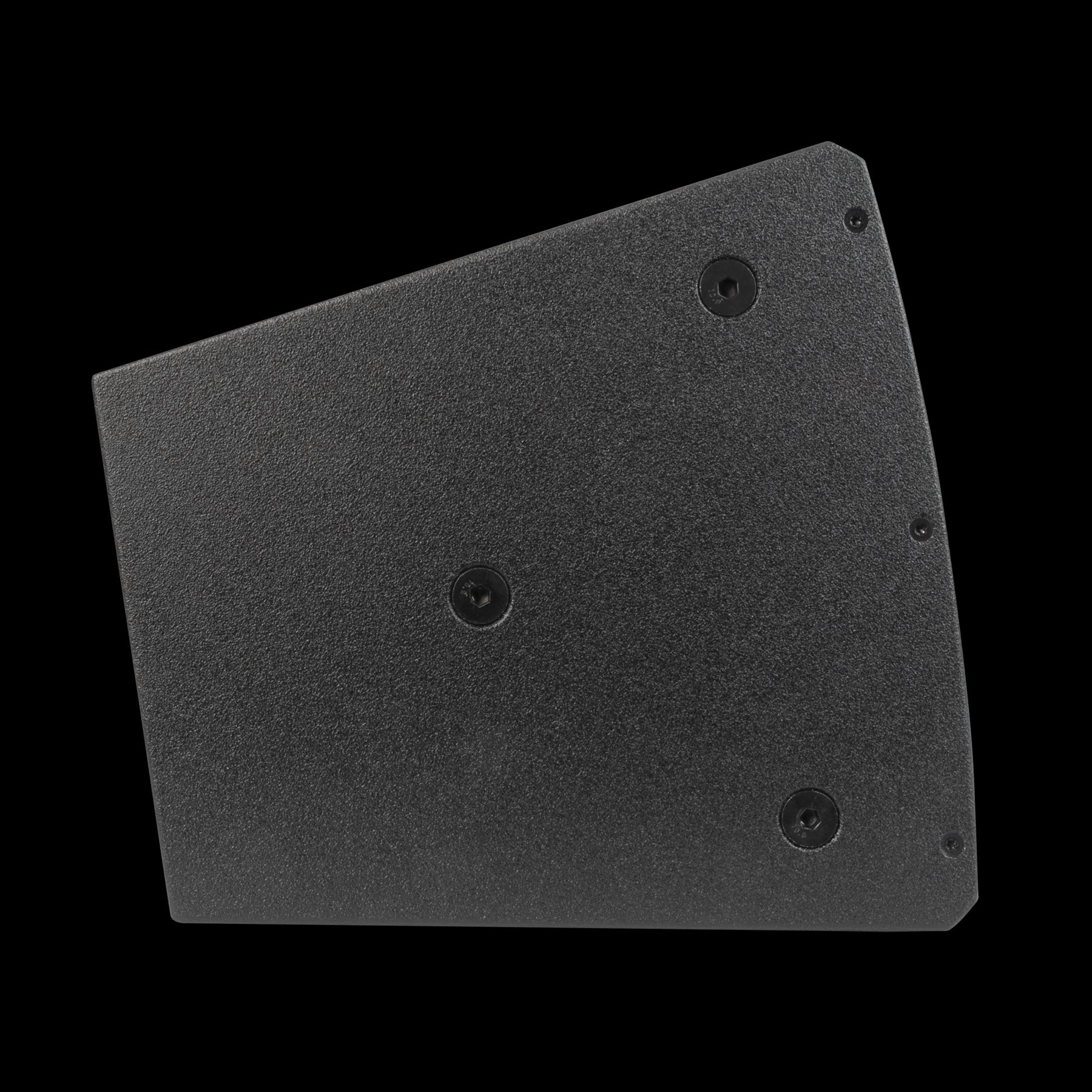

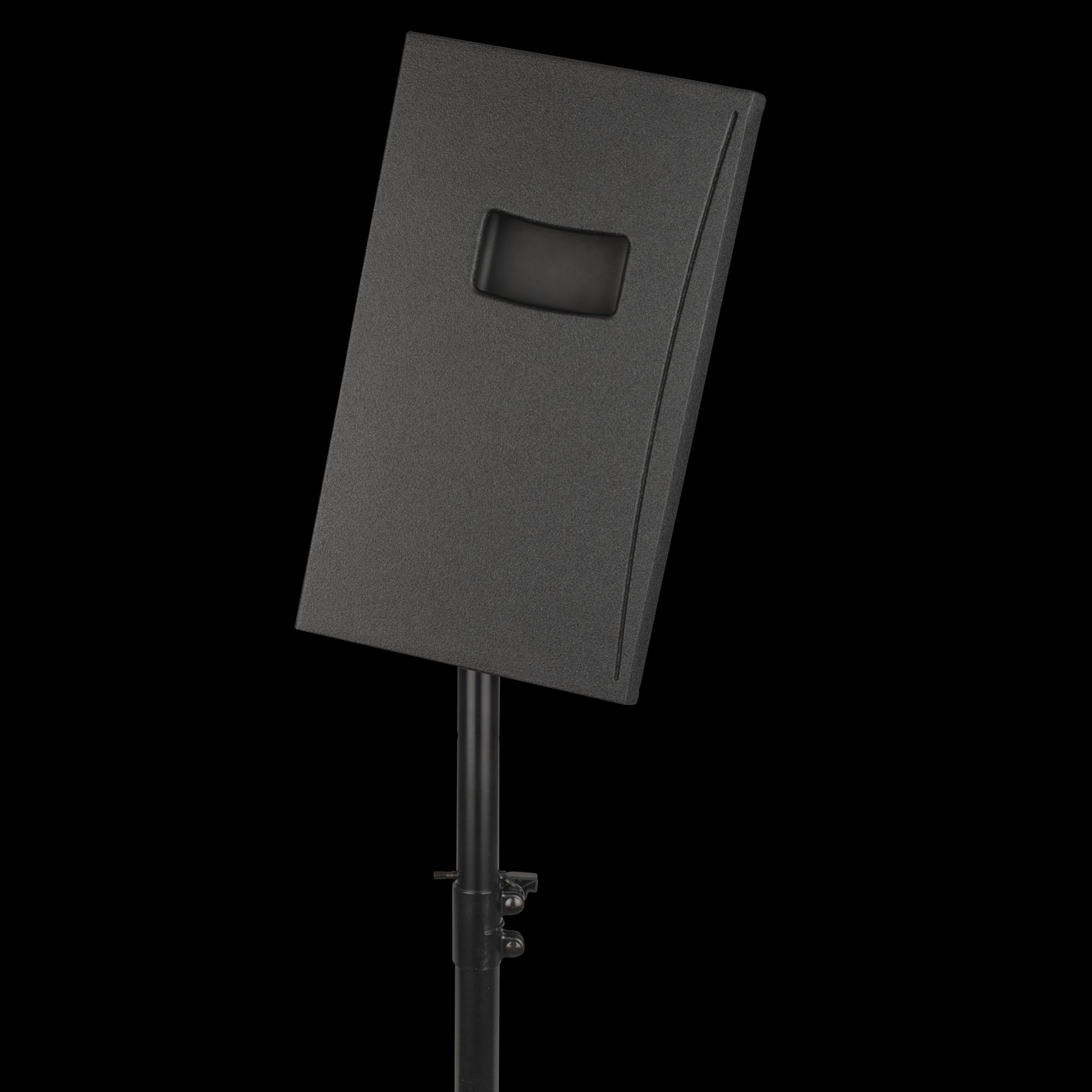

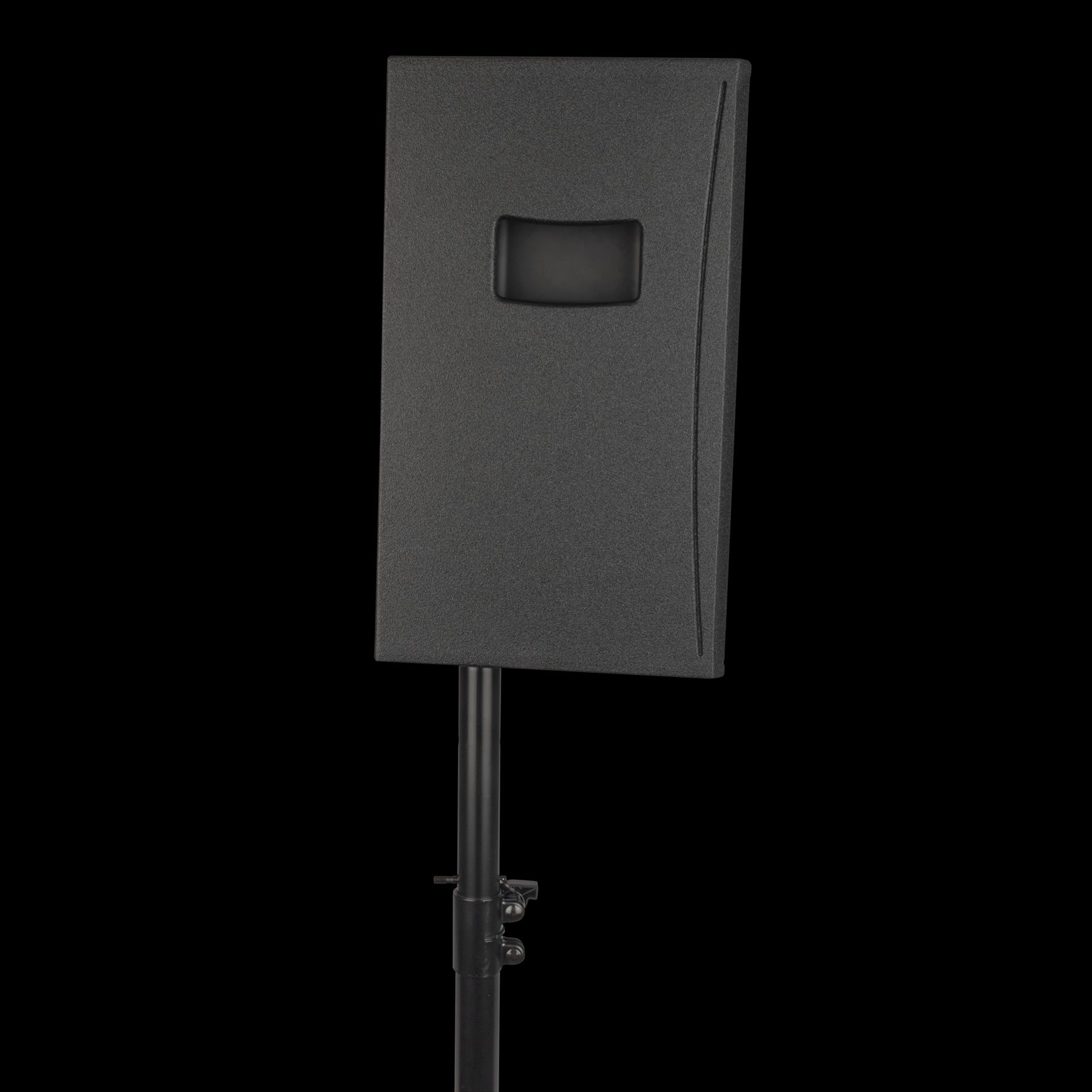

The sturdy, lightweight plywood cabinet has a double-angled top hat (0° and 5°), allowing you to point the cabinet downwards when mounting it on a pole. It uses 4-pole speaker in and thru connectors and offers an additional 4-pin terminal connector, which is especially useful for permanent installation applications. To get the most out of the NRG-8, we recommend using a 4th order high-pass filter at 60 Hertz and adding an NRG series subwoofer.

Specifications:

Inputs
RMS Input Power 120 W
Peak Input Power 400 W

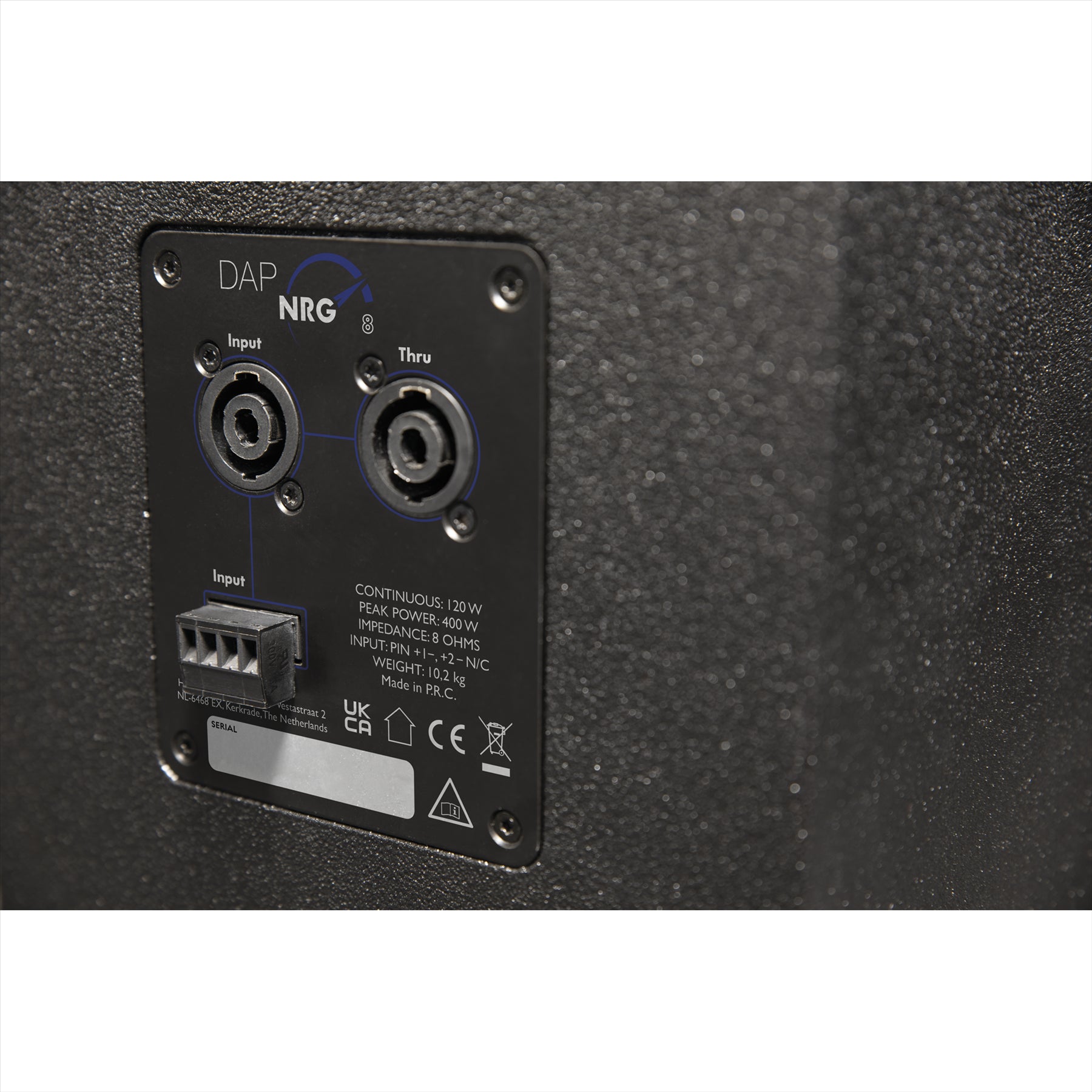

Passive Input Connection Speaker Connector 4 pole , Terminal
Outputs
Passive Output Connector Speaker Connector 4 pole
Audio Specifications
Speaker System 2-way
Speaker Sensitivity (1 W/1 m) 93 dB
Speaker Impedance 8 Ω
Maximum SPL at 1 m 114 dB
Frequency Response (-6 dB) Minimum 80 Hz
Frequency Response (-6 dB) Maximum 20000 Hz
Woofer Diameter 8 "
Woofer Voice Coil Diameter 1.5 "
Woofer Magnet Type Ferrite
Compression Driver Diameter 1 "
Compression Driver Voice Coil 1.4 "
Compression Driver Magnet Type Ferrite
Dispersion Angle (Horizontal) 90 °
Dispersion Angle (Vertical) 60 °
Mechanical Specifications
Height (mm) 475 mm
Width (mm) 275 mm
Depth (mm) 280 mm
Material Plywood
Weight 10.2 kg
IP Rating IP20 (indoor use only)
Colour Black
Finish Painted

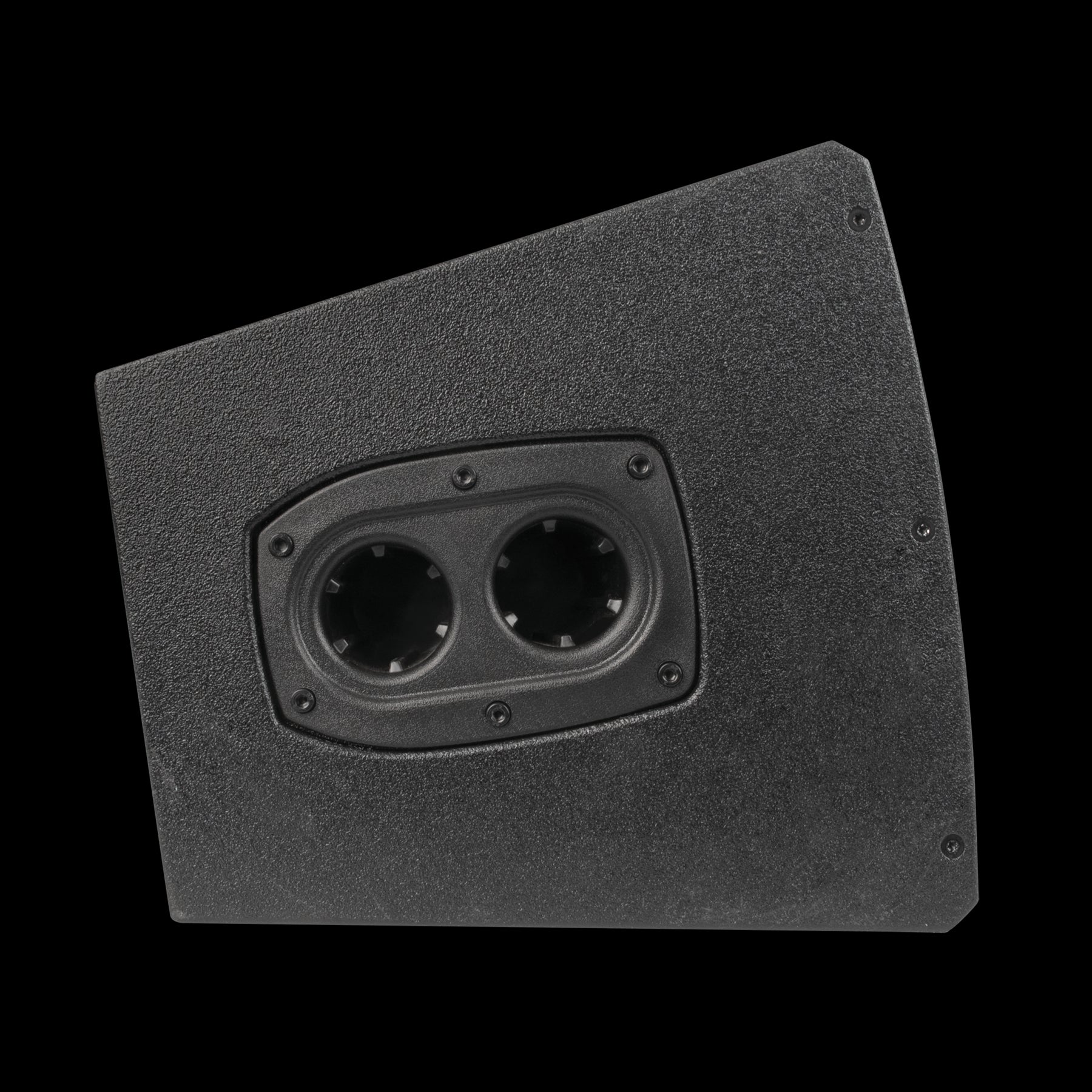

Speaker Adapter Diameter 35 mm
Product Properties
Useable as Monitor/Wedge No

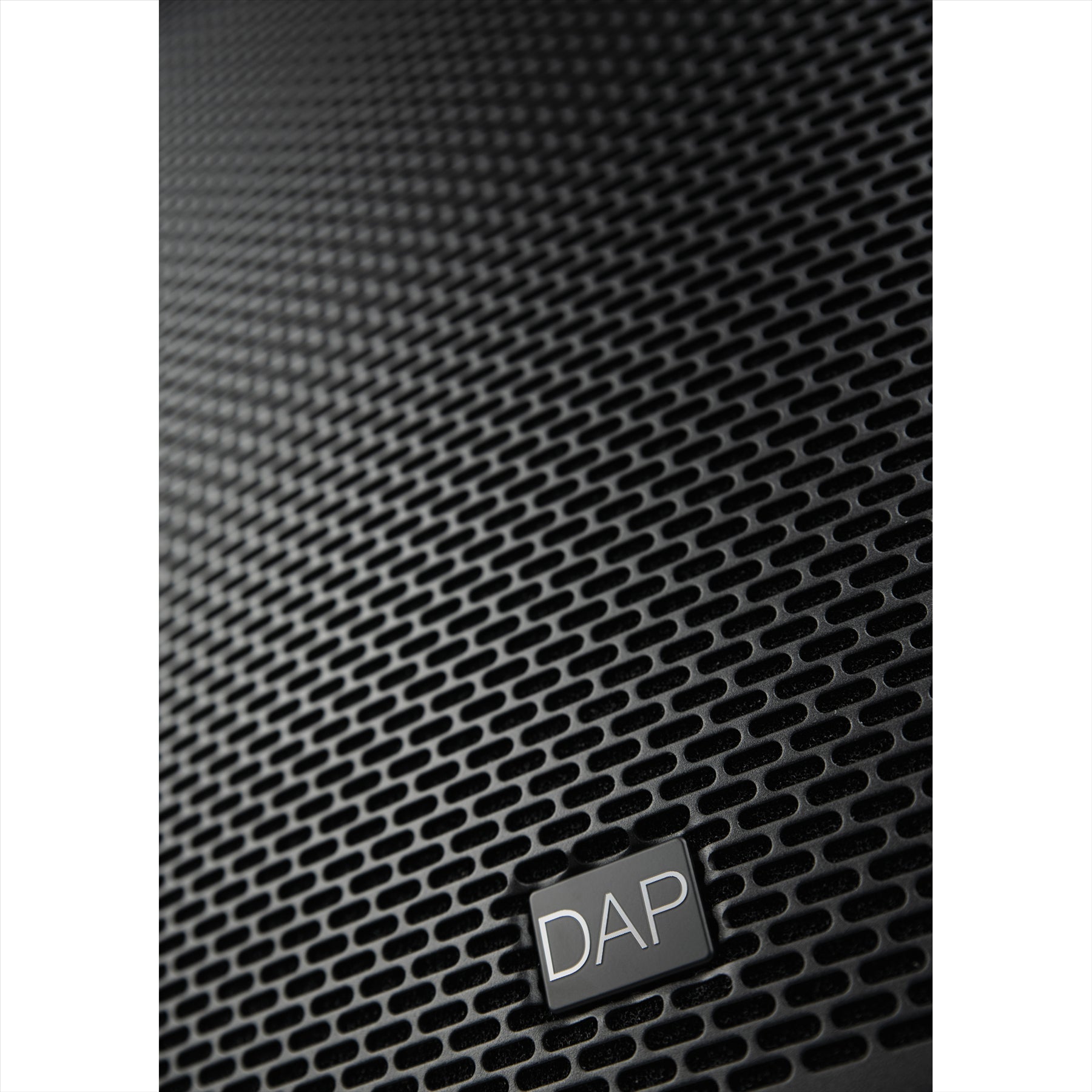

Speaker Grille Material Steel
Speaker Handle Positions Left side, Right side

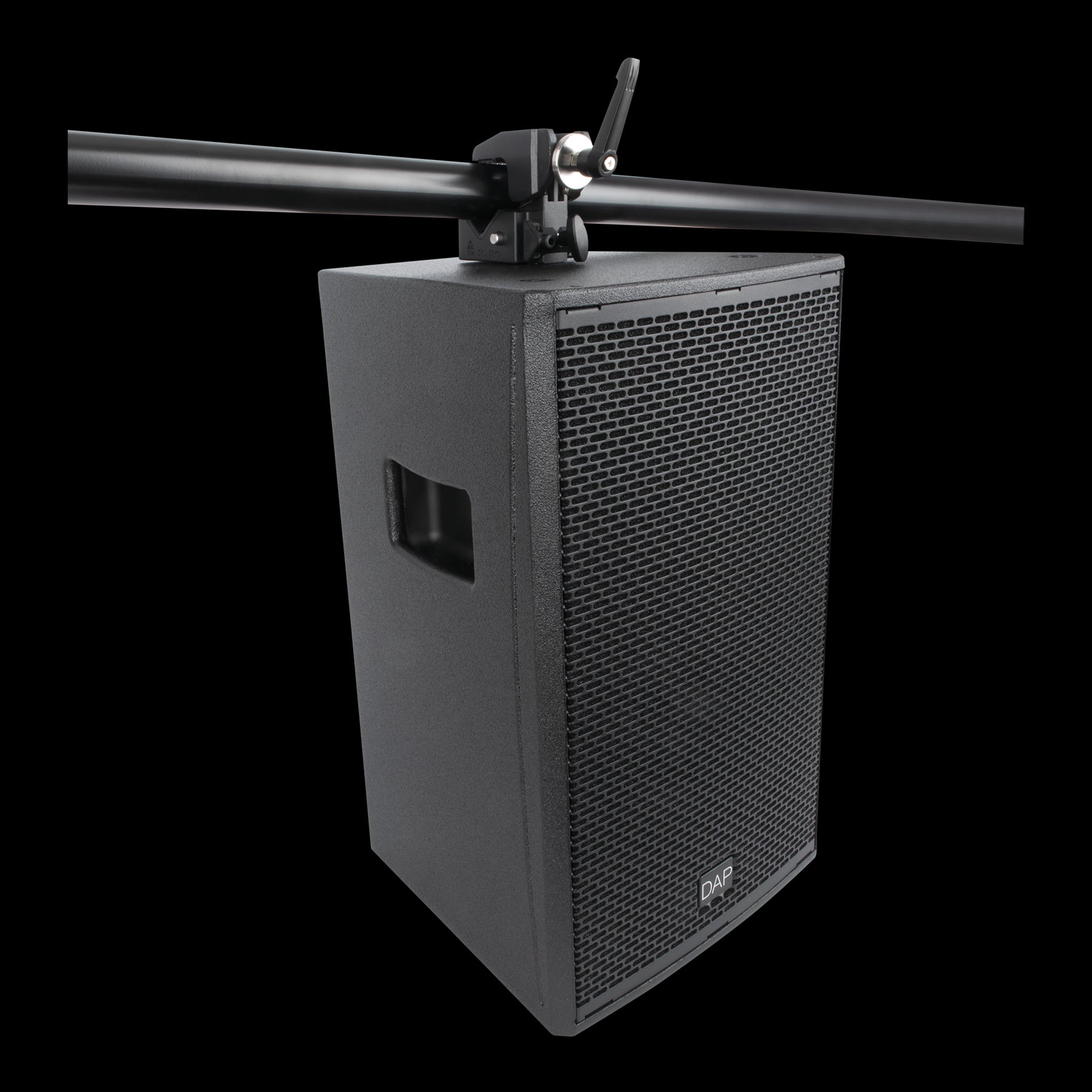

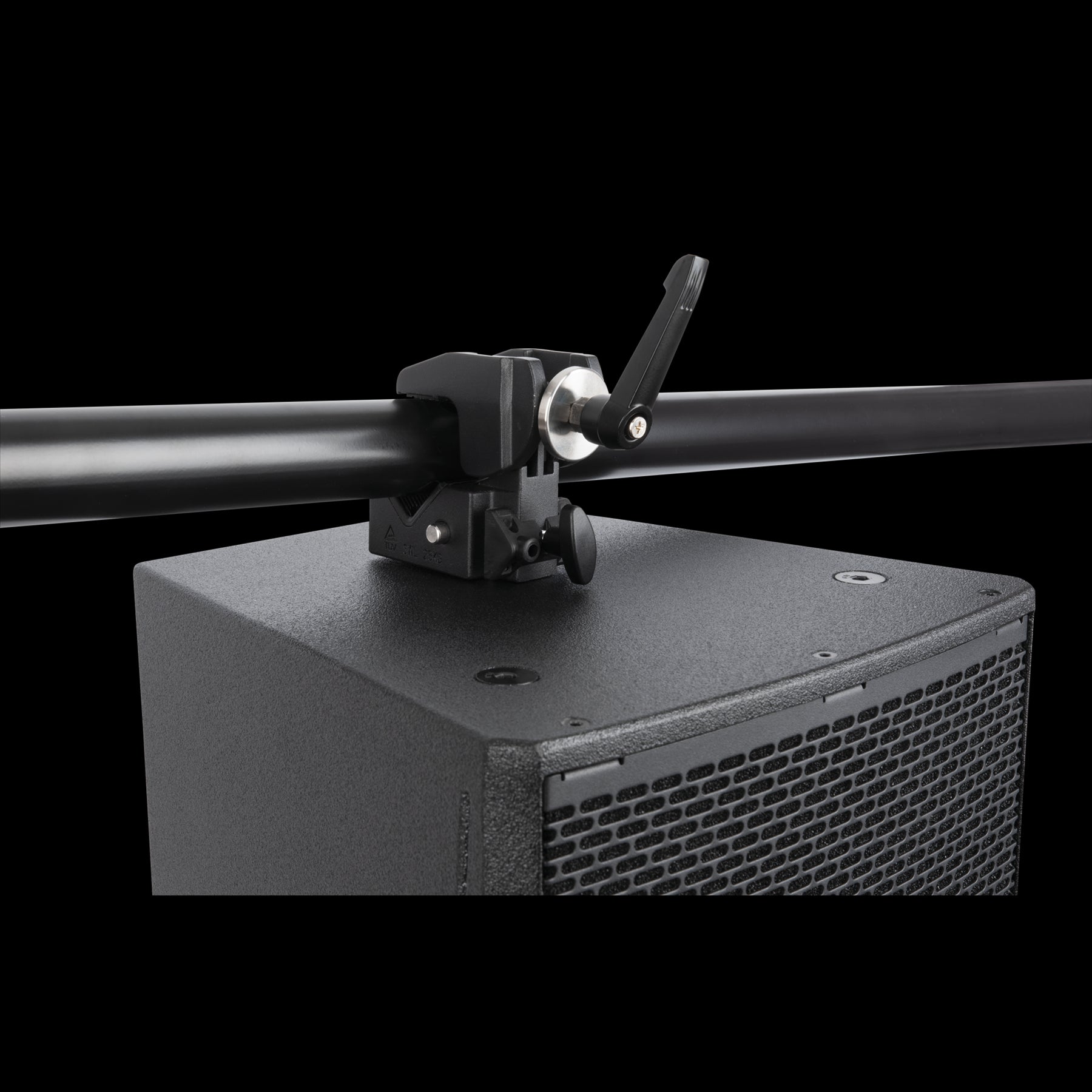

Rigging
Rigging Eye Thread M10
Thermal Specifications
Maximum Ambient Temperature 40 °C
