DAP Live Mini 12" Active Column Line Array Speaker System 1400W

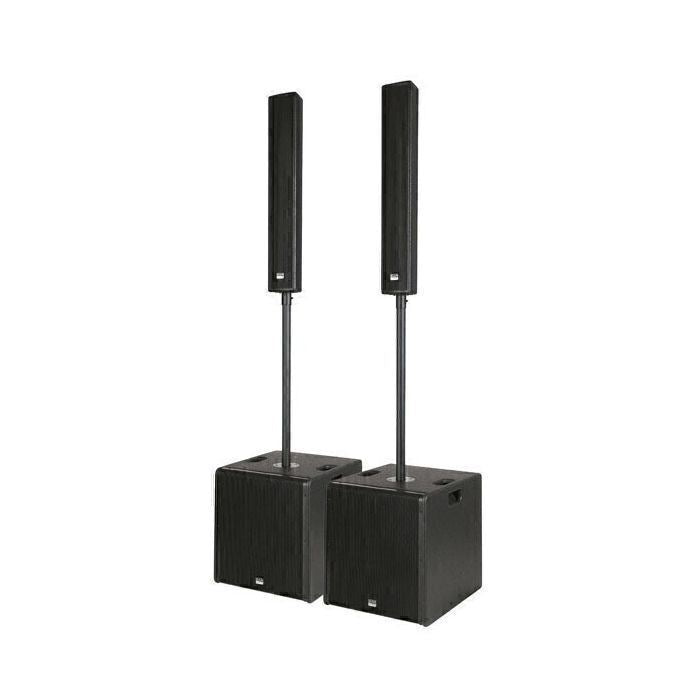

The DAP Live mini is an active plug and play column speaker system for speech, Dj and small live performances. The set contains 2 active subs, 2 column speakers, 2 distance tubes and 2 speakon cables. The 2 passive columns are equipped with 8 pcs 3,5" speakers. Because of the coupling of 8 speakers in a compact array housing this system gives an optimal sound coverage with a direct and clear sound. Another advantage of the Live mini is its weight and size. With only 20Kg on the active sub and 7 kg on the column this set can be transported and set up by one person. The active sub has a built-in DSP with 2 sound presets and a limiter network that protects the complete system. The sub also has an integrated mini mixer which allow you to mix a microphone with an instrument or line signal.


Specification

Subwoofer:
System: 1x 12" compact vented active PA subwoofer
Amplifier Output Low: 350 Watt RMS @ 4 Ohm
Amplifier Output High: 350 Watt RMS @ 4 Ohm
Freq. Response (-6 dB): 40 - 500 Hz
Sensitivity 1W @1 m: 96dB
Input 1: (MIC/Line) Combo XLR/Jack
Input 2: (Instrument/Line) Combo XLR/Jack, RCA
Mix Output: Male XLR balanced
Speaker output: Speakon
Control: Volume Control
Power ON
2 Sound presets
Electric Protection: Thermal/Convection-Fan/Overload/Digital Lim./Compressor
Adapter: 35mm metal pole-mount
Enclosure: 15mm Plywood scratch resistant paint, metal grill with foam, rubber feet
Cooling: Temperature controlled fan
Input voltage: 230V, 50/60Hz
Power consumption: 600W

Satellites:
System: 8x 3.5" passive column satellite speaker
Power Handling: 240W
Nominal impedance: 4 Ohm
Freq. Response (-6 dB): 140 - 20,000 Hz
Sensitivity 1W @1 m: 97dB
Coverage: 80° Horizontal
Input: Speakon
Adapter: 35mm metal pole-mount
Enclosure: 15mm Plywood scratch resistant paint, metal grill with foam
Included accessories: 2x Distance tube, 2x 3m Speakercable

Weight
Weight: 6,95Kg
Weight: 20,5Kg

Dimensions
Dimensions (HxWxD): 130 x 760 x 103mm
Dimensions (HxWxD): 430 x 450 x 480mm
