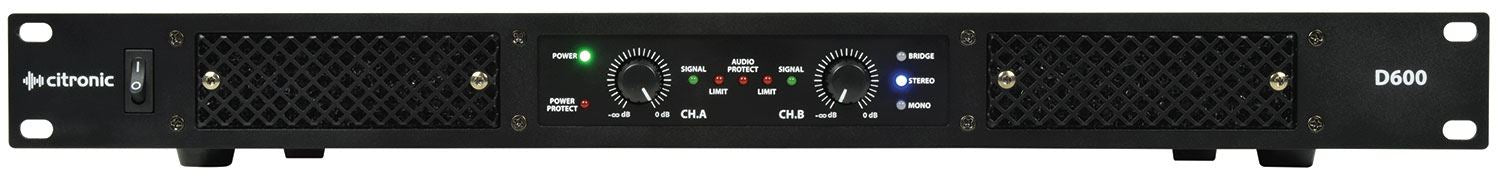

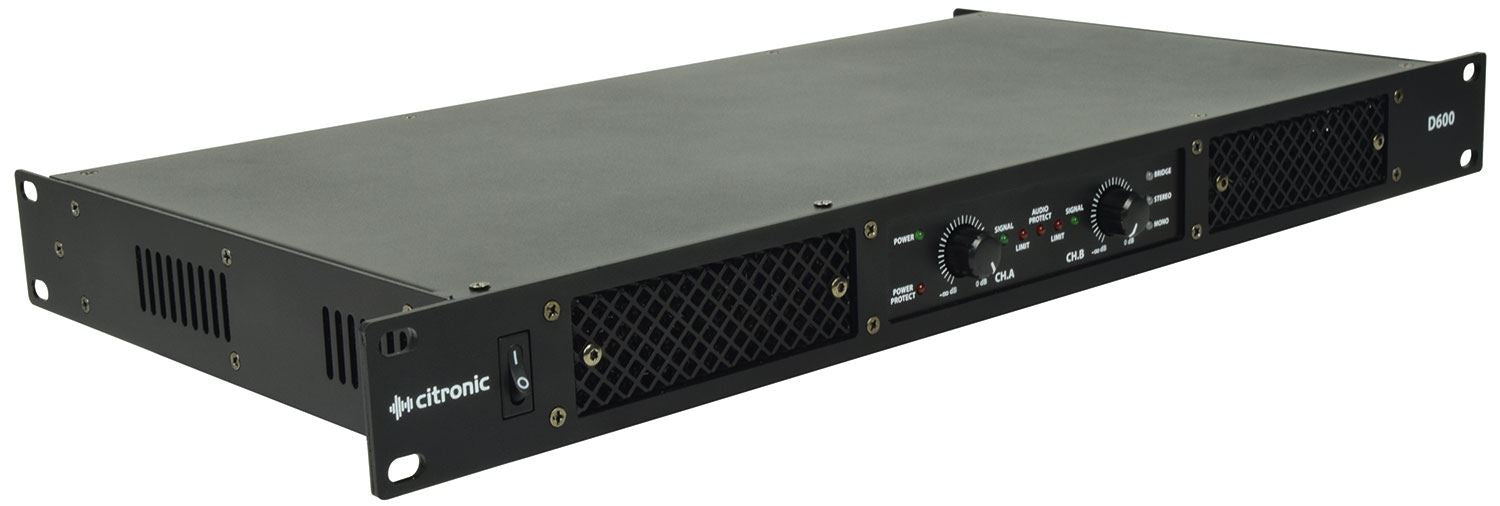

Citronic D600 1U Power Amplifier 2x 300W RMS PA Sound System

Description:

D-Series Class-D Power Amplifiers
Stereo power amplifier in a lightweight 1U rack-mountable housing. Class-D circuit architecture efficiently converts power into impactful audio for driving medium to large speaker cabinets. Custom cool guide technology ensures consistent and reliable operation and an inbuilt limiter circuit engages at peak output to prevent speaker overload. Options for parallel and bridge mode with selectable input levels and 75Hz low cut filter allow for different confgurations to handle even the most demanding of sound reinforcement duties.

Cool and efficient operation even at high output
Compact and lightweight 1U rack format
Switchable parallel and bridge modes
Power supply 220-240Vac, 50/60Hz (IEC)
ModesStereo, Parallel (mono), Bridge (mono)
Input sensitivity 0.775V - 1.0V - 1.44V switchable
Low-cut filter 75Hz switchable

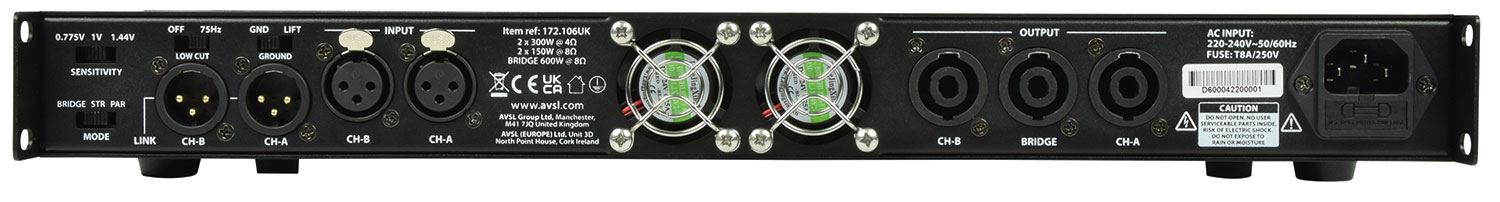

Input connections L+R XLR female (L+R XLR male through)
Output connections L+R SPK connectors (+1 for bridge mode)
Dimensions 482 x 245 x 44mm172.110UK
Fuse T8A (20 x 5mm)
Power rms @ 4 Ohms 2 x 300W
Power rms @ 8 Ohms 2 x 150W
Bridge power @ 8 Ohms 1 x 600W
Weight 3.77kg
