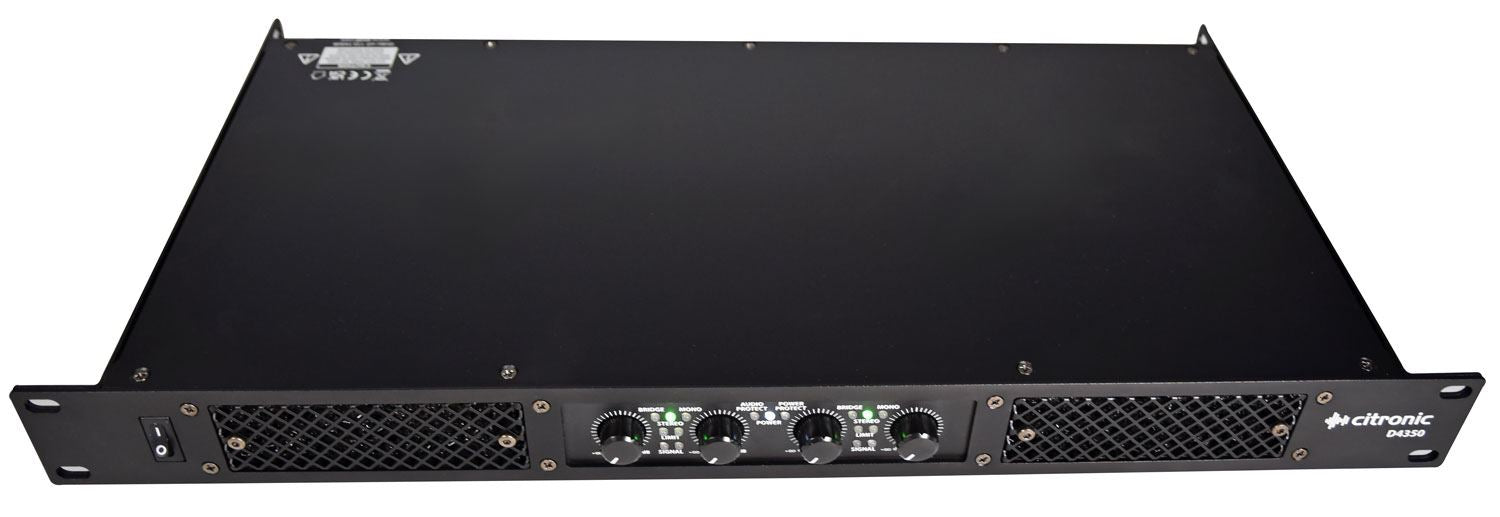

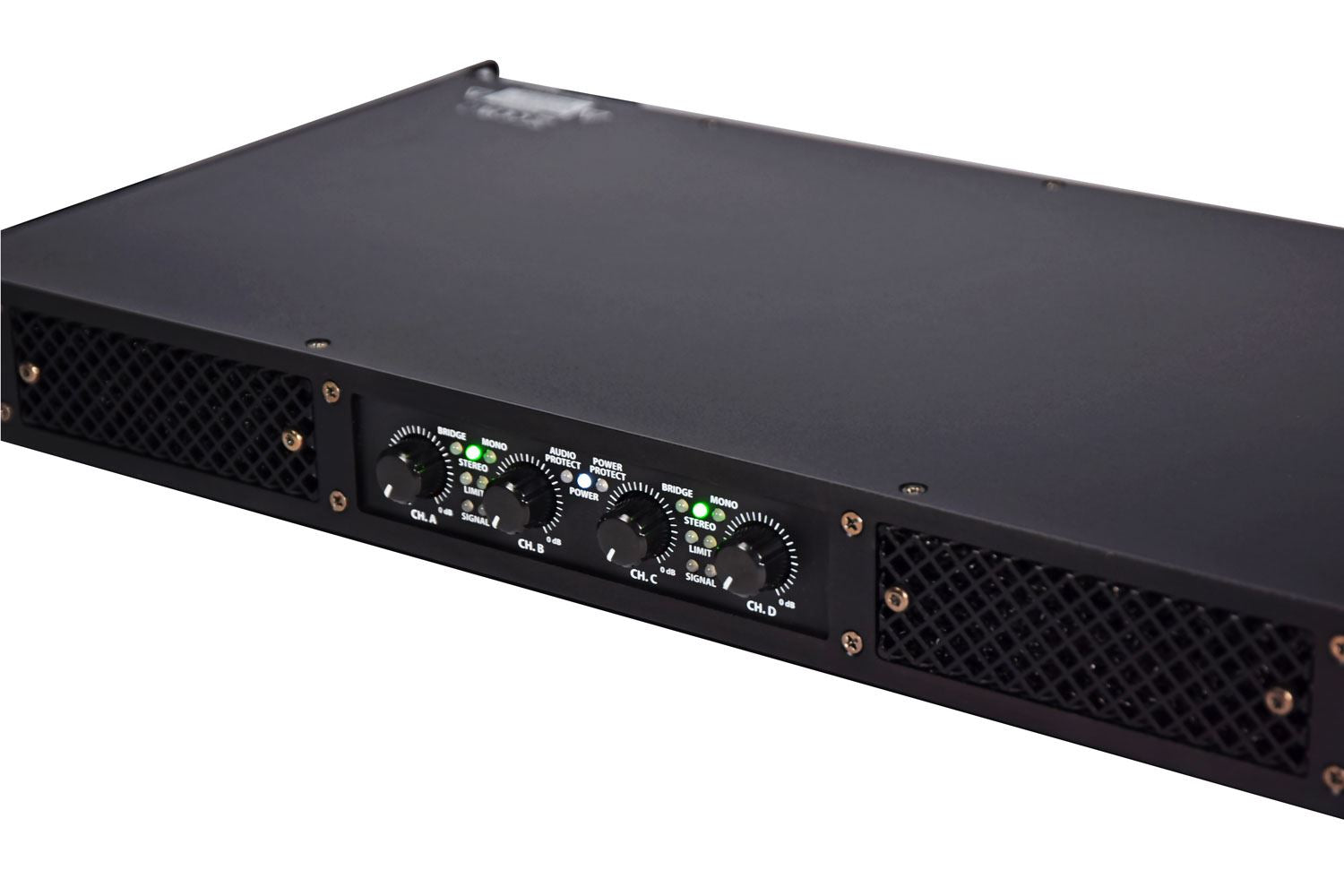

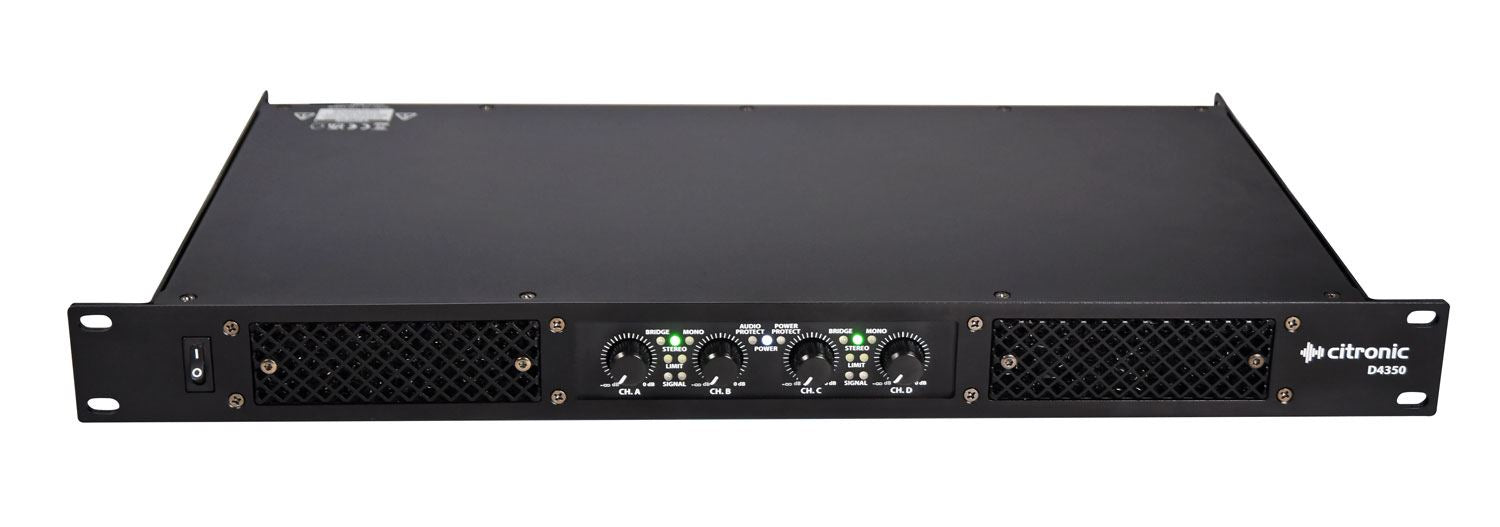

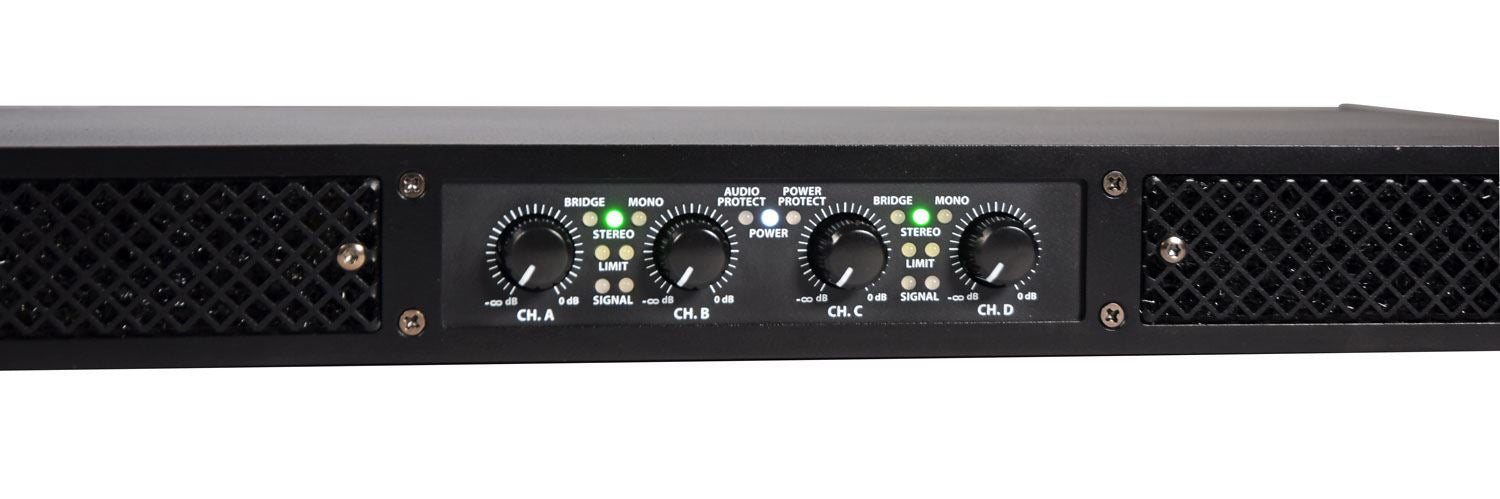

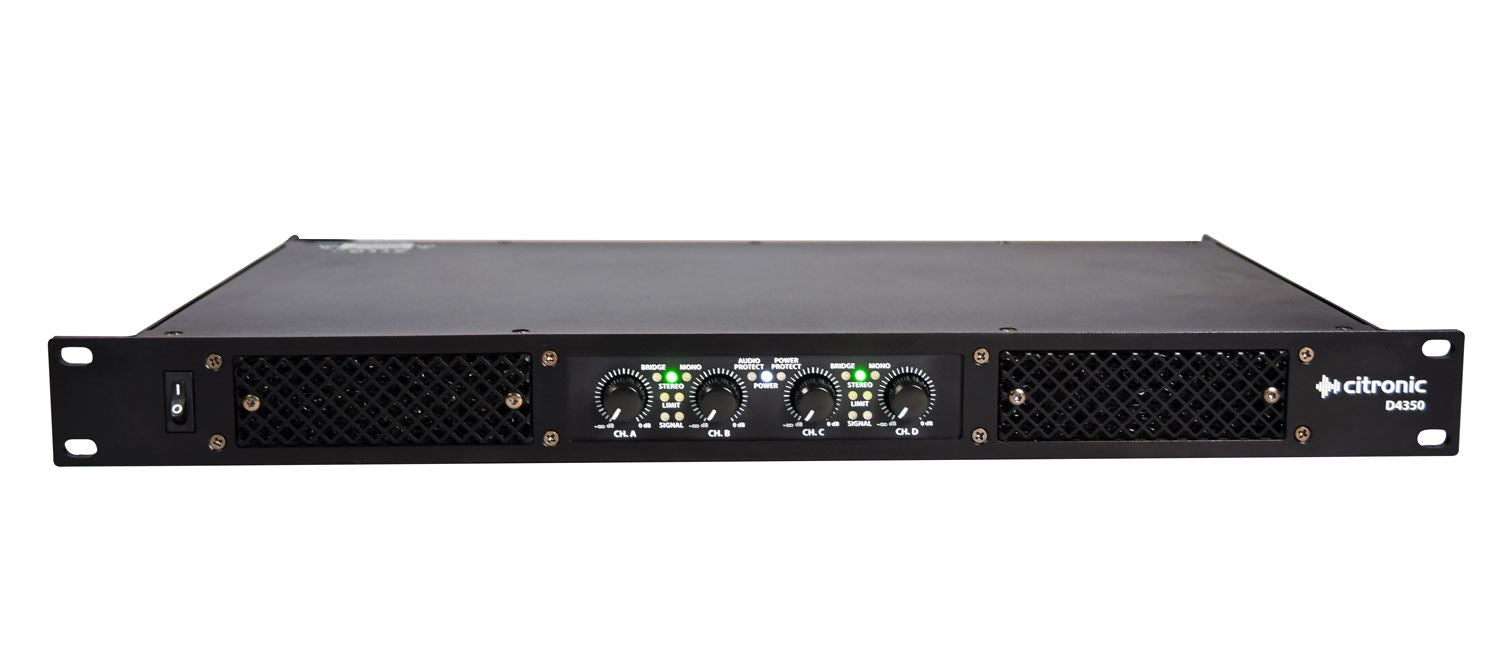

Citronic D4350 D-Series Quad Power Amplifier 4 x 350W

Description:

Quad digital power amplifier in a lightweight 1U rack-mountable format. An energy-efficient switch-mode power section and class-D amplifiication circuit delivers accurate power-on-demand to four independent speaker outputs. Proprietary cool guide technology provides stable temperature management for dependable operation. Each pair of output channels can be separately parallel switched or bridged as a full or part stereo amplifier configuration. For channel A, there is a switchable 120Hz low-pass filter for use with subwoofers and a channels C and D have a switchable stereo pair of 120Hz high pass filters to effectively focus power in full-range cabs operating as mid-tops in conjunction with sub-woofers. For permanent or mobile installations, the D-series offers an invaluable and flexible problem solver for audio designers and sound engineers.

Features:

Switchable bridge or parallel mono modes
Switchable high and low pass filters
Configurable as a quad, stereo or 2.1 system
Fully balanced audio signal path
Full audio and power protection with peak limiter

Specifications:

Output : rms @ 4 Ohms4 x 350W
Output : rms @ 8 Ohms4 x 200W
Bridge power @ 8 Ohms2 x 700W (both pairs of channels bridged)
Weight 5.083kg
Power supply 220-240Vac, 50/60Hz (IEC)
Modes2 x Stereo, Parallel (mono), Bridge (mono)
Input sensitivity 0dB = 0.775Vrms
CrossoverInput A 120Hz LPF and C+D 120Hz HPF (all switchable)

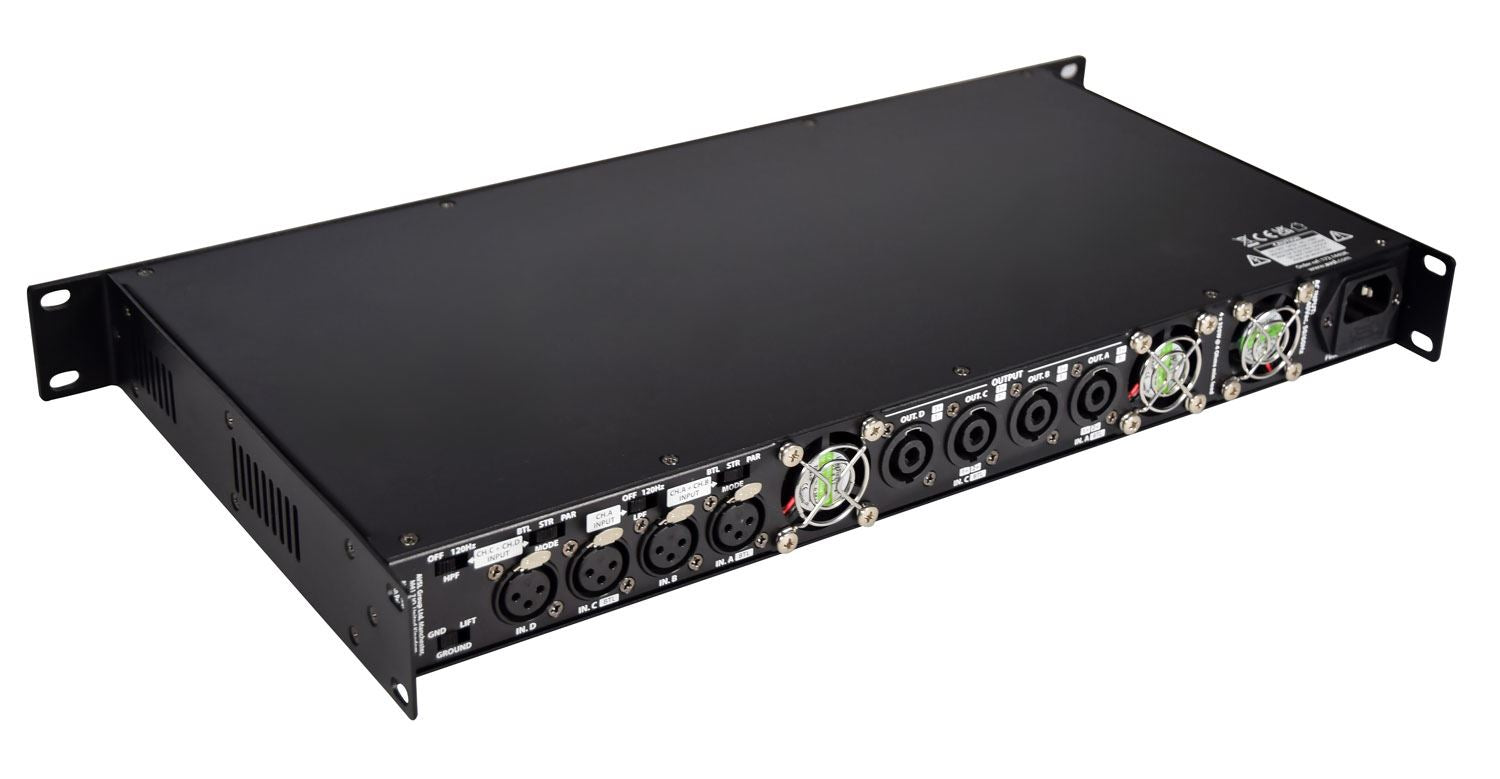

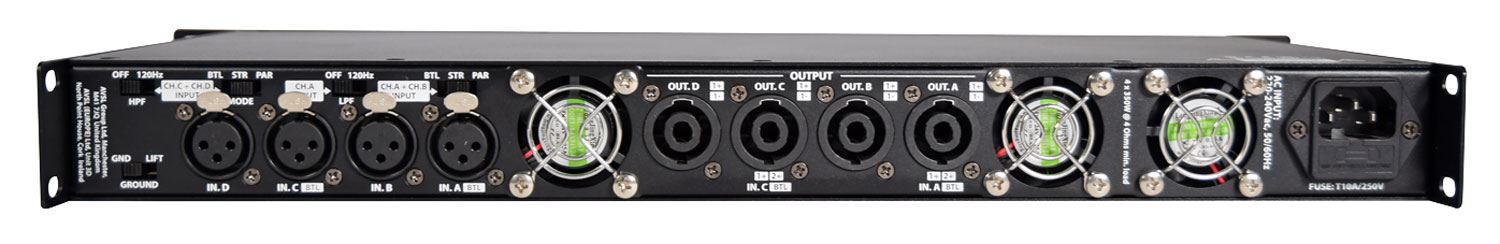

Input connections 4 x XLR female
Sound output 4 x SPK connectors
Dimensions 482 x 248 x 44mm (without feet)
