Citronic D300 Class-D Power Amplifier 2 x 150Wrms

Description:

Stereo power amplifier in a lightweight 1U rack-mountable housing. Class-D circuit architecture efficiently converts power into impactful audio for driving medium to large speaker cabinets. Custom cool guide technology ensures consistent and reliable operation and an inbuilt limiter circuit engages at peak output to prevent speaker overload. Options for parallel and bridge mode with selectable input levels and 75Hz low cut filter allow for different confgurations to handle even the most demanding of sound reinforcement duties.

Features:

Cool and efficient operation even at high output
Compact and lightweight 1U rack format
Switchable parallel and bridge modes

Specifications:

Power supply 220-240 Vac, 50/60Hz (IEC)
Modes Stereo, Parallel (mono), Bridge (mono)
Input sensitivity 0.775V - 1.0V - 1.44V switchable
Low-cut filter 75Hz switchable

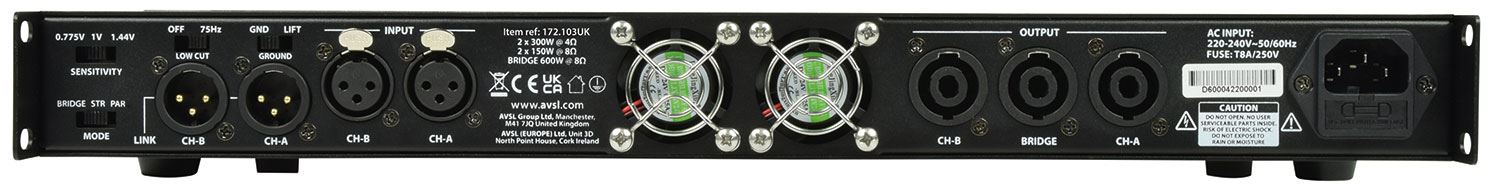

Input connections L+R XLR female (L+R XLR male through)
Output connections L+R SPK connectors (+1 for bridge mode)
Dimensions 482 x 245 x 44mm

Barcode / EAN 5015972231340
Tariff code 8518500090
Country of Origin CN
Package type Box Label
Package dimensions 300 x 95 x 530mm
Package weight 3.97kg
Package quantity 1 unit
Carton dimensions 495 x 320 x 545mm
Carton weight 21.00kg
Carton quantity 5 packages
Pack paper weight 0.40kg
Pack plastic weight 0.07kg
