Citronic CM-series Passive Wedge Monitors 380mmØ (15")

Description:

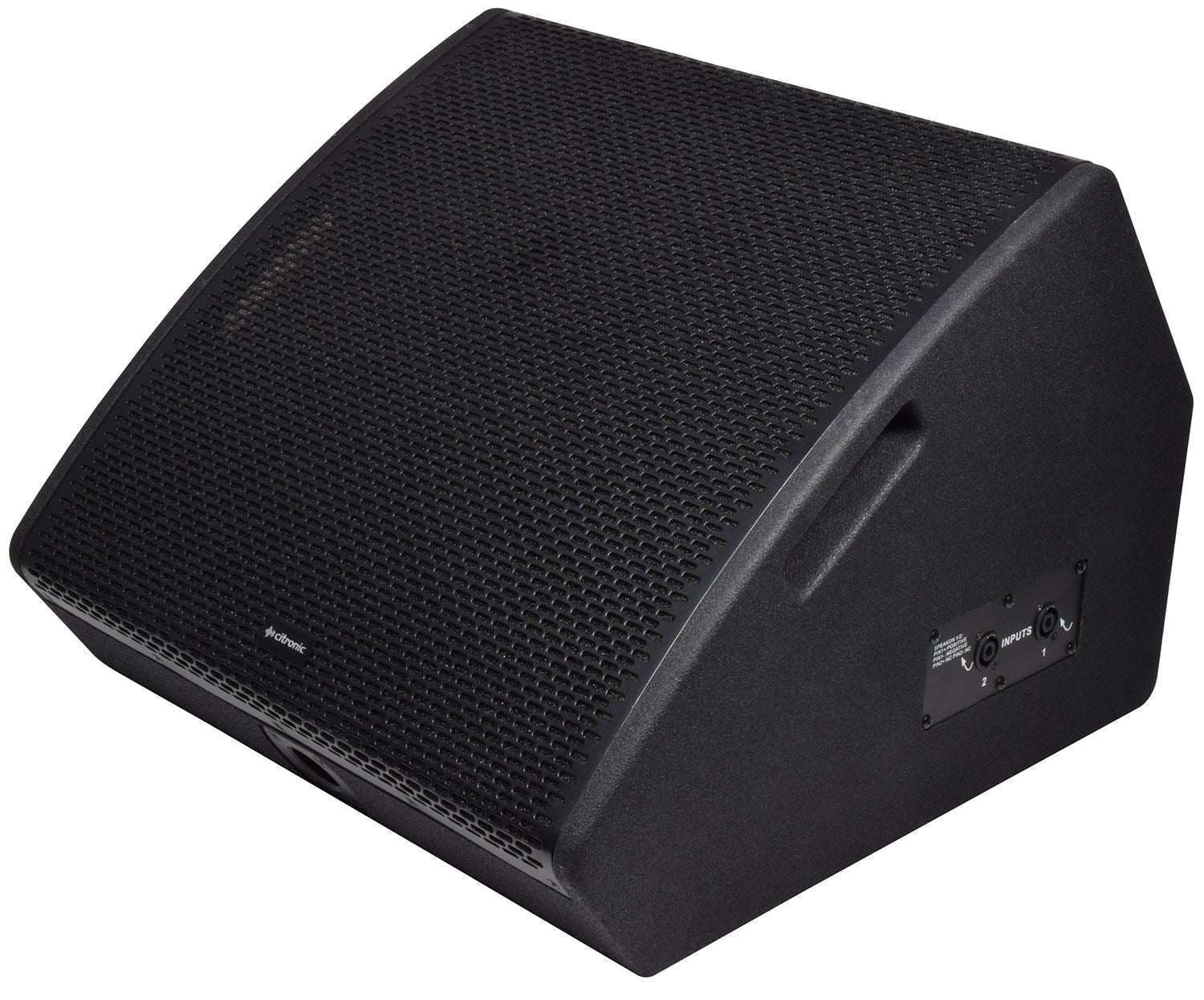

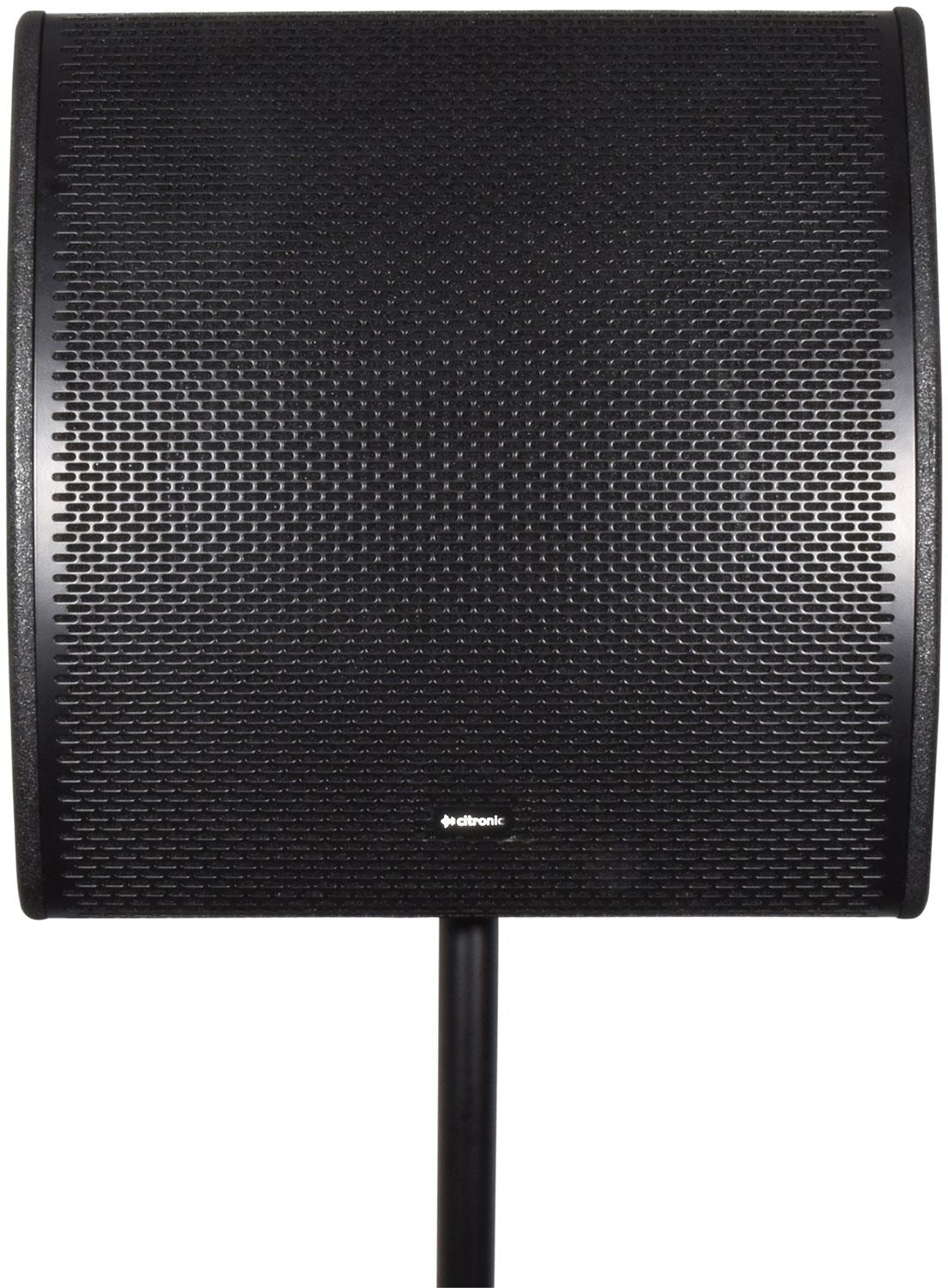

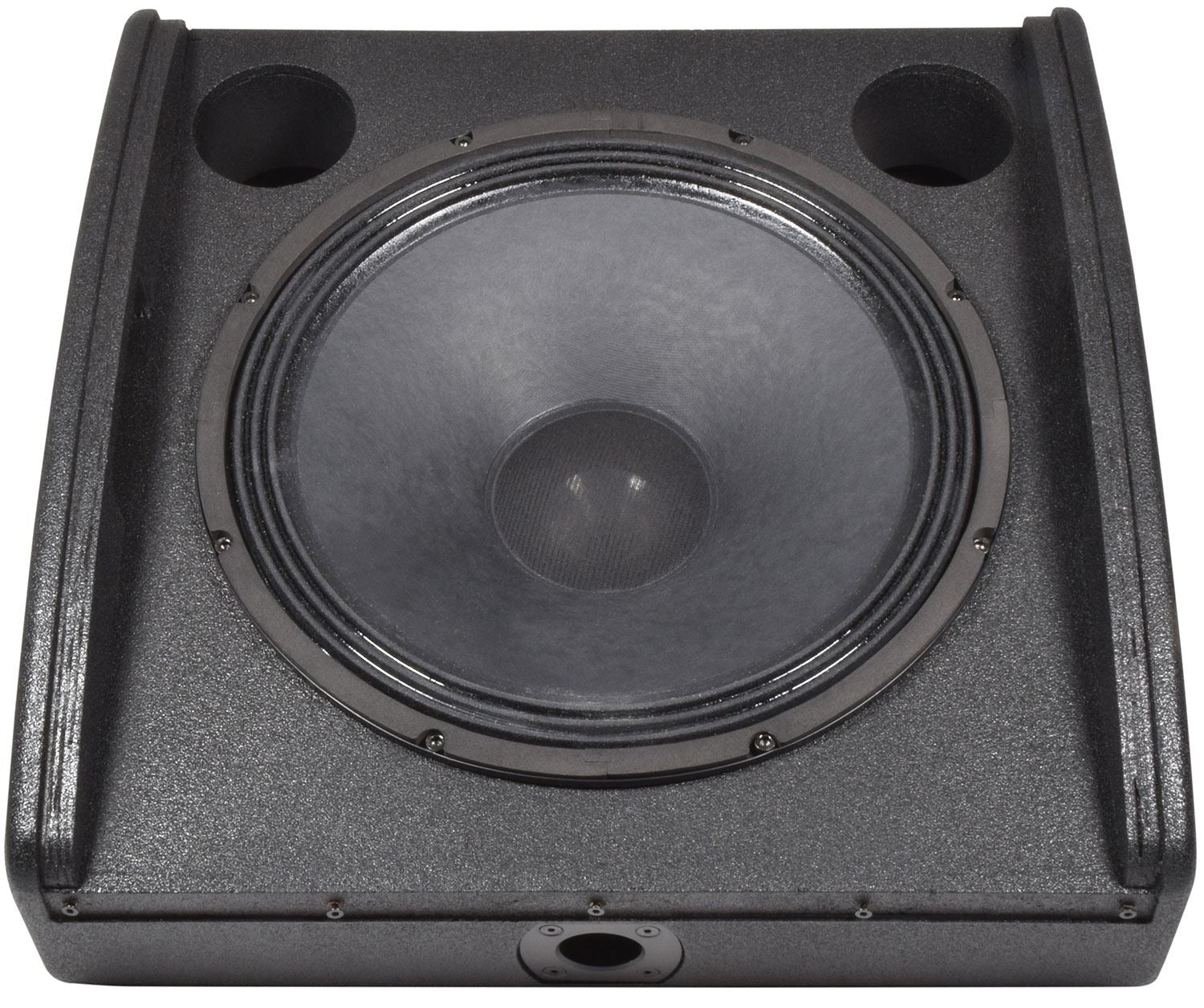

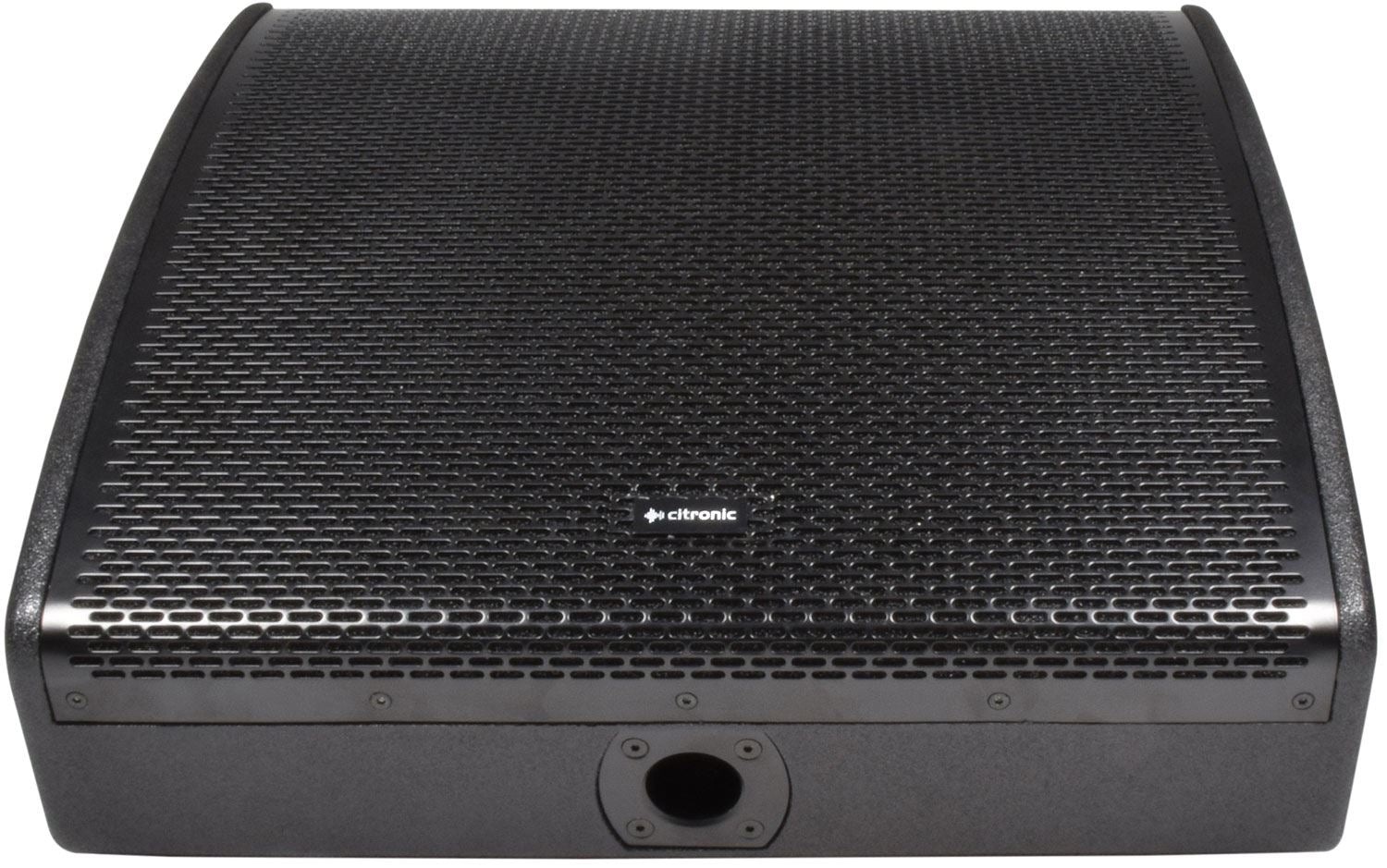

Passive wedge speaker in a durable, texture coated plywood cabinet with minimal footprint. The main driver delivers punchy low frequencies with the help of 2 bass ports and a concentric titanium tweeter is mounted within the main driver for perfectly aligned, sparkling high frequencies. An arched powder-coated steel grille provides heavy duty protection from the rigours of stage performances and forms 2 side handle holes for easy portability. A pair of twist-lock SPK connectors are wired in parallel to accept input from an amplifier and enable connection onto a further passive speaker or monitor if required. The compact size and high power handling means that this is a very capable unit for stage foldback but can equally serve as a compact PA speaker, thanks to its 35mm pole-mount socket and M8 flying points.

Features:

Concentric HF driver
Compact cabinet with minimal footprint

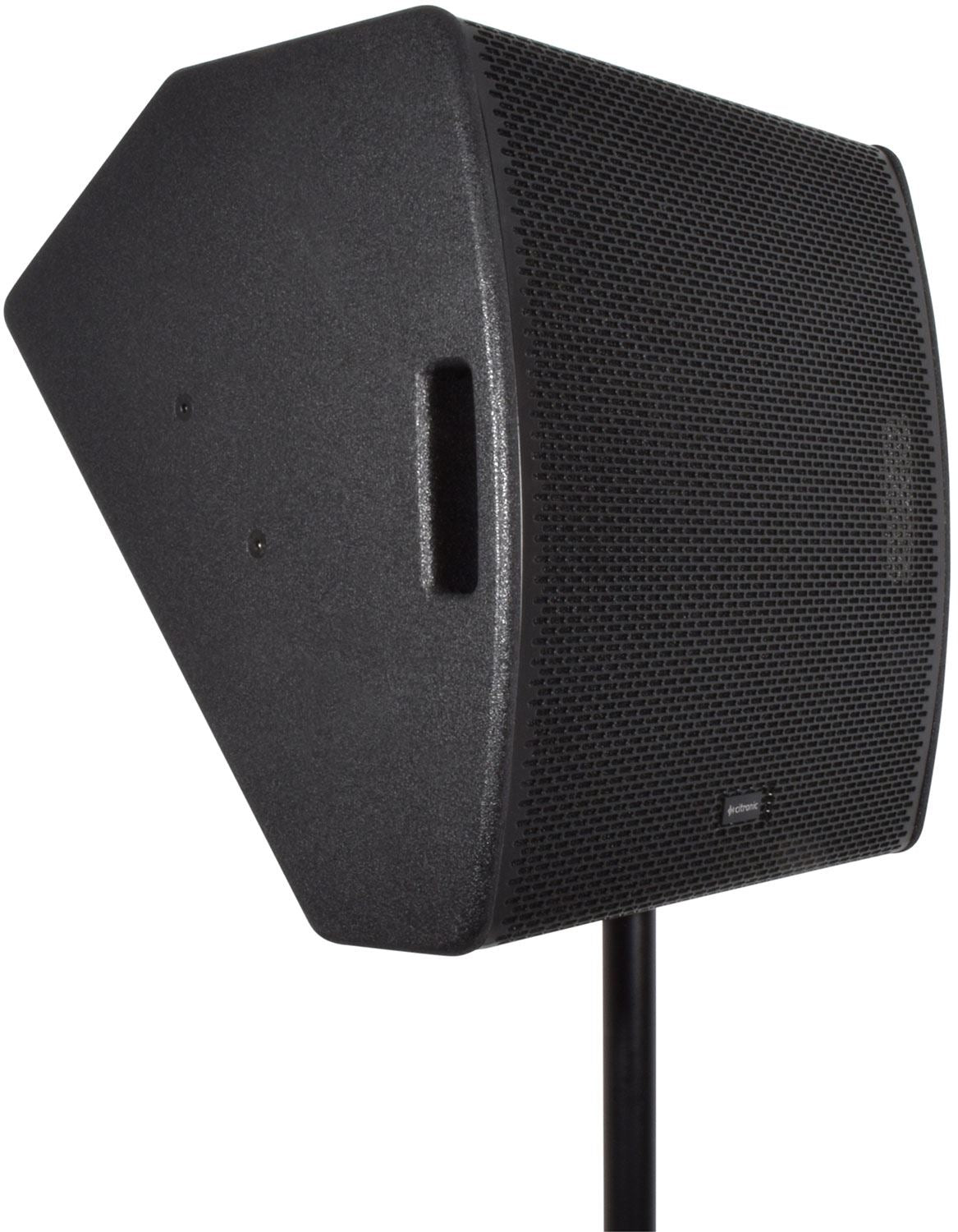

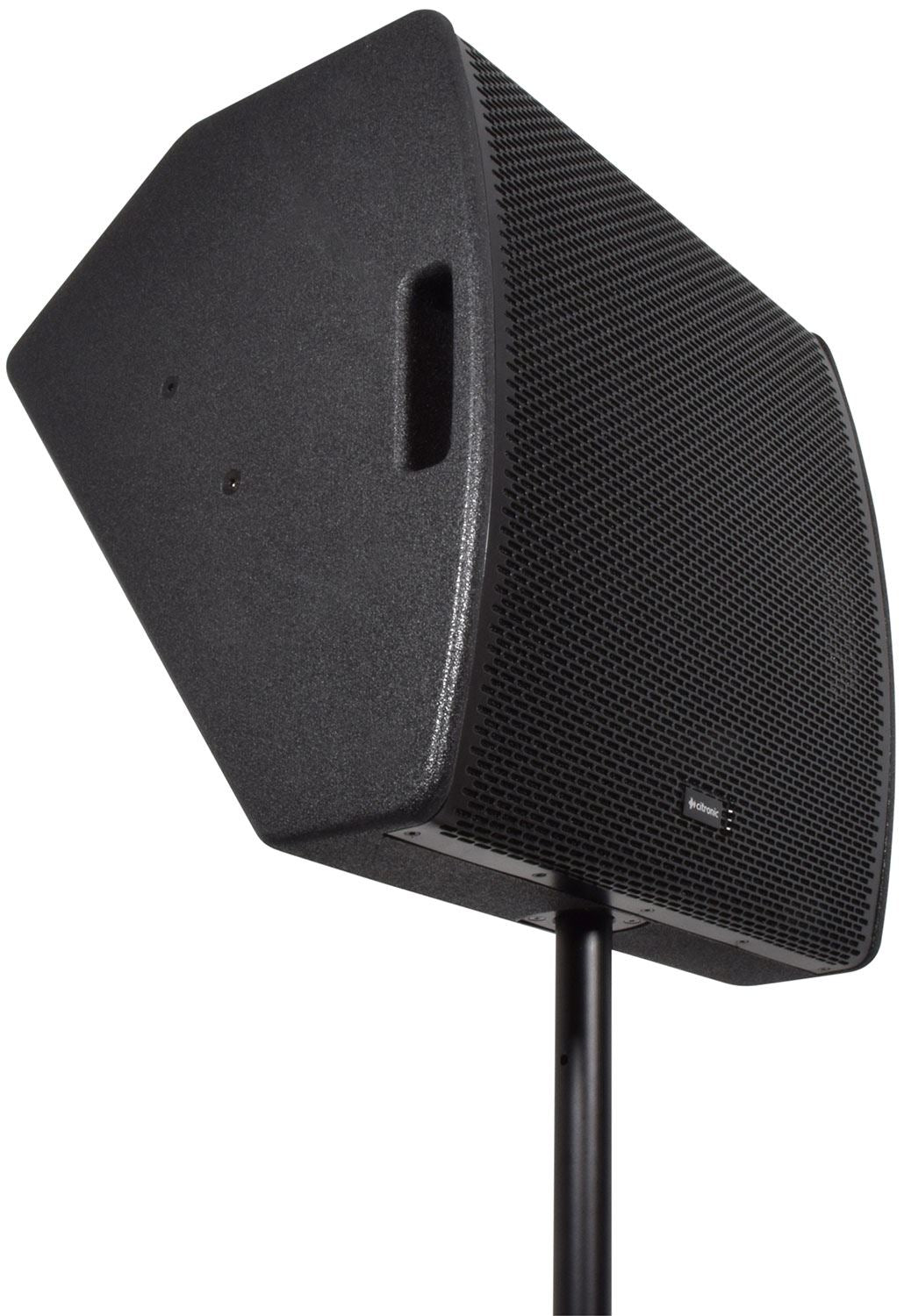

2 side handles and 35mm pole-mount socket
Impedance 8 Ohms

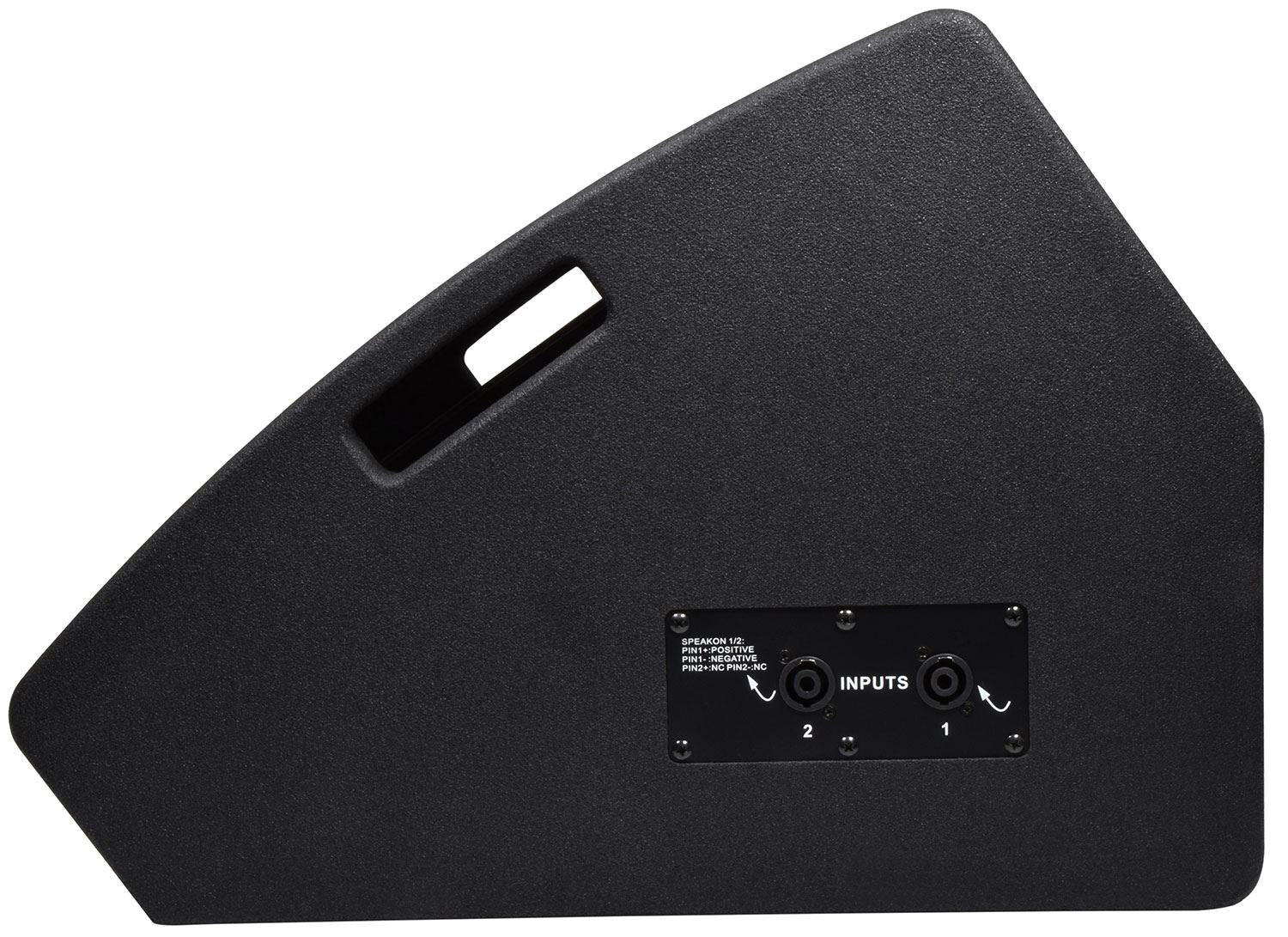

Inputs 2 x SPK connectors (parallel pins 1±)
HF driver 44mmØ (1.75") titanium driver

Specifications:

Main driver 380mmØ (15")
Voice coil 63mmØ (2.5")
Magnet weight 1.50kg (53oz)
Power handling : rms 350W
Power handling : peak 700W
Frequency response 45Hz - 20kHz
Dimensions 528 x 504 x 382mm
Sensitivity 97dB
Weight 13.30kg
