Citronic CASA 4500W Active Speaker Bundle - 2 x 8" and 2 x 10" Subwoofer

Description

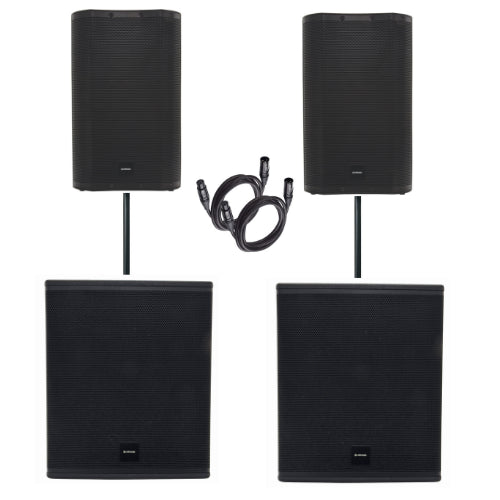

Bundle consisting of 2x Citronic CASA-8A, 2 x CASA-10BA Subwoofers, 2 x adjustable height speaker poles and power/signal cables.

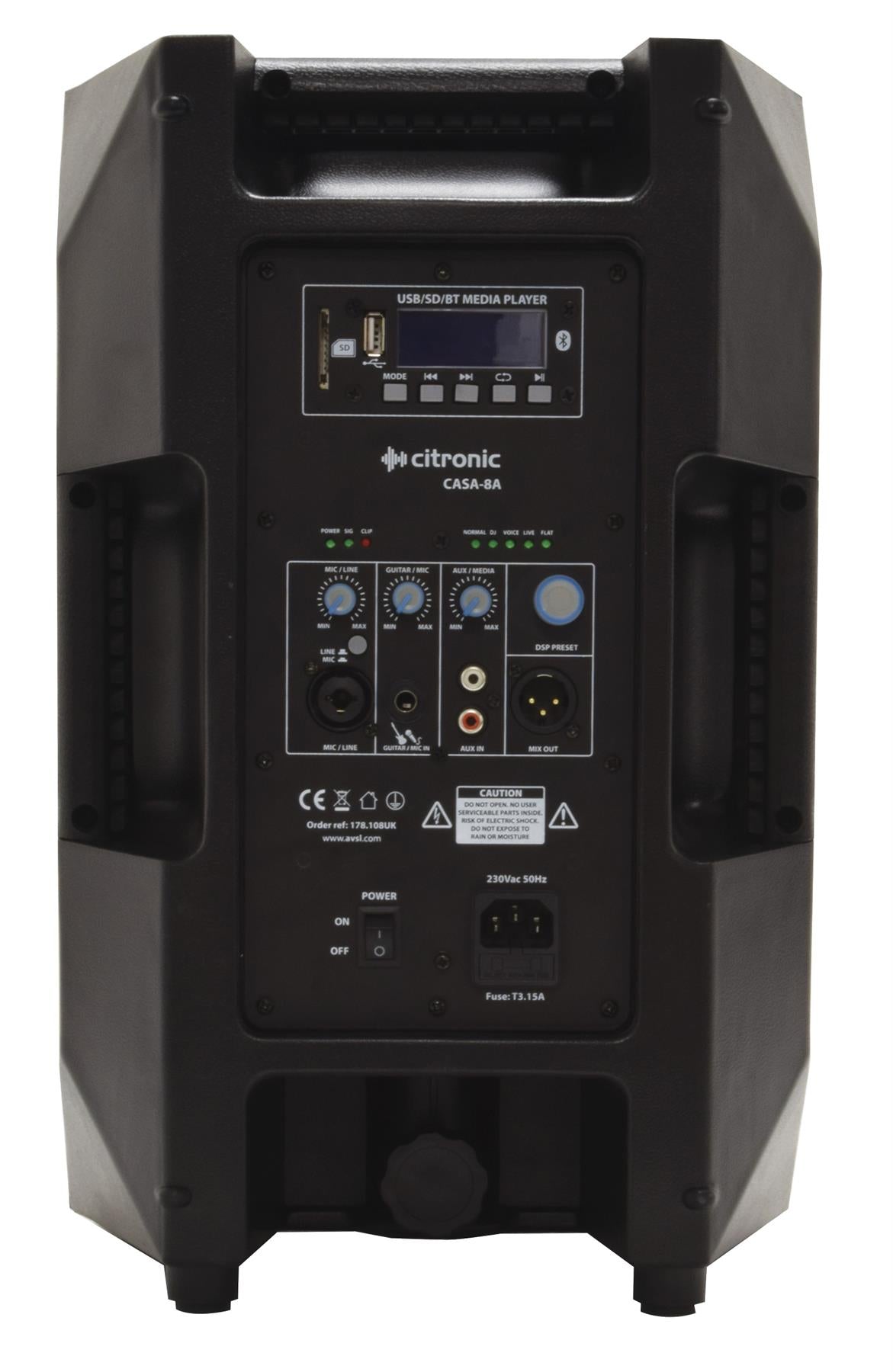

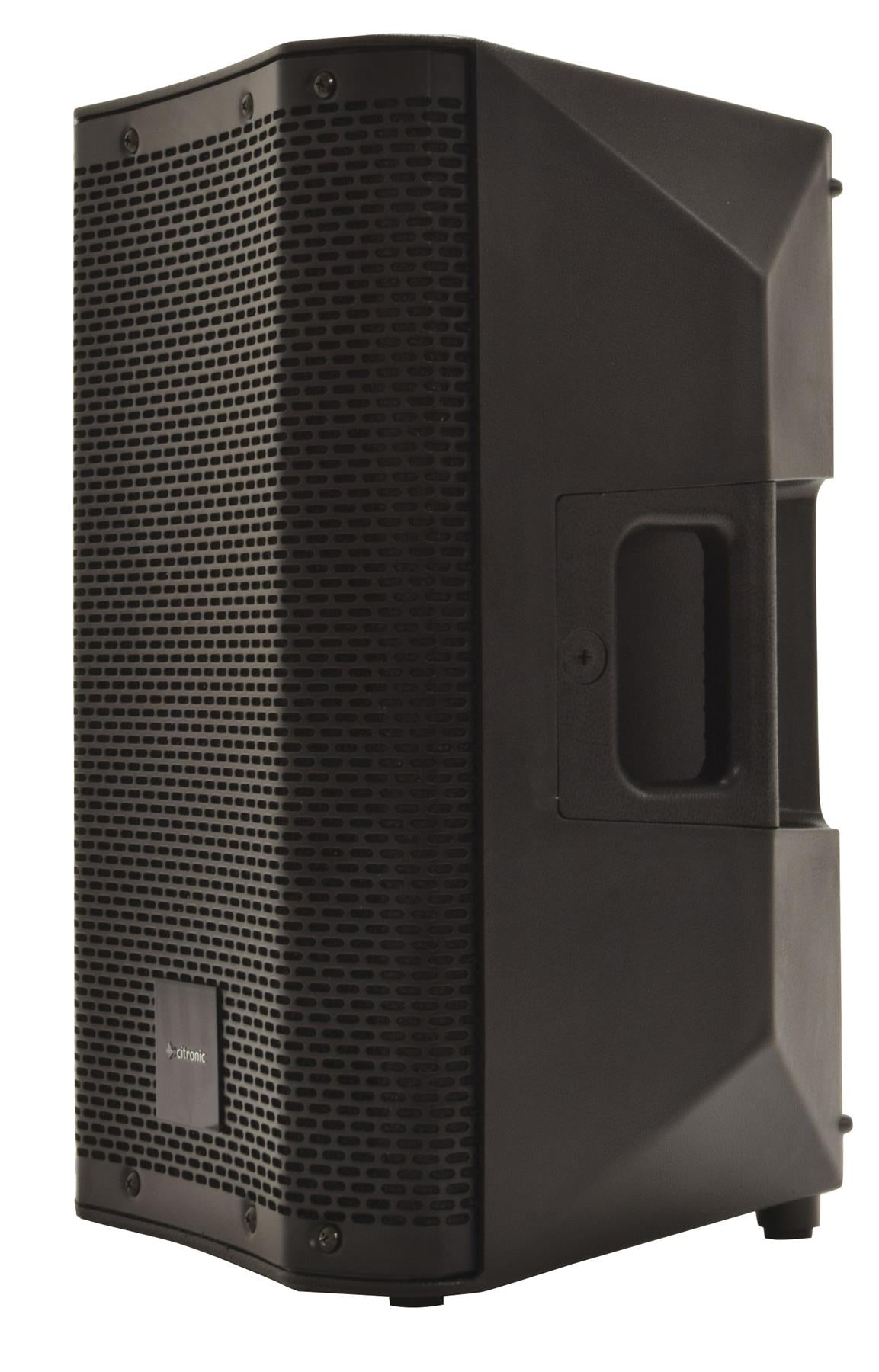

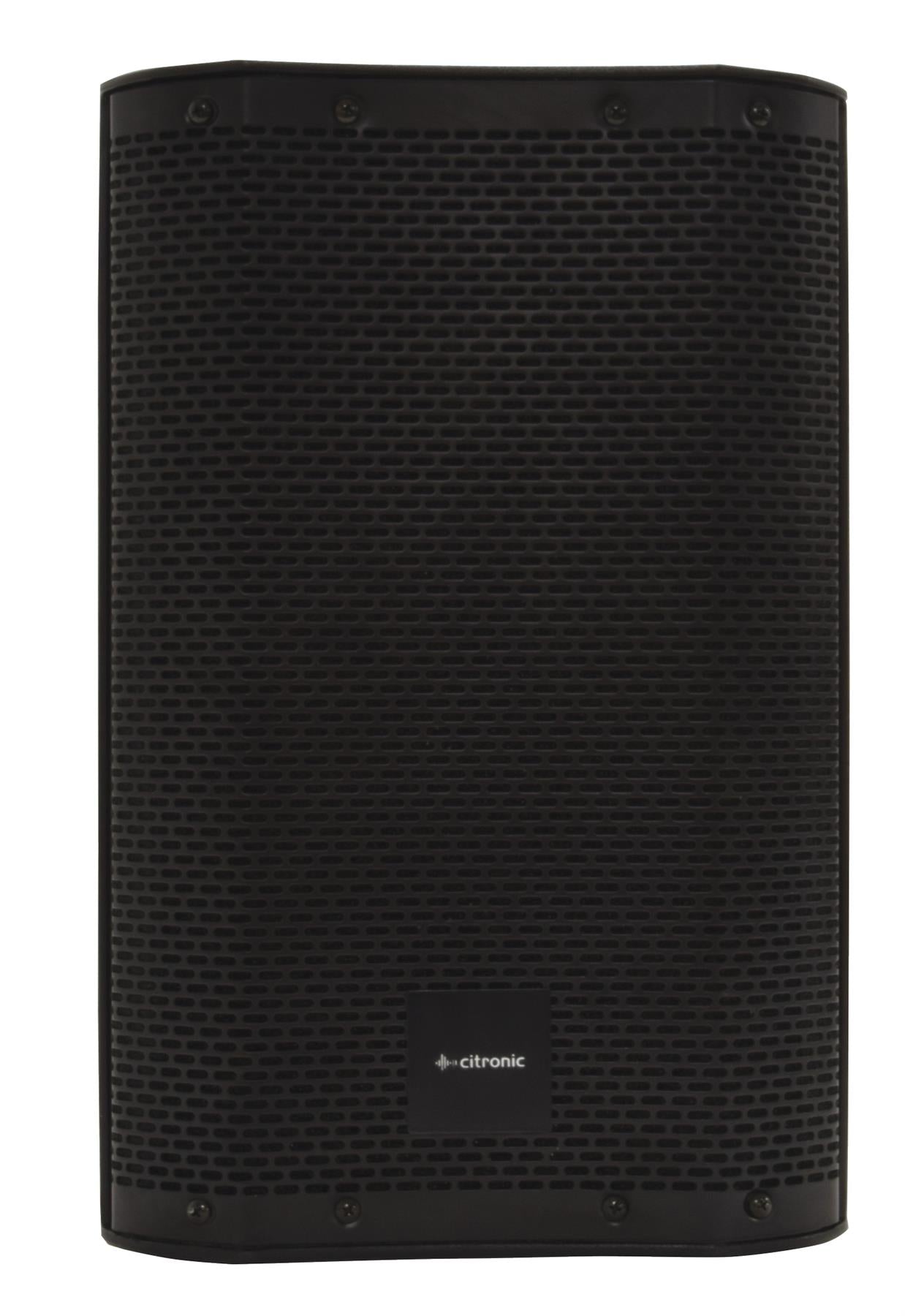

Citronic CASA-8A Speaker

Versatile full-range active moulded PA cabinets with built-in high efficiency class D amplifier. A DSP controller offers 5 switchable output profiles which are suited to different program material. Inputs are provided on XLR/jack with mic/line level switching and RCA line connectors. A built-in audio module provides playback from USB or SD media and Bluetooth wireless pairing. These cabinets are fully featured for virtually any PA application and pair perfectly with the CASA series sub cabinets for high energy sound reinforcement.

Inbuilt USB/SD audio player
Bluetooth wireless connectivity
High impact moulded cabinet with side and top handles.
35mm pole mount socket
DSP speaker control with 5 selectable profiles
High efficiency class D bi-amplifier section

Power supply: 230Vac, 50Hz (IEC)
Audio source: USB/SD player + Bluetooth receiver
Line output: XLR
DSP settings: Normal, DJ. Voice, Live, Flat
Main driver: 200mm (8")
HF driver: 25mm (1") Ti compression driver
Voice coil: 50mm (2")
Output power : rms: 200W
Output power : max.: 400W
Sensitivity: 94dB
Inputs: XLR/jack mic/line, 6.3mm jack mic/instrument, L+R RCA line
Dimensions: 435 x 278 x 245mm
Weight: 10.27kg
Output power peak: 800W
SPL max.: 120dB
Frequency response: 60Hz - 19kHz

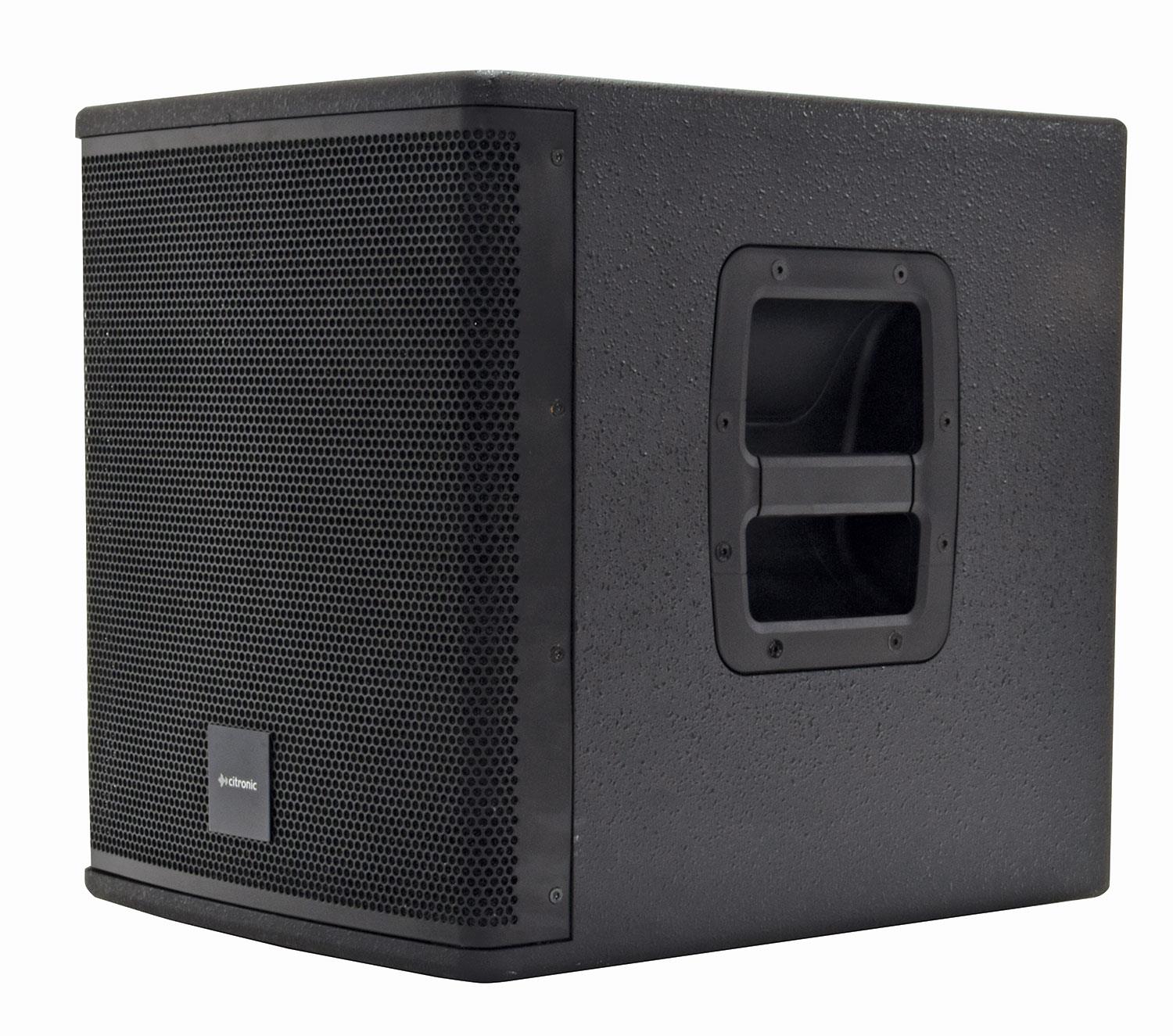

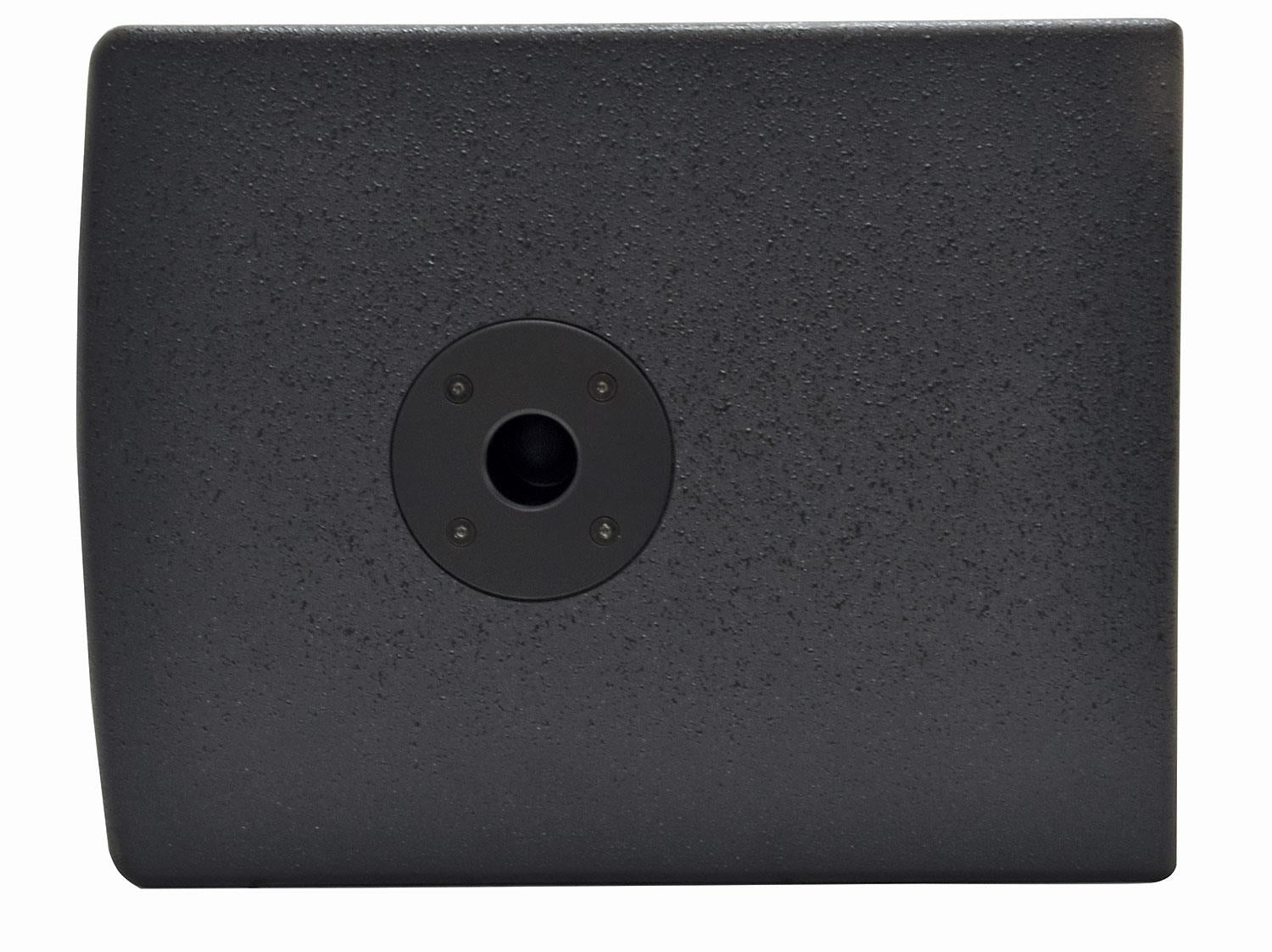

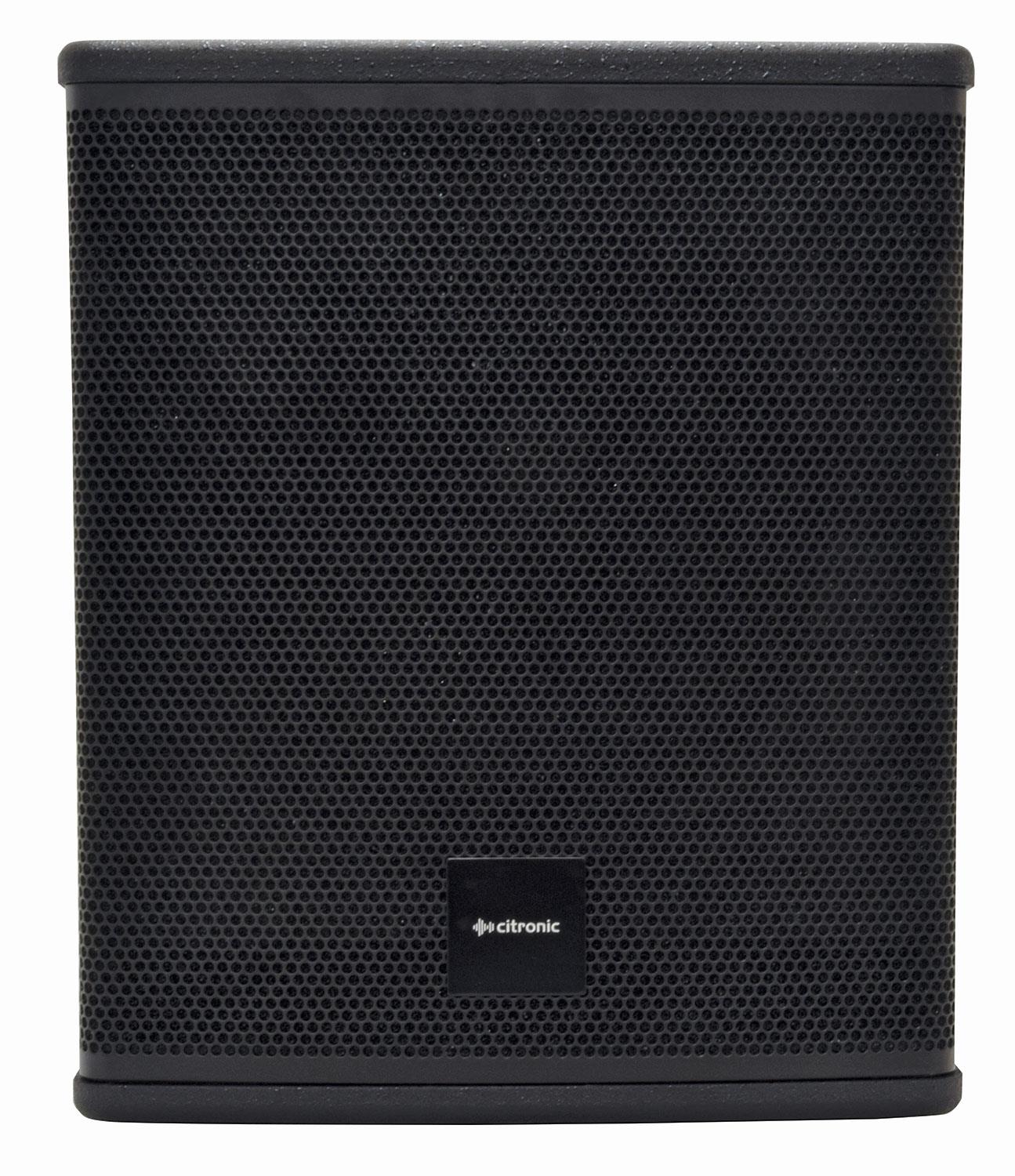

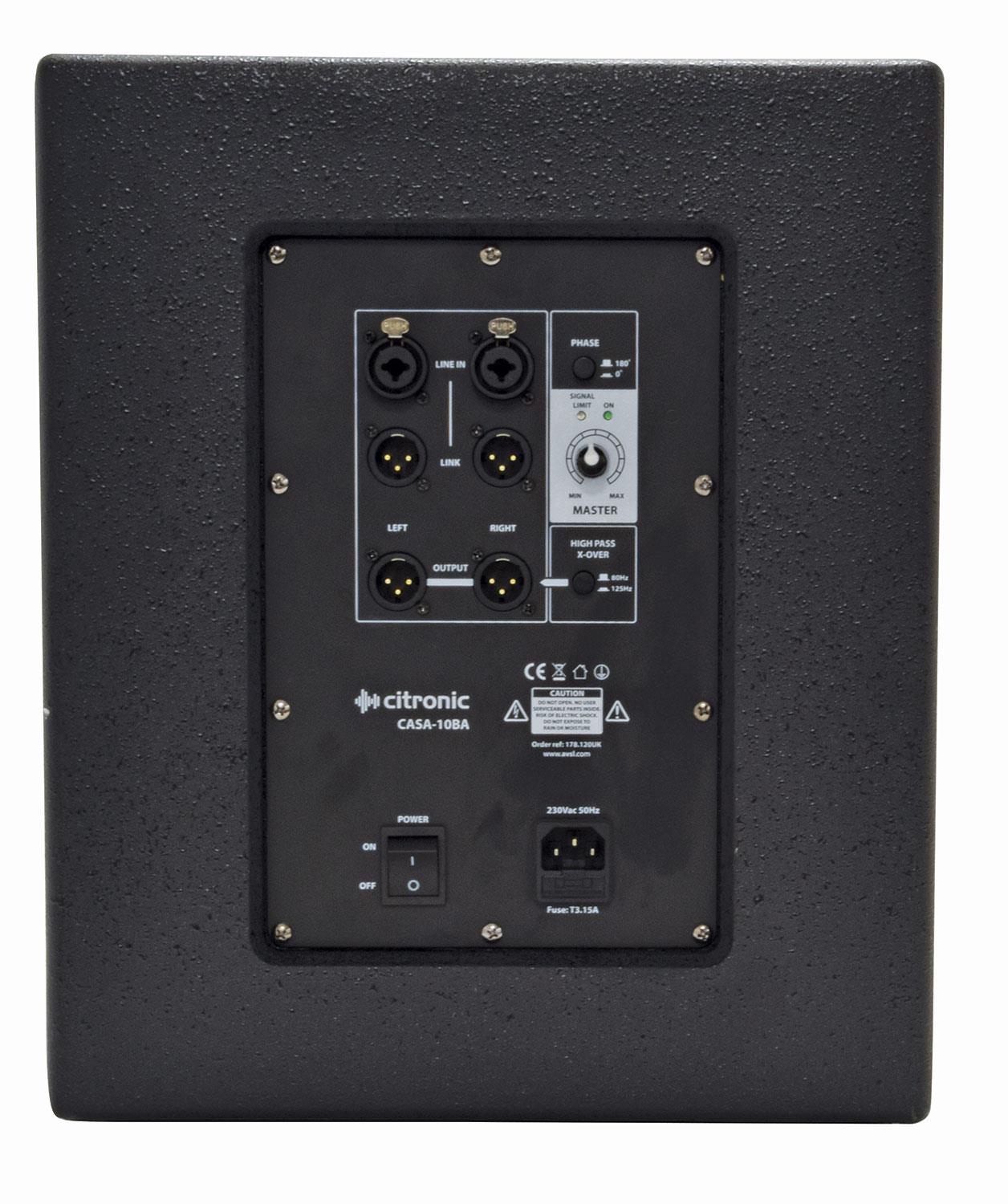

Citronic CASA-10BA Speaker

Lightweight yet powerful active subwoofer units with inbuilt class D amplifiers. Each cabinet is constructed from 15mm MDF with integral side handles for easy portability and 35mm socket to accommodate a mounting pole. The high flex sub driver is front-loaded with a protective steel grille to deliver powerful transients and add warmth to any sound system. The class D amplifier section has stereo line inputs and outputs to allow use either as a mono sub with stereo tops or a matching sub for each top speaker. Line inputs have a parallel Link output to pass the signal onto further active speakers and a pair of line outputs with switchable high pass filter to connect to active top cabinets. A phase switch is included to help avoid sound cancellation and time-align multiple speaker setups. Designed as a perfect match for the CASA series speakers and equally at home with other active full range cabinets.

Compact and lightweight design
15mm MDF cabinets with hard-wearing paint finish
2 x side carry handles
35mm pole mount socket

Power supply 230Vac, 50Hz (IEC)
Construction 15mm MDF with durable texture paint finish
Hardware 2 x side carry handles + 35mm pole mount socket
Amplifier : construction Class D
Line inputs L+R balanced XLR
Line outputs L+R balanced XLR & L+R link XLR
Controls Output level, phase switch, high pass x-over (output)
Sub driver 250mmØ (10")
Voice coil 50mmØ (2")
Output power : rms 250W
Output power : max. 500W
Output power peak 1000W

Dimensions
431 x 407 x 338mm

Weight
16.23kg
