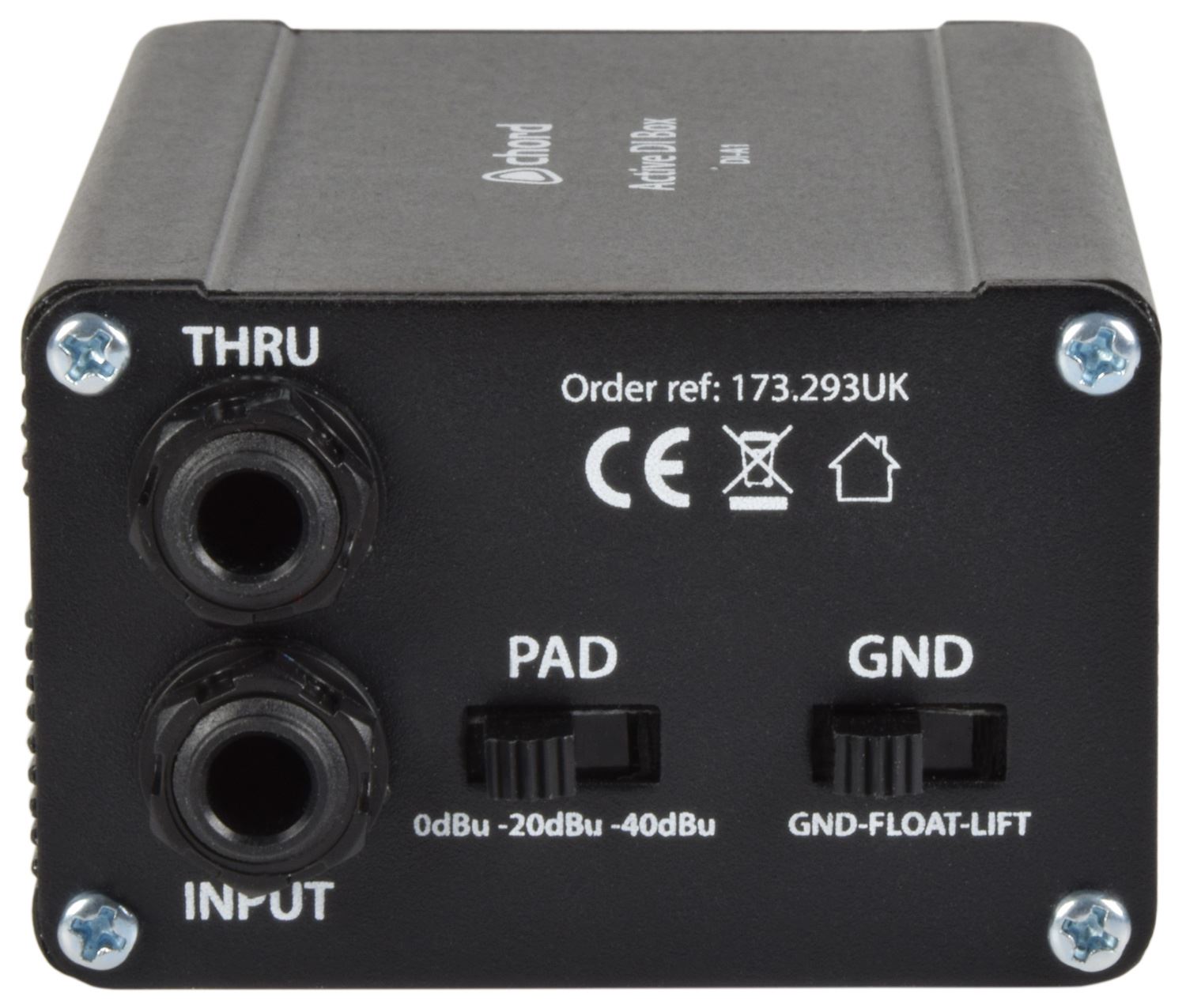

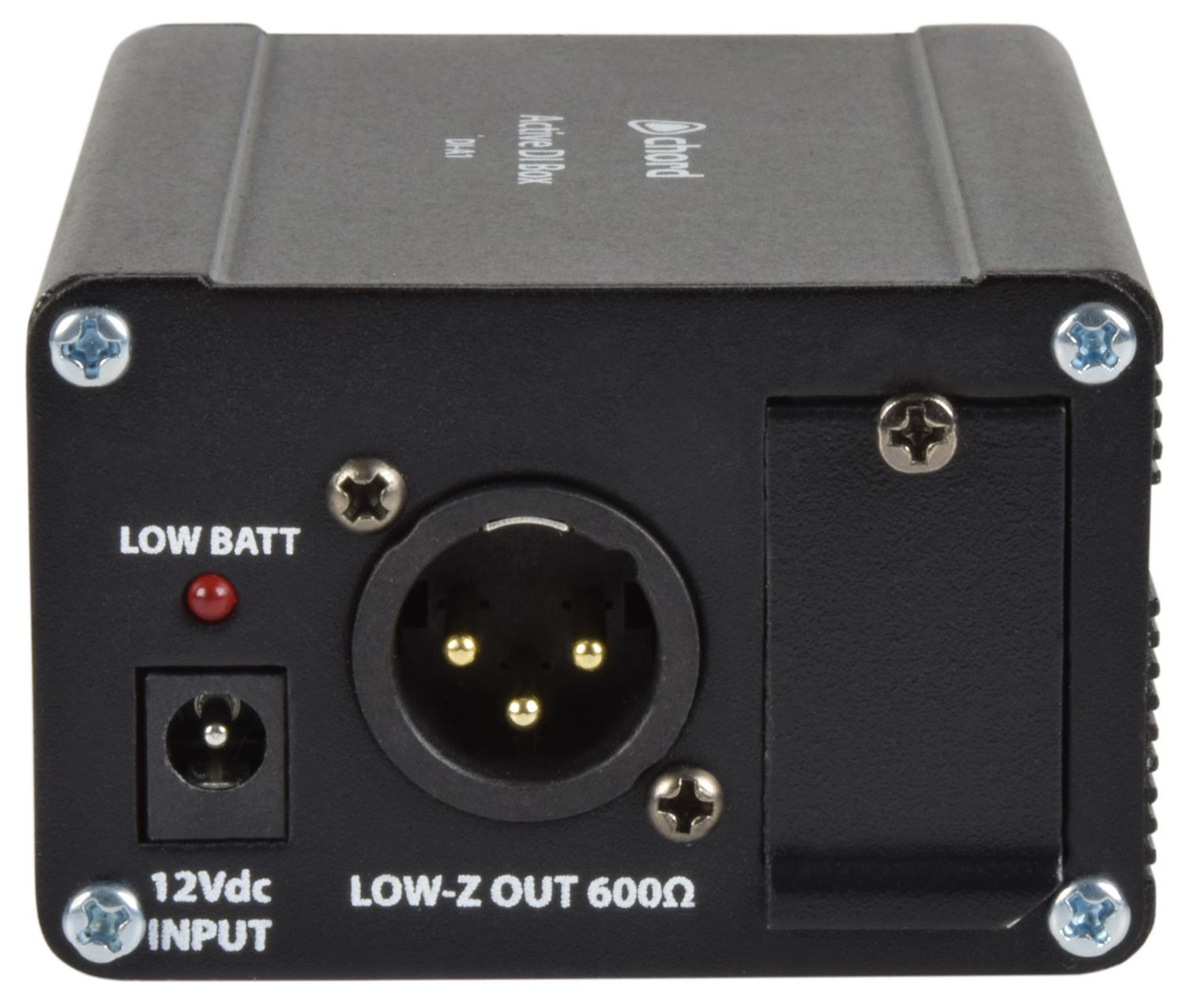

Chord DI-A1 Active Direct Injection Box

£21.49; ~~£0.00~~; £21.49
Unit price: per

Vendor: Chord

SKU: 106-173.293UK

In Stock

Quantity:

I agree with

iFrame

DETAILS
DELIVERY AND RETURNS

DETAILS

Active DI box for converting high impedance instrument outputs to low impedance line signals for feeding directly into a mixing console. Internal buffer amplifier to boost the signal, avoiding losses in long cable runs and 3-way pad switch for level matching. Ground-Float-Lift selector enables signal ground isolation with or without RF/mains filtering.

Features
Powered by 9-52V phantom power, optional 9V battery or 12Vdc adaptor
Ground float option for ground lift with RF/mains filter
Ground lift option isolates signal ground without filter
3 pad settings for level matching

Specification
Power supply9V battery (PP3 not supplied), 12Vdc adaptor (optional) or 9-52V phantom power
Input6.3mm jack (unbalanced)
OutputsXLRM (balanced), 6.3mm jack through (unbalanced)
Input impedance>100k Ohms
Output impedance600 Ohms
Controls0/-20/-40dBu pad & Ground-Float-Lift switch

Dimensions
103 x 70 x 45 mm

Weight
0.243 kg
