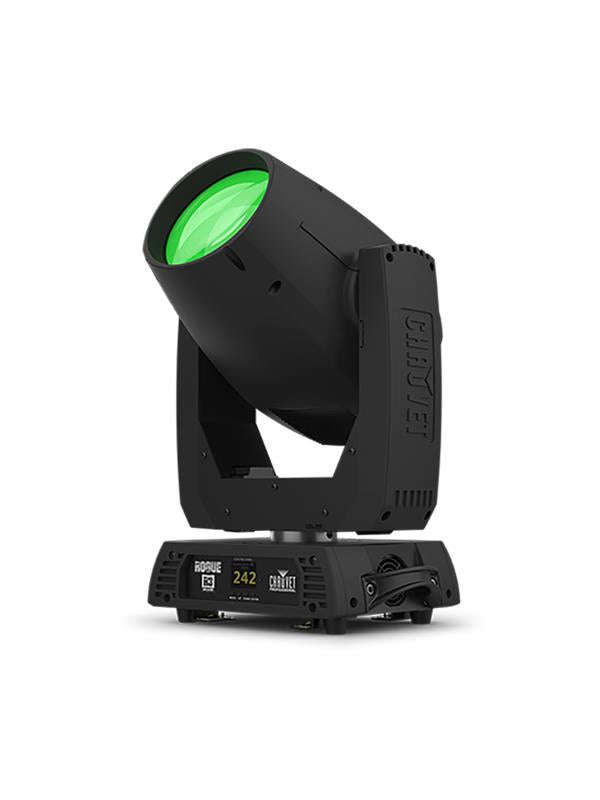

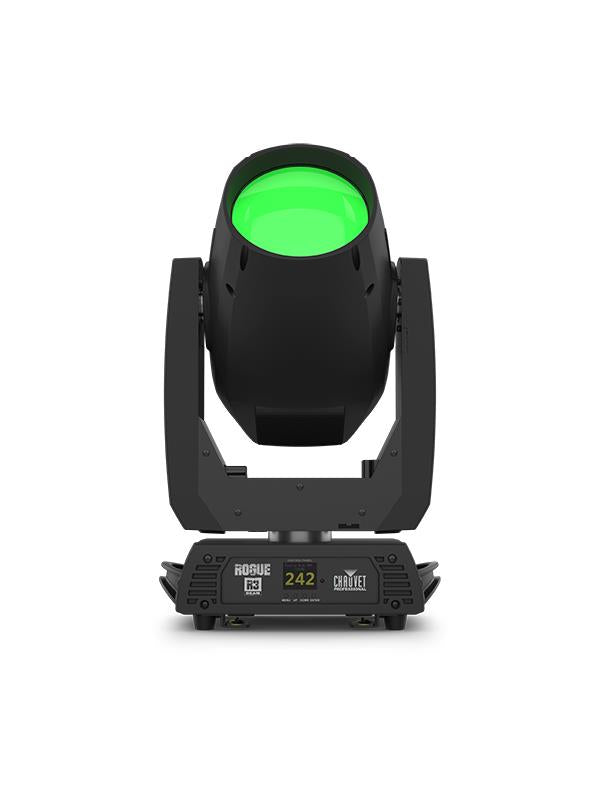

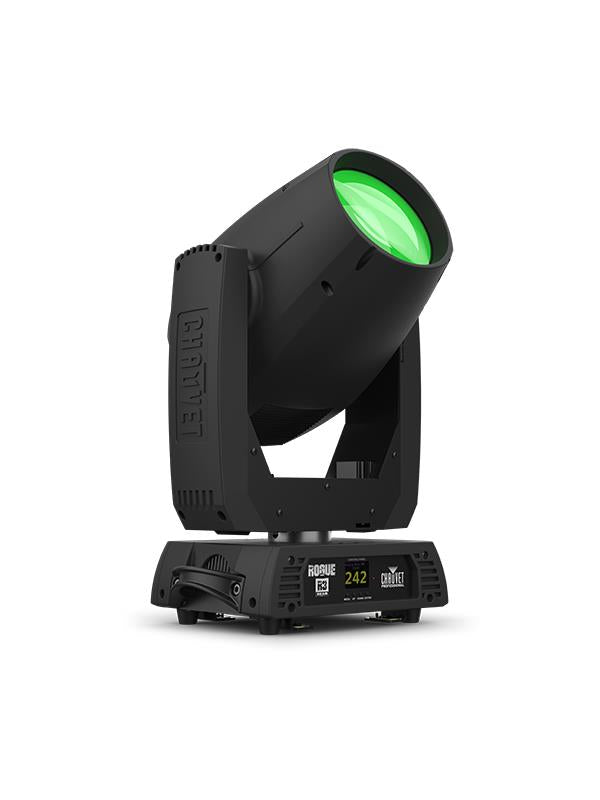

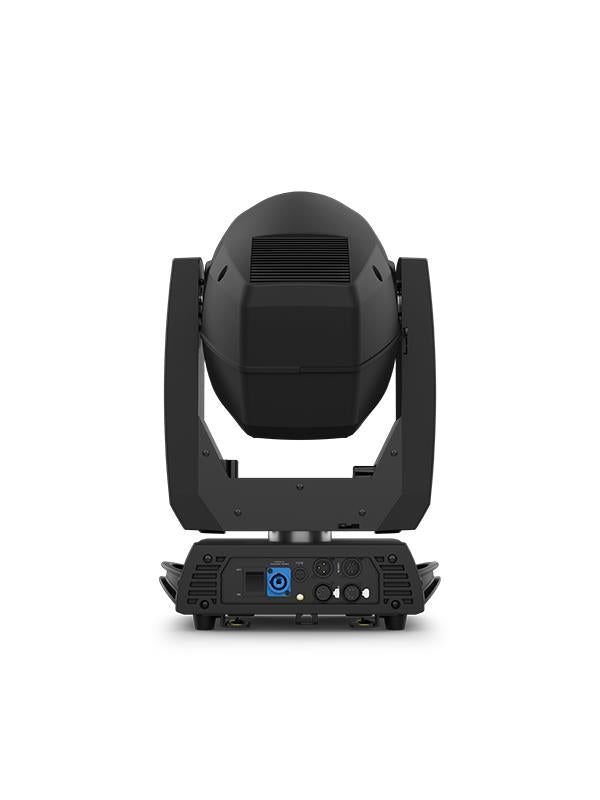

Chauvet Professional Rogue R3 BEAM 300W Moving Head

Description:

Rogue R3 Beam is the light cannon of the Rogue series, outputting over 208,000 lux at 15 meters from its 300 W Ushio NSL lamp. This fully-featured beam can be focused down to 0.8° degrees for extremely focused aerial effects alongside motorized frost and focus options. A color wheel equipped with 14 colors complimented by a gobo wheel with 17 gobos give you a wealth of dynamic effects, and both wheels are fully scrollable at variable speeds. Additionally, the unit features individually overlapping 8 and 24-facet prisms for an endless supply of creative beam looks. The unit is equipped with RDM and DMX protocols and features multiple control personalities.

Fully featured, high powered beam fixture with a single color wheel, single static gobo wheel, layerable prisms, and 300 W Ushio NSL lamp rated at 8,000 hours life

Fast and precise movement of pan and tilt functions

Individually controllable and layerable 8- and 24-facet prisms

Frost for even light distribution

Tight 0.8° beam for extremely focused areal effects

RDM enabled for remote addressing and troubleshooting

17 static gobos for massive visual impact

Specifications:

OPTICAL
Light Source: 300W NSL Ushio lamp, 8000 K (color temp), 8,000 hours life expectancy
Color Temperature (at full): 7657 K
CRI: 80.8
Front Lens Diameter: 153 mm
Beam Angle: 0.8°
Field Angle: 1.6°
Cutoff Angle: 2°
Lumens – Output: 30,878
Illuminance (total): 208,006 lux @ 15 m

DYNAMIC EFFECTS
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
Colors: 14 + white, split colors, continuous scroll at variable speeds
Gobos : 17 + open (17 metal), continuous scroll at variable speeds
Dimmer: Motorized
Shutter/Strobe: Motorized
Focus: Motorized
Frost: Motorized
Prism: 8 facets, motorized, rotating
Prism: 24 facets, motorized, rotating
Strobe Rate: 0 to 15 Hz
Move in Black: Yes

CONSTRUCTION / PHYSICAL
Dimensions: 12.79 x 8.66 x 21.65 in (325 x 220 x 550 mm)
Weight: 34.4 lb (15.6kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer

CONNECTIONS
Power Connection: Edison (Local) plug to Neutrik
Power Input: Neutrik powerCON
Power Output: Neutrik® powerCON®
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

CONTROL
Control Protocol: DMX, RDM
DMX Channels: 16 or 19
Modes/Personalities: 2 personalities (16, 19)

ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 422 W, 4.20 A @ 100 V, 60 Hz
Power and Current: 418 W, 3.55 A @ 120 V, 60 Hz
Power and Current: 411 W, 1.98 A @ 208 V, 60 Hz
Power and Current: 411 W, 1.78 A @ 230 V, 50 Hz
Power and Current: 406 W, 1.68 A @ 240 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
CE, MET
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED
Rogue R3 Beam
Neutrik powerCON power cord
2 Omega brackets with mounting hardware

OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
DMX cables
Flight Case: #CP2CASER2XR3SPOT
UPLOAD 08 software uploader
