Chauvet Professional Ovation E-260WW IP 230w Ellipsoidal Warm White (IP65 rated)

Description:

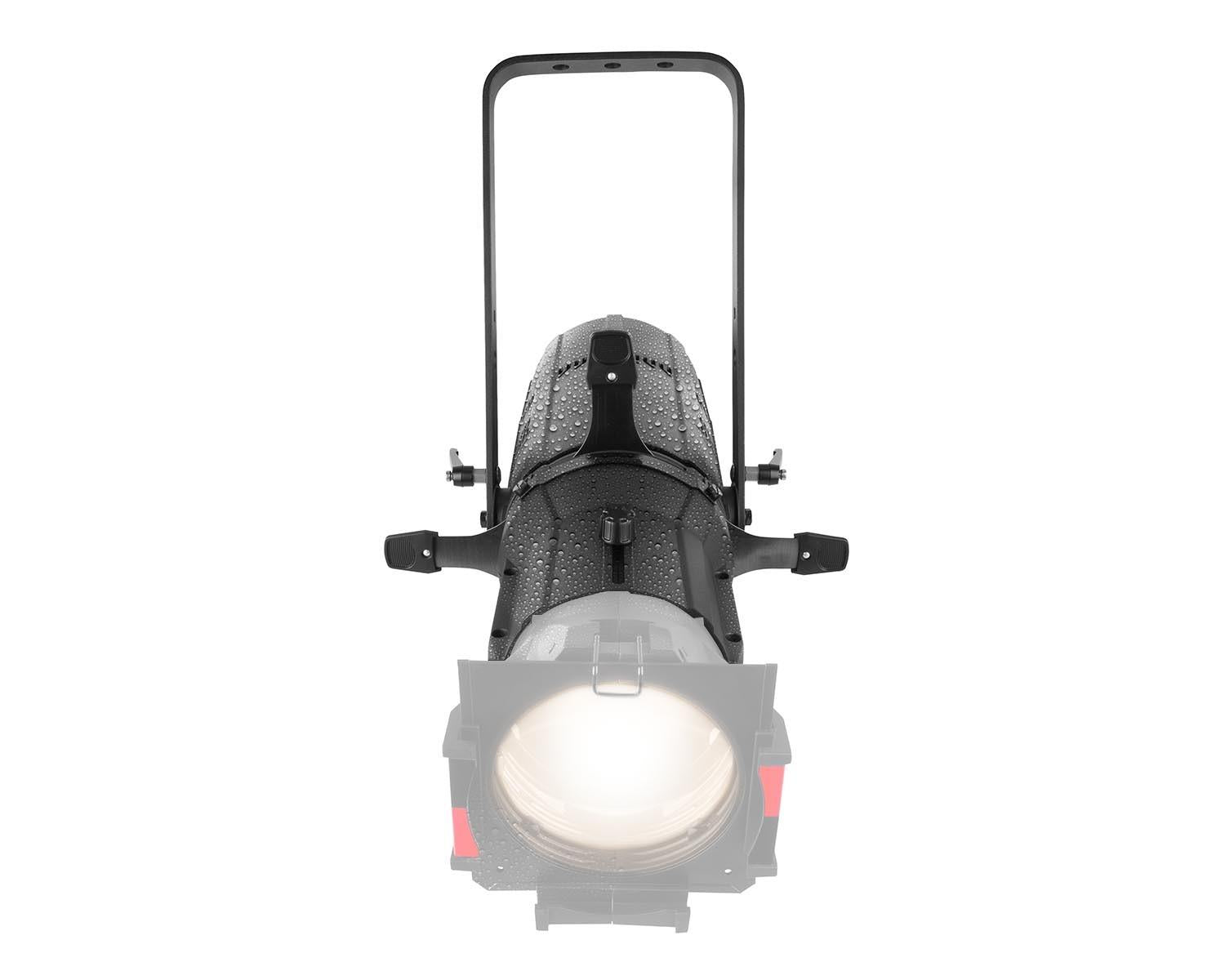

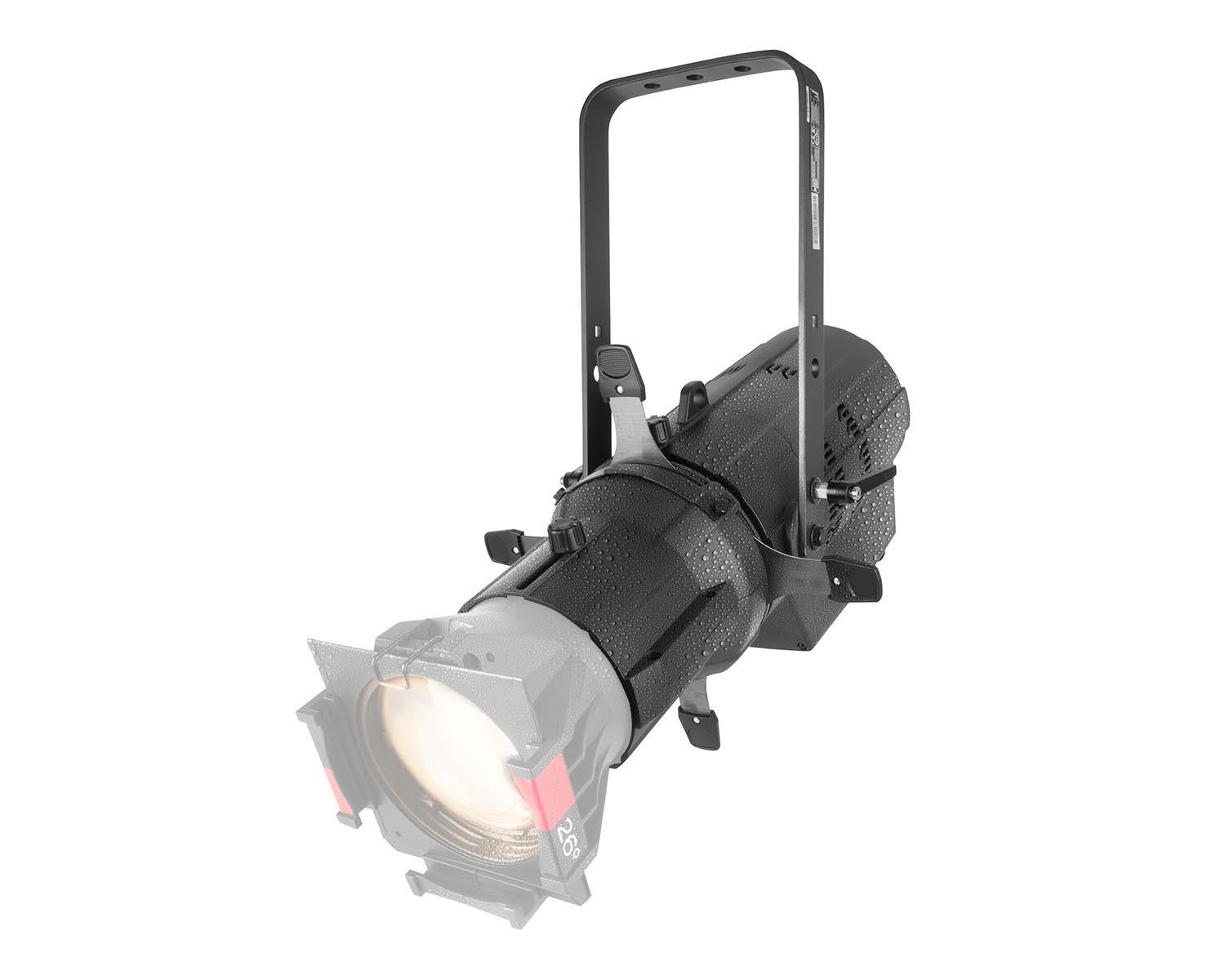

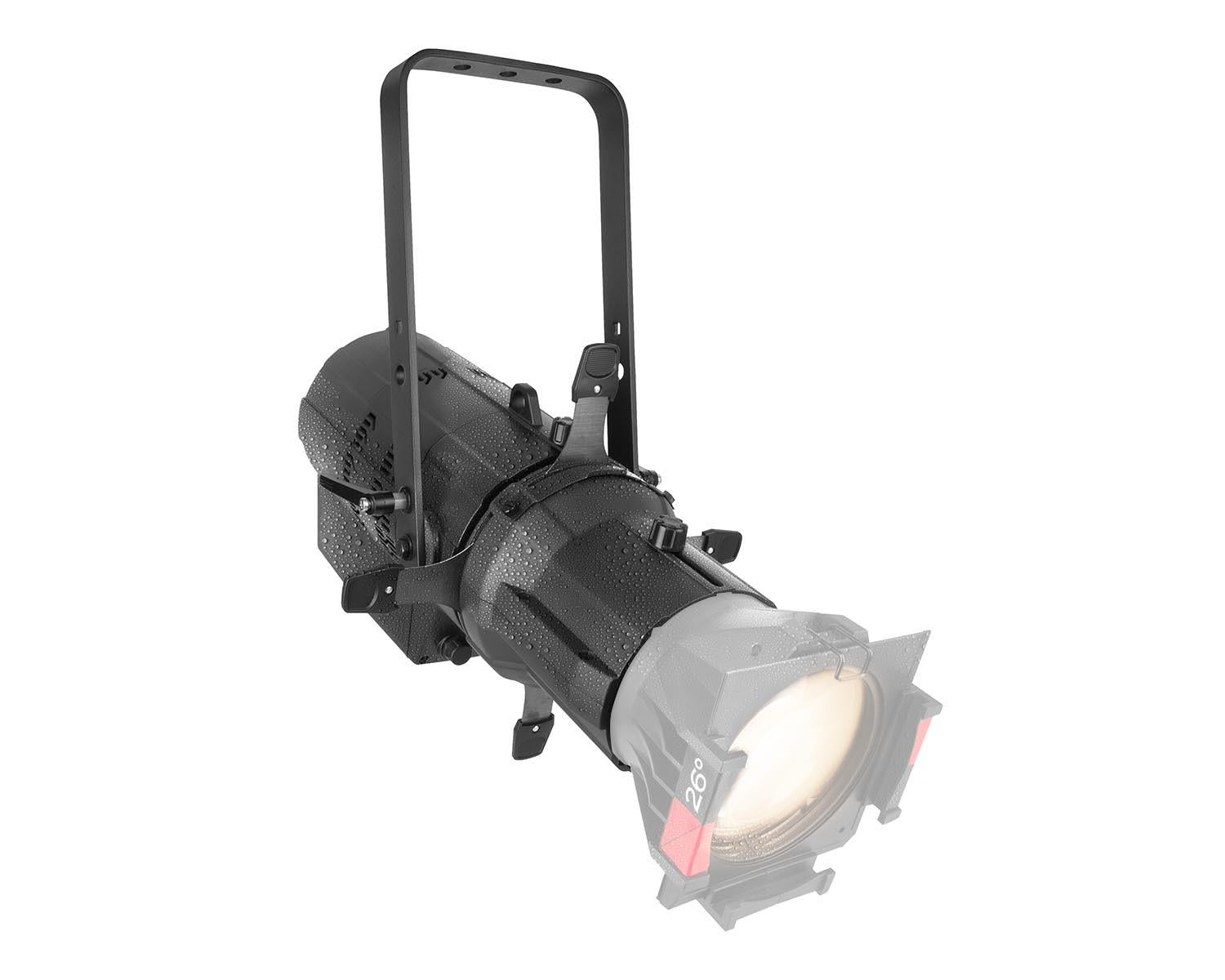

Chauvet Professional Ovation E-260WW IP takes the brilliant breakthrough concept of the Ovation E-260WW and places it outdoors. Our standard shutter assembly and lenses lend familiarity and ease-of-use to this groundbreaking IP65-rated ERS-style fixture with an output surpassing that of 750 W HPL. This groundbreaking ellipsoidal also boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection. Selectable PWM, RDM, and onboard dimming curves ease setup and programming.

LIGHT-ENGINE AND BARREL ONLY (LENS TUBE SOLD SEPARATELY)

Features:

Warm white ERS style fixture with output exceeding a tungsten 750w source
Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
Flat, even field of light for superior gobo projection
RDM (Remote Device Management) for added flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Virtually silent operation for use in studio and theatre applications
Works perfectly with industry standard lens tubes and accessories
Use of Chauvet's standard beam shaping shutters and lenses lends familiarity and ease of use to the fixture.
IP 65 Rated

Specifications:

OPTICAL
Light Source: 1 LED (WW) 230 W, (3.6 A), 3149 K, 50,000 hours life expectancy
Colour Temperature (at full): 3149 K
CRI: 96
Beam Angle (w/5° lens): 6°
Beam Angle (w/10° lens): 8°
Beam Angle (w/14° lens): 11°
Beam Angle (w/19° lens): 13°
Beam Angle (w/26° lens): 16°
Beam Angle (w/36° lens): 20°
Beam Angle (w/50° lens): 28°
Beam Angle (w/15°–30° lens)(Narrow): 12°
Beam Angle (w/15°–30° lens)(Wide): 14°
Beam Angle (w/25°–50° lens)(Narrow): 21°
Beam Angle (w/25°–50° lens)(Wide): 22°
Field Angle (w/5° lens): 7°
Field Angle (w/10° lens): 10°
Field Angle (w/14° lens): 14°
Field Angle (w/19° lens): 18°
Field Angle (w/26° lens): 25°
Field Angle (w/36° lens): 34°
Field Angle (w/50° lens): 50°
Field Angle (w/15°–30° lens)(Narrow): 15°
Field Angle (w/15°–30° lens)(Wide): 29°
Field Angle (w/25°–50° lens)(Narrow): 26°
Field Angle (w/25°–50° lens)(Wide): 46°
Dimming Modes: 4
Lumens (w/19° lens): 7,587
Lumens (w/26° lens): 10,284
Lumens (w/36° lens): 10,121
Lumens (w/50° lens): 9,655
Illuminance (w/5° lens): 41,400 lux @ 5 m
Illuminance (w/10° lens): 23,000 lux @ 5 m
Illuminance (w/14° lens): 14,149 lux @ 5 m
Illuminance (w/19° lens): 9,256 lux @ 5 m
Illuminance (w/26° lens): 6,910 lux @ 5 m
Illuminance (w/36° lens): 4,053 lux @ 5 m
Illuminance (w/50° lens): 1,703 lux @ 5 m
Illuminance (w/15°–30° lens)(Narrow): 16,827 lux @ 5 m
Illuminance (w/15°–30° lens)(Wide): 10,626 lux @ 5 m
Illuminance (w/25°–50° lens)(Narrow): 7,210 lux @ 5 m
Illuminance (w/25°–50° lens)(Wide): 3,295 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
DYNAMIC EFFECTS
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Color Temperature Presets: No
Dim Modes: 4
Built-in Automated Programs: Yes
CONSTRUCTION / PHYSICAL
Dimensions (fixture only): 19.49 x 11.14 x 18.42 in (495 x 342 x 506 mm)
Dimensions (w/5° lens extended): 43.58 x 14.17 x 14.48 in (1107 x 360 x 368 mm)
Dimensions (w/10° lens extended): 34.88 x 12.16 x 12.48 in (886 x 309 x 317 mm)
Dimensions (w/14° lens extended): 28.7 x 11.14 x 18.42 in (790 x 342 x 506 mm)
Dimensions (w/26° lens extended): 23.5 x 13.46 x 19.92 in (597 x 342 x 506 mm)
Dimensions (w/15°–30° lens): 32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)
Dimensions (w/25°–50° lens): 27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)
Weight (fixture only): 20.2 (9.2 kg)
Weight (w/5° lens): 26 lb (11.9 kg)
Weight (w/10° lens): 24 lb (11 kg)
Weight (w/14° lens): 25.6 lb (11.6 kg)
Weight (w/26° lens): 24.4 lb (11 kg)
Weight (w/15°–30° lens): 34.2 lb (15.5 kg)
Weight (w/25°–50° lens): 31.8 lb (14.4 kg)
Exterior Color: Black
Gobo Size (Optional): “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
Gobo Size (Optional): “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
Accessory Holder/Gel Frame Size (5° lens): 14 in (356 mm)
Accessory Holder/Gel Frame Size (10° lens): 12 in (304 mm)
Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)
Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)

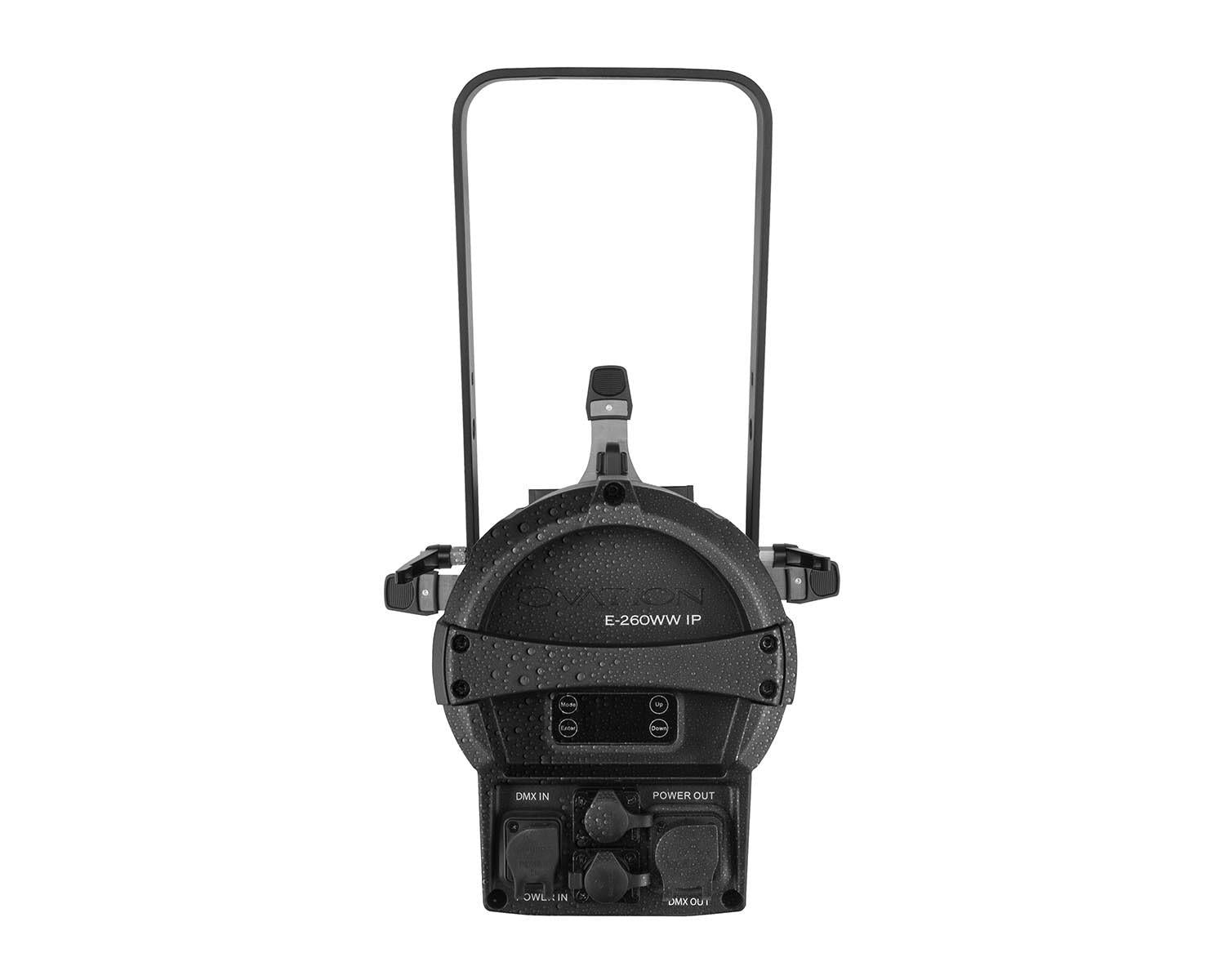

CONNECTIONS
Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR
Cable Length (power): 5 ft (1.5 m)
CONTROL
Control Protocol: DMX, RDM
DMX Channels: 2, 3, 4 or 7
Modes/Personalities: 4 personalities (2, 3, 4, 7)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
Power and Current: 221 W, 1.85A @ 120 V, 60 Hz
Power and Current: 215 W, 1.11 A @ 208 V, 60 Hz
Power and Current: 213 W, 1.01 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCC
IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE® valve
