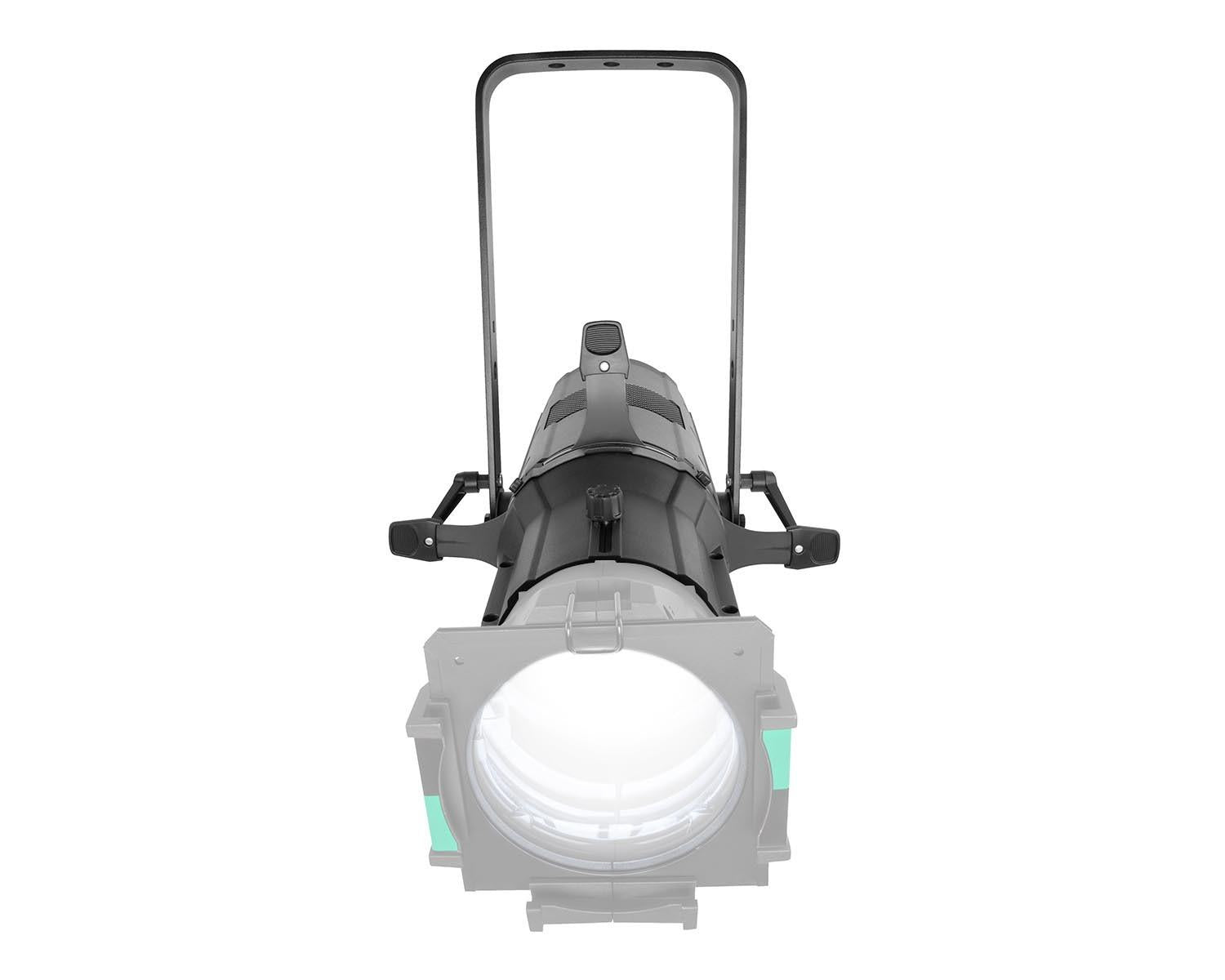

Chauvet Professional Ovation E-260CW 230w Cool White Ellipsoidal

Description:

The Chauvet Professional Ovation E-260CW delivers an excellent white light with a cool colour temperature and a beautiful flat field. It also features standard beam shaping shutters, a gobo/effect slot and lens barrels that are interchangeable with other popular ERS fixtures. Selectable dimming curves ensure smooth fading cues that intermix well with the output of conventional theatre ellipsoidals.

Features:

Ovation E260CW LED Cool White
This product is the BODY ONLY
Cool white LED ERS-style lighting product
Virtually silent operation for use in studio and theatre applications
Adjustable PWM to avoid flickering on camera

Specifications:

OPTICAL
Light Source: 1 LED (WW) 230 W, (3.6 A), 3149 K, 50,000 hours life expectancy; (CW) 198 W, (3.5 A), 5452 K, 50,000 hours life expectancy
Colour Temperature (at full): (WW) 3149 K; (CW) 5452 K
CRI: (WW) 96; (CW) 96
Beam Angle (w/14° lens): 11°
Beam Angle (w/19° lens): 13°
Beam Angle (w/26° lens): 16°
Beam Angle (w/36° lens): 20°
Beam Angle (w/50° lens): 28°
Beam Angle (w/15°–30° lens)(Narrow): 12°
Beam Angle (w/15°–30° lens)(Wide): 14°
Beam Angle (w/25°–50° lens)(Narrow): 21°
Beam Angle (w/25°–50° lens)(Wide): 22°
Field Angle (w/14° lens): 14°
Field Angle (w/19° lens): 18°
Field Angle (w/26° lens): 25°
Field Angle (w/36° lens): 34°
Field Angle (w/50° lens): 50°
Field Angle (w/15°–30° lens)(Narrow): 15°
Field Angle (w/15°–30° lens)(Wide): 29°
Field Angle (w/25°–50° lens)(Narrow): 26°
Field Angle (w/25°–50° lens)(Wide): 46°
Dimming Modes: 4
Lumens (w/19° lens): (WW) 7,587; (CW) 9,530
Lumens (w/26° lens): (WW) 10,284; (CW) 13,368
Lumens (w/36° lens): (WW) 10,121; (CW) 13,184
Lumens (w/50° lens): (WW) 9,655; (CW) 12,672
Illuminance (w/14° lens): (WW) 13,439 lux @ 5 m; (CW) 16,787 lux @ 5 m
Illuminance (w/19° lens): (WW) 9,256 lux @ 5 m; (CW) 10,674 lux @ 5 m
Illuminance (w/26° lens): (WW) 6,910 lux @ 5 m; (CW) 8652 lux @ 5 m
Illuminance (w/36° lens): (WW)4,053 lux @ 5 m; (CW) 5185 lux @ 5 m
Illuminance (w/50° lens): (WW)1,703 lux @ 5 m; (CW) 2181 lux @ 5 m
Illuminance (w/15°–30° lens)(Narrow): (WW) 16,827 lux @ 5 m ; (CW) 19,900 lux @ 5 m
Illuminance (w/15°–30° lens)(Wide): (WW) 10,626 lux @ 5 m; (CW) 10,159 lux @ 5 m
Illuminance (w/25°–50° lens)(Narrow): (WW) 7,210 lux @ 5 m; (CW) 9,219 lux @ 5 m
Illuminance (w/25°–50° lens)(Wide): (WW) 3,295 lux @ 5 m; (CW) 3,468 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
DYNAMIC EFFECTS
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Manual
Strobe Rate: (WW) 0 to 27 Hz; (CW) 0 to 30 Hz
Dim Modes: 4
Built-in Automated Programs: Yes
Colour Temperature Presets: (CW) No
CONSTRUCTION / PHYSICAL
Dimensions (fixture only): 19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm)
Dimensions (w/14° lens extended): 28.74 x 11.22 x 19.17 in (730 x 285 x 487 mm)
Dimensions (w/26° lens extended): 25.91 x 11.22 x 19.17 in (658 x 285 x 487 mm)
Dimensions (w/15°–30° lens): 32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)
Dimensions (w/25°–50° lens): 27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)
Weight (fixture only): 15.4 lb (7 kg)
Weight (w/14° lens): 20.8 lb (9.43 kg)
Weight (w/26° lens): 19.4 lb (8.80 kg)
Weight (w/15°–30° lens): 29.4 lb (13.34 kg)
Weight (w/25°–50° lens): 27 lb (12.25 kg)
Exterior Colour: Black
Gobo Size (Optional): “A”: 94 mm (outside), 79 mm (image), 2.5 mm (max. thickness)
Gobo Size (Optional): “B”: 94 mm (outside), 69 mm (image), 2.5 mm (max. thickness)
Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)
Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)

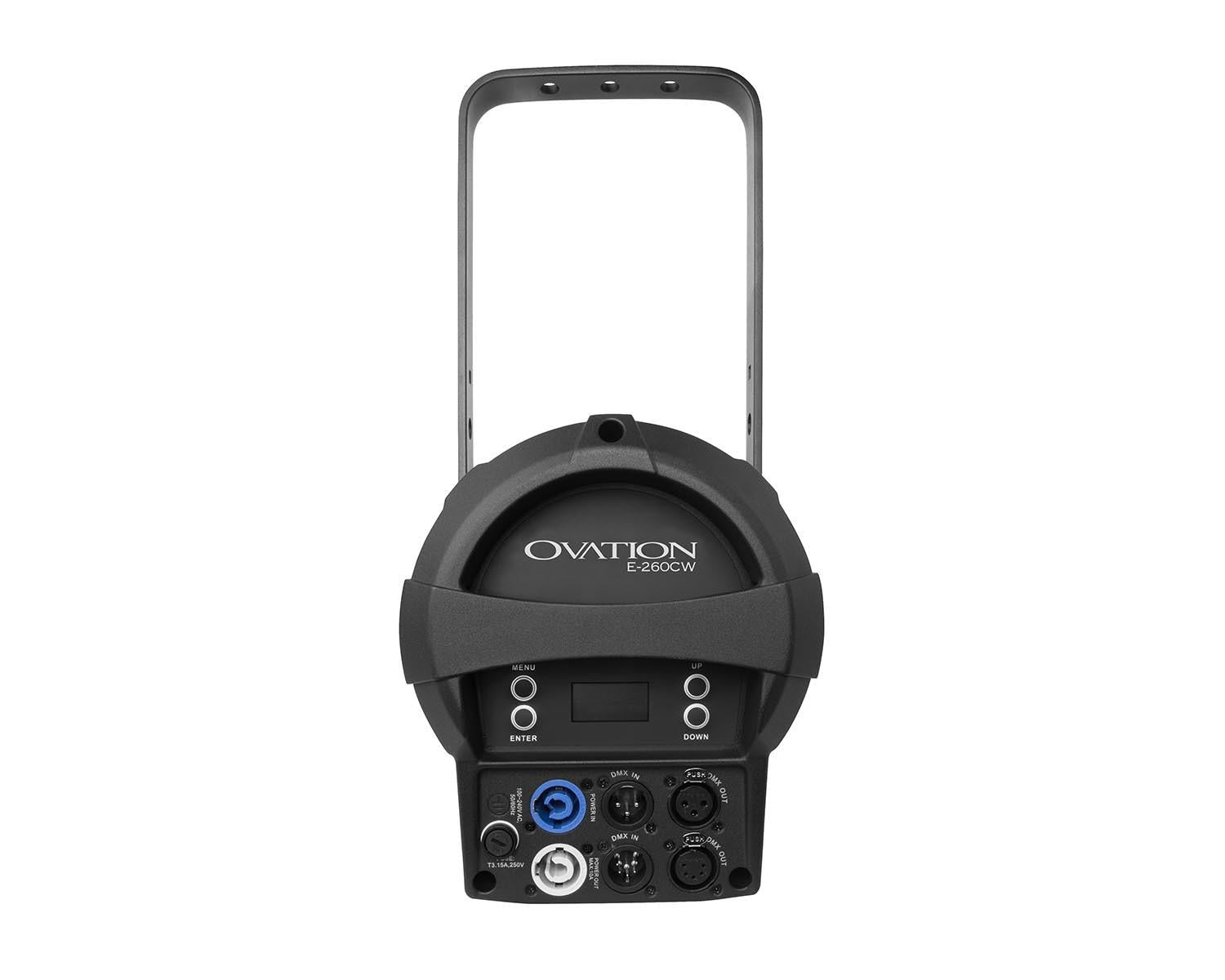

CONNECTIONS
Power Connection: Edison (Local) plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
CONTROL
Control Protocol: (WW) DMX; (CW) DMX, RDM
DMX Channels: 1, 2, 3 or 6
Modes/Personalities: 4 personalities (1, 2, 3, 6)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: (WW) 8 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V; (CW) 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
Power and Current: (WW) 209 W, 1.7 A @ 120 V, 60 Hz; (CW) 225 W, 1.86 A @ 120 V, 60 Hz
Power and Current: (WW) 206 W, 1.0 A @ 208 V, 60 Hz; (CW) 234 W, 1.12 A @ 208 V, 60 Hz
Power and Current: (WW) 204 W, 1.0 A @ 230 V, 50 Hz; (CW) 233 W, 1.02 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, MET
IP Rating: IP20, dry location
WHAT'S INCLUDED
Ovation E-260WW/Ovation E-260CW
Neutrik powerCON power cord
REQUIRED ACCESSORIES
Lens Tube: (WW) 19°, 26°, 36°, 50°
Lens Tube: 14° (CW), 19°, 26°, 36°, 50°


OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik powerCON cables
3-pin or 5-pin DMX Cables
Colour Blending Filters: DF60X1D, DF20D
RDM2go
Ovation Zoom Lenses: OEZOOM1530, OEZOOM2550
Gobo Holder: Standard “S4” size Sandwich Style or Iris Slot Style gobo holder for “A” or “B” size gobos
