Chauvet Lighting ILS Bundle, 2x Intimidator Spot ILS, 2x Swarm Wash FX ILS, 1x Gigbar Move + ILS

Description:

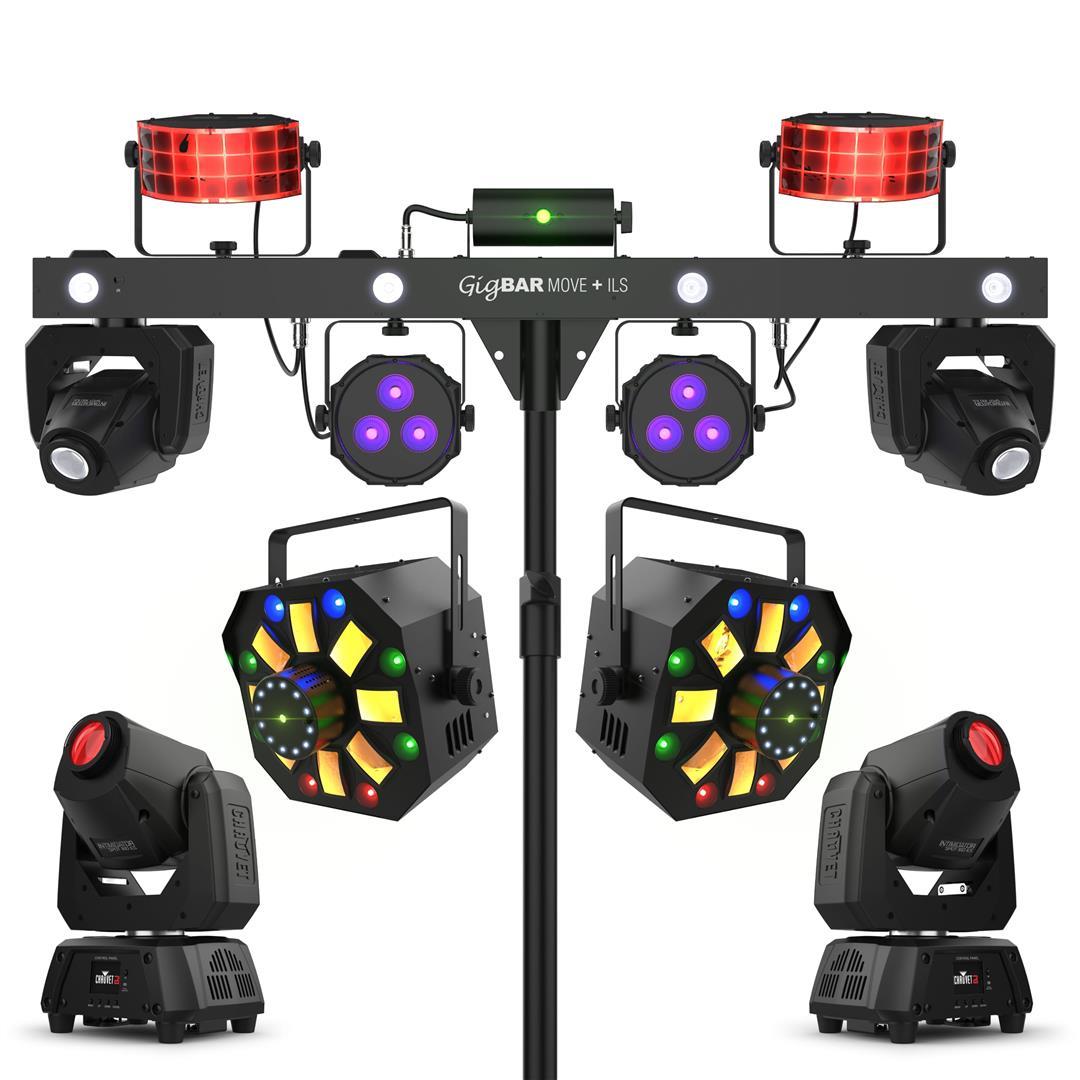

This bundle includes 2x Intimidator Spot, 2x Swarm Wash FX and 1x Gigbar Move + ILS

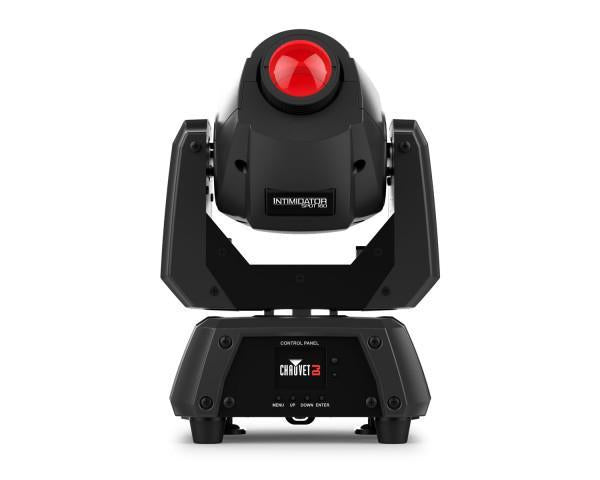

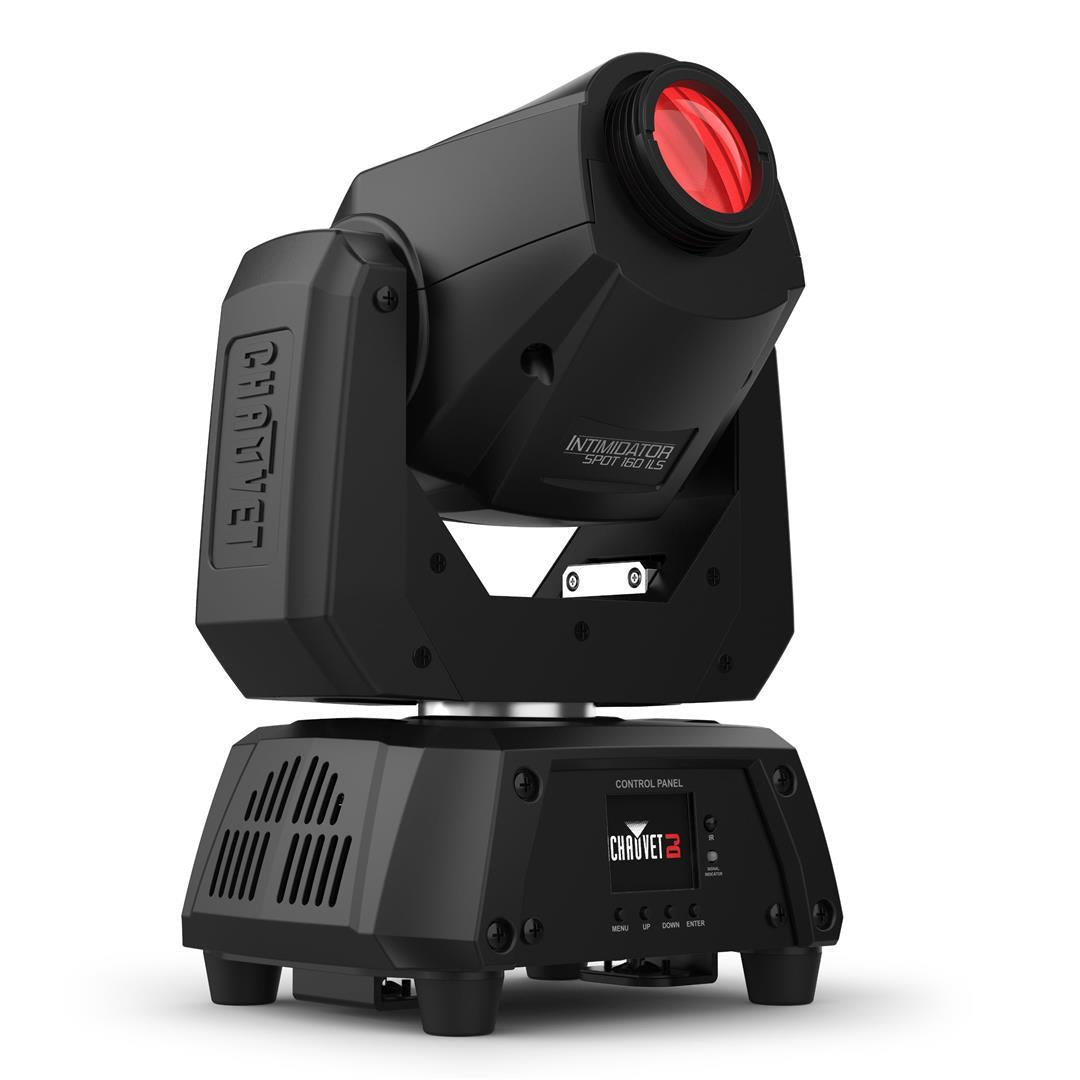

Chauvet DJ Intimidator Spot 160 ILS Lightweight 32W LED Moving Head

This compact moving head is ideal for mobile entertainment applications and features compatibility with the cutting-edge Integrated Lighting System (ILS) that makes creating coordinated light shows across different fixture types easy. Intimidator Spot 160 ILS also has D-Fi™ USB compatibility for wireless Master/Slave or DMX control. Built-in Totem Mode means beams always remain on the dance floor and you can set, save, and recall 1 scene manually, directly from the full-color LCD display. Link up to 4 fixtures to create eye-catching, synchronized shows in Automated or Sound mode. A ¼-turn hanging bracket allows for quick removal when needed and convenient, wireless non-DMX control is at hand using the optional IRC-6 remote.

Product Features
Feature-packed moving head designed for mobile performances
¼-turn hanging bracket allows for quick removal when needed
Beams always remain on the dance floor using the built-in, innovative Totem mode
Set, save, and recall 1 scene manually, directly from the full-colour LCD display
Link up to 4 fixtures to create eye-catching, synchronized shows in Automated or Sound mode
Convenient, wireless non-DMX control using the optional IRC-6 remote
Fits best in the CHS-1XX VIP Gear Bag

Product Specifications
DMX Channels: 5 or 11
DMX Connectors: 3-pin XLR
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
Colours: 9 + open, split colours, continuous scroll at variable speeds
Gobos: 9 + open (9 aluminium), continuous scroll at variable speeds
Light Source: 1 LED (cool white) 32 W, (2.3 A), 50,000 hours life expectancy
Strobe Rate: 0 to 20 Hz
PWM Frequency: 2.4 kHz
Beam Angle: 17°
Illuminance: 6,080 lux @ 2 m
Power Linking: 9 units @ 120 V; 16 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:60 W, 0.8 A @ 120 V, 60 Hz
60 W, 0.4 A @ 230 V, 50 Hz
Weight: 8.8 lb (4.0 kg)
Size: 8.2 x 5.9 x 12 in (207 x 149 x 308 mm)
Approvals: CE
Bracket Mounting Hole: M12
Optional Controllers: IRC-6

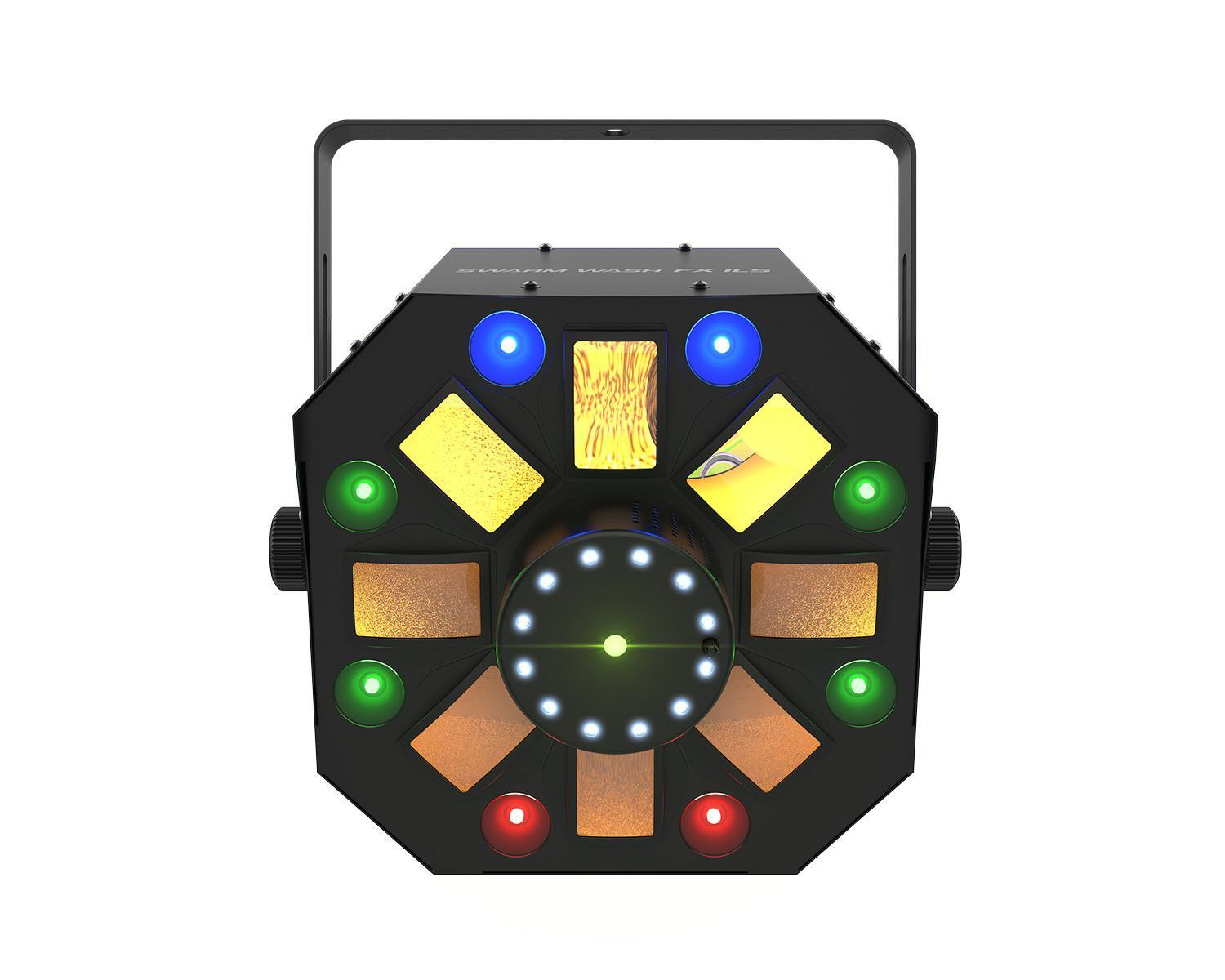

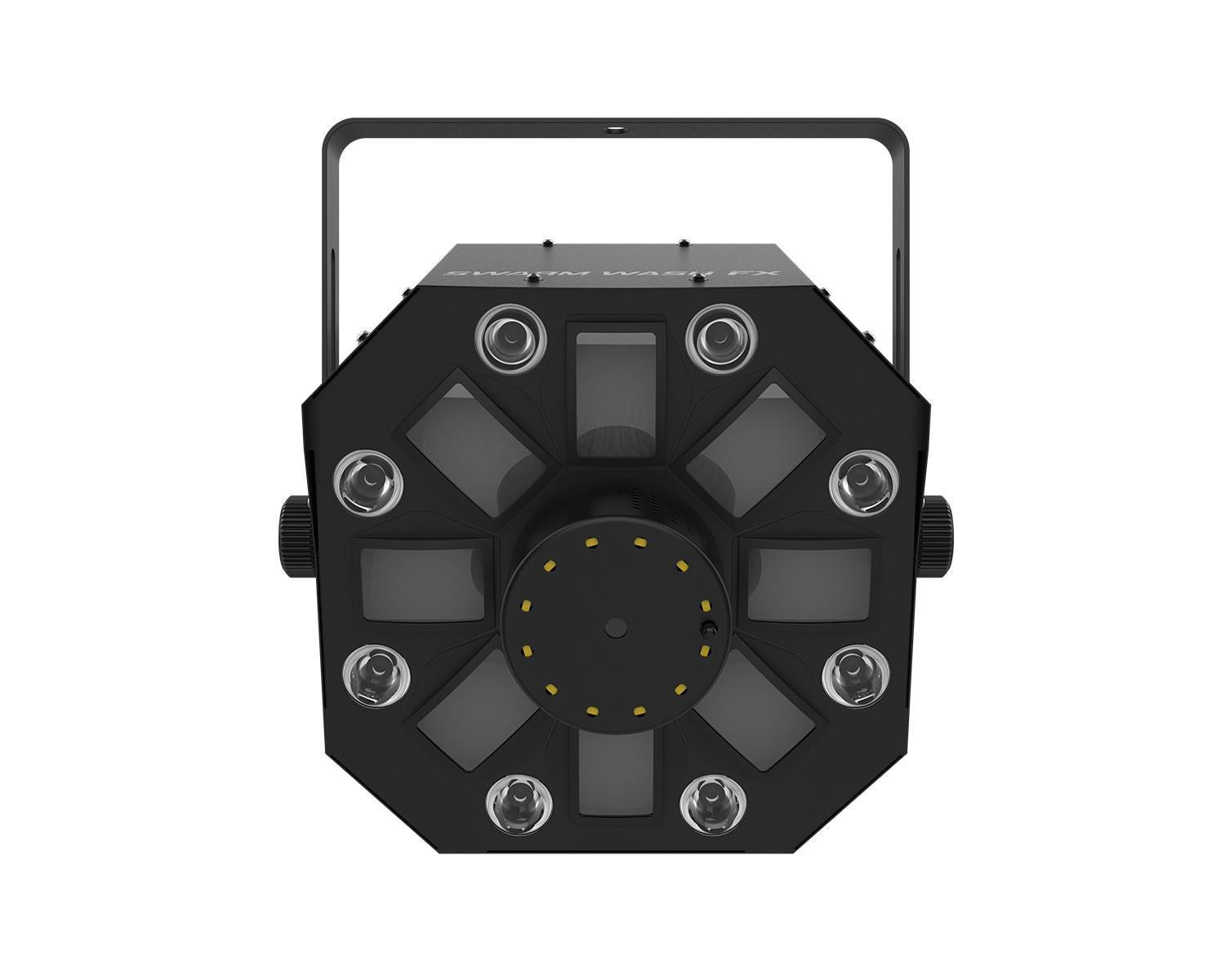

Chauvet DJ SWARM WASH FX ILS 4-in-1 Effect Derby/ Laser/ Strobe/ RGBUV Wash

Swarm Wash FX is a 4-in-1 LED effect fixture that combines an RGBAW rotating derby, RGB+UV wash, red/green laser, and a ring of white SMD strobes. Create an endless array of looks by individually controlling each effect via DMX and master/slave modes. Other features include automated and sound-activated programs and a user-friendly menu structure. Multiple units can be power linked to save time running cables and extension cords. Fits best in the CHS-40 VIP Gear Bag.

Features:

4-in-1 LED light that combines an RGBAW rotating derby,
RGB+UV wash, red/green laser, and a ring of white SMD strobes
ILS compatibility for use in the ILS ecosystem
D-Fi USB compatibility for wireless Master/Slave, or DMX control
Access built-in automated programs via IRC6 remote, Master/Slave or DMX
Red and green laser beams project thousands of beams for maximum coverage
Generate complex looks easily with built-in, eye-catching automatic and sound-activated programs
Save time running extension cords by power linking multiple units
Fits best inside the CHS-40 VIP gear bag

Product Specifications
General
DMX Channels: 2 or 18
DMX Connectors: 3- pin XLR
Light Source (Swarm): 5 LEDs (1 red, 1 green, 1 blue, 1 amber, 1 white) 2 W (650 mA) 50,000 hours life expectancy
Light Source (Wash): 8 LEDs (quad-color RGB+UV) 1.5 W, (600 mA), 50,000 hours life expectancy
Light Source (Strobe) 12 LEDs (white) 1 W, (300 mA), 50,000 hours life expectancy
Light Source (Laser): 650 nm/100 mW (red) laser diode, 520 nm/30 mW (green) laser diode
Strobe Rate: 0 to 20 Hz
Coverage Angle (laser): 82°
Coverage Angle (swarm): 65°
Coverage Angle (strobe): 71°
Coverage Angle (wash): 46°
Power Linking: 11 units @ 120 V; 20 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 51 W, 0.7 A @ 120 V, 60 Hz
Power and Current: 50 W, 0.4 A @ 230 V, 50 Hz
Optional Controllers: IRC6
Classified per EN/IEC 60825-1:2014
Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 56, dated May 8, 2019
Approvals: CE, FDA, RoHS, UKCA
Physical & Dimensions
Weight: 9.5 lb (4.3 kg)
Size: 13.1 x 13 x 9.4 in (335 x 332 x 241 mm)

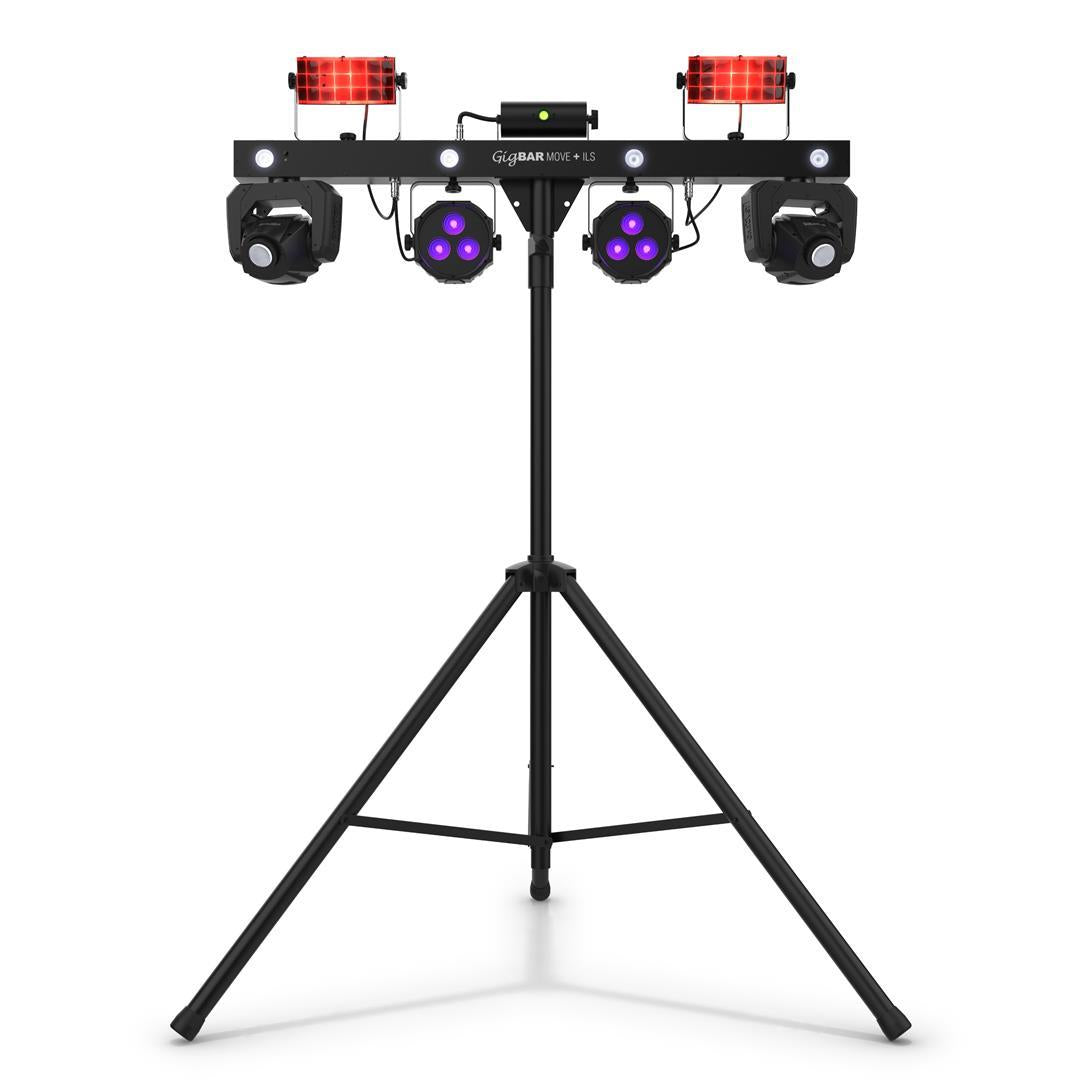

Chauvet DJ Gigbar Move + ILS

The future of easy lighting synchronization is here with GigBAR Move + ILS. This powerful member of the GigBAR family controls the Integrated Lighting System (ILS), the dynamic lighting technology that provides an advanced, coordinated light show across multiple fixture types. GigBAR Move + ILS can control any ILS-enabled fixture, wired or wirelessly. GigBAR Move + ILS is a 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar. Easy navigation and access to all the powerful 32-watt moving head functions can be accessed directly from the full-colour LCD display and Totem Mode keeps the moving heads focused on the dance floor. Built-in UV LEDs illuminate fluorescent objects for dazzling blacklight effects. GigBAR Move + ILS gives you individual control of each effect to ensure your show looks the way you need it to, but gone is the need to aim a remote directly at the unit! The included RF remote triggers built-in shows without needing line of sight operation. Other easy control options include stand-alone mode, DMX, or wireless footswitch. The GigBAR Move + ILS package includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup.

5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar
Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
Separate colour and gobo wheels allow for creative programming
Totem Mode keeps the moving heads focused on the dance floor
System includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup
Built-in UV LEDs illuminate fluorescent objects for dazzling blacklight effects
Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch

Product Specifications
General
DMX Channels: 3, 28, or 50
Colours (moving head): 9 + open, split colours, continuous scroll
Gobos (moving head): 9 + open, continuous scroll
Light Source (pars): 3 LEDs (hex colour RGBAW+UV) 6 W (2 A)
Light Source (strobe): 4 LEDs (cool white) 5 W (1.2 A)
Light Source (derby): 8 LEDs (2 red, 2 green, 2 blue, 2 white) 6.5 W (2 A)
Light Source: (moving head) 1 LED (cool white) 32 W, (3 A)
Light Source: (Laser) 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/100 mW (blue) laser diode
Strobe Rate: 0 to 30 Hz
Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
Beam Angle (moving head): 17°
Beam Angle (pars): 22°
Beam Angle (strobe): 30°
Coverage Angle (derby): 131°
Coverage Angle (laser): 93°
Illuminance (pars): 1,205 lux @ 2 m (per par)
Illuminance (moving head): 5,140 lux @ 2 m (per head)
Illuminance (strobe): 130 lux @ 2 m
Footswitch Max Unobstructed Distance: 100 ft (30.5 m)
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 250 W, 3 A @ 120 V, 60 Hz
Optional Controllers: RF
Classified per 21 CFR 1040.10 & .11
Complies with US FDA CDRH laser safety standards 21 CFR 1040.10 & 1040.11
Approvals: CE, UKCA, RoHS, FCC, FDA
Physical & Dimensions
Weight (bar only): 31 lbs (14 kg)
Size: 43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)
