Chauvet DJ 4BAR Quad ILS

4BAR Quad ILS is a complete wash lighting solution fitted with high-intensity quad-color (RGBA) LEDs that can be controlled wirelessly out of the box via the included footswitch or optional IRC-6 controller. But for real convenient control, compatibility with the Instant Light Shows (ILS) that makes creating coordinated light shows across an unlimited number of different fixture types easy and fast means control is easier than ever. Generate natural, warm color temperatures with punchy amber and achieve total area coverage by individually positioning the 4 adjustable pods. 4BAR Quad ILS is compatible with D-Fi USB for wireless Master/Slave or DMX programming. A convenient tripod and carry bag are included for effortless setup and quick tear down. 4BAR Quad ILS safely attaches to truss with built-in bolts, easily increasing mounting options.

Features:

Complete wash lighting solution fitted with high-intensity, quad-color (RGBA) LEDs
ILS compatibility for use in the ILS ecosystem
Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
Out of the box wireless control with included footswitch or optional IRC-6 controller

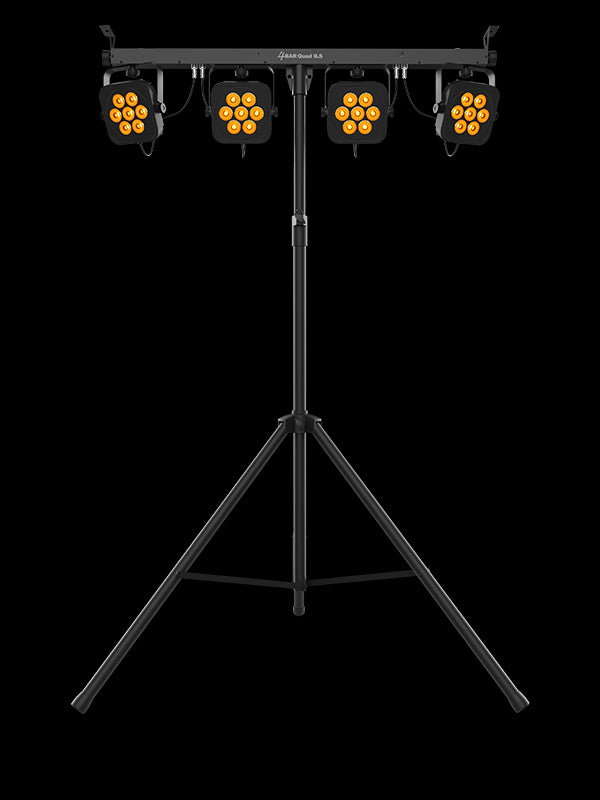

Easily set up and tear down in minutes with the included tripod stand and carrying bags
D-Fi™ USB compatibility for wireless Master/Slave or DMX control
Achieve total room or stage coverage with 4 individually adjustable heads
Increase mounting options by safely mounting to truss using built-in bolts

Specifications:

DMX Channels: 4, 6 or 19
DMX Connectors: 3-pin XLR
Light Source: 28 LEDs (quad-color RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy
Strobe Rate: 0 to 20 Hz
Beam Angle: 14°
Field Angle: 23°
Illuminance: 2,353 lux @ 2 m (per pod)
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:
80 W, 1.2 A @ 120 V, 60 Hz
78 W, 0.6 A @ 230 V, 50 Hz
Weight: 12.2 lb (5.5 kg)
Size: 45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
Approvals: CE, RoHS, UKCA
Operating Frequency (D-Fi): : 2.412 to 2.484 GHz
Operating Frequency (foot switch): : 433 MHz
Max Unobstructed Distance (foot switch): : 100 ft (30.5 m)
Footswitch battery: : 9 V
Stand Height: : 7 ft 4 in (2.2 m)
Fits Tripod Sizes: : 1.5 in (36.80 mm)
Bracket Mounting Hole: : M10 (1.5 mm pitch)
Weight (Controller): : 1.2 lb (0.6 kg)
Size (Controller): : 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm)
Optional Controllers: : IRC-6, D-Fi USB

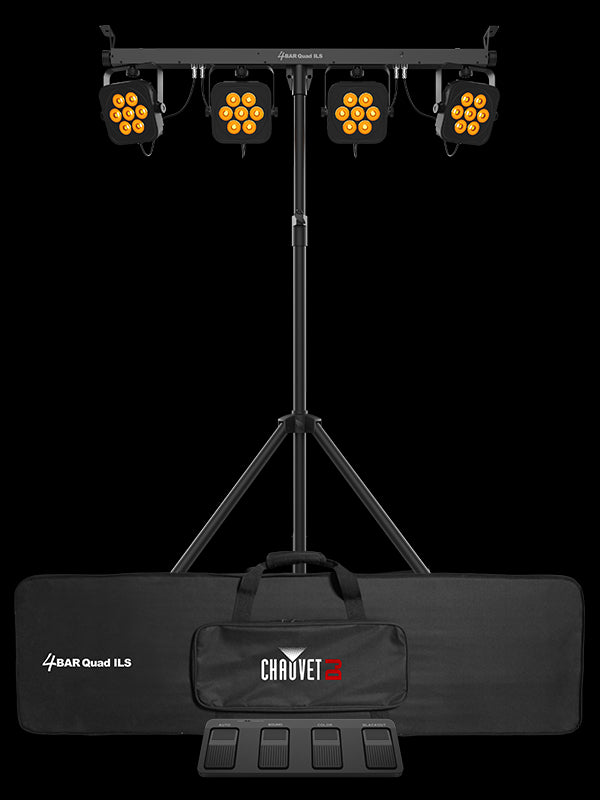

What's Included:

4Bar Quad ILS
Power cord
Carrying bag
Tripod
Tripod Carry bag
Wireless Footswitch
Quick Reference Guide
