Chauvet COLORband Q4 IP Weatherproof LED Batten Uplighter IP65

Description

The Chauvet DJ COLORband Q4 IP no longer makes your event dependent on the weather thanks to its IP65 certification. That's because this weatherproof, outdoor-ready LED bar keeps you happy indoors and out, with a rugged housing that repels water, snow, dirt and sand for all-weather applications.

The LED bar features a total of 12 6-watt LEDs each, which allow for numerous color mixes thanks to their basic RGBA colors. The LEDs used achieve an impressive light output of 7,074 lux at 2 meters respectively 1,209 lux at 5 meters. The COLORband Q4 IP has a versatile 4-zone effect that can be used for a variety of applications, including as a blinder or wall washer. Static colors, dimmers as well as an adjustable strobe allow further creative scope for your own light show.

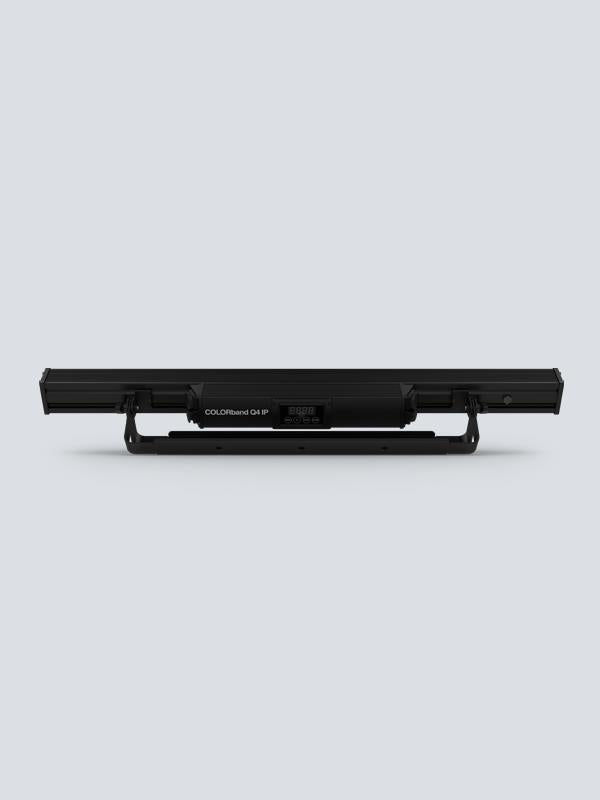

The touch-sensitive Display on the back of the fixture can be password protected, and powerCON® TRUE1 inputs provide secure power connections. The integrated GORE® valve prevents moisture from accumulating inside. The COLORband Q4 IP is even great for on-camera work thanks to its high-frequency LED dimming, which gives the unit flicker-free video operation.

LED bar with 12x 6 Watt LEDs, RGBA color mixing
IP65 certification - weatherproof and suitable for outdoor use
Rugged housing is water, snow, dirt and sand resistant for use in all weather conditions
Built-in GORE® valve prevents moisture from accumulating inside
Flicker-free video operation with high-frequency LED dimming
Easy to carry in the optional CHS-60 carrying case

Technical data
DMX channels: 4, 7, 10, 16 or 22
DMX connectors: 3-pin XLR
Light source: 12 x 6 Watt LEDs
Color mixing: RGBA
Lifetime: up to 50,000 hours
Strobe rate: 0 to 20 Hz
PWM frequency: 4 KHz
beam angle: 14°
Field angle: 27
Illuminance: 7.074 lux @ 2 m, 1.209 lux @ 5 m
Lumens: 2,923
Protection class: IP65
Power Linking: 9 units @ 120 V; 16 units @ 230 V
Input voltage: 100 to 240 VAC, 50/60 Hz
Power and current: 87 W, 1.18 A @ 120 V, 60 Hz, 86 W, 0.67 A @ 230 V, 50 Hz
Weight: 5.35 kg
Dimensions (L x W x H): 998 x 81 x 104 mm
