Cameo Q-SPOT 40 WW Compact Spot with 40 W WW-LED Finished in Black

This compact Cameo Q-Spot is equipped with a powerful 40 watt warm white LED that has a 50,000 hour life expectancy. The RDM enabled PAR light sports a custom lens for a tightly focussed 4.5° beam spread and comes with two replacement lenses offering versatility with a choice of 10° and 25° angles. Using 16-bit technology, the fixture provides ultra smooth dimming with selectable curves and response. Highly efficient convection cooling ensures silent operation, and the 3,600 Hz refresh rate and flicker-free performance make it ideal for motion picture and TV applications. .

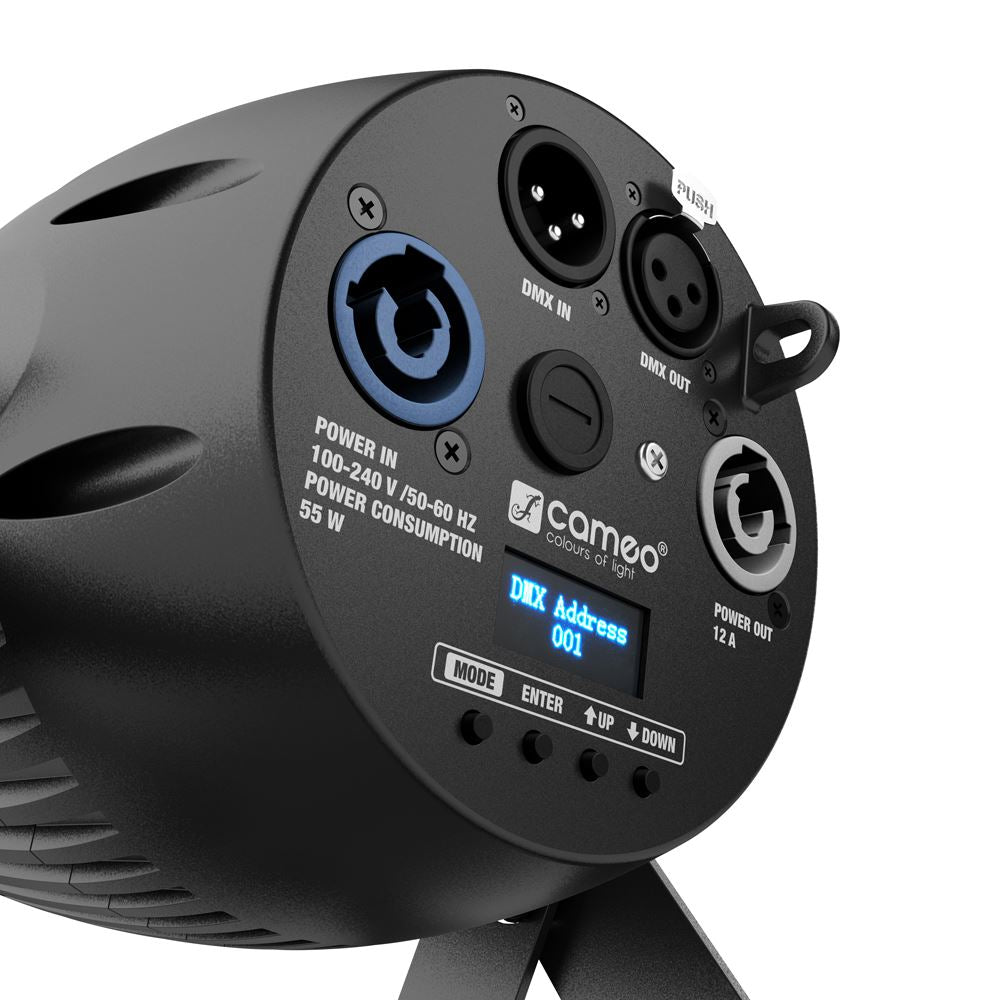

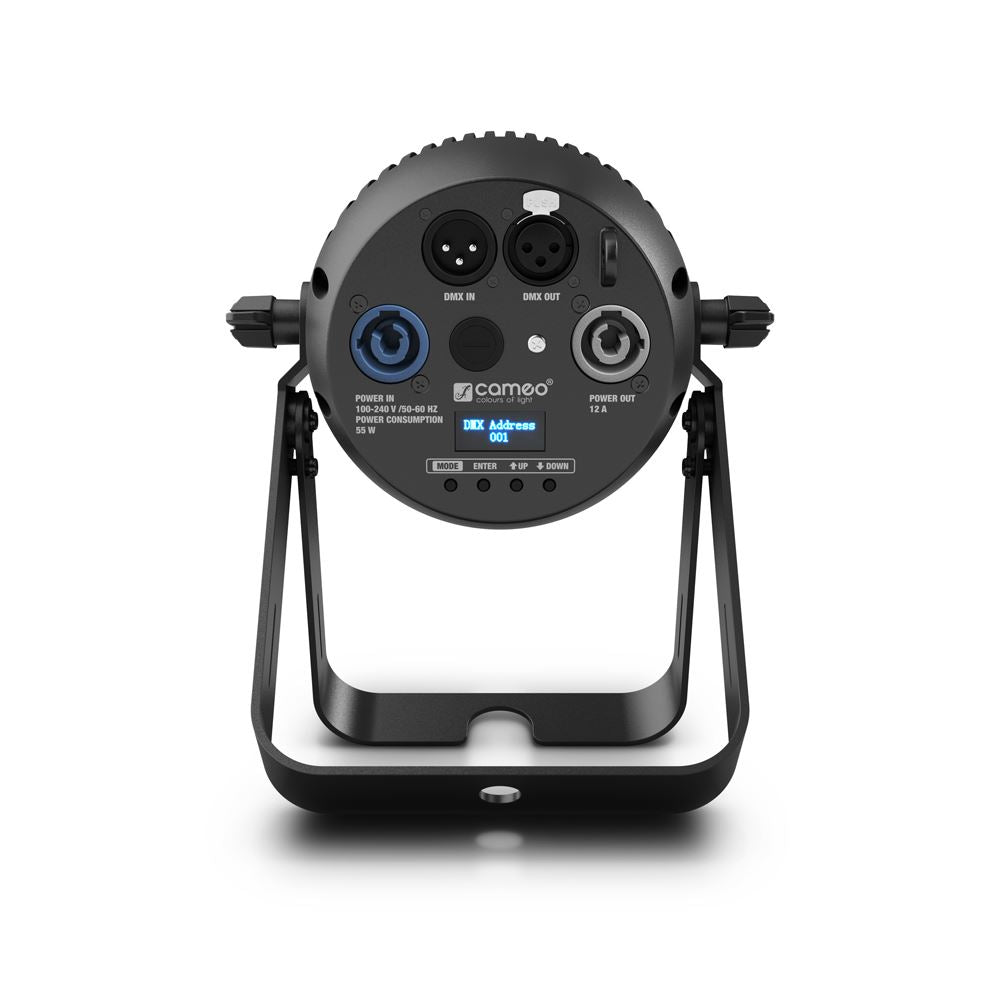

The white light Q-Spot 40 features 3-channel DMX control, sound activation and master, slave and standalone capability. A convenient infrared remote control unit is available as accessory. The spotlight features a high-speed strobe function and a 4- button OLED display for easy configuration. The rugged all-metal housing provides 3-pin DMX inputs and outputs plus blue and grey Power Twist connectors for trouble-free daisy-chaining and power linking. The Q-Spot 40 WW is available with a black (item no. CLQS40WW) or white housing (item no. CLQS40WWWH).

Features
Compact LED spot light with single 40W warm white LED
3,000 K colour temperature

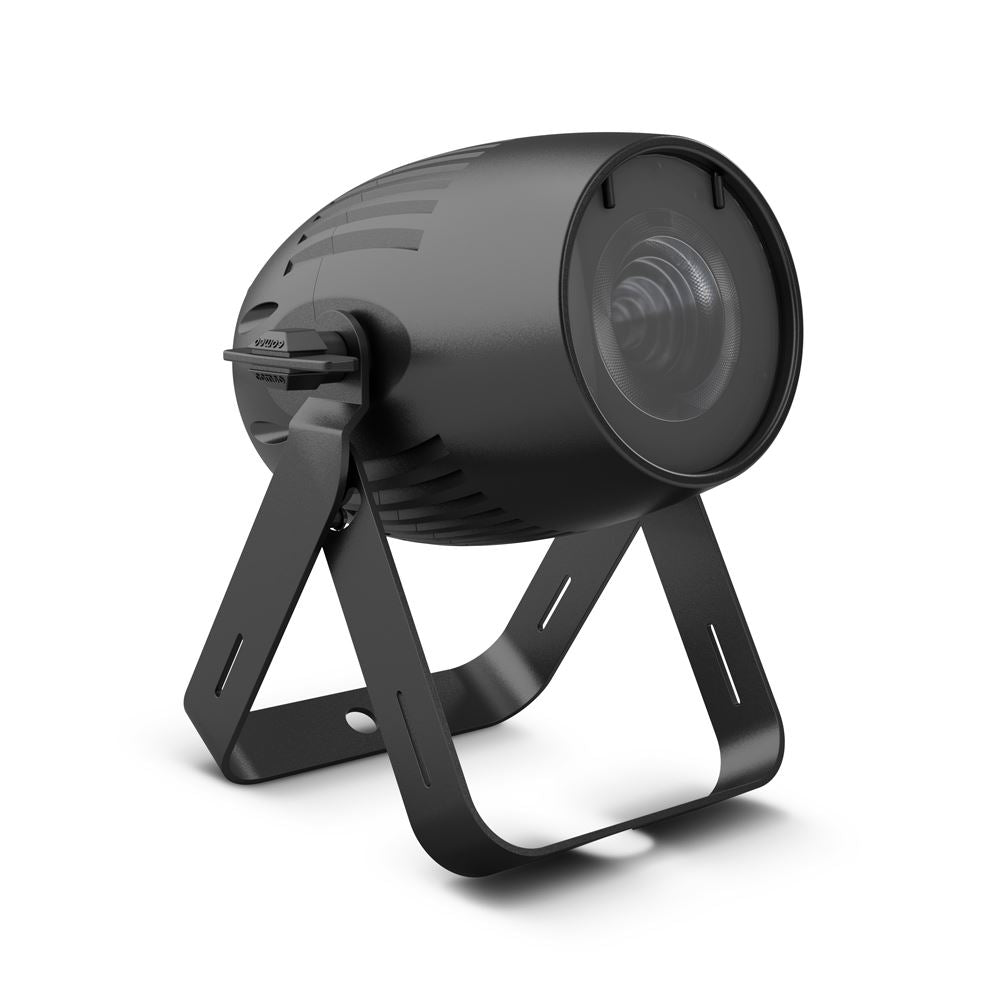

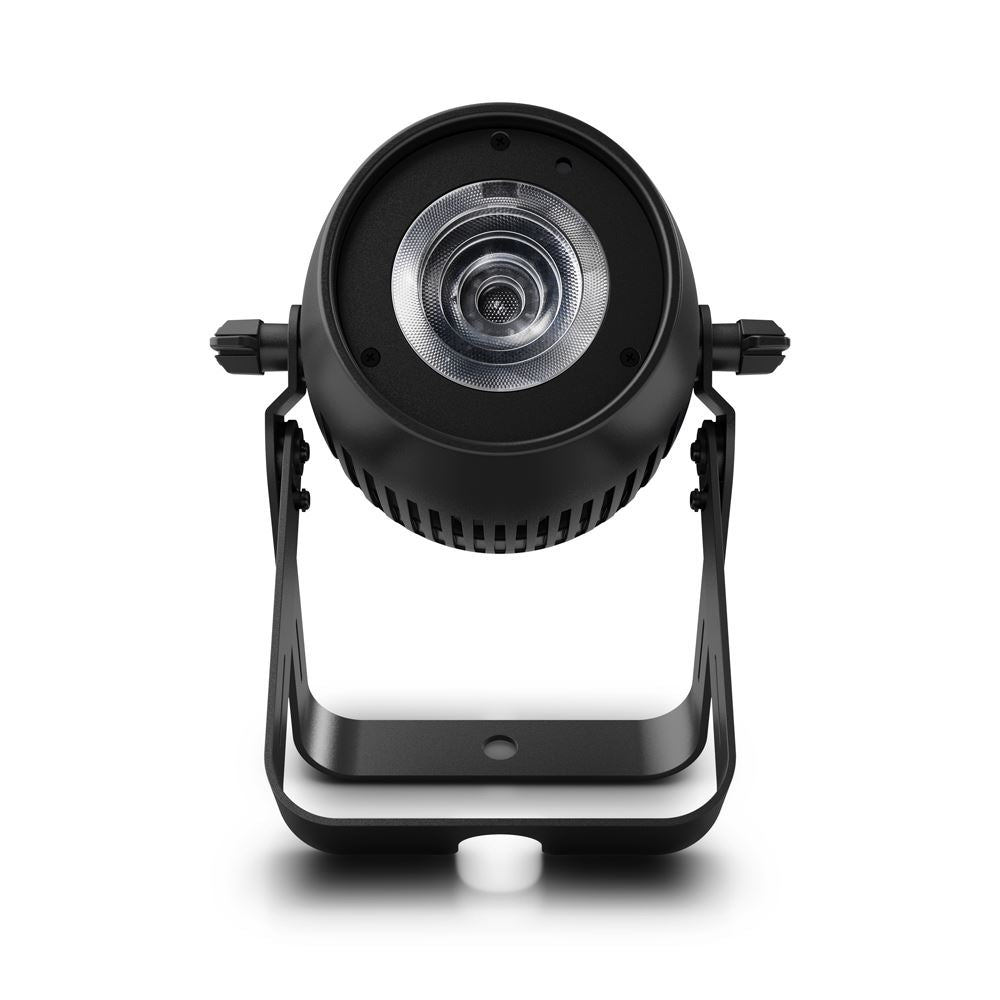

Custom lens with 4.5° beam spread for uniform light intensity

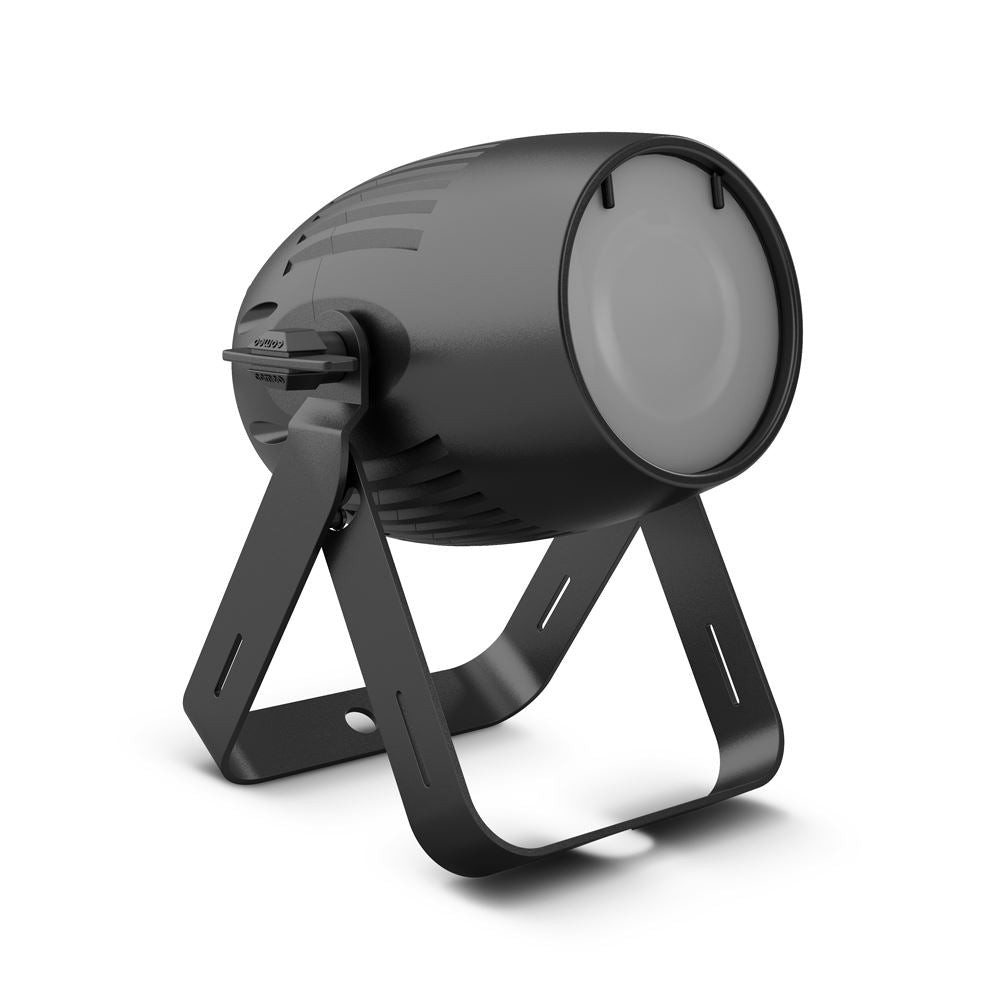

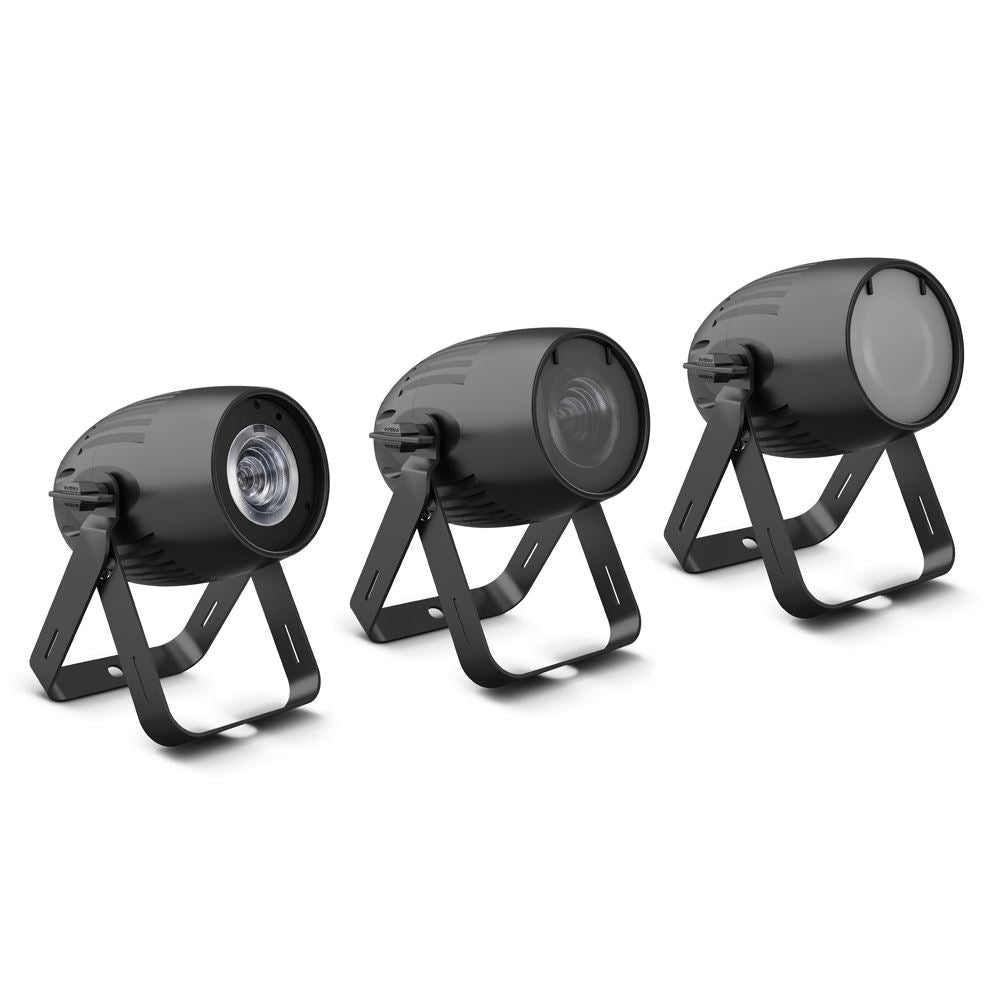

Includes 2 replacement lenses for 10° or 25° beam angles
RDM enabled
16-bit technology for ultra smooth dimming
Flicker free, ideal for motion picture and TV applications
4 high resolution dimming curves with adjustable response
DMX control, sound activation plus master, slave and standalone capability
4-button OLED display for easy configuration
Convection cooling for noiseless performance
Infrared remote control available as accessory

Specifications
Product type: LED PAR Lighting
Type: Indoor
Colour spectrum: warm white
Number of LEDs: 1
Average LED lifetime: 50,000 h
Colour temperature: 3000 K
LED type: 40 W
Refresh rate: 3600 Hz
Dispersion: 4.5°, 10°, 15°
DMX input: XLR 3-pin male
DMX output: XLR 3-pin female
RDM: Yes
Protocols: USITT DMX-512
DMX mode: 3-channel
DMX Functions: master dimmer, sound control, strobe
Wireless DMX: no
Strobe flash rate: 1-20 Hz
Standalone modes: Master / Slave mode, sound control
Controls: Enter, Mode, Value Down, Value Up
Indicators: OLED Display
Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption: 55 W
How many devices can be connected (110 V): 5
How many devices can be connected (240 V): 5
Power connector: Blue Power Twist, male
Power supply connection: Grey Power Twist, female
Housing material: metal
Cabinet colour: Black
Protection class IP: IP20
Cooling: Convection
Illuminance: 11300 lx @ 3 m, 71000lx @ 1m
Luminous flux: 940 lm
Dimensions without mounting bracket
Width: 151 mm
Height: 130 mm
Length: 220 mm
Weight: 2,75 kg
