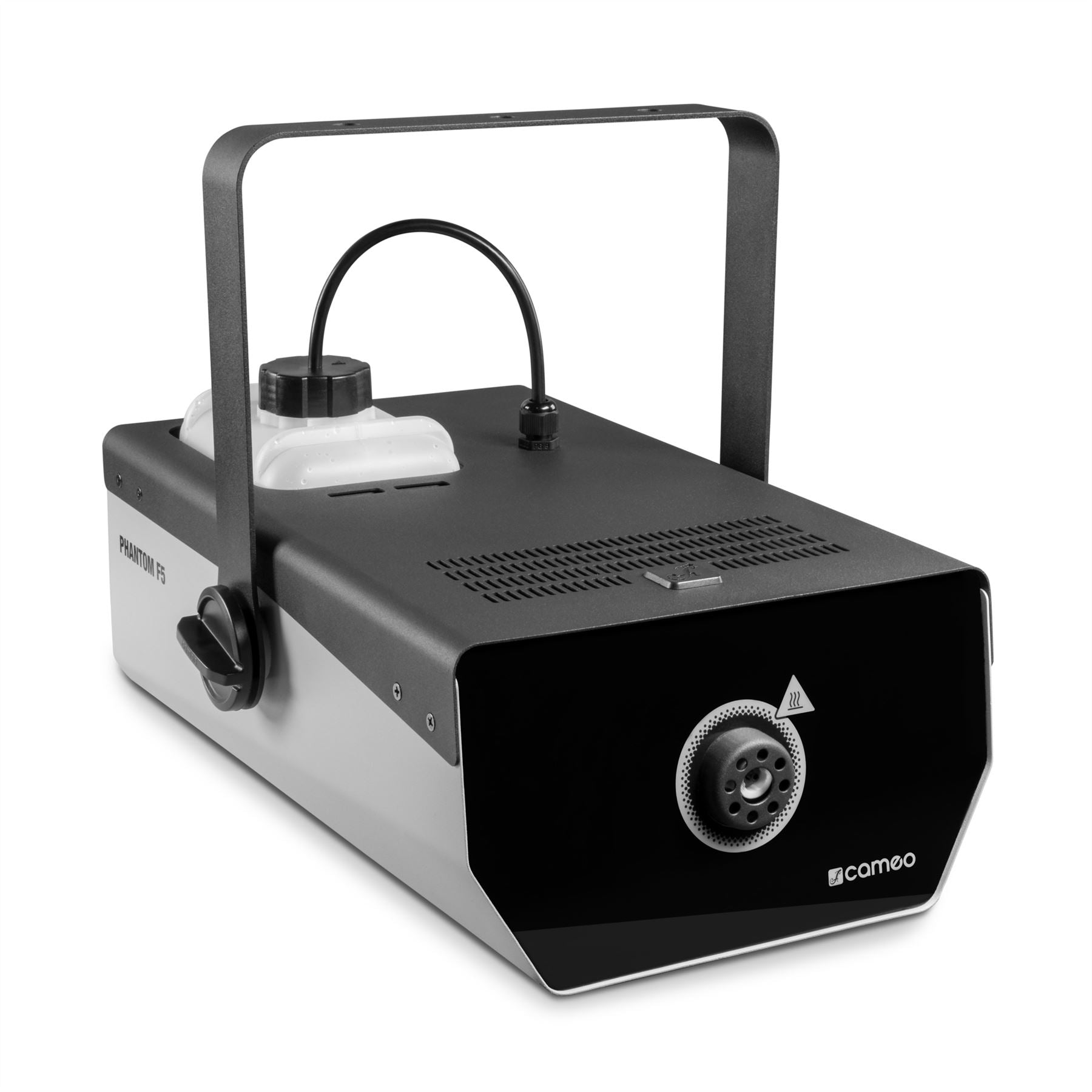

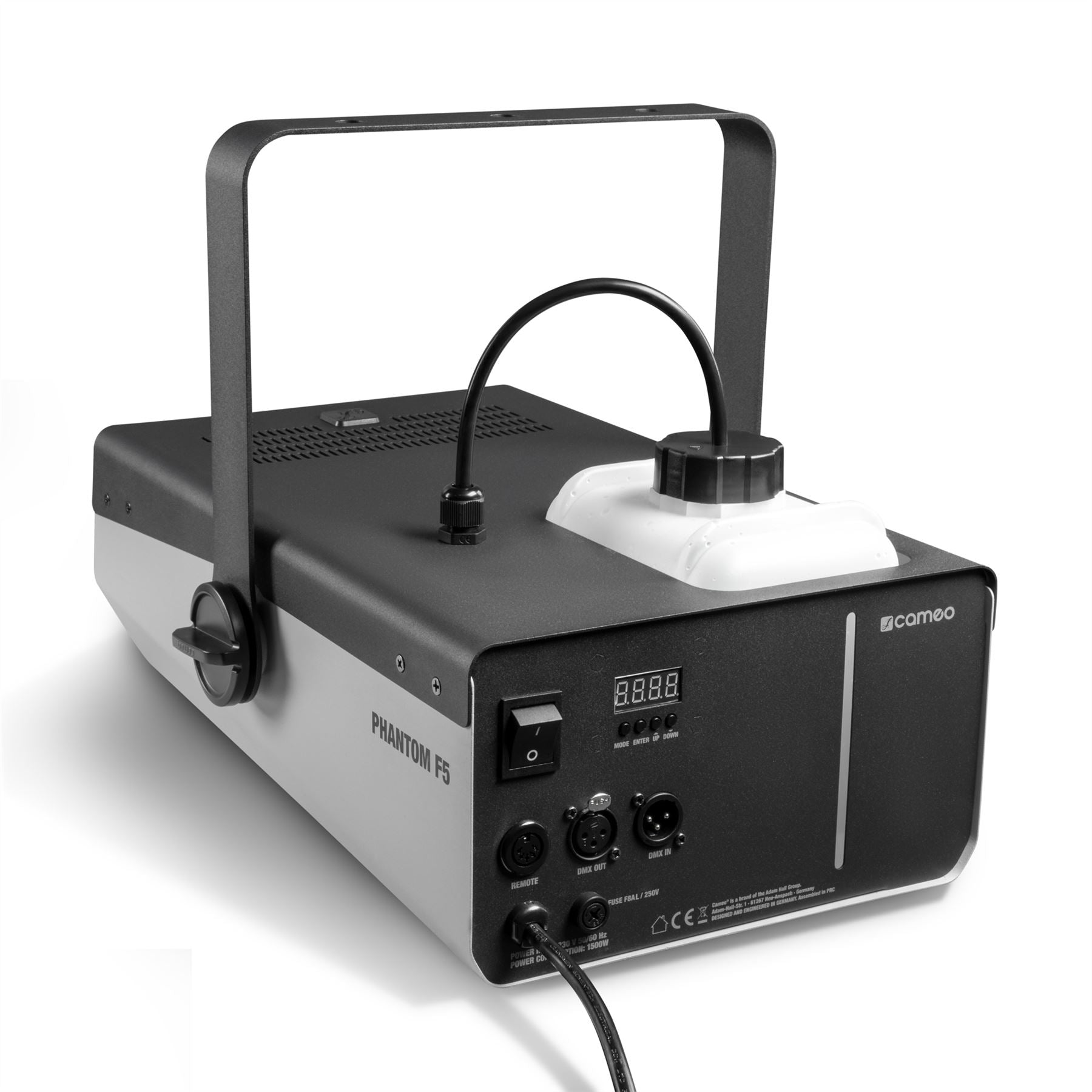

Cameo PHANTOM F5 1500W High Output Fog Machine with Two-Colour Tank Illumination

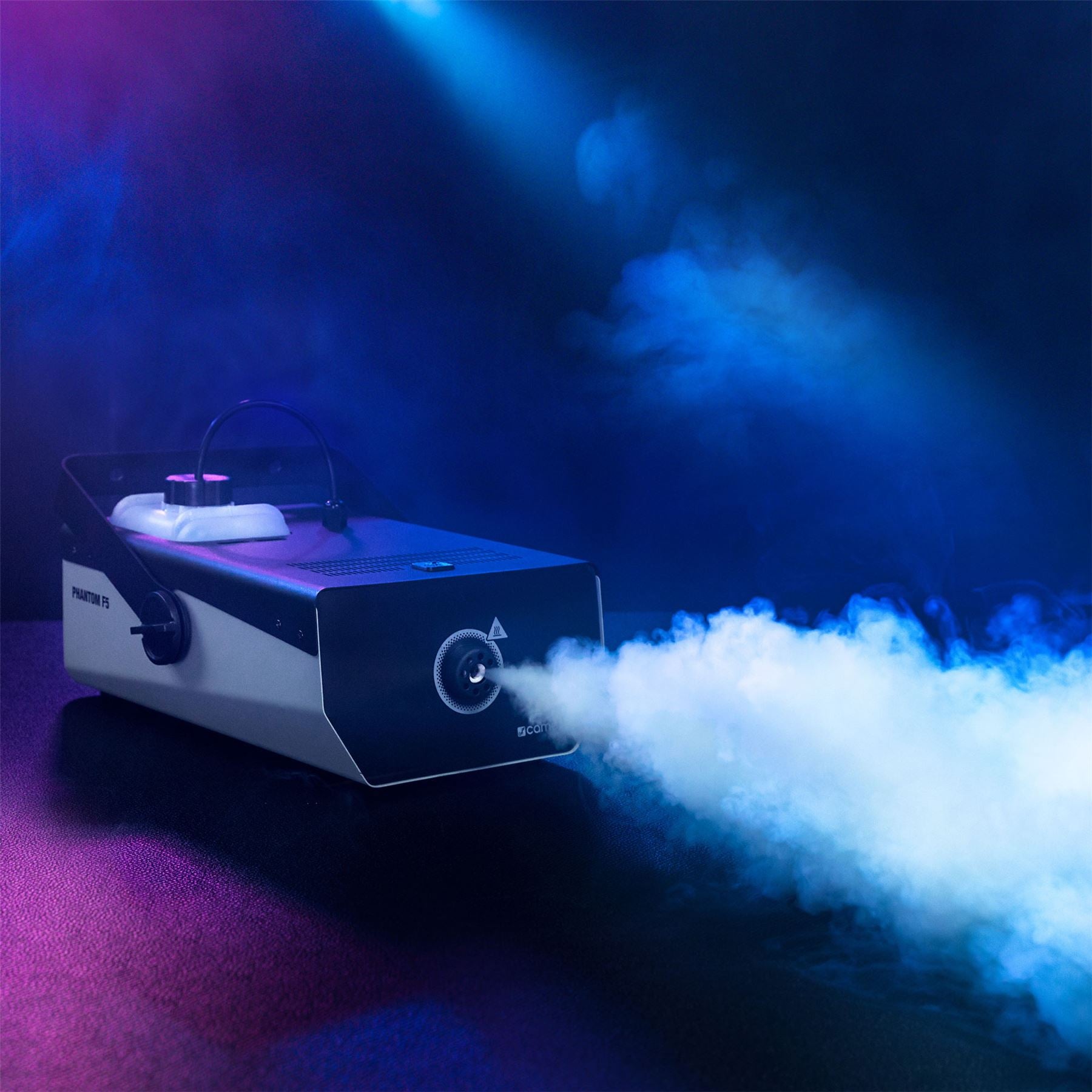

The quick reaction time of the Cameo PHANTOM 5 fog machine means that you are always ready onstage - perfect for small rental companies, DJs and musicians. With a 1,500 watt heating element and an output volume of 509 m3/min, it creates very uniform fog after a warm-up time of only 4 minutes. A fog range of around 7 meters means that the Cameo PHANTOM F5 is also suitable for medium-sized stages. It's the perfect basis for sophisticated and atmospheric light shows!

The quick reaction time is made possible by intelligent software and components that are optimally coordinated with one another. The pump and heating are coordinated so that fog can be emitted faster. The tank has a capacity of 1.8 litres and can be easily taken out of the housing for filling. Integrated two-coloured tank illumination means that it's always easy to see how much fluid is left in the device. Configuration takes place either via the LED display on the fog machine itself or using the included multi-function remote control. In addition to stand-alone operation, the Cameo PHANTOM F5 can also be controlled via DMX.

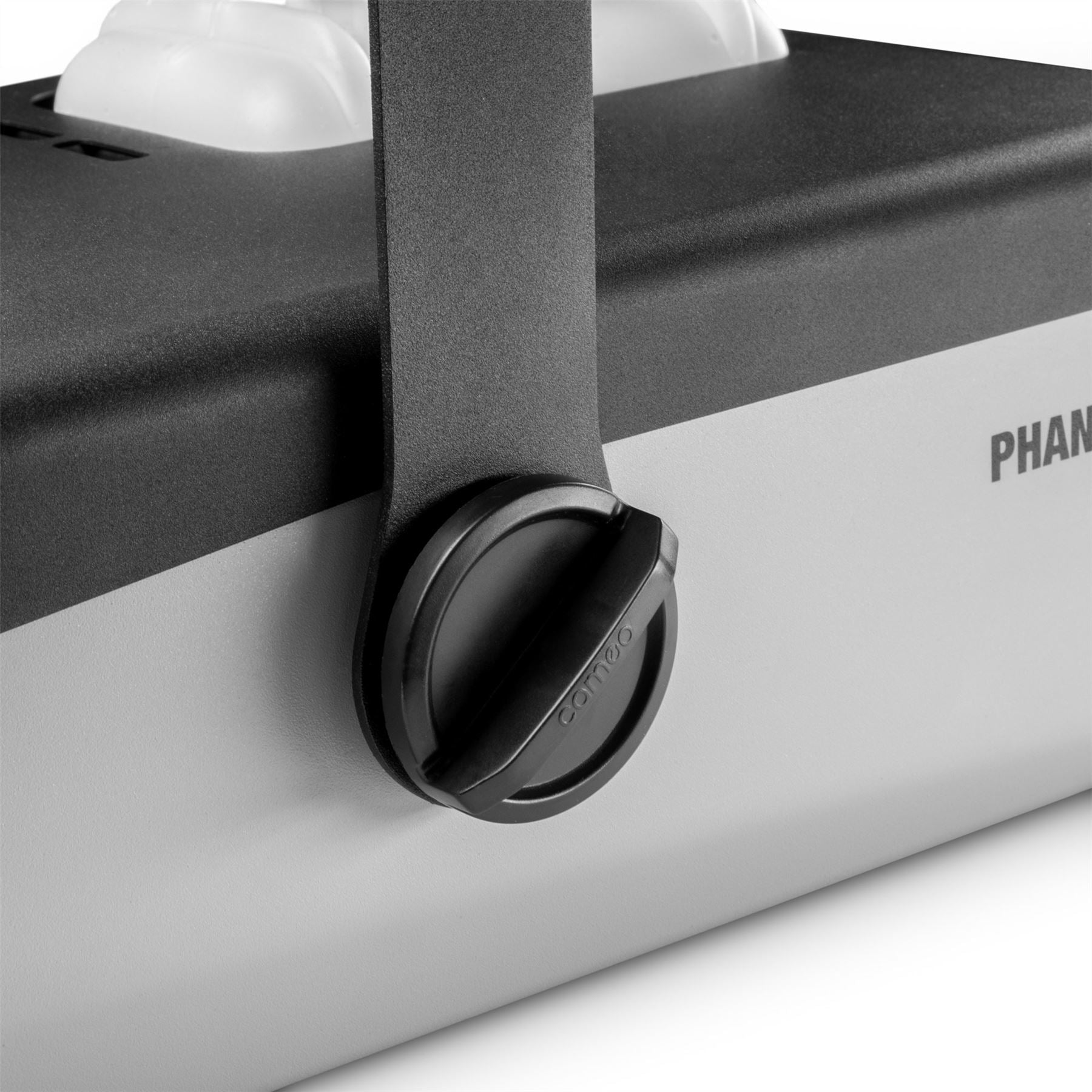

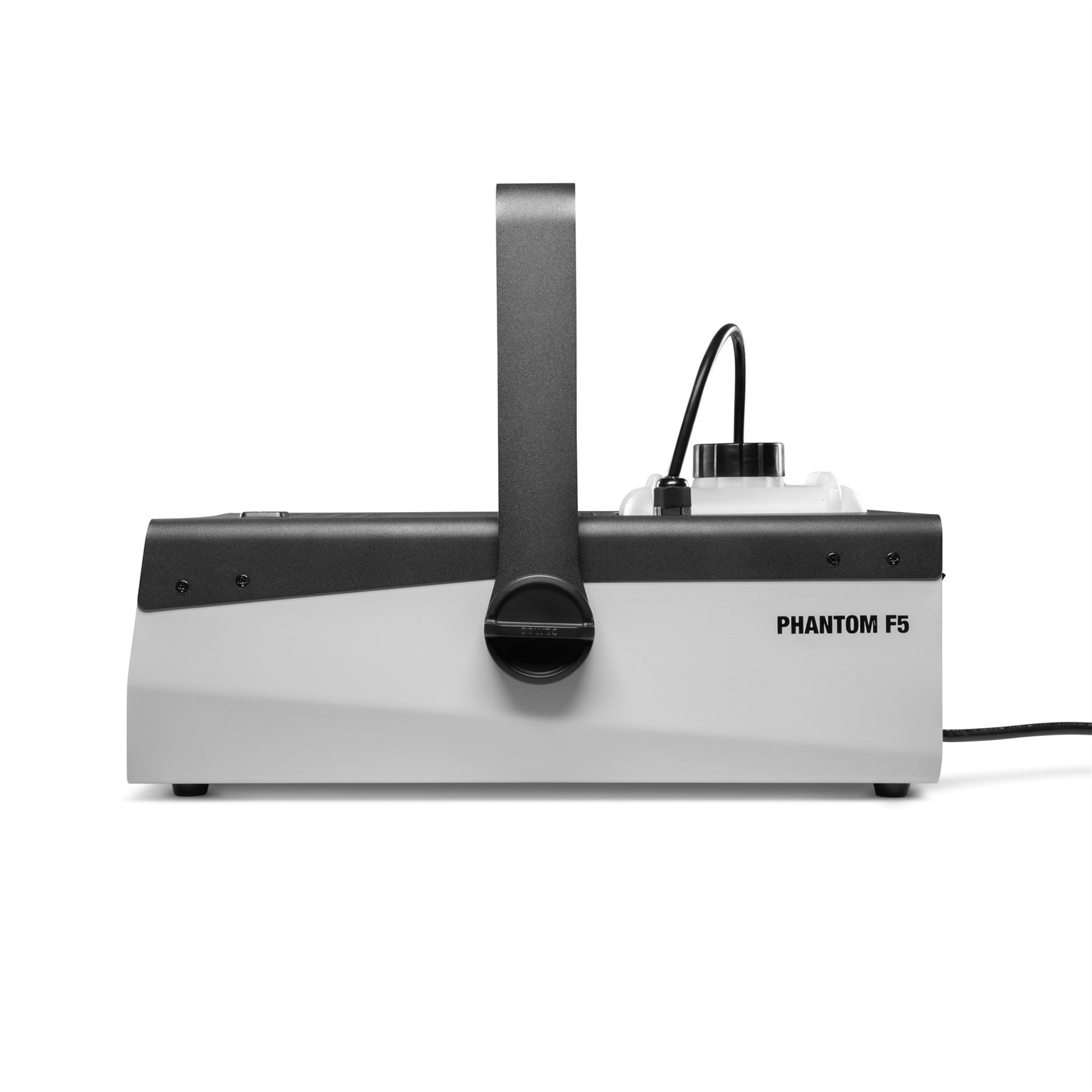

The two-coloured housing, in black and cool grey, makes the fog machine a real attention-grabber, and the included U-bracket makes hanging it on a stand or a truss easy.

Features
Highly efficient heating element with 1,500 W heat output
Short warm-up time (about 4 minutes)
Output of up to 509 m³/min

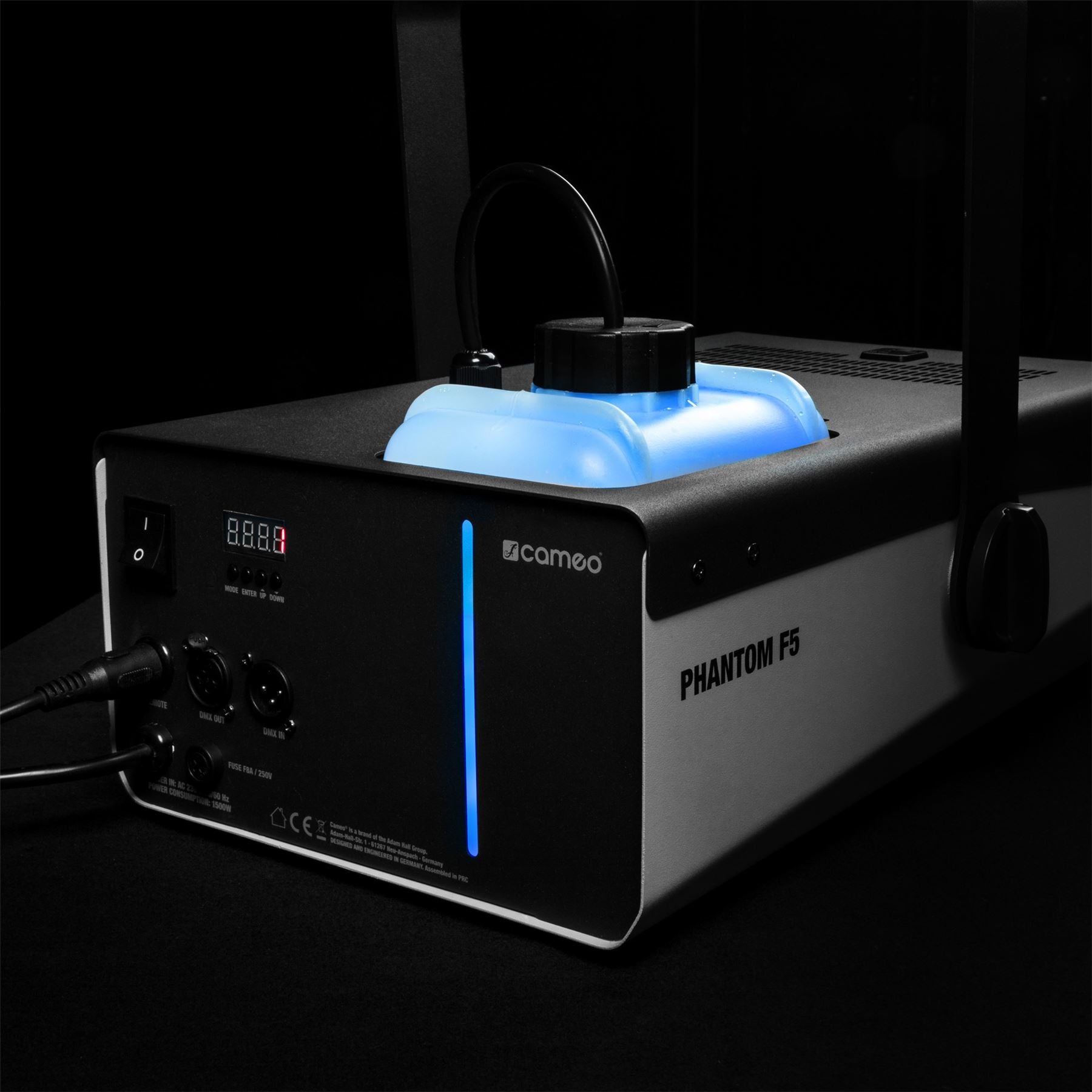

Two-colour tank illumination with 1.8 l capacity and level indicator
Compatible with standard water-based fog fluid (e.g. Cameo DJ Fluid)
Removable tank for simple filling
DMX control and stand-alone operation
Optimal coordination of the pump and heating, for uniform fog at any density
Mounting bracket and multi-function remote control included
LED display for simple configuration

Specifications
Product type: Fog Machine
Type: Fog Machine
Power: 1500 W
Output volume: ca. 509 m³/min
Range of fog output: approx. 7 m
Warm-up time: approx. 3 min
Fog duration: ca. 14 s
Reheating time: ca. 12 s
Fluid tank capacity: 1.8 l
Fluid Consumption: ca. 90 ml/min

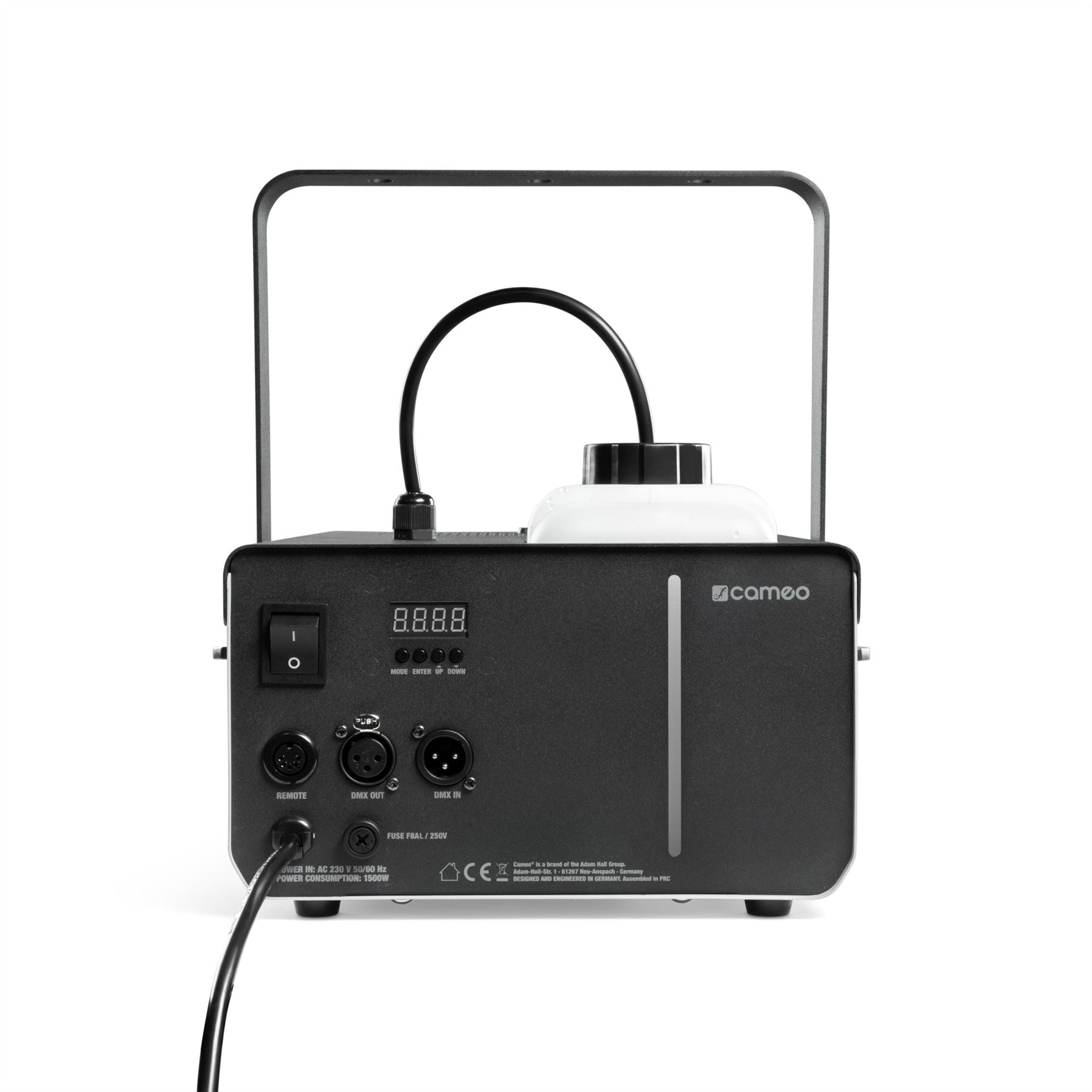

Remote connection: DIN 5-Pol male
Remote cable length: 10 m
Remote functions: Continous output, Duration, Interval, manual, Time, volume

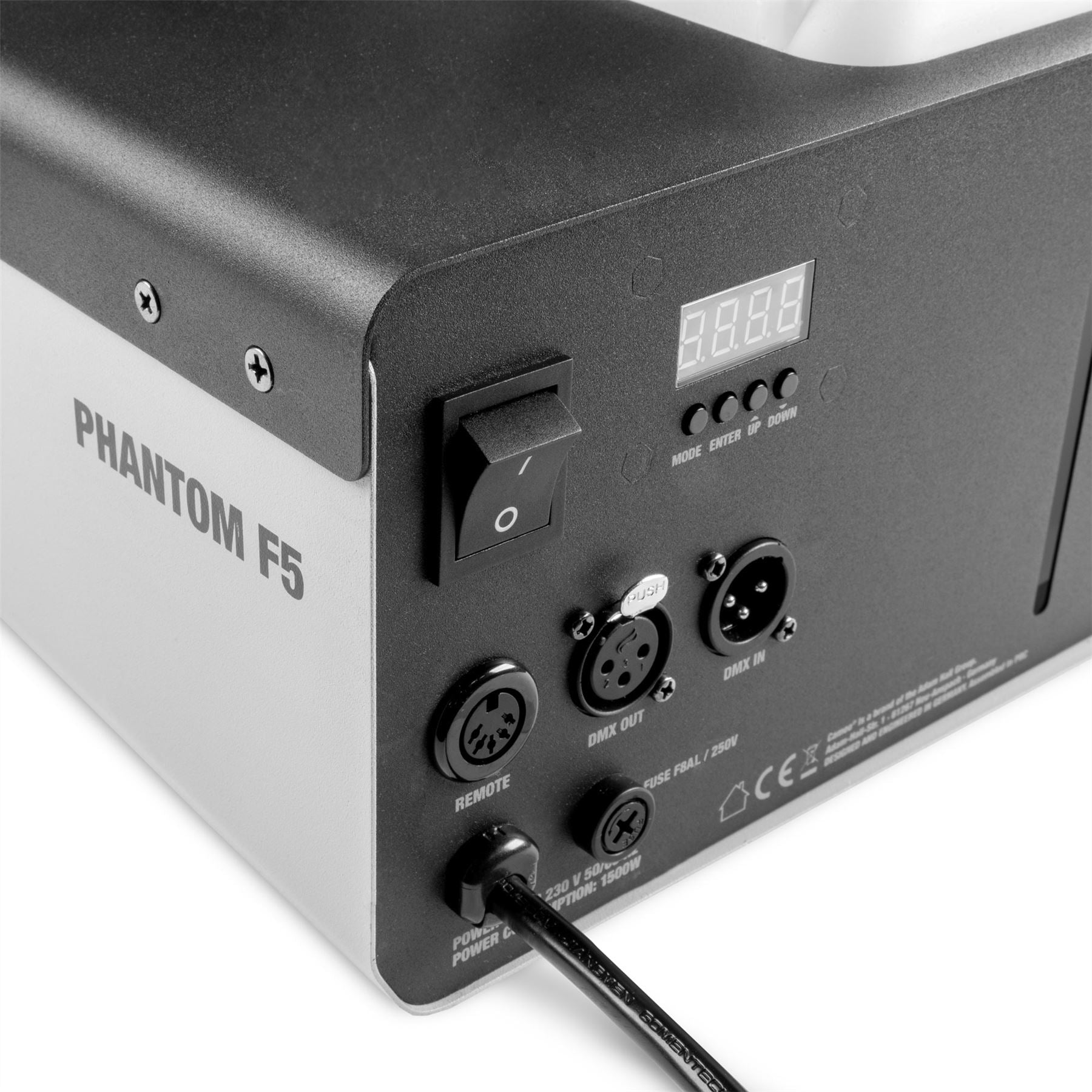

DMX input: XLR 3-pin male
DMX output: XLR 3-pin female
DMX mode: 1-channel, 3-channel
DMX Functions: Fog output on/off, Timer Duration, Timer Interval
Controls: Down, Enter, Mode, Up
Indicators: 4-digit LED display
Operating voltage: 230 V AC / 50-60 Hz
Fuse: F8AL / 250 V
Power consumption: 1450 W
Ambient temperature ( in operation ): 5 - 40°C
Relative Humidity: < 85 %, not condensing
Power connector: CEE 7/7, Fixed connection cable
Housing material: metal
Cabinet colour: Black, grey
Width: 250 mm
Height: 150 mm
Length: 420 mm
Accessories (included): 4 rubber feet, Cable remote, canister
Weight: 6,75 kg
