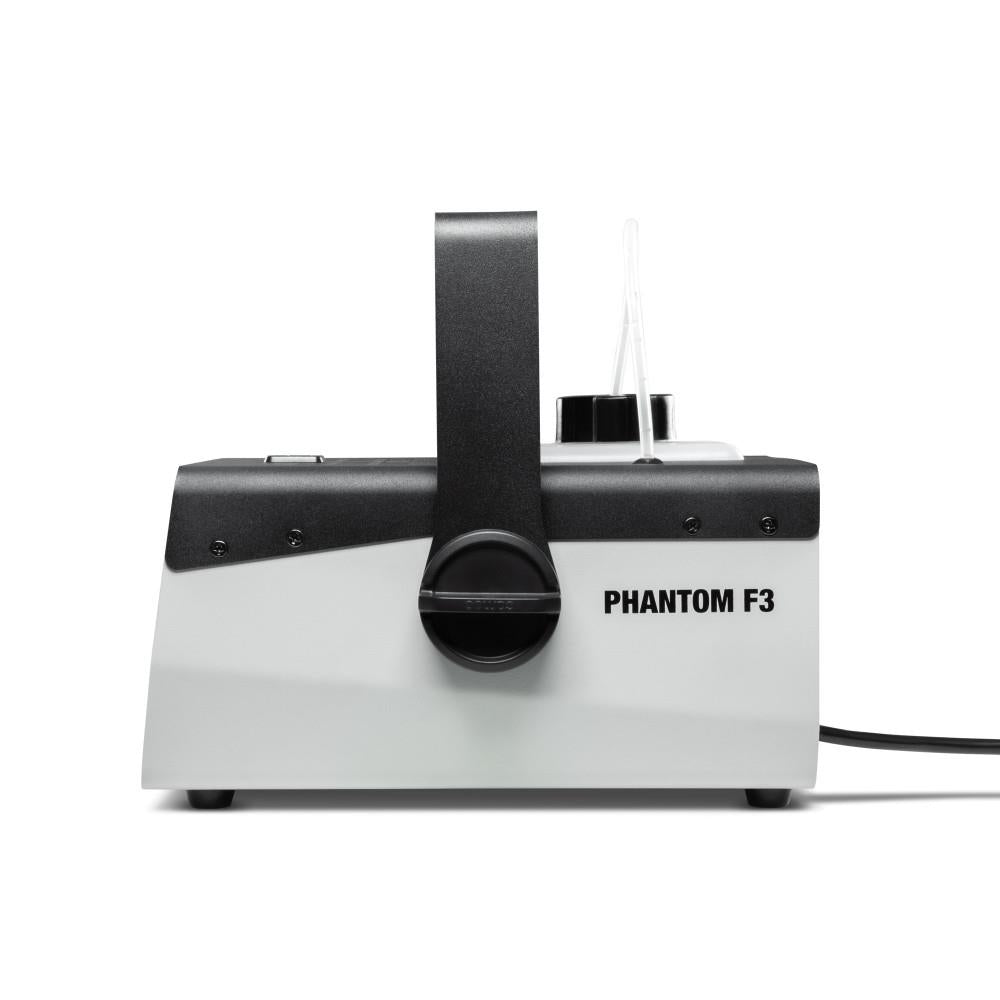

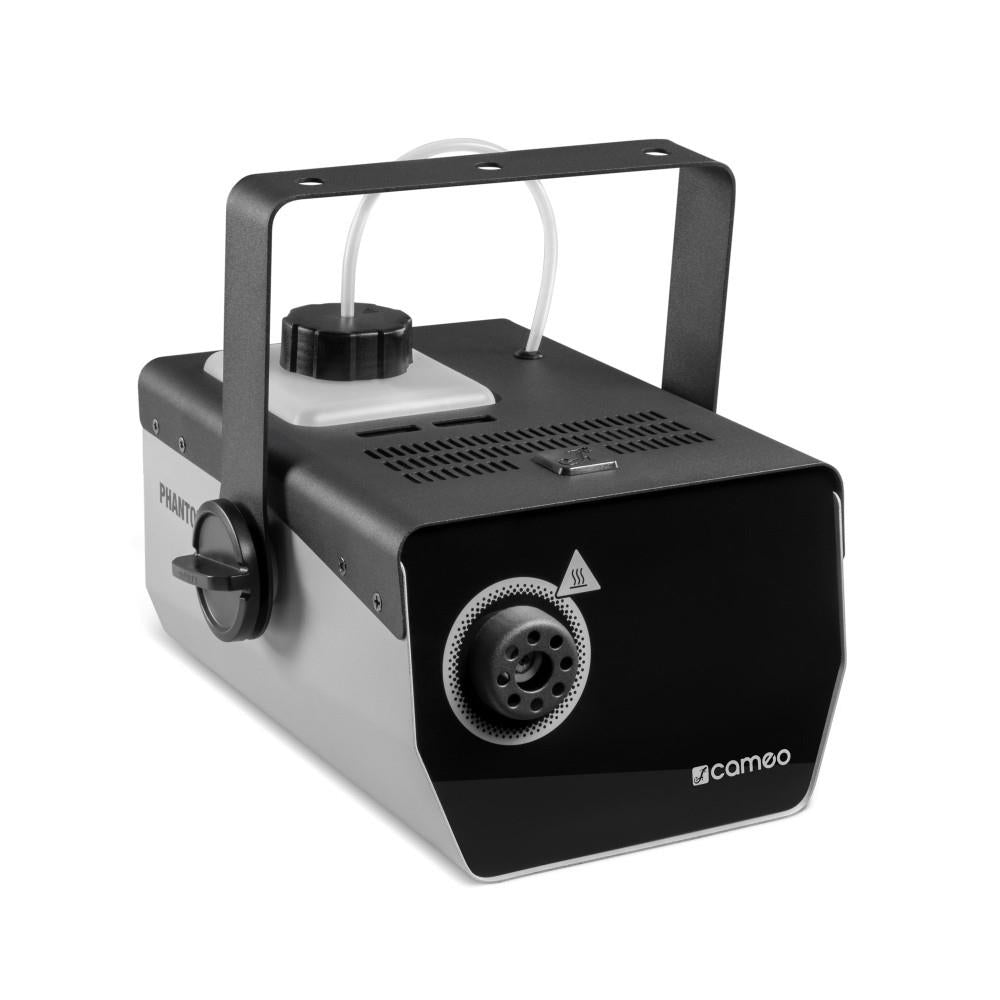

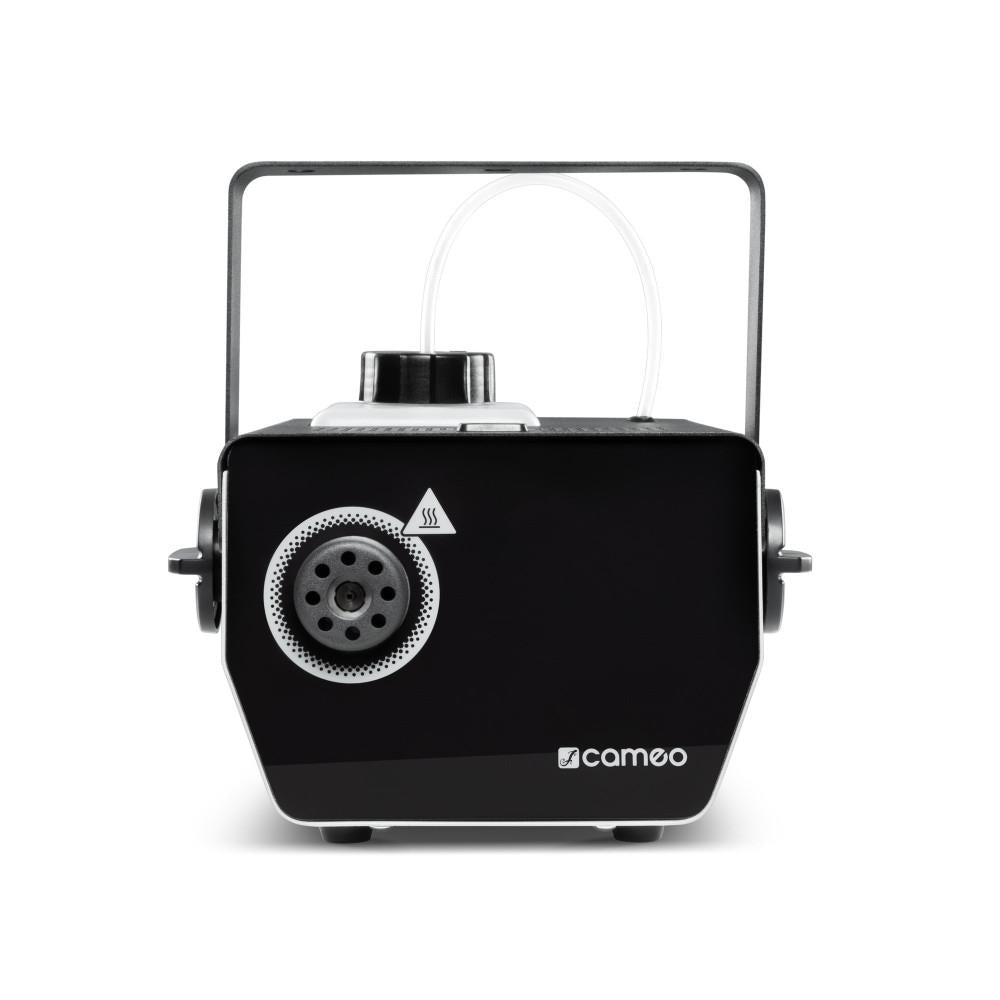

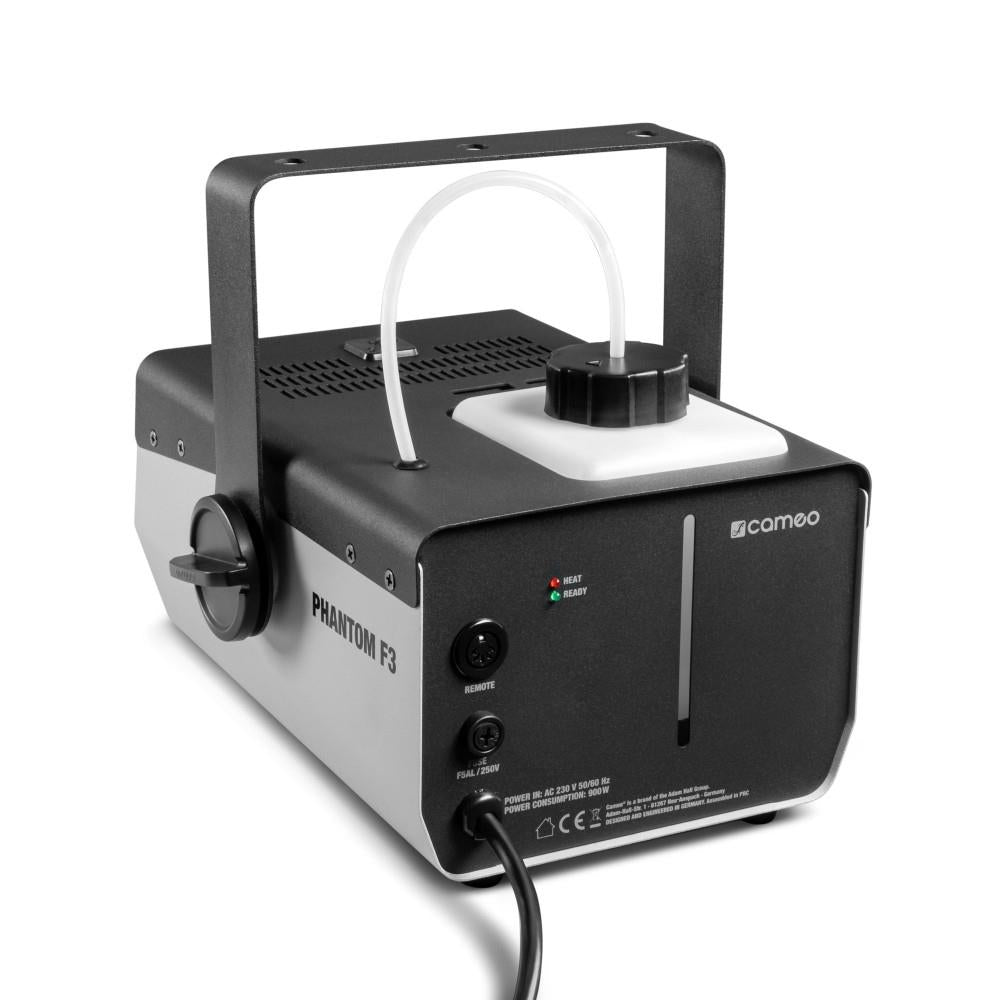

Cameo PHANTOM F3 Fog Machine with 950 W Heating Output and Internally Illuminated Fluid Tank

Description

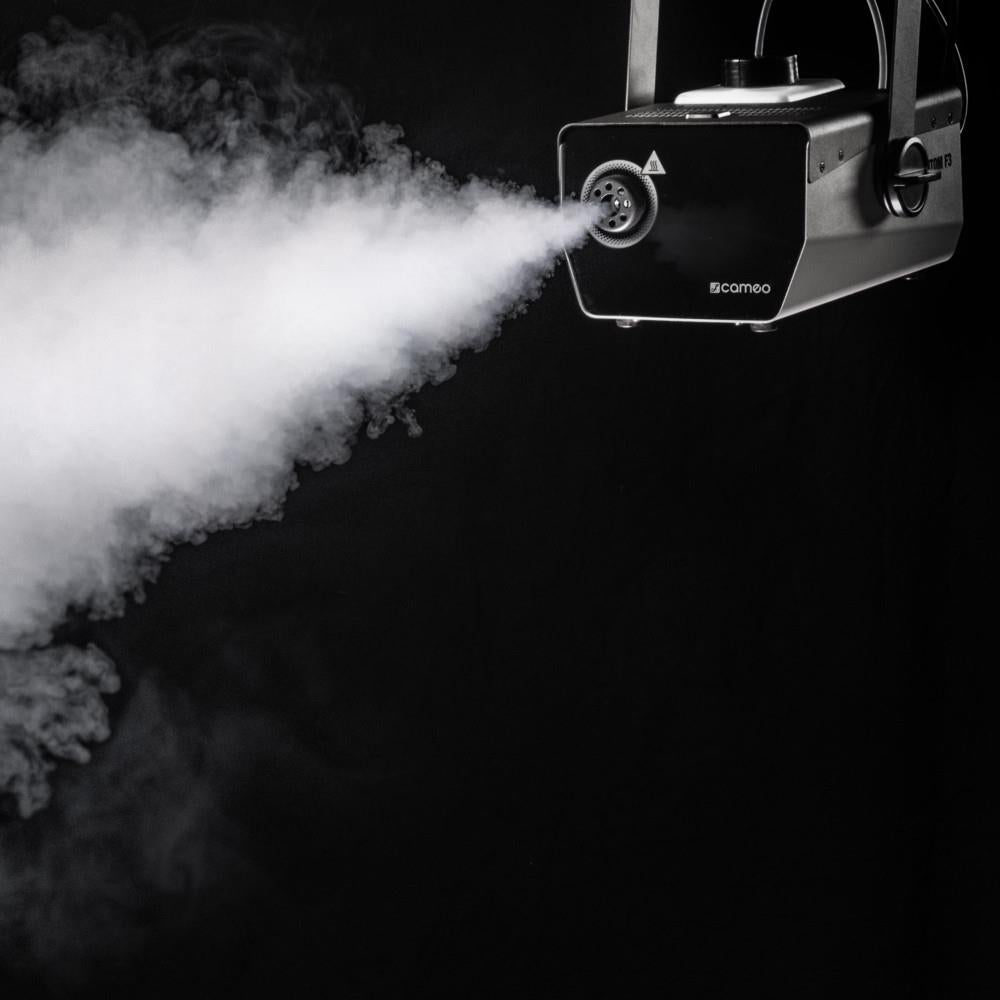

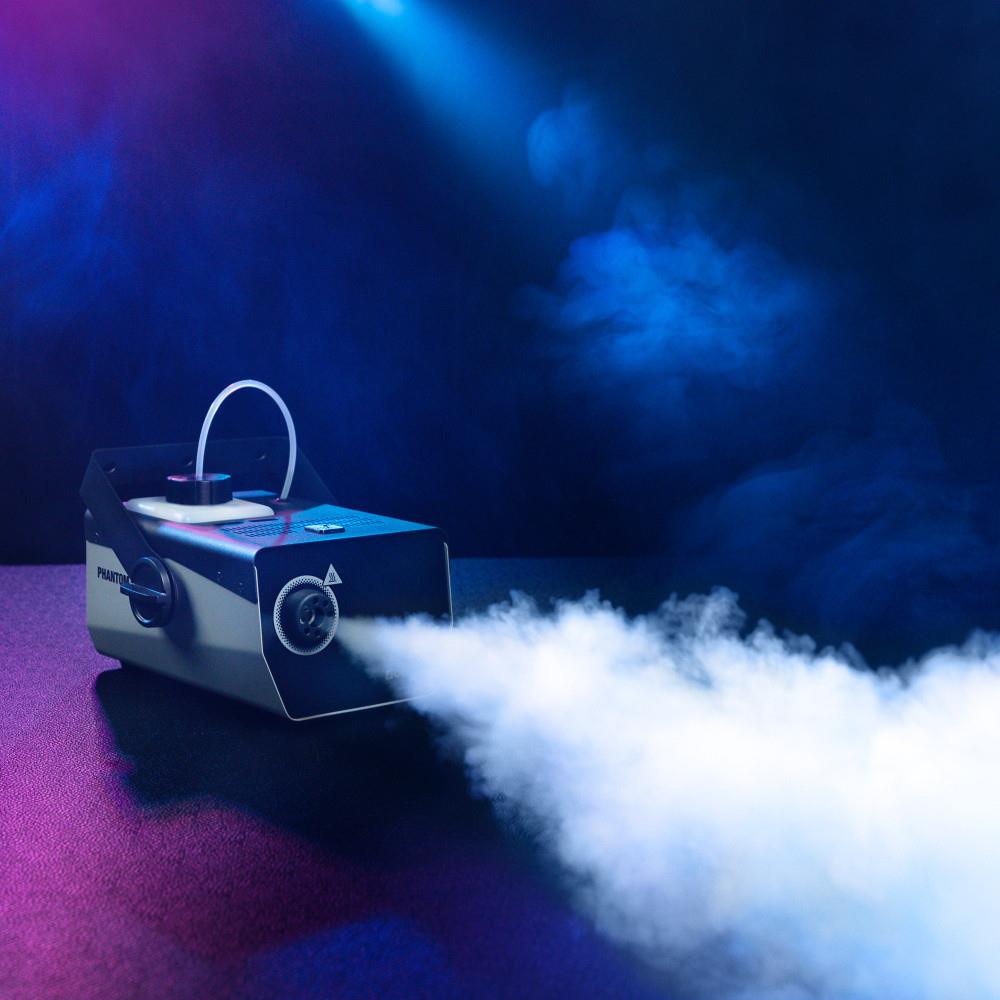

Fantastic event effects need fog to be available at short notice; this fog machine meets that requirement. It is particularly suitable for rental firms, live events, clubs and musicians. The robust steel housing allows it to be used under tougher conditions and the mounting bracket can be used for either stationary fixing or as a carry handle. This fog machine boasts a rapid response time to guarantee its continuous operational readiness. The activation of the pump and heating coil is optimally attuned for fast fog emission. This is achieved through the use of smart software that precisely controls the interaction of the internal components. This fine tuning between the heating element and pump ensures even fog production at all intensity levels.

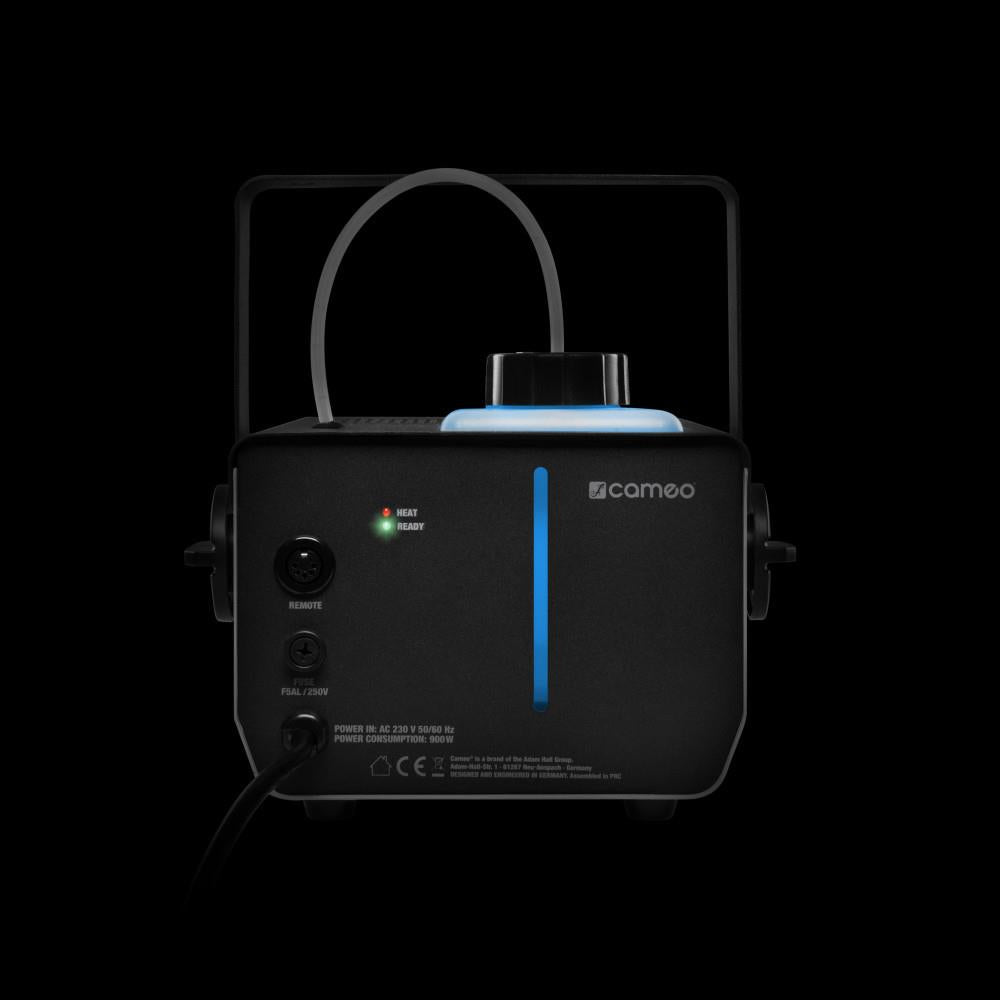

Radio and cable remote control also allow fog emission to be remotely activated and deactivated. It runs on standard, water-based fog fluids (such as Cameo DJ Fluid), making it friendly to both the environment and production budgets. The removable fluid tank makes refilling easier. A great feature for the operator is the fluid tank's internal illumination, which allows monitoring of the fluid level even in the dark. The built-in overheating protection extends the device's durability and increases operational safety. The integrated cable eyelet for attaching a safety cable makes for easy overhead and eye-level installations compliant with the relevant safety precautions.

Type Fog Machine
Power 950 W
Output volume ca. 240 m³/min
Range of fog output ca. 4 m
Warm-up time approx. 3 min
Fog duration ca. 14 s
Reheating time approx. 8 sec.
Fluid tank capacity 0.8 l
Fluid Consumption ca. 40 ml/min
Remote connection DIN 5-Pol male
Remote cable length 4.3 m
Remote functions Fog output on/off
Controls Remote
Indicators Ready/Heating LEDs
Operating voltage 230 V AC, 50 Hz
Fuse F5AL / 250 V
Power consumption 970 W
Power connector CEE 7/7, Fixed connection cable
Ambient temperature ( in operation ) 5 - 40 °C
Relative Humidity < 85 %, not condensing
Housing material Metal
Cabinet colour Black, grey
Width 190 mm
Height 142 mm
Depth 270 mm
Accessories (included)
4 rubber feet, Cable remote, canister, Wireless remote control
Weight 4,4 kg
