Cad Equitek Diaphragm Supercardioid Condenser Microphone

Equitek series microphones are world-renowned for their quality and performance “ the product of industry artisans engineering original designs with world-class performance and specifications. These high sensitivity, low noise, low distortion microphones are perfect for your next voice-over, recording, broadcast, sound reinforcement, podcasting or audio for video projects. CAD Audio has more than 90 years of professional audio expertise and takes pride in supporting your creative project.

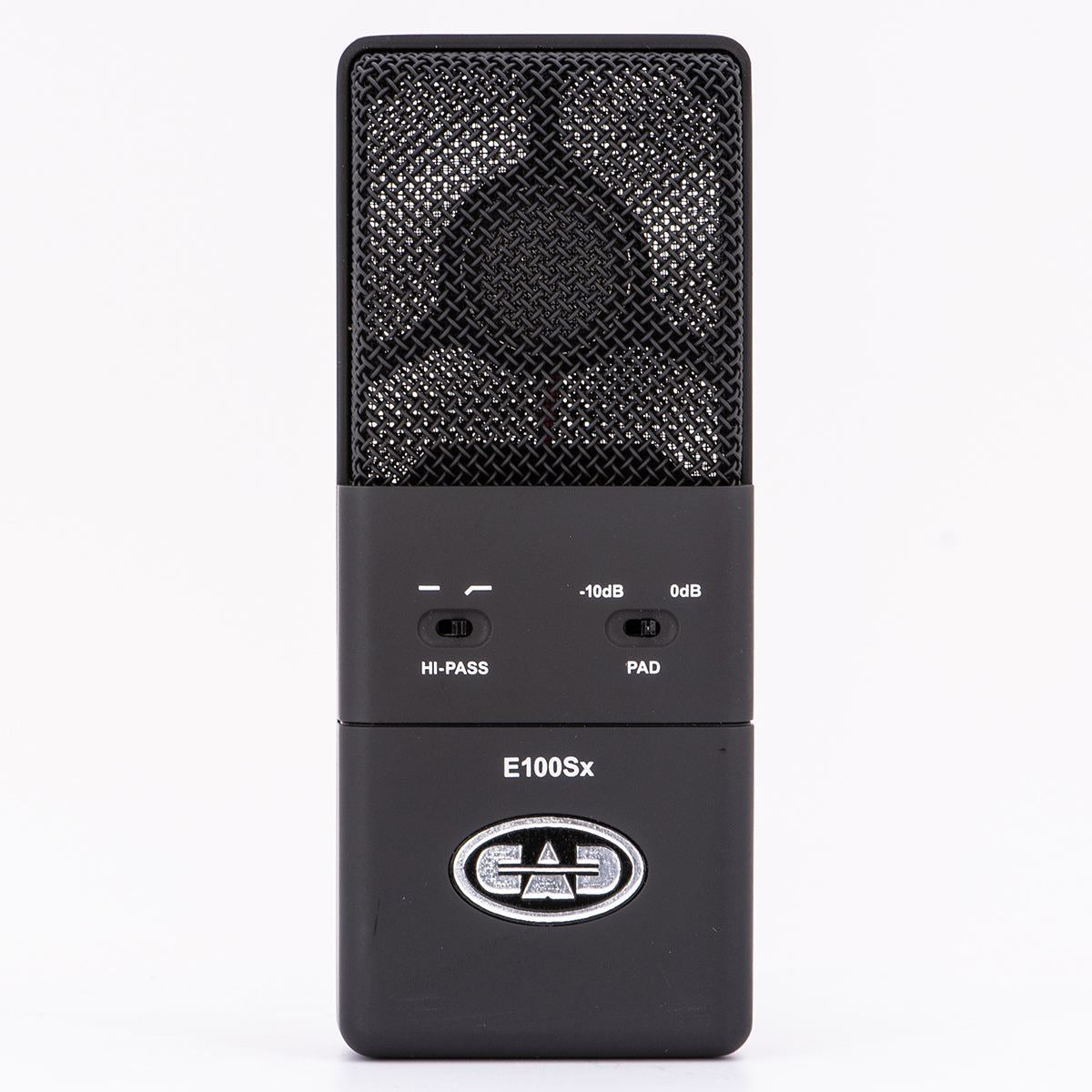

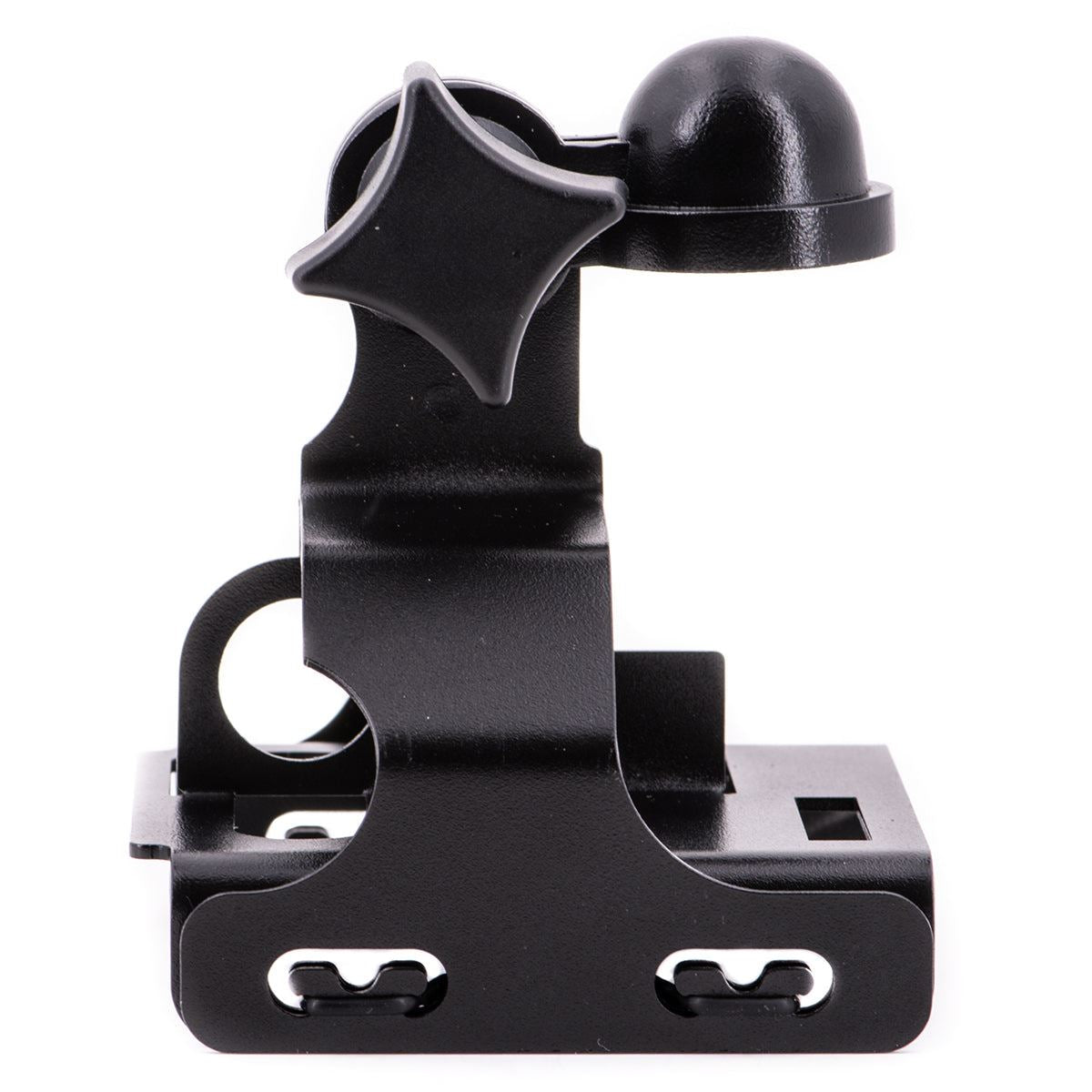

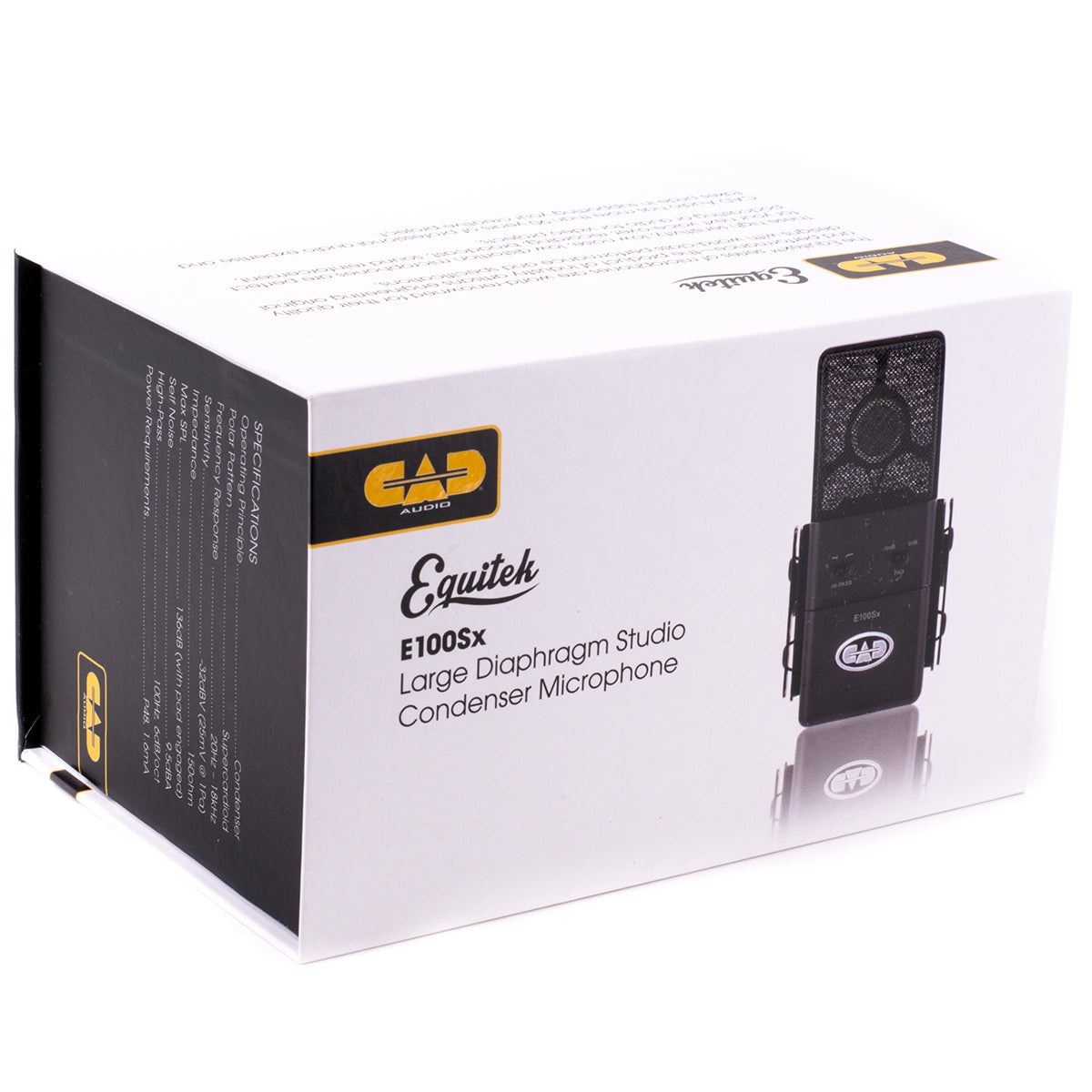

The fourth generation E100, the new E100Sx Large Diaphragm Studio Microphone continues the 30 year tradition of excellence and captures your performance with a smooth, articulate and true-to-life profile, with the smooth, vintage tone CAD is known for. The nickel plated 1 inch capsule delivers accurate phasing on instruments, and a full rich vocal tone, accentuated by the extended low frequency response. The E100Sx™s high sensitivity ensures even the most subtle details are captured. Features include a 100Hz hi-pass filter, 10dB pad, and low-profile shock mount.

From vocals to percussion, acoustic instruments, and everything in between, the CAD Audio E100Sx will prove to be one of the most versatile tools in your microphone collection, in the studio or on stage.

Specifications

• Operating Principle: Condenser
• Polar Pattern Supercardioid
• Frequency Response: 20Hz -18KHz
• Sensitivity: - 32dBV (25mV ) @ 1 Pa
• Impedance: 150 ohms
• Max SPL: 136dB (with pad engaged)
• Self Noise: 9.5dBA
• High Pass: 100Hz, 6dB/oct
• Dimensions:
• Without shock mount attached(mic only): 6.0625"" (15.4cm) tall, 2.245"" (5.7cm) wide 1.990"" (5.05cm), deep

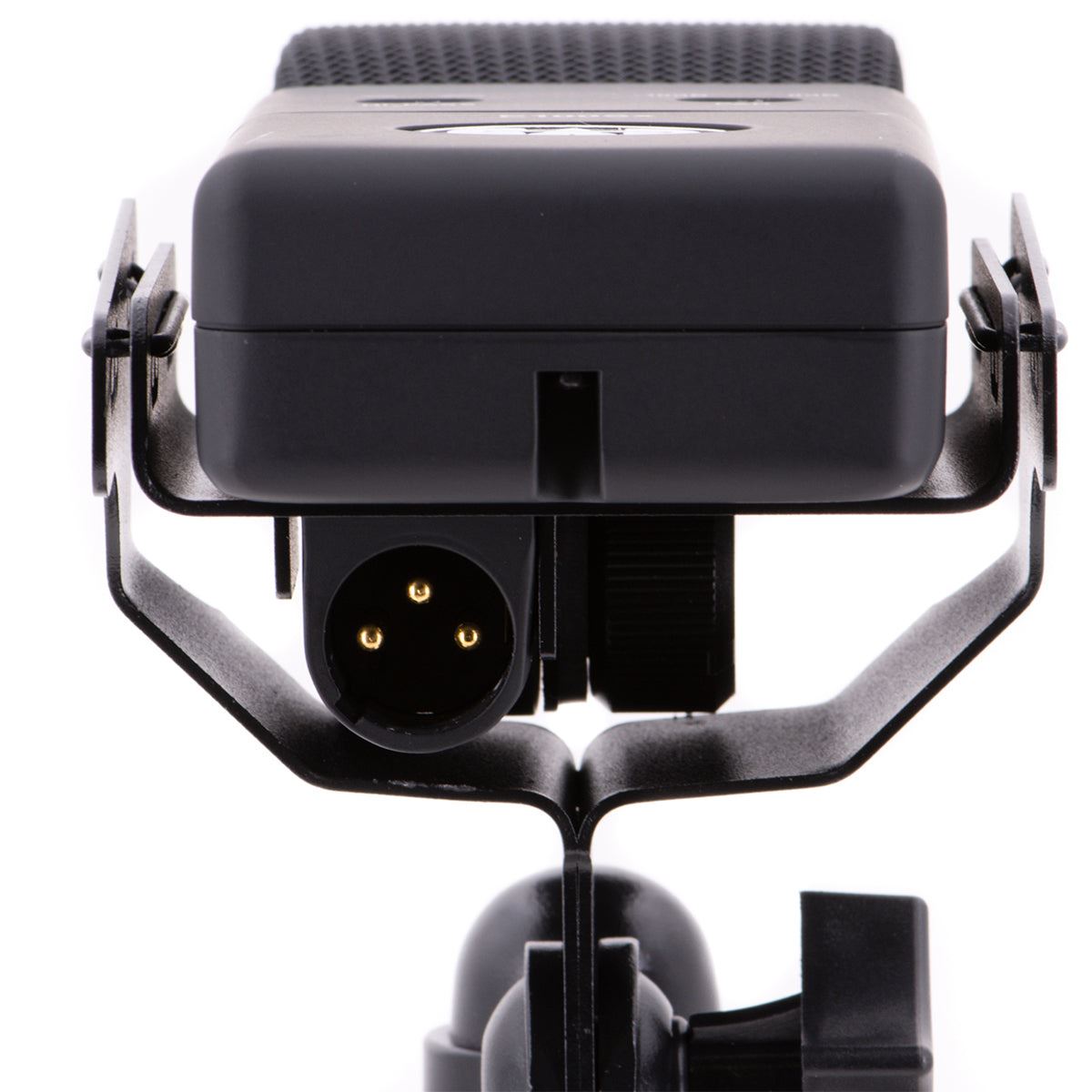

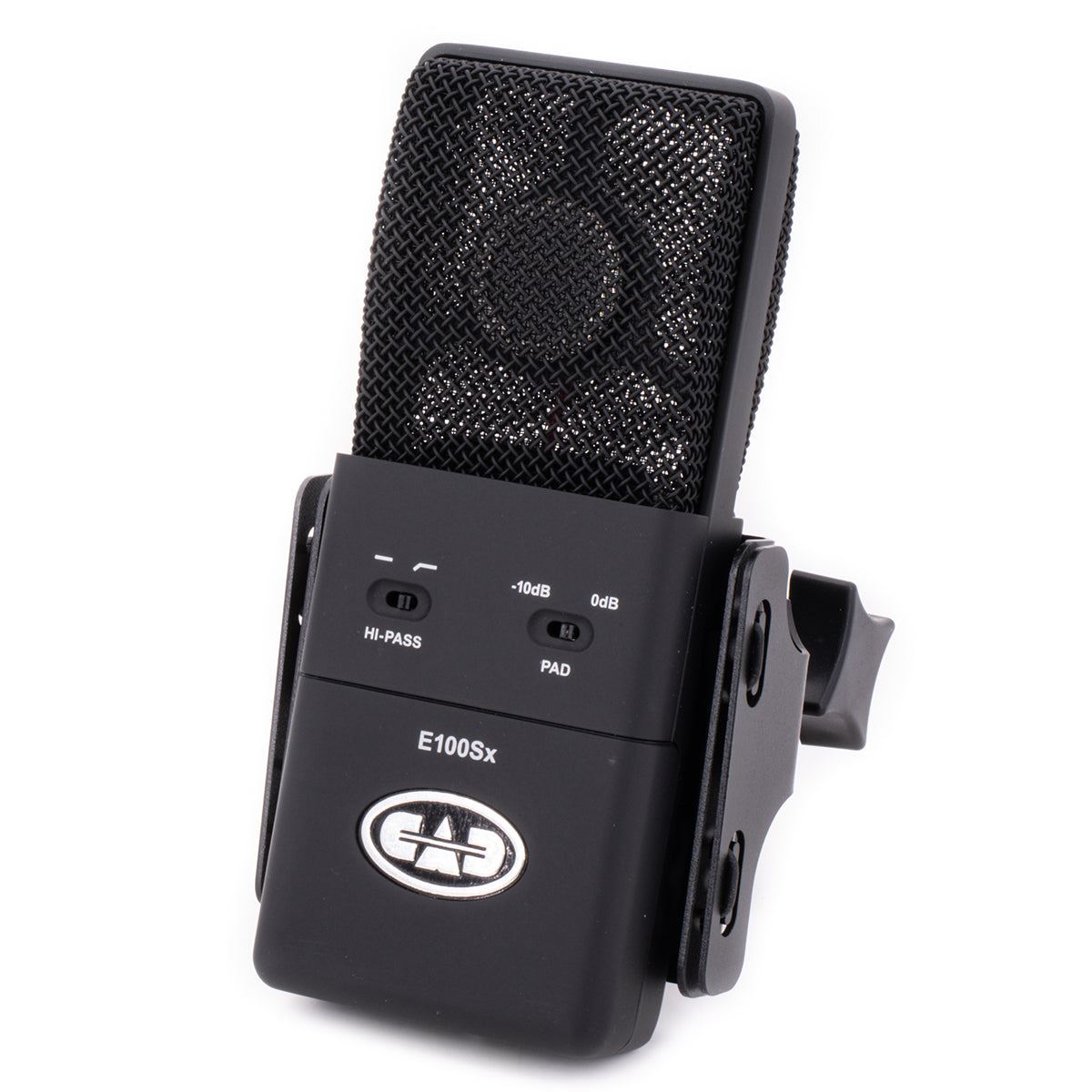

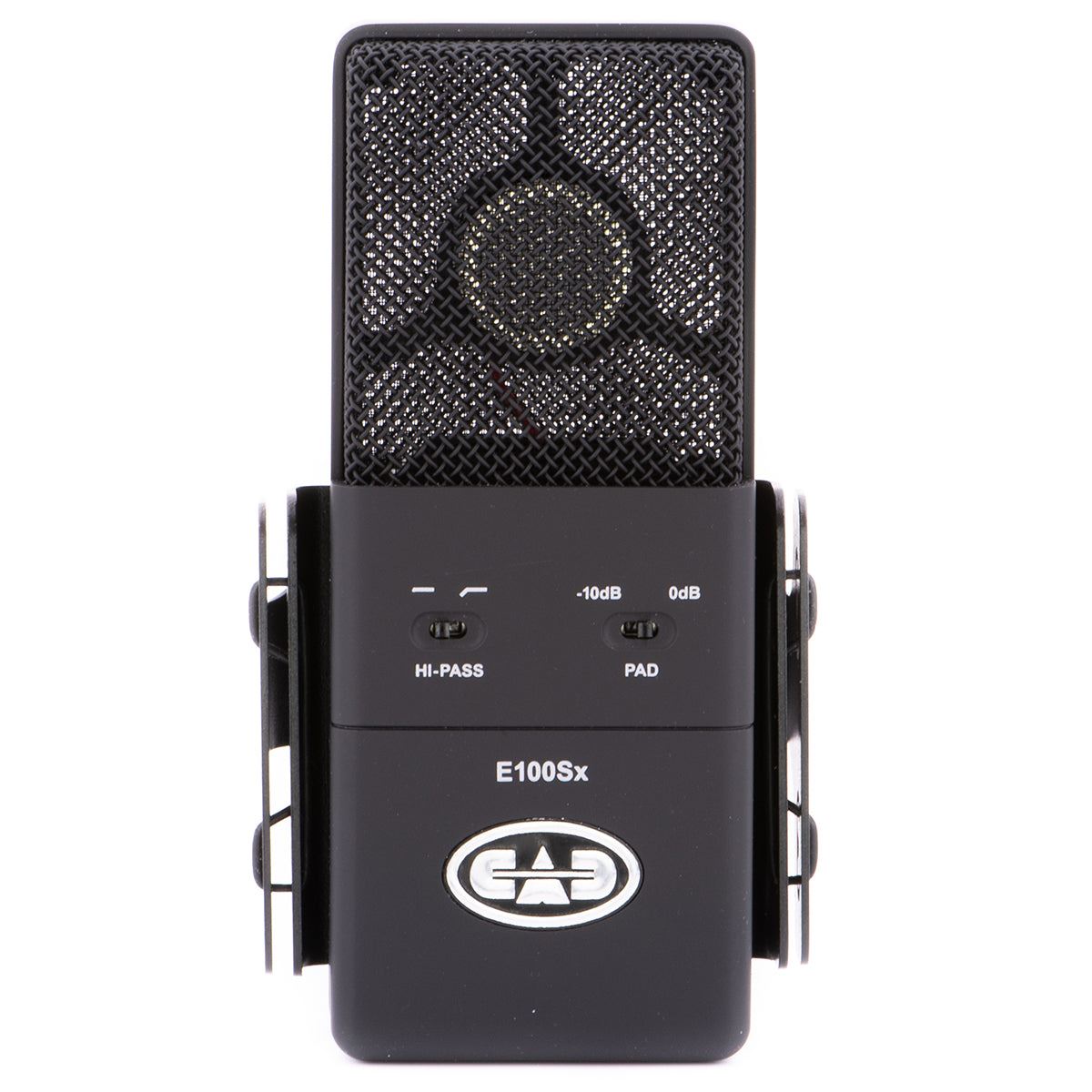

• With shock mountattached: 6.0625"" (15.4cm) tall 2.903"" (7.37cm), wide 5.4375"" (13.81cm) deep
• Power Requirements: P48, 1.6mA
• Weight: 1.98lbs [0.9Kg]
• RoHS: Compliant
