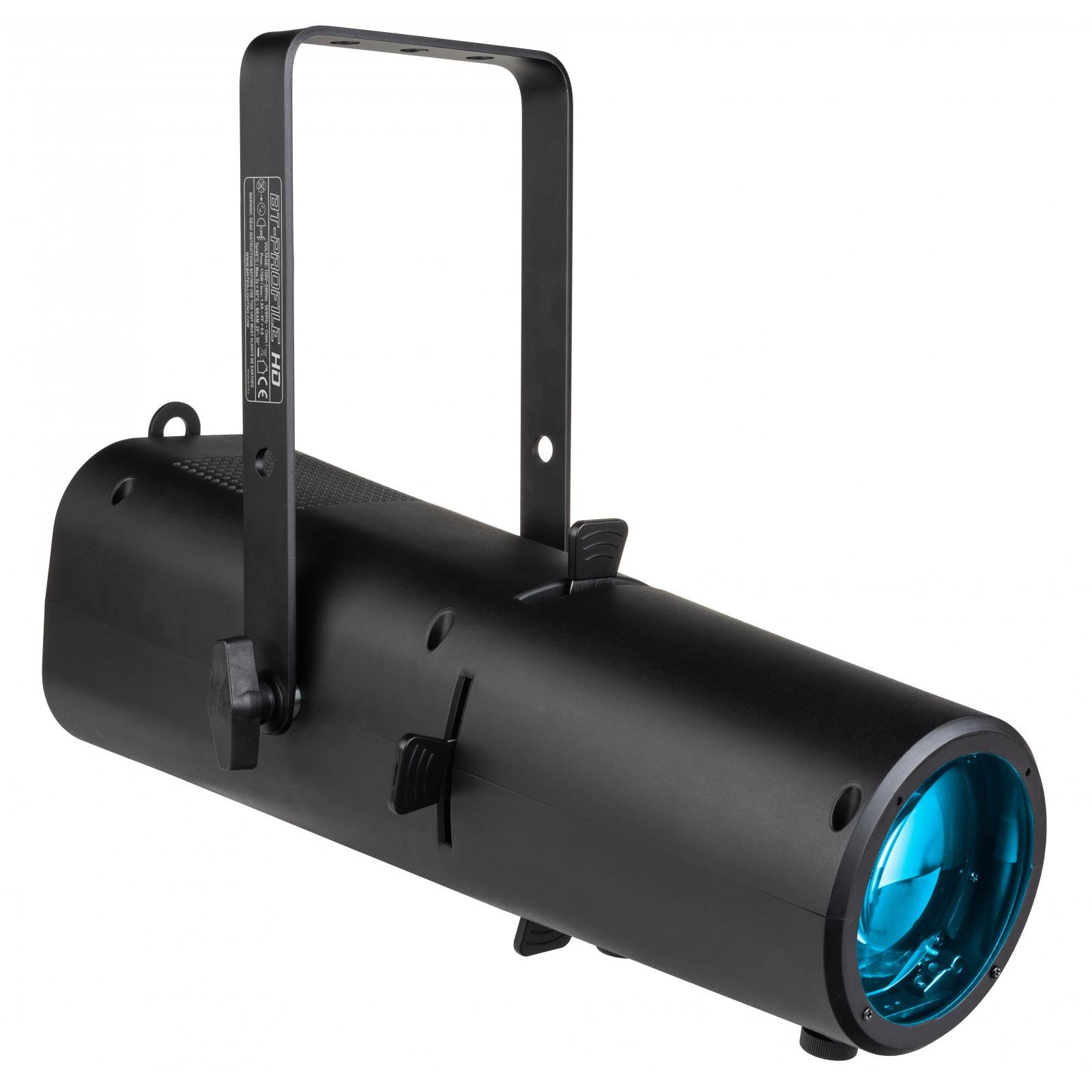

Briteq BT-PROFILE HD 150W RGBAL LED Profile Spot Theatre Stage

Description

A very compact but powerful “ALL-IN-1” full color LED profile with:
Integrated manual 25° ~ 50° zoom.
4 blade shutter framing system to make sharp beam cuts.
No more need for separate white and color projectors, BT-PROFILE HD does it all:
Perfect WHITE with high CRI > 90Ra and CCT presets
Rich COLOR selection with color presets!
Thanks to the CCS Color Calibration System the color differences between different batches is a problem of the past, while this profile also works perfectly together with our existing BT-THEATRE HD2:
The same CCT presets for white, ranging from 1800K to 10000K !
The same 48 calibrated color presets (according to LEE® / ROSCO® numbering)
Based on a 150watt 5-color RGBAL LED-cluster (Red, Green, Blue, Amber, Lime)
Very silent operation with low noise cooling fan and different presets (live, studio, …)
DMX-controlled: 6 different channel modes for maximum flexibility
RDM-functionality for easy remote setup: DMX addressing, channel mode, …
Flicker free TV-recordings thanks to the adjustable high LED-refresh rate!
Four dimmer settings with different behavior & speed.
Manual control for dimming, colors, CCT & zoom.
OLED-display to navigate easily through the setup menu!
In case of DMX failure, you can choose between blackout and freeze mode.
Lock function to avoid unwanted altering of the settings.
Lightweight but rugged housing.
5pin DMX in/outputs + PowerCON TRUE1 compatible in/outputs for easy daisy chaining.

Dimensions (cm) 22.4 x 19.1 x 56.8 (b x h x d)
Weight (kg) 3.2
Powerinput AC 100 - 240V, 50/60Hz
Power consumption W 170
Color black
Display OLED
Fixation optional standard clamp
IP rating indoor
Modes standalone fixed, standalone automatic, manual, DMX, Master/Slave
Control : Protocol DMX, RDM
Control : minimum DMX channels 3
Control : maximum DMX channels 18
Lux 1098 @5m (beam 25°)
lumen 4088
lamp LED
CRI 90
colors Red, Green, Blue, Amber, Lime, RGBAL
mix colors Yes
functions manual focus, manual zoom
min. beam angle (°) 25
max. beam angle (°) 50
Lmax. refresh rate (kHz) 25
Connections : input 5 pin XLR, PowerCon® TRUE1 or compatible
Connections : output 5 pin XLR, PowerCon® TRUE1 or compatible
