BishopSound Line Array - Set of 4 Twin 8" Passive Line Array in purpose made flight case

Description

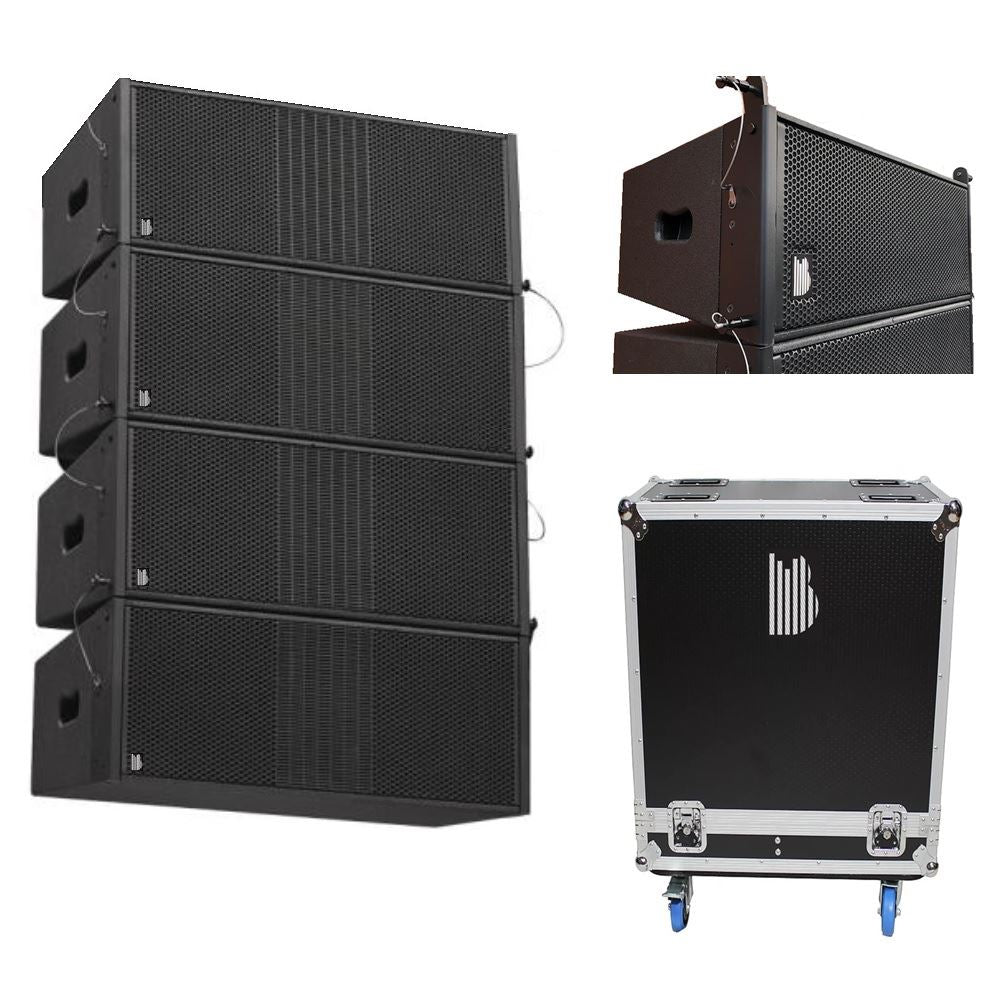

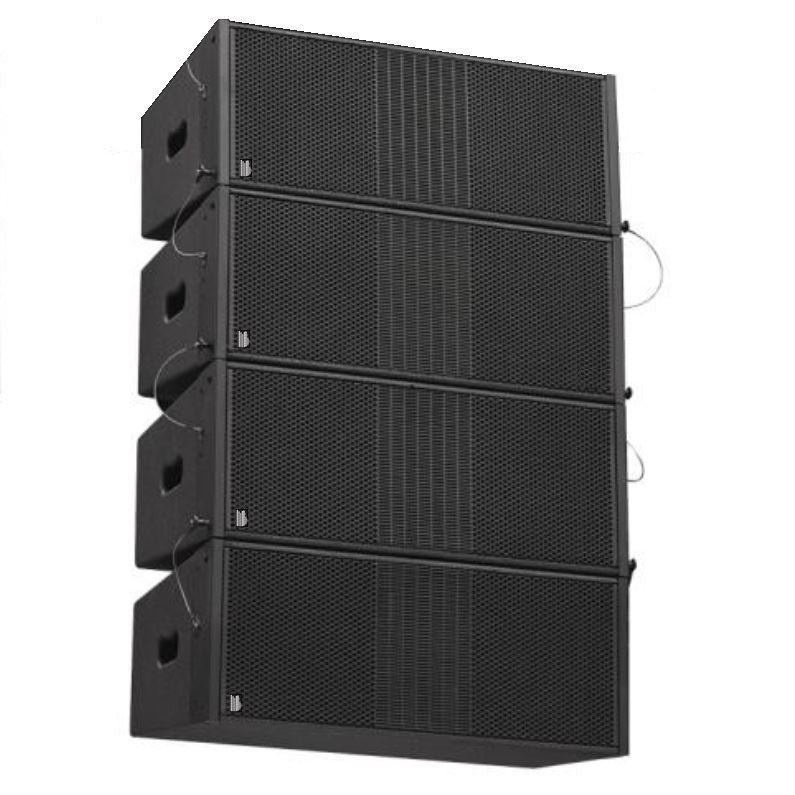

Designed and voiced in Britain the Delta Passive Line Array BLC8 consists of 4 x Dual 8" boxes and comes complete in a purpose-built, four-wheeled, plywood made-to-measure flight case.

Key Features:

Birch Plywood Constructed Dual 8" Line array set of 4
8 OHM Per cabinet
British Purpose Designed NEO Kevlar 8" Drivers with 2.5" VC
300m+ Throw
Tilt angle: 0 / 1 / 2 / 3 / 4 / 5 / 6 °
Fully CE-compliant and tested easy rig steel powder-coated hardware and hanging frame (available separately)
Four Coats of scratch and chip-proof, high impact, textured jet black PU paint to withstand the inevitable bumps and knocks whilst on tour.
Countersunk bolts retain a countersunk 3mm Thick powder-coasted "ding proof" grille to prevent grill damage when on tour
Acoustic foam behind the grille to prevent moisture and dust ingression
Dispersion (H x V): 100 x 10°
SPL - Max 125dB
RMS - 600w Per Cabinet
Frequency 60 - 20khz
Flight Case Included with set of 4
Each of the 4 boxes contains 2 x 8" BishopSound Neo Drivers with 2.5" voice coils and 2 x 1.35 HF units with Titanium diaphragms. Each box delivers 600w RMS and operates at 65~20KHZ.

Designed to perform at maximum efficiency with a dispersion of 90°x10° and minimum weight each plywood box only weighs 18kg and measures 68cm Wide, 40cm Deep and 38cm High.

As with everything BishopSound manufacture, we build in small batches to control quality so please place your order as soon as possible.

Technical Specifications
Product Weight 18kg
Product Depth 40cm
Product Height 38cm
Product Width 68cm
RMS 2400W
PEAK 9600W
SPL 125DB
FREQUENCY RANGE 60HZ - 20KHZ
INPUTS/OUTPUTS SPEAKON IN/OUT
PLYWOOD 15MM 9 LAMINATE AIR POCKET FREE BB GRADE SUSTAINABLY SOURCED
