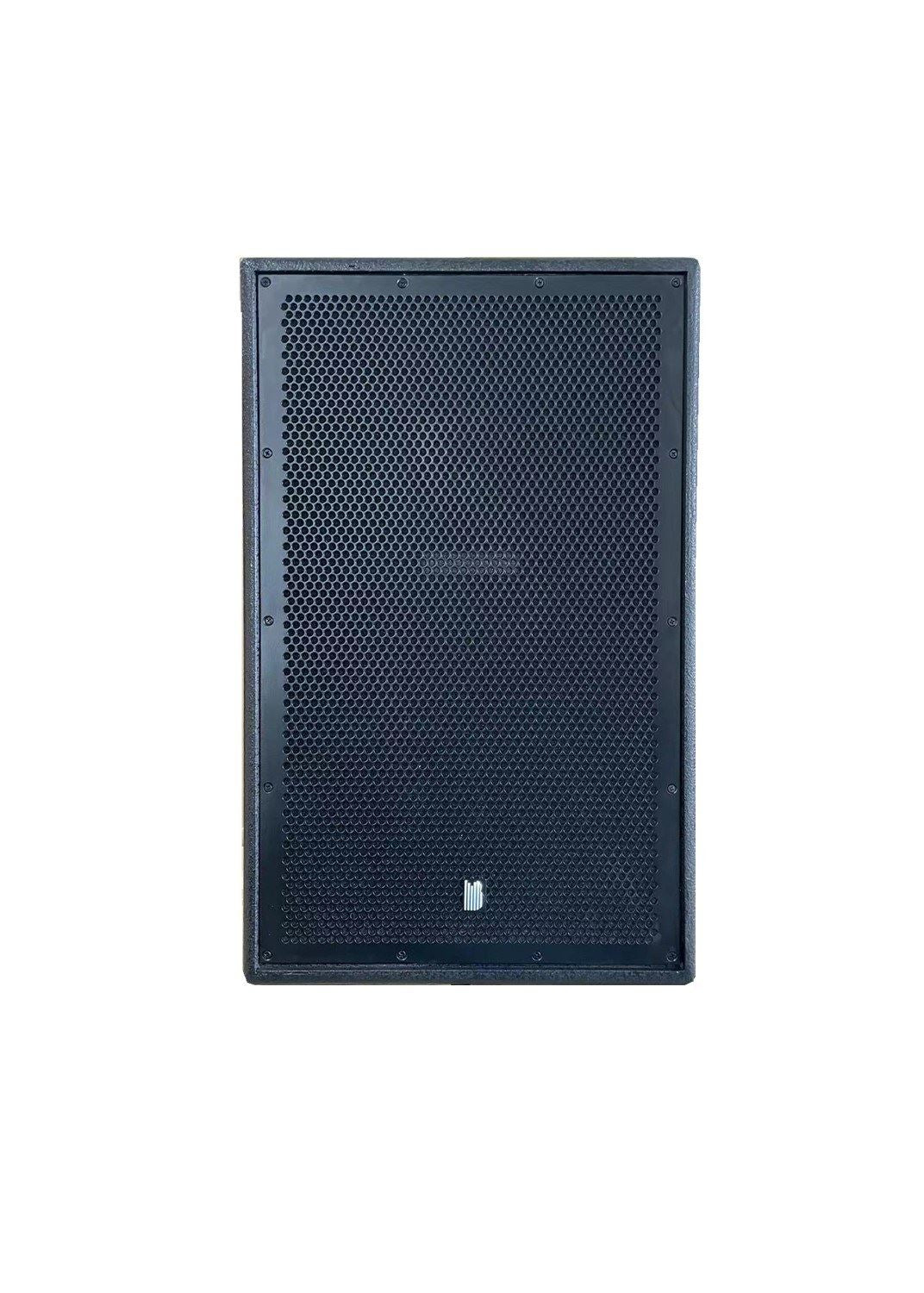

BishopSound Delta Plywood 12" Trapezoidal 500w RMS Full Range Speaker

DescriptionThe BishopSound BD112 is a 15mm 9 laminate BB grade Birch Plywood Loudspeaker is a 12'' passive two-way loudspeaker that's perfectly designed for a wide range of uses including touring,  installations, speech and music applications.

The Delta 12 features a trapezoidal enclosure with a 12'' reflex-loaded low-frequency ferrite driver with a 2.5" voice coil and low mass voice coil. The 1'' dome 1.35 titanium domed compression driver mounted on a rotatable horn provides a 90-degree horizontal by 60-degree vertical dispersion pattern.

The Delta 12 performs in the most demanding situations, engineered and voiced in Great Britain it delivers accurate sound reproduction with exceptional transient responses and outstanding clarity.

Experience, and enjoy the sensational British tone. Listen, feel the warmth and enjoy hearing every note with absolute clarity projected with British precision
Technical SpecificationsProduct Weight
23kg
Product Depth
37cm
Product Height
62cm
Product Width
43cm
RMS
500w
Peak
2000w
Frequency Response
50 Hz - 20kHz
SPL
129dB
Paint
Four Coats of scratch and chip-proof, high impact, textured jet-black PU paint for protection
Plywood
15mm 9 ply air pocket free BB Grade Birch Plywood (Sustainable)
HF
Titanium dome 1" compression driver with extended high-frequency reproduction
LF
12'' ferrite with a 2.5" low mass voice coil
Grill
Countersunk powder coated, machine punched grill
Acoustic foam
Behind grill to prevent water and dust ingression
Connections
2 x Neutrik Speakon NL4 connectors in/out for reliable long-life operation
Style
Trapezoidal
HF Horn
90-degree horizontal by 60-degree vertical dispersion pattern
Crossover
Uses the highest quality capacitors and copper coils.
