BishopSound 1.75 Compression Driver 8ohm 100w RMS

£38.00; £38.00
Unit price: per

1.75 Compression Driver 100w RMS 8ohm High Frequency HF Tweeter 112dB 44.4mm - BRC175.

Vendor: BishopSound

SKU: 163-BRC175

In Stock

Quantity:

I agree with

iFrame

DETAILS
DELIVERY AND RETURNS

Description:

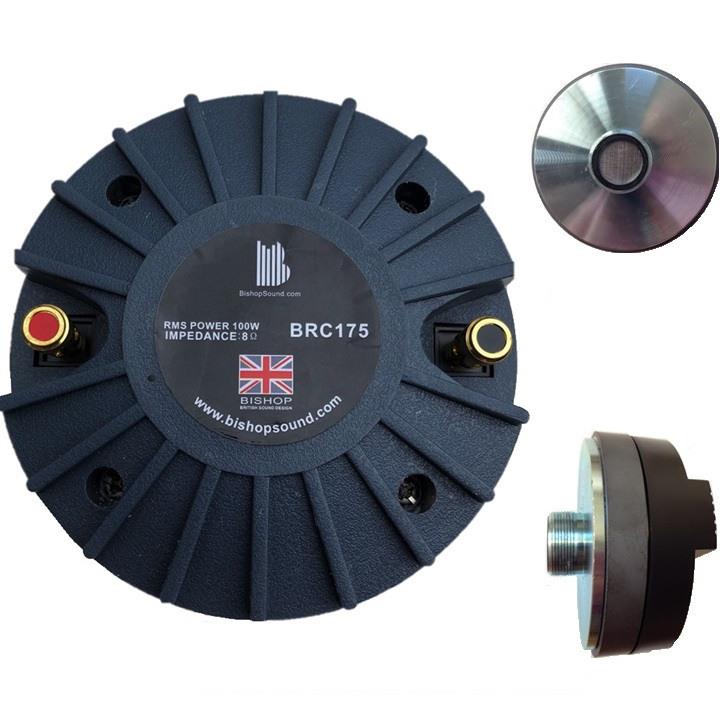

This high-quality 1″ screw-in compression driver with a 1 3/8″ Screw Thread which fits all BishopSound speakers and many other famous brands.

Specifications:

Throat diameter 25.4 mm 1 in
Nominal impedance 8 Ohm
Minimum impedance 5.2 ohm
Re 4.4 ohm
Power capacity 70 W AES above 1.2 kHz
Program power 140 W above 1.2 kHz
Sensitivity 109 dB 1W / 1m @ ZN coupled to TD-164
Frequency range 700-19000 Hz
Recommended crossover frequency 1.2 kHz or higher (12dB/oct min slope)
Voice coil diameter 44.4 mm 1.75 in
Flux density 1.5 TDiaphragm material PM4
External diameter 110 mm 4.3 in Depth 59 mm 2.3 in
Mounting 1 3/8″ Screw Thread
Net weight 1.8 kg 4 lb
Magnet Ferrite
