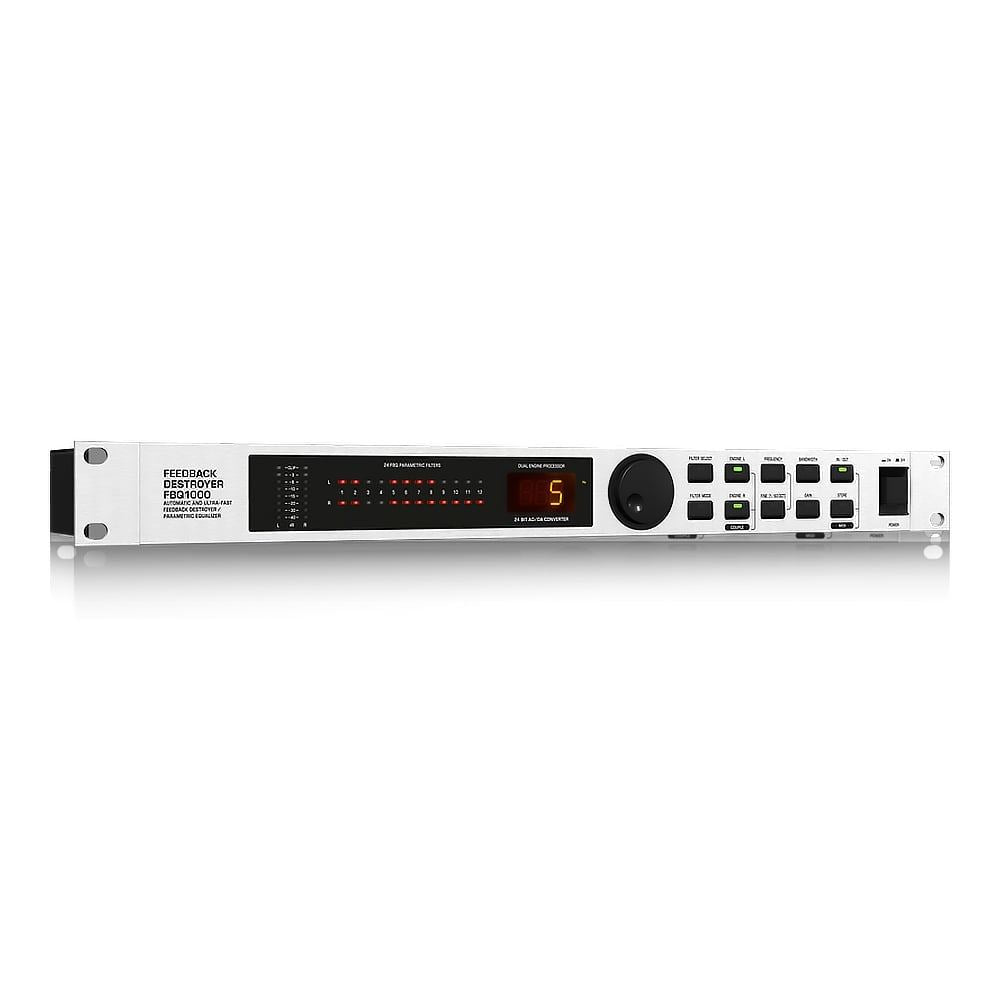

Behringer FBQ1000 Feedback Destroyer Suppressor

Automatic and Ultra-Fast Feedback Destroyer/Parametric EQ with 24 FBQ Filters

High-performance 2-channel Feedback Destroyer and Parametric EQ
Automatically and "intelligently" locates and destroys up to 24 frequencies
Ultra-narrow FBQ filters for extremely effective feedback suppression, while keeping highest sonic quality
"Set-and-forget" default setting enables immediate and super-easy Feedback Destroyer performance
Auto mode continuously monitors the mix and automatically sets filters
Single-Shot mode automatically detects and destroys feedback plus locks the filter until you reset it manually
Manual mode allows setting of up to 24 fully parametric filters with individual frequency, bandwidth and gain parameters
Extensive MIDI implementation and user preset memories for instant program recalls
Balanced inputs and servo-balanced outputs with ¼'' TRS and gold-plated XLR connectors

Specifications

Audio Inputs
Connectors: XLR and 1/4'' TRS
Type: RF-Filtered, Servo-Balanced Input
Impedance: 60kΩ Balanced, 30kΩ Unbalanced
Nominal Operating Level: -10 dBV to +4 dBu (Switchable)
Max Input Level: +16 dBu at +4 dBu Nominal Level, +2 dBV at -10 dBV Nominal Level

Audio Outputs
Connectors: XLR and 1/4'' TRS
Type: Electronically Servo-Balanced Output Stage
Impedance: 60kΩ Balanced, 30kΩ Unbalanced
Max Output Level: +16 dBu at +4 dBu Nominal Level, +2 dBV at -10 dBV Nominal Level

System Specifications
Bandwidth: 20Hz to 20kHz, +0/-1 dB
Noise: >94 dB, Unweighted (20Hz to 20kHz)
THD: 0.0075 Percent Typ. @ +4 dBu, 1kHz, Gain 1
Crosstalk: <-76 dB

MIDI Interface
Type: 5-Pin DIN Socket In/Out/Thru

Digital Processing
Converters: 24-Bit Sigma-Delta, 64/128-Times Oversampling

Display
Type: 2 1/2-Digit Numeric LED Display

Power Supply
USA/Canada: 120V, 60Hz
UK/Australia: 240V, 50Hz
Europe: 230V, 50Hz
Korea: 220V, 60Hz
China: 220V, 50Hz
Japan: 100V, 50/60Hz
Power Consumption: Approx 15-Watts Max
Mains Connection: Standard IEC Receptacle

Dimensions
44 x 483 x 195 mm

Weight
1.9 kg
