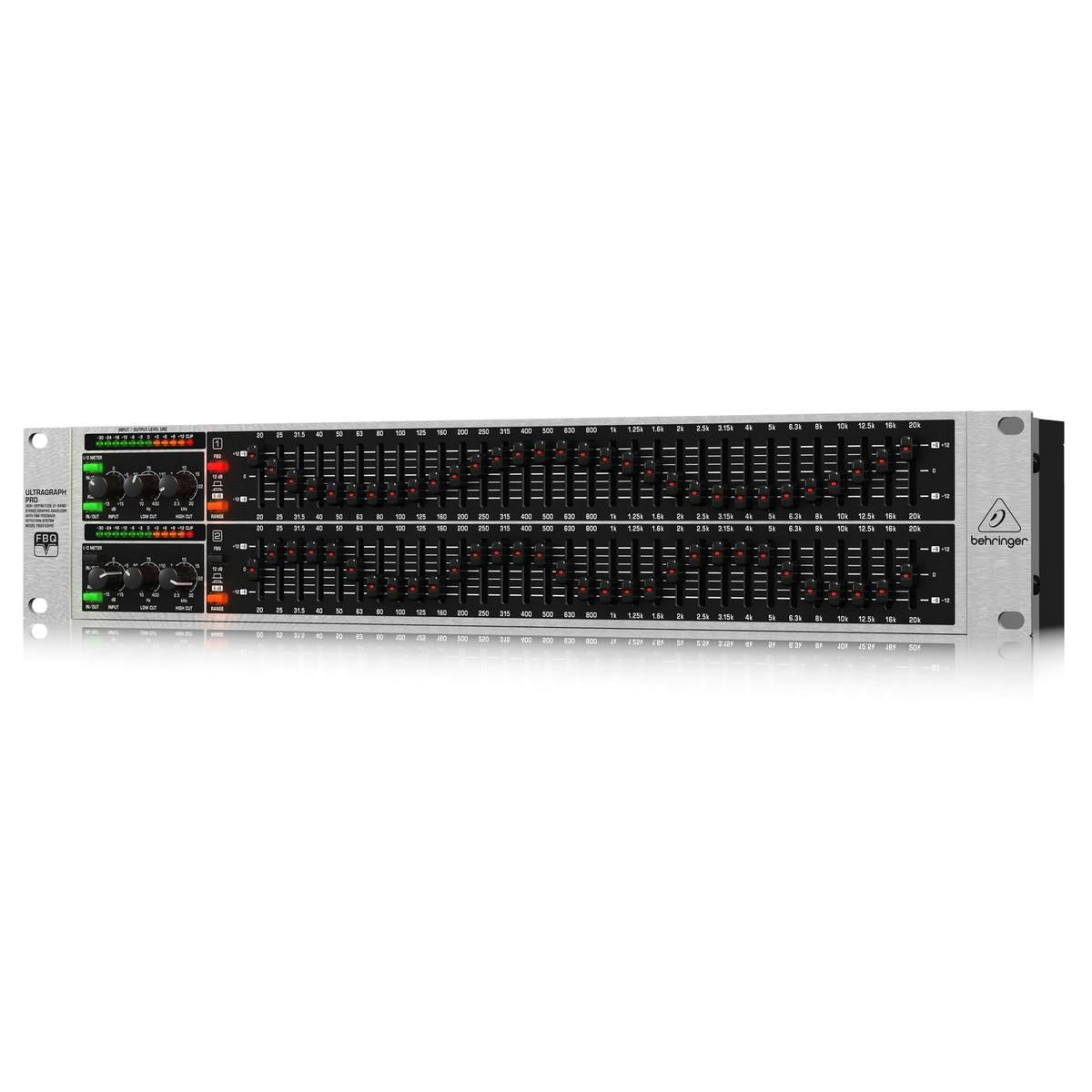

Behringer FBQ3102HD Ultragraph Pro

The Behringer FBQ3102HD 31-Band Stereo Graphic Equaliser is a professional standard, 31-band device designed for live and studio applications. With a revolutionary feedback detection system, the FBQ3102HD instantly shows critical frequencies causing unwanted, interfering noise. Low-noise operational amplifiers ensure maximum signal integrity whilst the intuitive low-cut filter removes unwanted frequencies such as floor rumble. Users can accurately and easily set their levels via the 12-segment LED output with input gain controls.

With an intuitive low-cut filter, the FBQ3102HD eradicates all non-essential bass noise such as floor rumble, room resonance and electrical hum to give you a much clearer overall sound. Your performance can remain crystal clear with excellent dynamics and delivers a punchy bottom-end.

Professional 31-band stereo graphic equaliser ideal for live & studio applications
Revolutionary FBQ Feedback Detection system
Ultra-low noise 4580 operational amplifiers
Dedicated mono subwoofer output with adjustable crossover frequency
Additional low-cut filter removes unwanted frequencies
Highly accurate 12-segment LED output metering & input gain controls
Relay-controlled hard-bypass with an auto-bypass function during power failure
Servo-balanced inputs & outputs with 1/4'' TRS & gold-plated XLR connectors
Switching power supply with noise-free audio, superior transient response plus low power consumption


Specifications
Inputs: RF-Filtered, Servo-Balanced XLR and 1/4'' TRS Connectors
Impedance: 40kΩ Balanced and Unbalanced
Maximum Input Level: +21 dBu Balanced and Unbalanced
CMRR: Typ. 55 dB, >40 dB @ 1kHz
Outputs: Servo-Balanced XLR and 1/4'' TRS Connectors
Subwoofer Out: Balanced XLR Connector
Crossover Frequency: Variable, 30 - 200Hz
Frequency Response: 10Hz to 30kHz, ±3 dB
S/N Ratio: 22Hz to 22kHz >94 dB @ +4 dBu
Distortion (THD): Typ. 0.008 Percent @ +4 dBu, 1kHz, Gain 1
Crosstalk: Typ. -92 dB @ 1kHz
Type: 12 dB/oct, Butterworth
Input: ±15 dB, Variable
Low Cut: 10Hz to 400Hz, Variable
High Cut: 2.5kHz to 30kHz, Variable
Type: Analog 31-Band Equaliser
Frequency Range: 20Hz to 20kHz in 31 1/3-Octave Bands (ISO Frequencies)
Bandwidth: 1/3 Octave
Control Range: ±6 dB or ±12 dB (Switchable)
FBQ: Activates The FBQ Feedback Detection System
Audio In/Out: Switch To Bypass The Equaliser Function
I/O Metre In/Out: Switches The Metre Display From Input to Output
Input/Output Level: 12-Segment LED Display: -30 / -24 / -18 / -12 / -6 / -3 / 0 / +6 / +9 / +12 dB / CLIP
Power Supply: 100 - 240V, 50/60Hz
Power Consumption: 35W
Mains Connection: Standard IEC Receptacle

Dimensions
89 x 483 x 150mm

Weight
2kg
