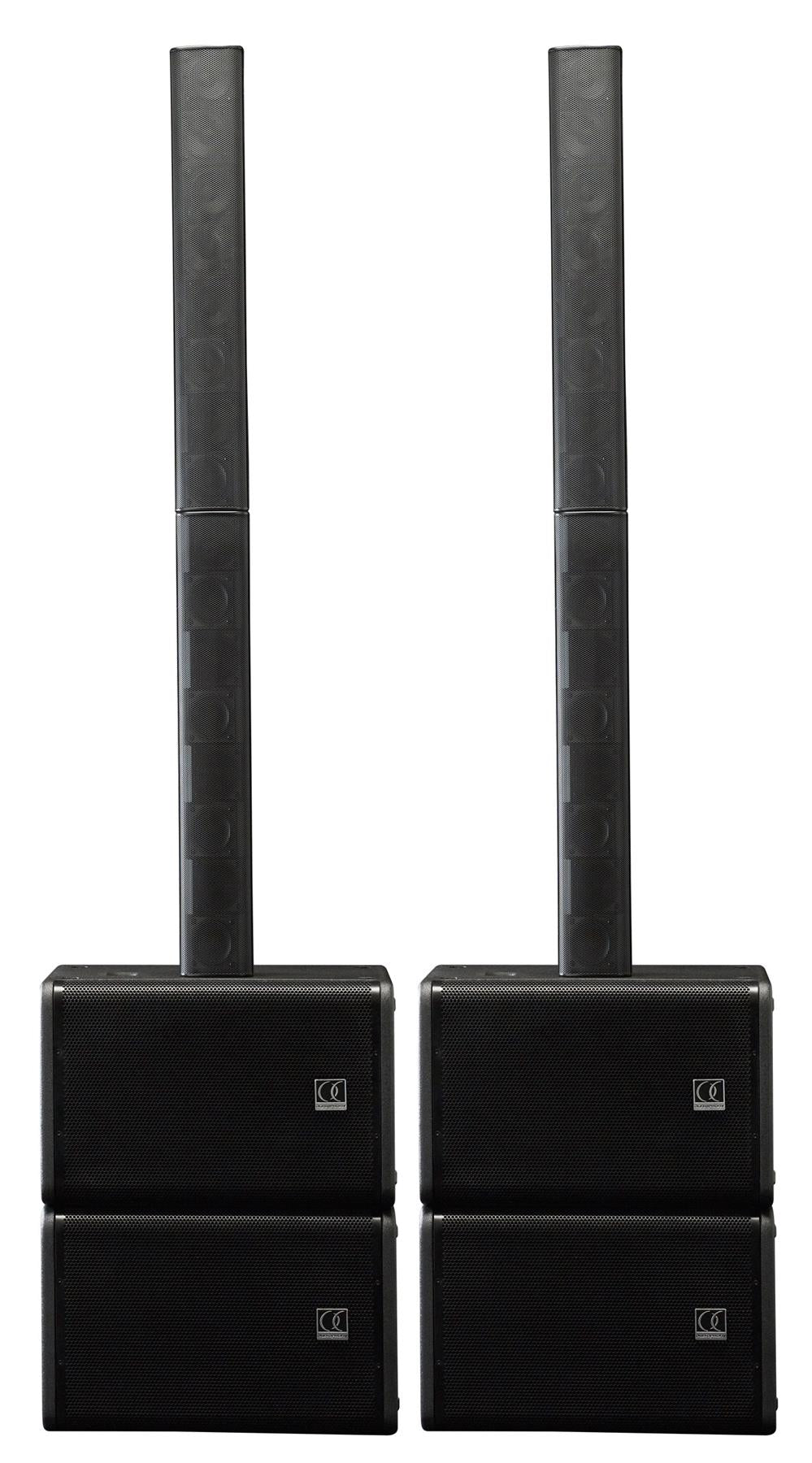

Audiophony ILINE 2040W RMS Stereo Configuration Column Array Inc Cables

Description:

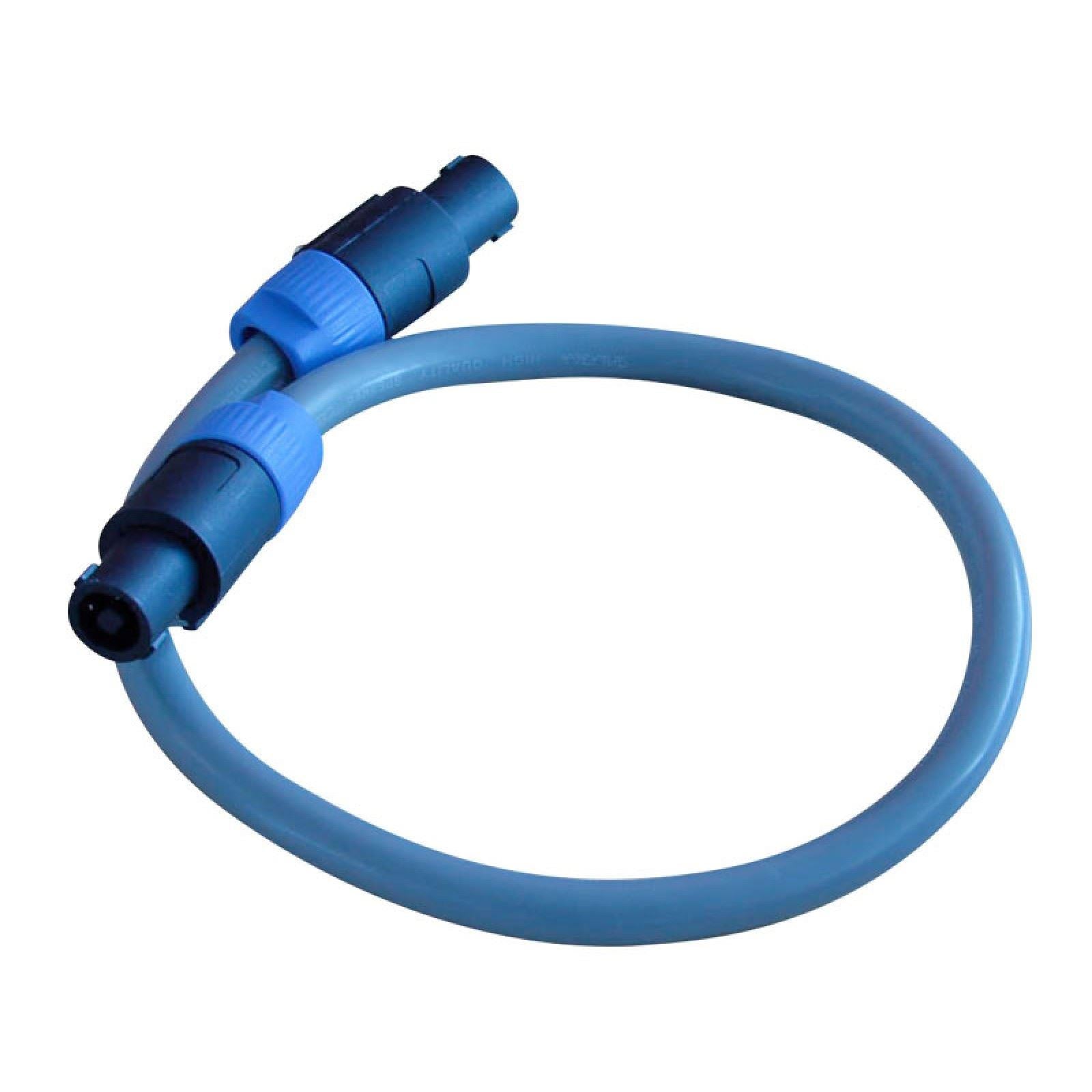

This bundle includes 4x Audiophony iLINE83B 8 x 3" Speaker, 2x iLINEsub12P 12" Passive Subwoofer, 2x iLINEsub12A 12" Active Subwoofer, 2x iLINEcord60 60cm Speakon cables, 1x iLINEbox USB > RJ45 converter

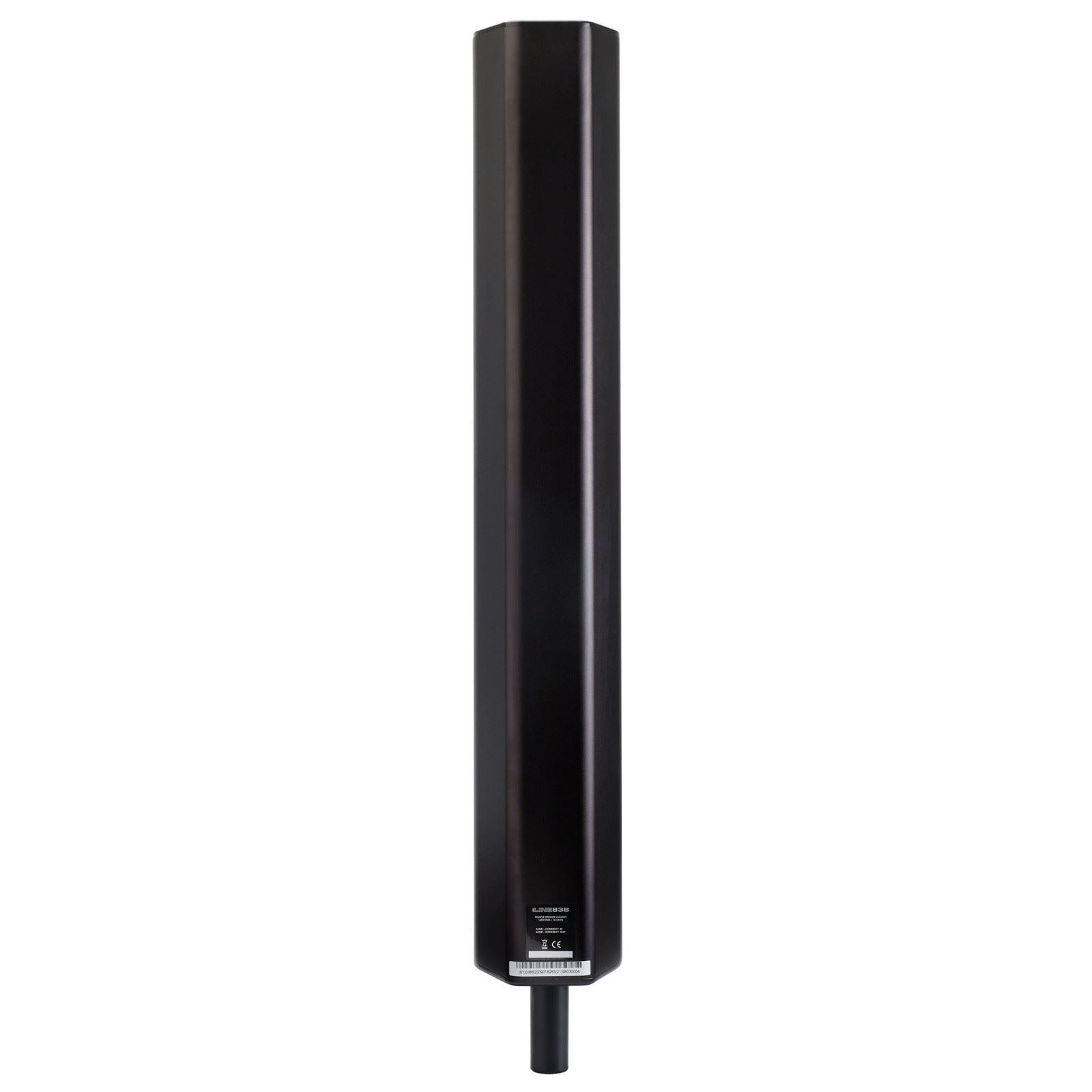

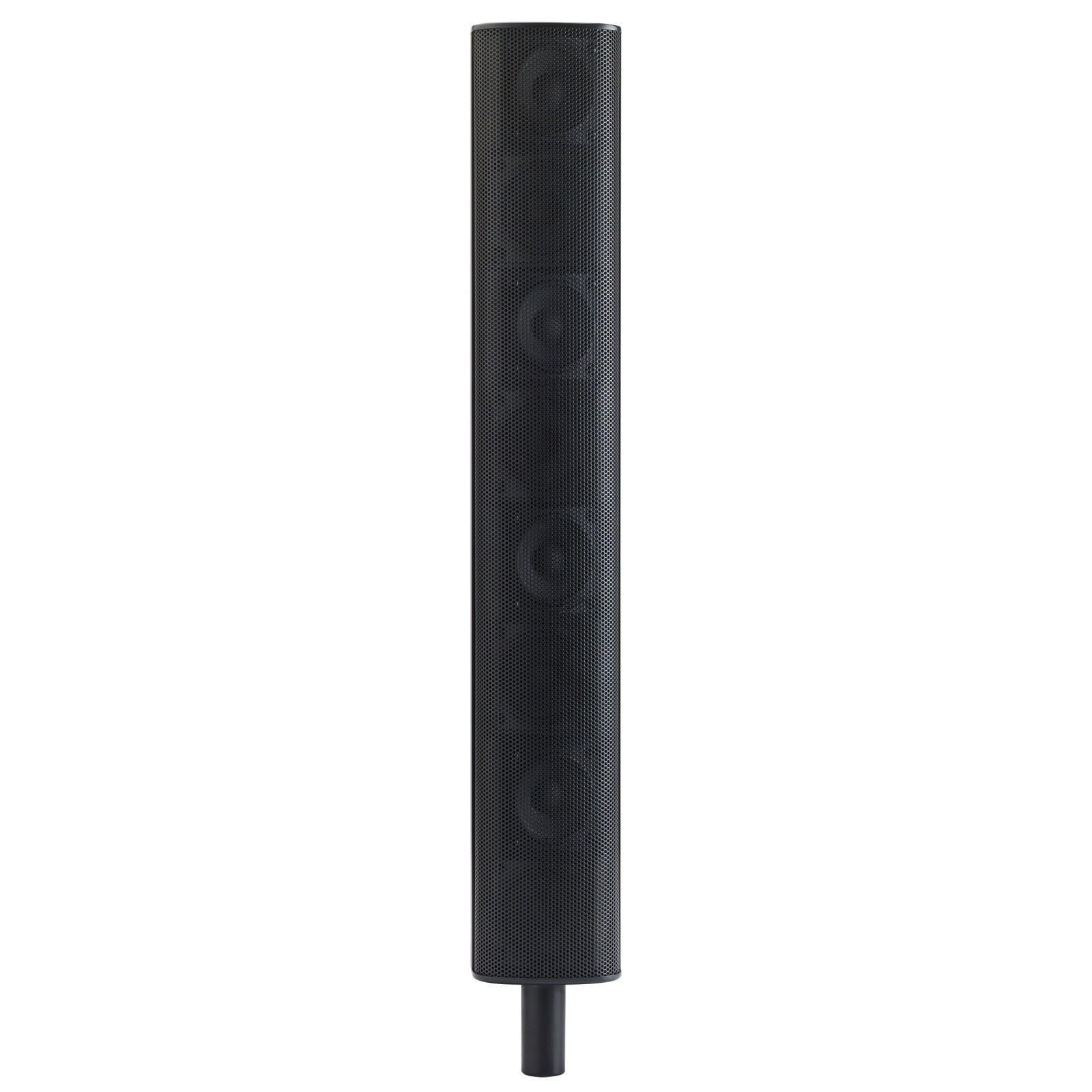

Audiophony iLINE83B 8 x 3" Speaker:

8 x 3" speaker 16W/16 Ohms column with stackable connector base - Black

Specifications:

Power Handling: 160W RMS / 320W Max.
Frequency Response: 135 Hz - 17 KHz
Axial Sensitivity (1W/1m): 95 dB
SPL Max.: 120 dB
Nominal Impedance: 16 Ohms
Speakers: 8 x 3"

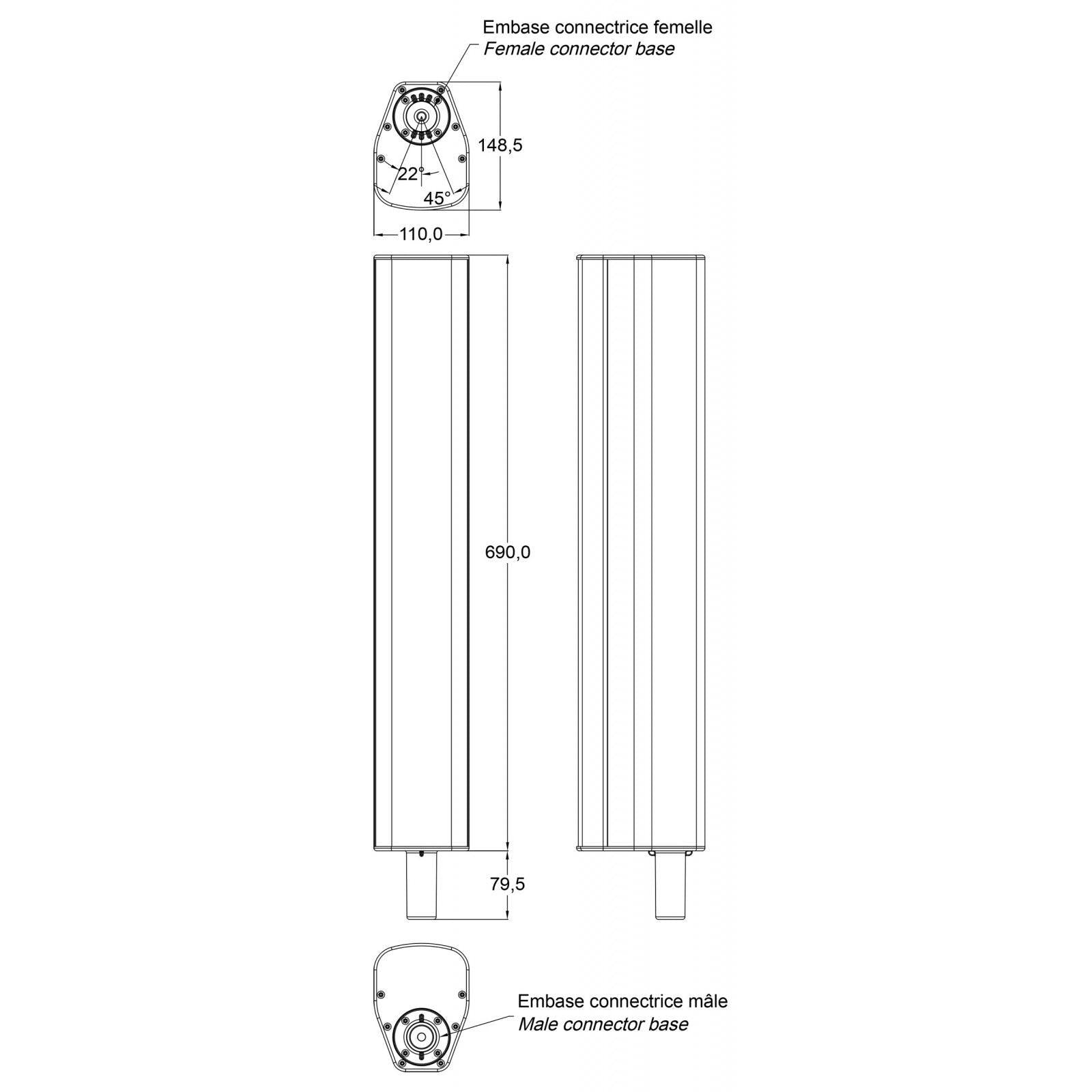

Size: 110 x 770 x 148.5 mm
Net Weight: 7.6 Kg
Horizontal Dispersion: 115°
Vertical Dispersion: 20°
Connectors: Connector Base
Materials:Die-cast Aluminium Housing
Integral Steel Grill Protection

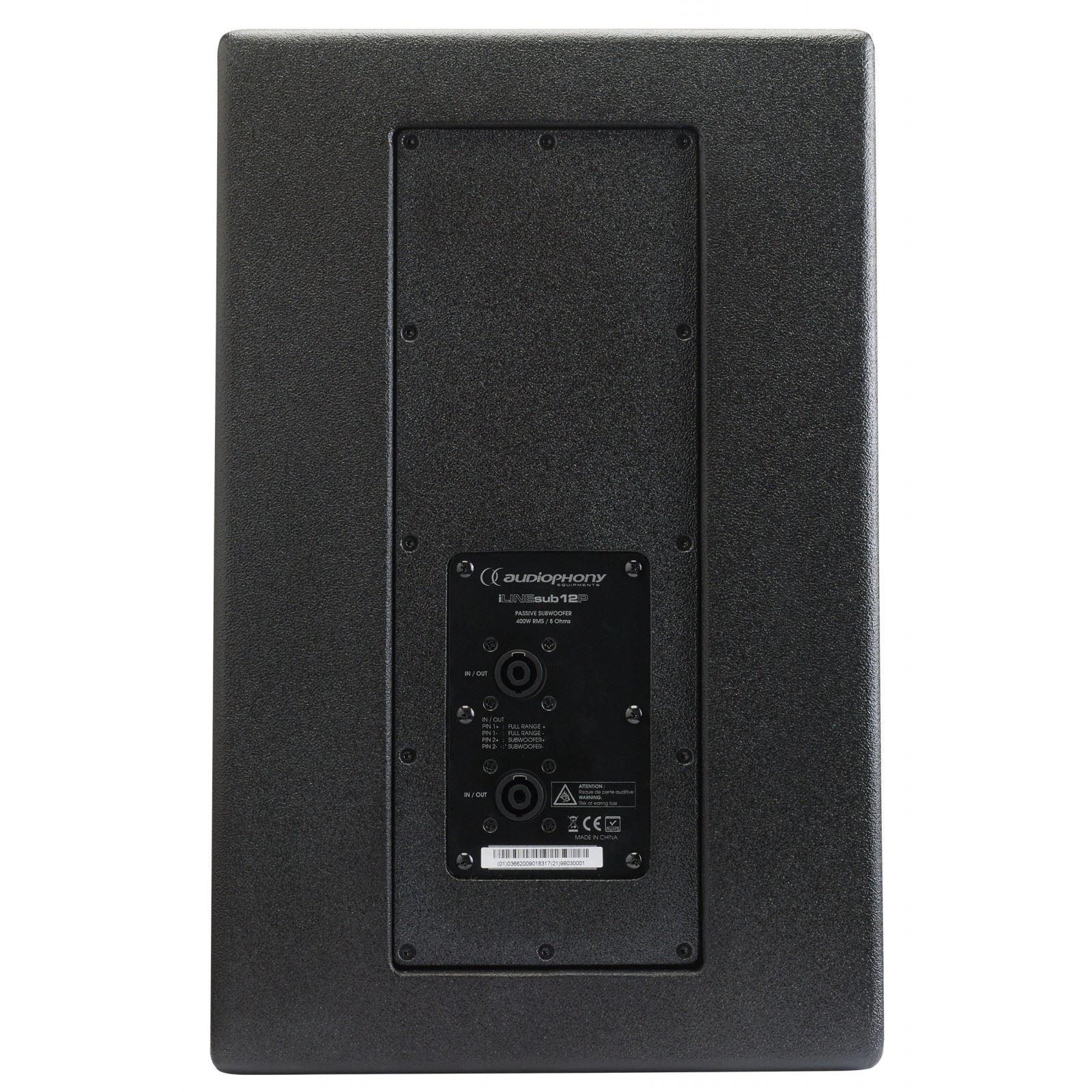

iLINEsub12P 12" Passive Subwoofer:

12" passive subwoofer - 400W - 8 Ohms - Black

Power handling : 400 W RMS / 800 W max
Frequency response : 50 Hz 200 Hz
Axial sensitivity (1W/1m) : 96 dB
SPL max. : 125 dB
Nominal impedance : 8 Ohms
Loud speaker : 12"

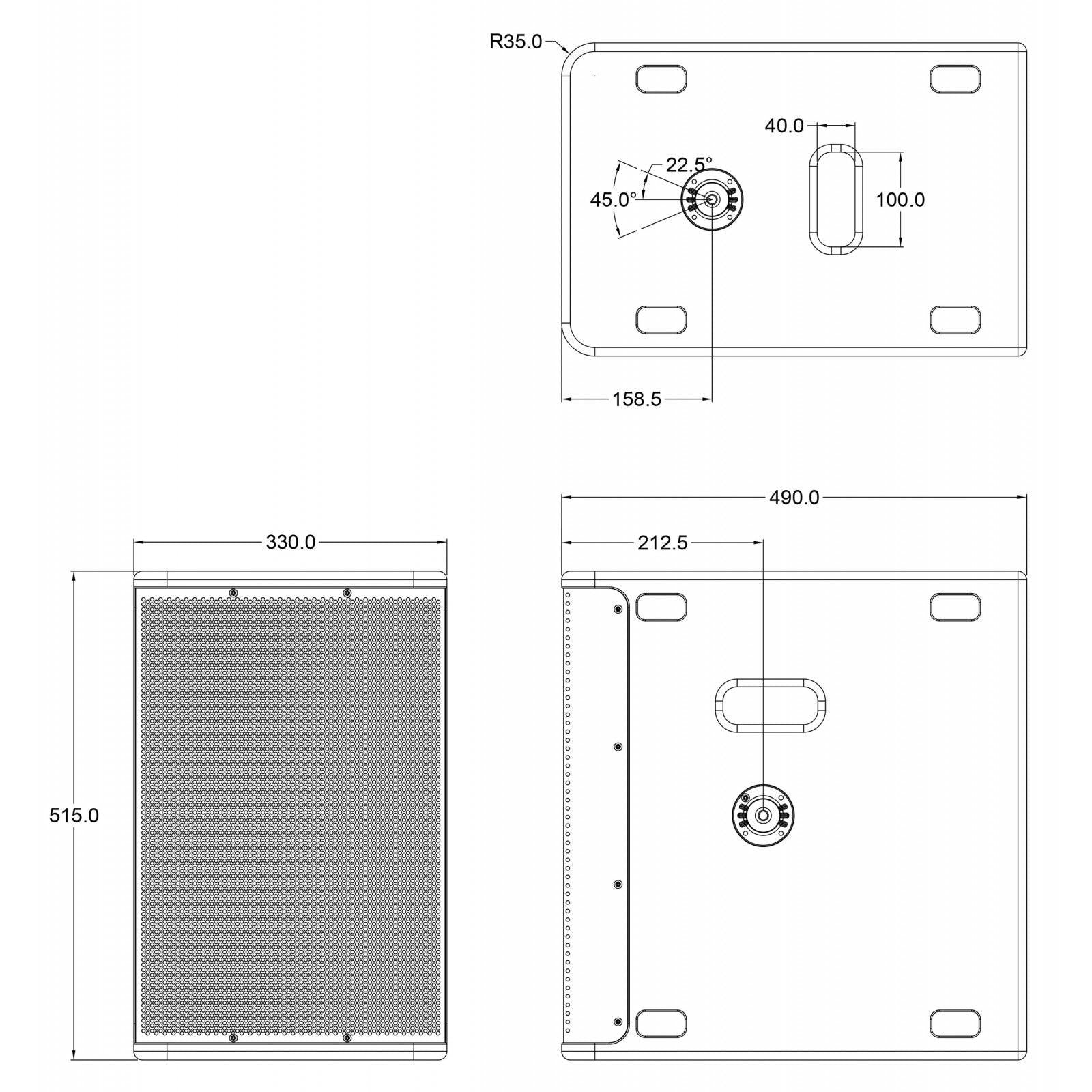

Dimensions : 350 x 515 x 490 mm
Net weight : 22 Kg

Connectors :
4 pins input/output
1+/1: Full range In/Out
2+/2: Bass In/Out

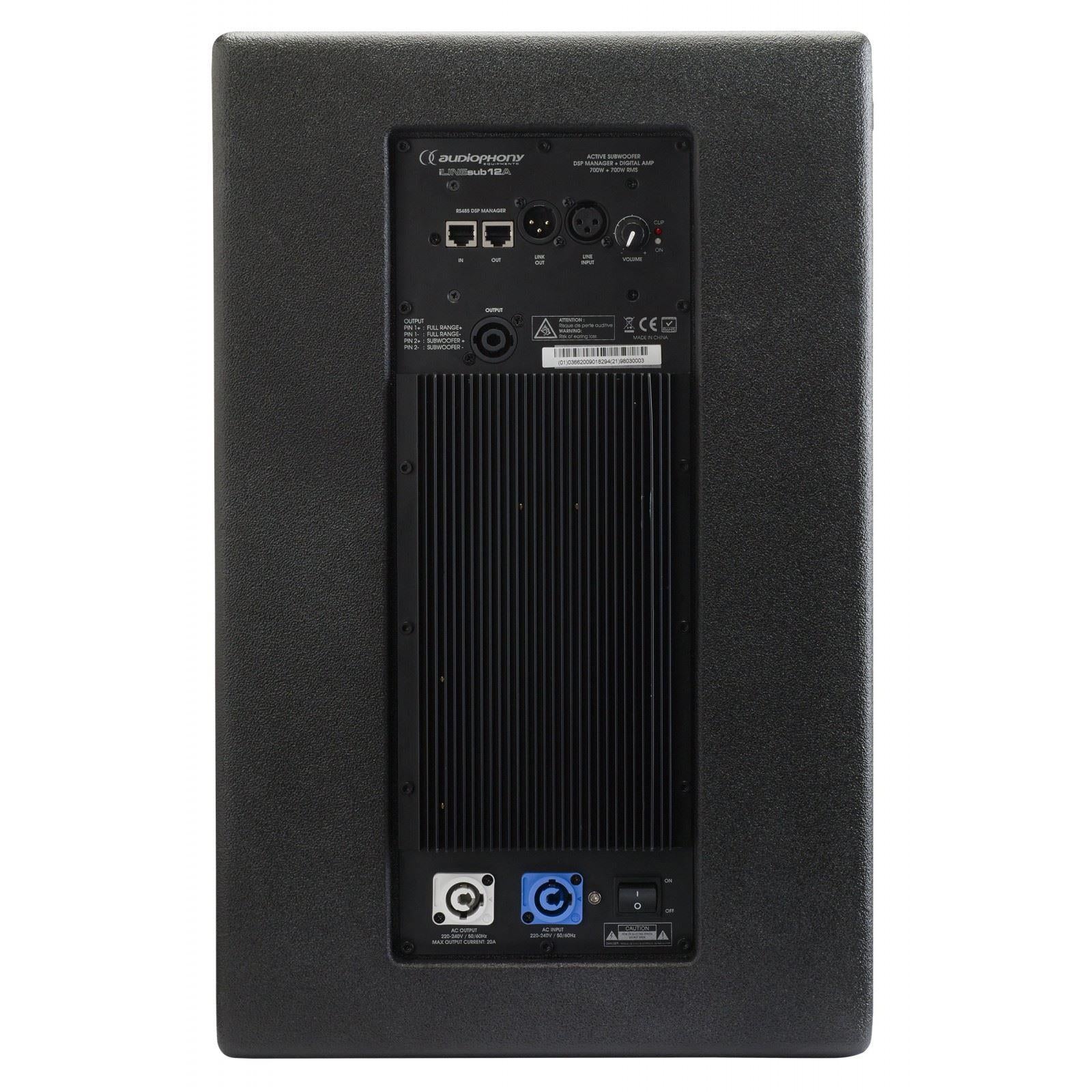

iLINEsub12A 12" Active Subwoofer

12" active subwoofer 700W + 700W with integrated DSP

Specifications:

Power Output: 700W / 4Ohms + 700W / 4Ohms
Frequency Response: 50 Hz - 200 Hz
Axial Sensitivity (1W/1m): 96 dB
SPL Max.: 124 dB
Nominal Impedance: 8 Ohms
Loudspeaker: 12 inches
Size: 350 x 515 x 490 mm
Net Weight: 23.5 Kg
Connectors: Input:Line level balanced XLR
Output:Bass/Treble powered Speakon:1+/1-: Full range output
2+/2-: Bass output
Power Supply:Powercon In/Out: AC 220V-240V / 50/60Hz, 20A
DSP:RJ45 In/Out
Amplification: Total power available 700+700 W RMS / 4Ohms:Full range output: 700W RMS / 4Ohms
Bass output: 350W RMS / 8Ohms + 350W RMS / 8Ohms internal
Settings: Volume: General level of the system
DSP:28/56 bytes, 50 MIPS
System configuration by the software provided with converter iLINEbox ref. 10762
Material: Finnish birch plywood
Polyurea black coating
Integral steel grill protection
Column Speaker Connection System: 2 x 35mm base with integrated connector

iLINEbox USB > RJ45 converter:

USB > RJ45 converter for iLINEsub12A DSP

Connectors: RJ45
USB B
Size: 56 x 58 x 23 mm
Weight: 65 g
Provided with USB A / USB B Cord
