Alto TS315 / TS318S 8000W Active Speaker Bundle PA System DJ Band

Description

Bundle consists of 2x Alto TS315 Active 2000W Speaker, 2 x Alto TS318S Active 2000W Subwoofer and 2 x adjustable speaker poles

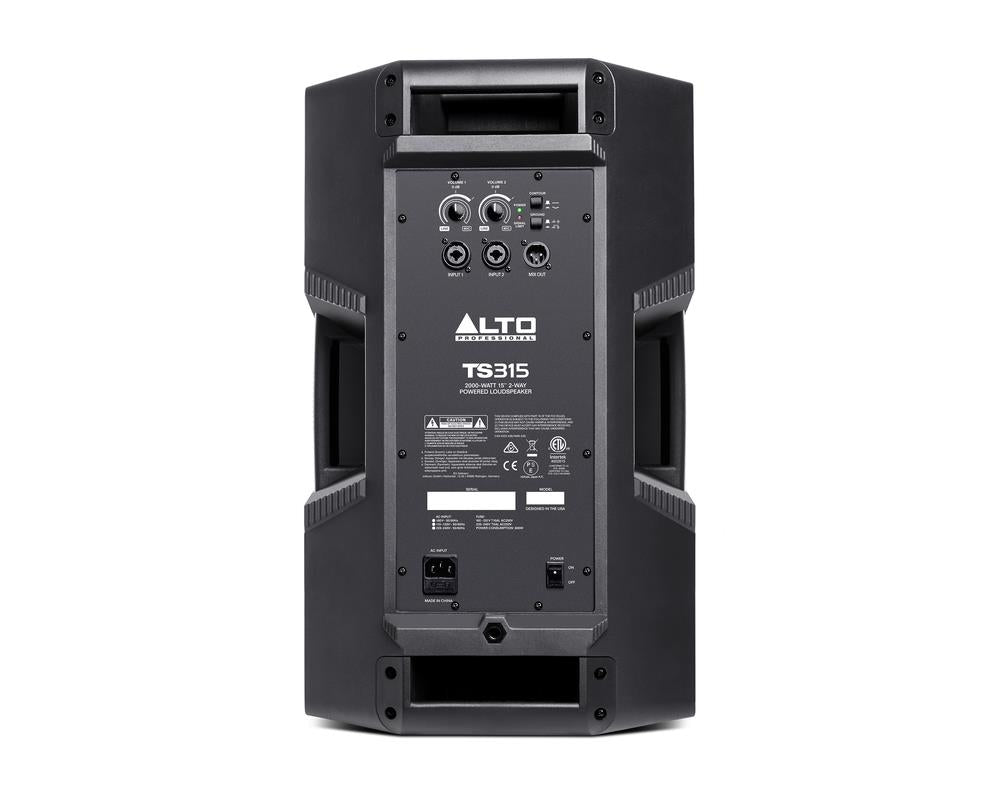

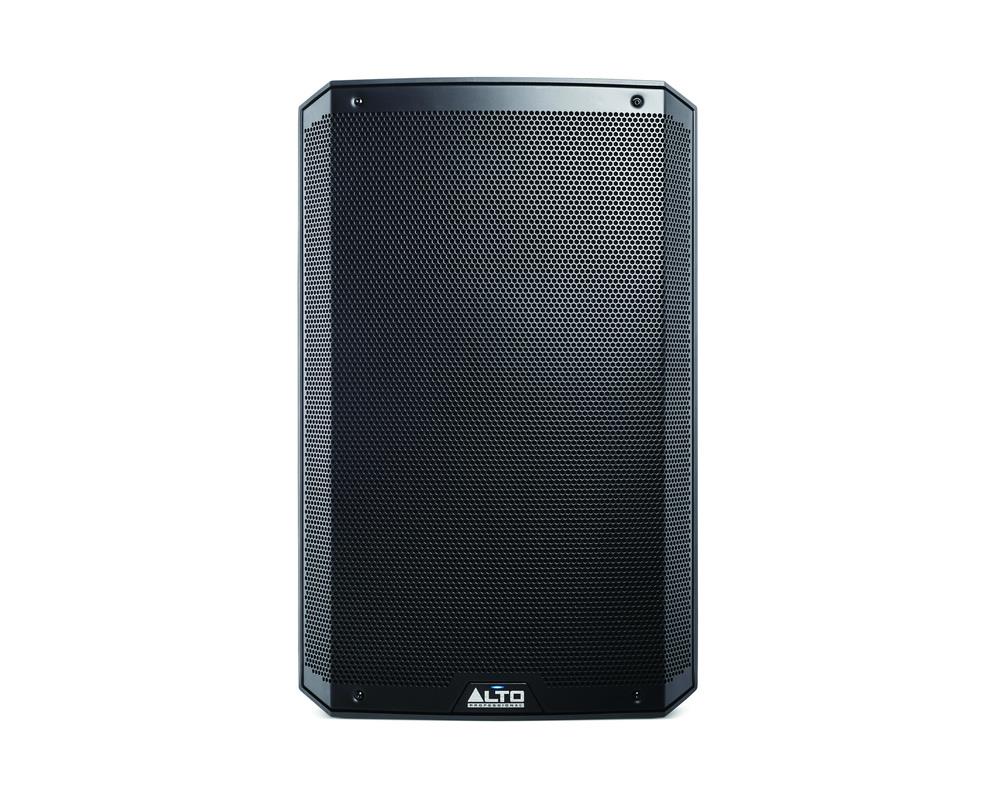

Alto TS315

2000 W peak (1300 LF + 700 HF) 1000 W continuous RMS (650 LF + 350 HF)
15-inch (381 mm) LF driver, 3-inch (76 mm) high-temperature voice coil
1.4-inch (35 mm) neodymium magnet HF driver with precision wave guide
Pole-mountable, wedge monitor, bracket installation or flown application with integral M10 suspension points
Integrated 2-channel mixer with dual XLR 1/4-inch combo mic/line inputs, independent level controls, XLR Link output, Contour EQ switch and Ground-Lift switch
Custom-engineered high-efficiency class D amplifiers with passive cooling design – no fan means the speaker runs cleaner, quieter and has greater long-term reliability
Designed and tuned in the USA

Output Power: 2000 W peak (1300 LF + 700 HF) 1000 W continuous RMS (650 LF + 350 HF)
LF Driver: 15-inch (381 mm) LF driver, 3-inch (76 mm) high-temperature voice coil
HF Driver: 1.4-inch (35 mm) neodymium magnet HF driver with precision wave guide
Crossover: 2 kHz
Maximum SPL: 134 dB peak, 131 dB continuous (dB SPL @ 1 m)
Frequency Response: 50 - 20 kHz (+/- 3 dB)
Frequency Range: 43 Hz - 22 kHz (-10 dB)
Horn Coverage: 90° H x 60° V nominal
Equalization: Contour Switch Low and High Frequency +3dB Boost
Connectors: (2) XLR/TRS 1/4” (6.35 mm) combo inputs, (1) XLR link output, (1) IEC power cable input
Controls: (2) Volume, Power on/off switch, Contour switch, Ground-Lift switch
Indicators: 2 x Power LED (front and rear), Clip limiter LED
Protection: Electronic clip, Thermal and transducer overdrive protection
Power Connection: IEC with Mains Fuse
AC Voltage Input: 100,110-120,220–240 V, 50/60 Hz
Enclosure: Trapezoidal, injection-molded, polypropylene enclosure, with perforated steel grille
Mounting/Installation: 36 mm standard pole mount, Wall or ceiling mount using TSB125 bracket, Flown application with integral M10 suspension points, Wedge monitor
Dimensions: (H x W x D): 25.7” x 16.6” x 15.4” / 652mm x 421mm x 392mm
Net Weight: 41.3 lbs. / 18.8 kg.
Design Origin: Designed and tuned in the USA

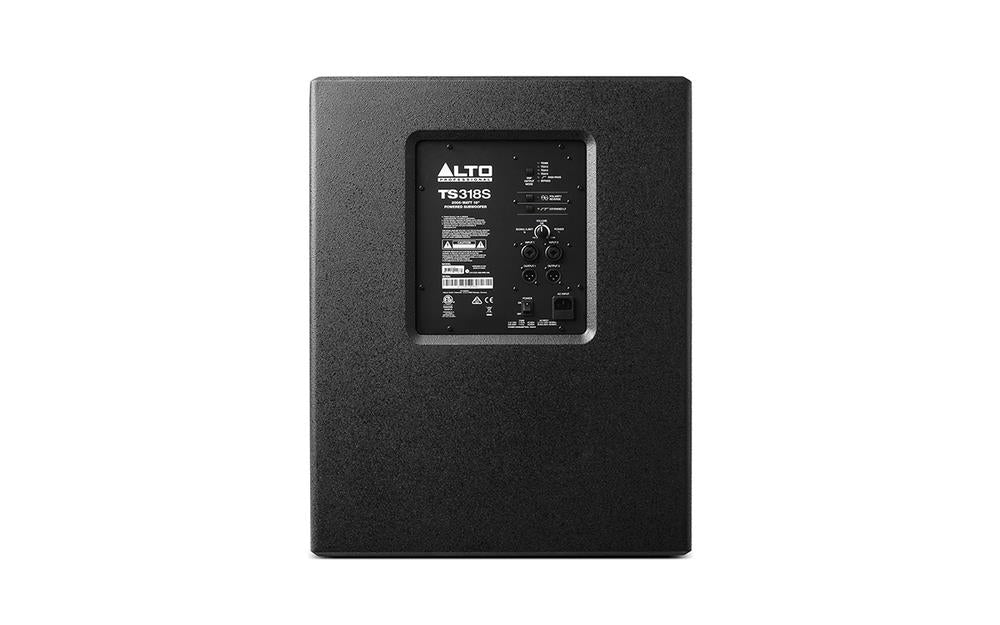

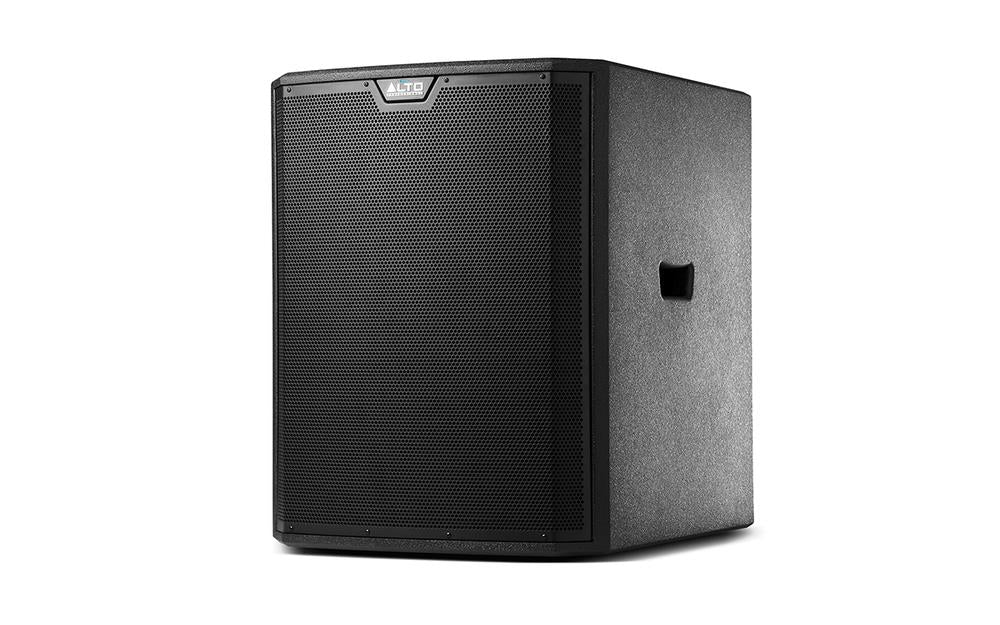

Alto TS318S

2000 watts of peak power output
High-efficiency Class D amplifier
Transducer: 18-inch with 3-inch high-temperature voice coil
(2) XLR+1/4-inch combo inputs + (2) balanced XLR line outputs
XLR outputs, with six discreet DSP output modes for ideal matching with companion full-range speaker
Polarity Reverse switch and Extended LF switch for increased EQ control
Electronic clip, thermal and transducer overdrive protection
Rugged, internally-braced front-ported MDF cabinet with integrated 36mm pole socket
Rugged, mar-resistant splatter-spray finish always looks good, even with heavy use
Designed and tuned in the USA

Output Power: 2000 W peak, 1000 W continuous
Amplifier: High-efficiency Class D amplifier
Transducer: 18” (457 mm) woofer, 3” (76 mm) voice coil
Frequency Response: 44Hz – 86 Hz (- 3 dB)
Frequency Range: 35HZ – 97Hz (-10 dB)
Maximum SPL: 133 dB (@ 1 m) 131 dB continuous (dB SPL @ 1 m)
Connections: (2) XLR+1/4” (6.35 mm) inputs; (2) XLR outputs; (1) IEC power cable input
Input Level: Line +4 dBu (nominal)
External Controls: Volume control, DSP output mode switch, polarity-reverse switch, extended low-frequency switch, power switch
Indicators: Signal/clip limiter LED, six DSP output mode LEDs, polarity-reverse LED, extended low-frequency LED, power switch LED
Electronic Protections: Electronic clip, thermal and transducer overdrive protection
Enclosure: Internally braced MDF cabinet; 36 mm mounting pole socket on top panel
Rugged, mar-resistant splatter-spray finish always looks good, even with heavy use
Power Connection: IEC with Mains Fuse
AC Voltage Input: 100,110-120,220–240 V, 50/60 Hz
Consumption: 1000 W Fuse: T10AL AC250V (100–120 V) or T5AL AC250V (220–240 V)
Dimensions (H x W x D): 26.8” x 21” x 24.7” / 680mm x 533mm x 628mm
Weight: 86.4 lbs. / 39.2 kg
Design Origin: Designed and tuned in the USA
Accessories: TS318S Cover
