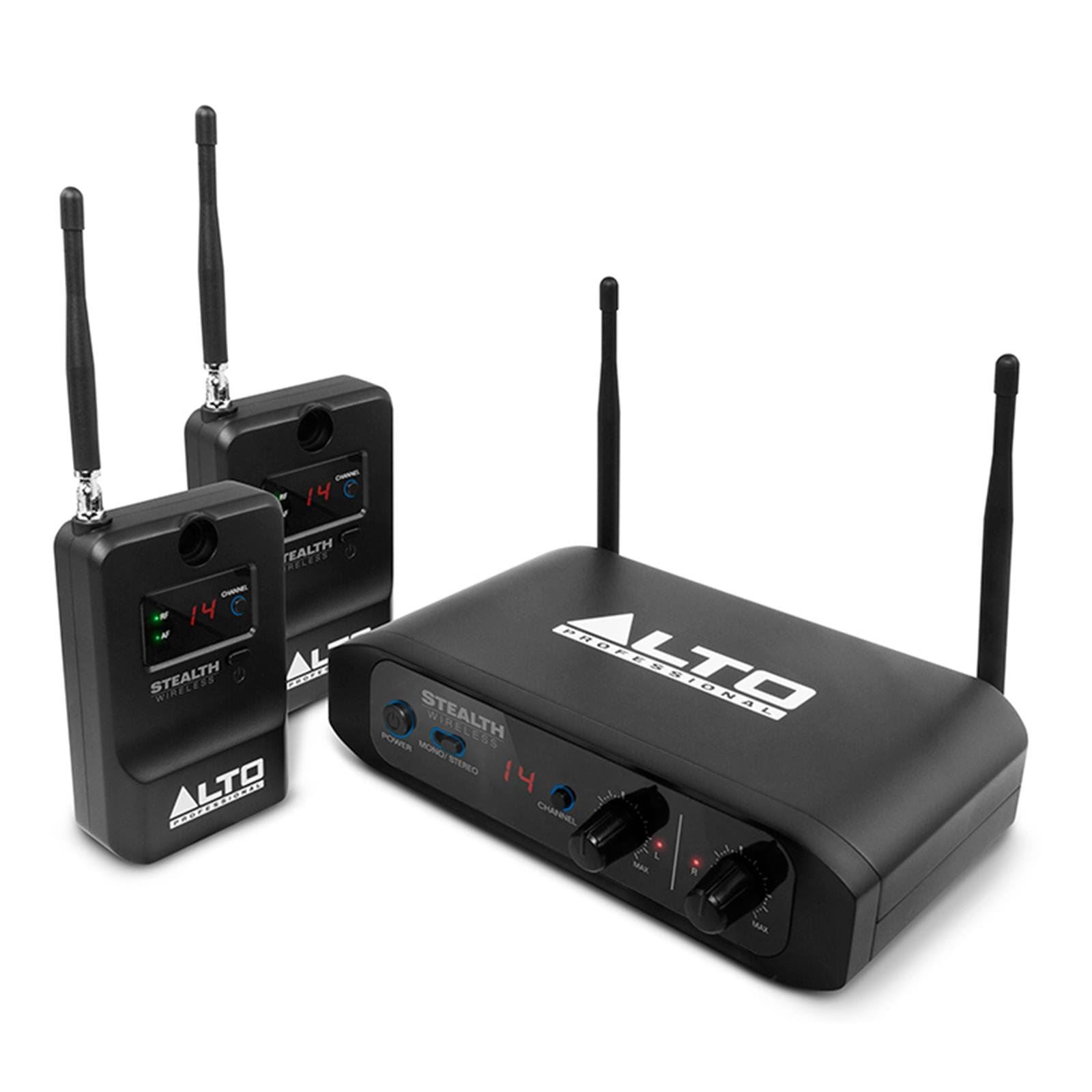

Alto Stealth Wireless System

Add wireless audio connectivity to any active loudspeaker
Enjoy faster setups and teardowns
Eliminate complex cable runs
Dual-channel transmitter (x1) with two XLR+1/4
Single-channel receivers (x2) with one XLR output (per unit)
Replaces up to 200' of console-to-system cabling
No compromise in audio quality
Reliable UHF band; 16 selectable channels
Adjustable squelch eliminates interference
Grow your system using the Stealth Wireless Expander Pack* (sold separately)
Transmitter: (2) XLR+1/4 combo inputs
Receiver: (1) XLR output (per receiver)


Transmitter Description
Type: Dual Channel Transmitter
RF Frequency: 863 - 865 MHz
Oscillation Type: PLL
Preset Channels: 16 Channels (stereo）
Frequency Response: 50 Hz ~ 17 kHz / 3dB
Bandwidth: 24 MHz or 30MHz
Frequency Stability: 0.005%
Frequency Deviation: 20 kHz
LED Indicators: Power On/Off, Sig/Clip
Power External Adaptor, 12 VDC/300 mA
Output Power: ＜10 mW
Controls: Power Switch; Channel Select; Mono/Stereo Switch


Dimensions
161 x 127 x 102 mm (with antennae)


Weight
0.290 kg


Reciever Description
Type: Single Channel Receiver
Preset Channels: 16 Channels
RF Frequency: 863 - 865 MHz
S/N Ratio: ＞100 dB/A
RF Sensitivity: -100 dBm
Image Rejection: ＞70 dB
T.H.D.: ＜ 0.5％ ﹫1kHz
LED Indicator: Power On, RF/AF LED Indicator
AF output Impedance: 660Ω balanced
Squelch: 3-step & Pilot Tone
Operation Voltage: 12 VDC，300 mA


Dimensions
116 x 70 x 31 mm (with antennae)


Weight
118 kg
