EUROLITE AKKU QuickDMX Wireless Receiver

Battery-powered wireless DMX receiver 2.4 GHz

• Compact 3-pin XLR plug (female) with built-in antenna
• Internal rechargeable lithium battery with up to 20 hours operating time
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• 32-bit ARM processor for delay-free transmission
• Due to GFSK modulation with 79 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• Group mode
• Plug & play: quick and easy setup with one operating button
• Multicolored LED indication for functions
• 2.4 GHz - license-free worldwide

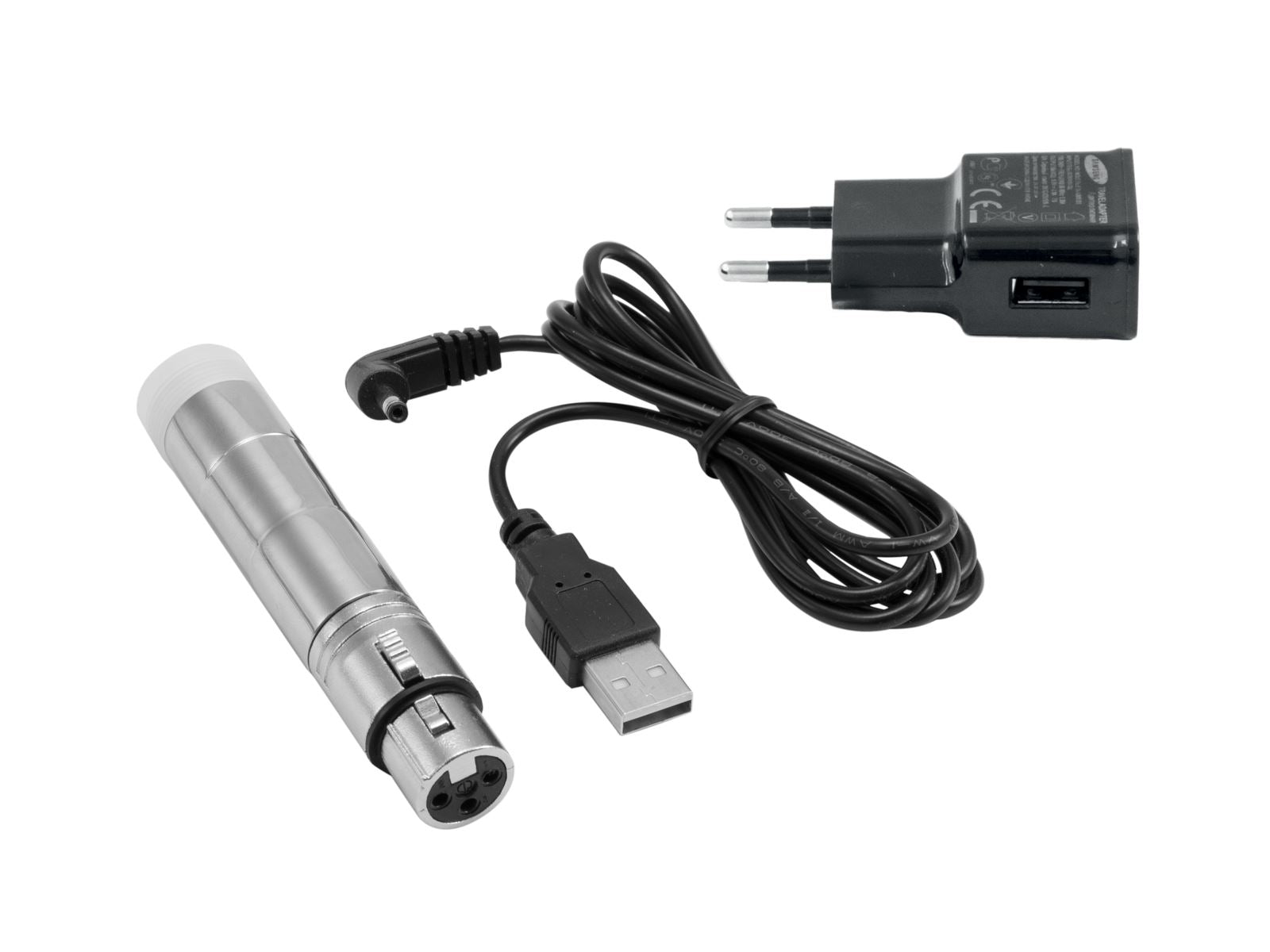

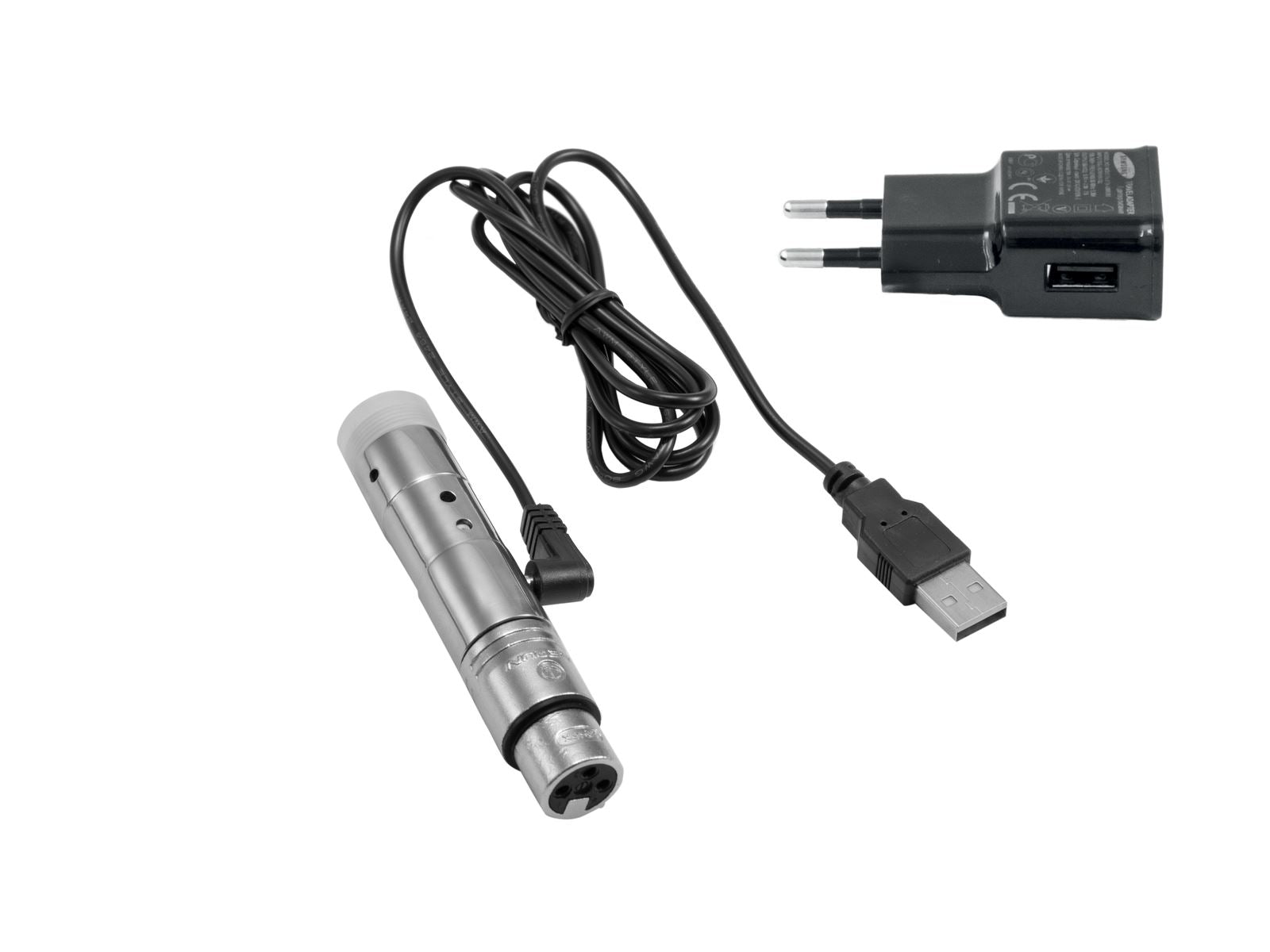

• Including USB charging cable and power adapter
• Controlling by QuickDMX
• Use a operating range up to 400m
• Power supply: 5 V DC
• Pin configuration: Inside + outside -
• IP classification: IP20
• Power connection: Mains input Coaxial power connector (M) power supply
• cord for USB A mains connection (provided)
• Battery pack type: 1 x lithium ion 3,7 V, 380 mAh, 1,4 Wh
• Battery pack: Battery operation up to 20h
• DMX output: 3-pin XLR (F)
• Control: QuickDMX
• Carrier frequency: 2,4 GHz
• Modulation: GFSK
• Parallel mode: Max. 6 transmitter
• Range: 400 m
• Color: Silver
• Dimensions: Length: 9,50 cm
• Diameter: Ø 1,8 cm
• Weight: 140 g
