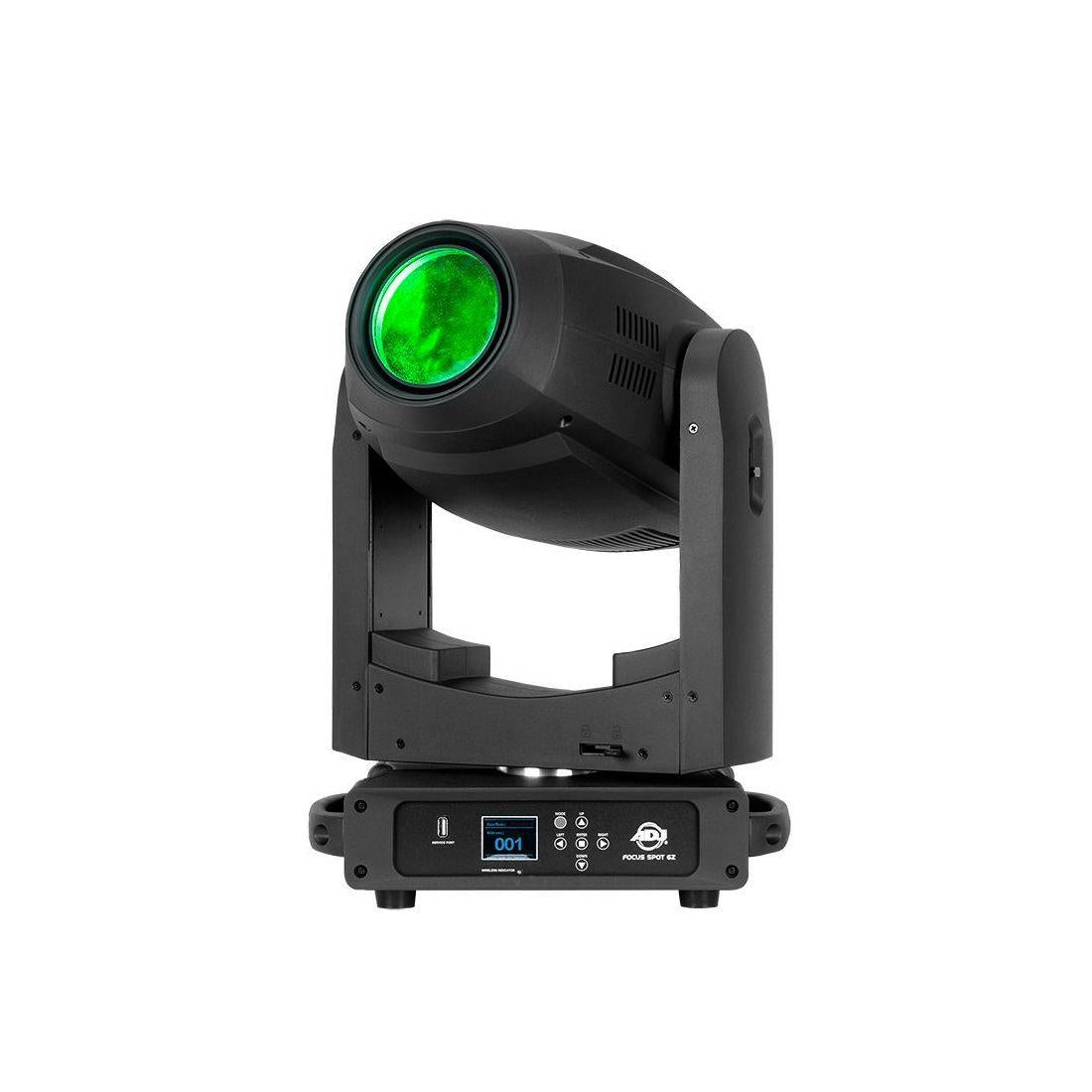

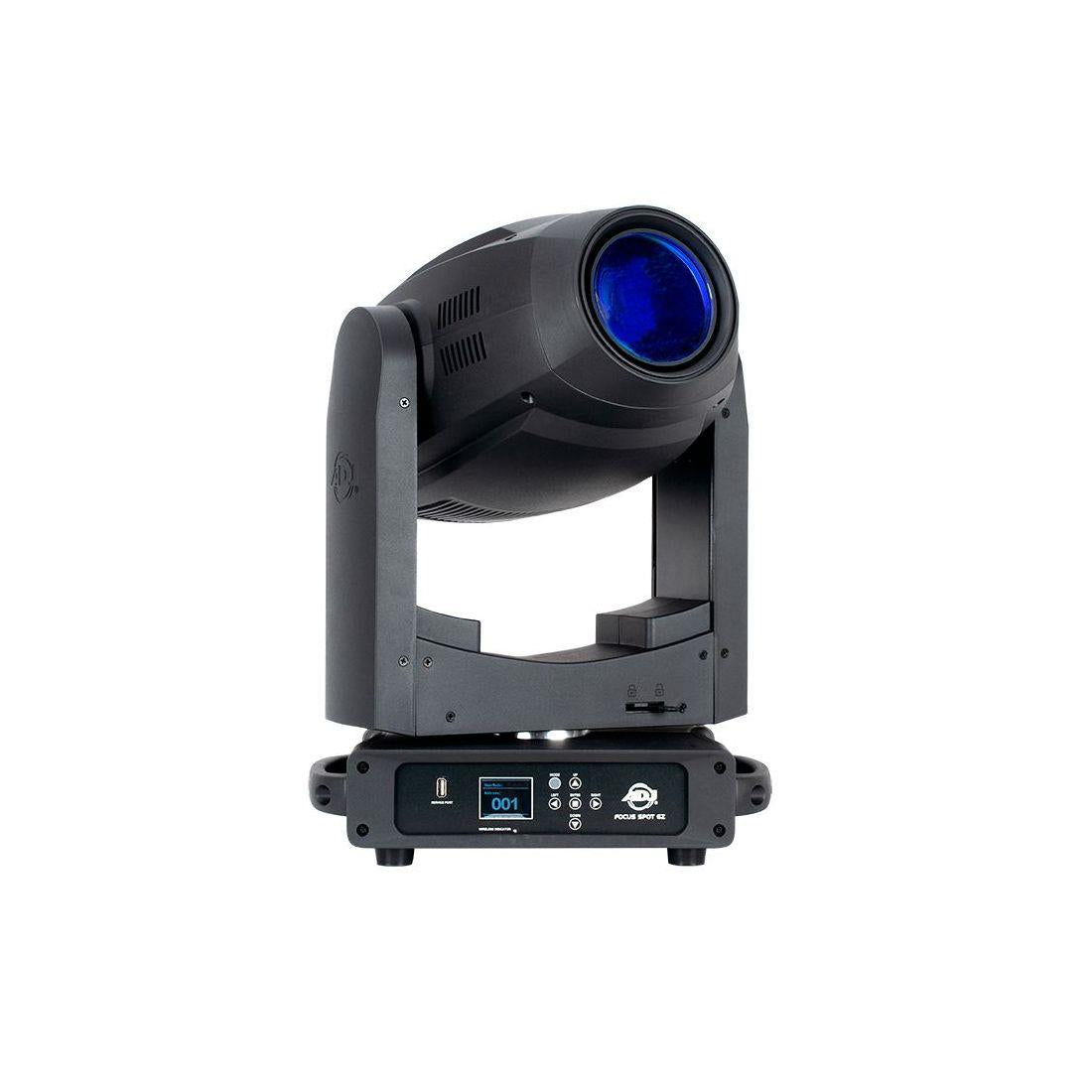

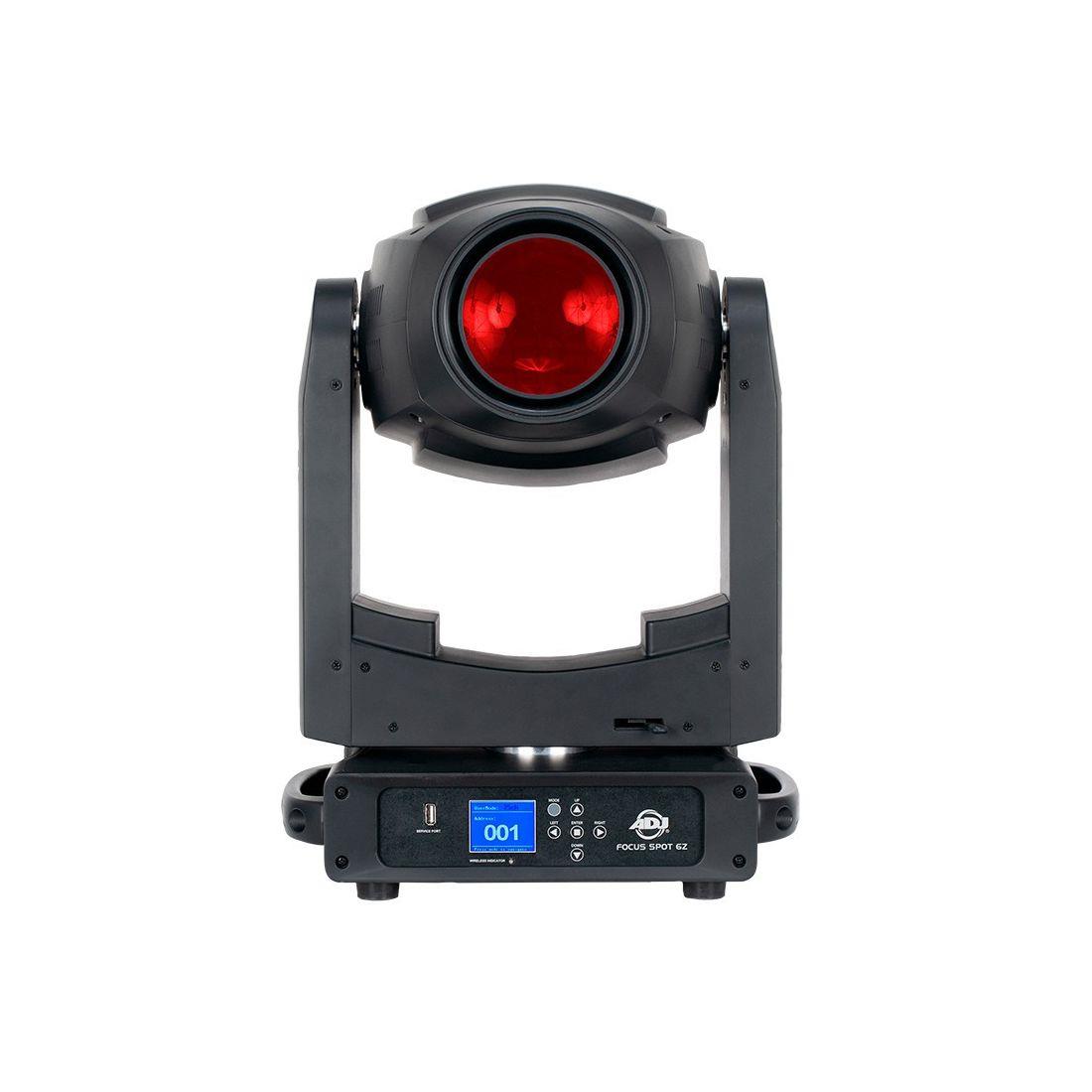

ADJ Focus Spot 6Z 300W LED Moving Head Zoom

Description
The ADJ Focus Spot 6Z is a powerful, compact moving head spot fixture, designed for demanding professional lighting applications. Powered by a 300W cool white LED engine delivering 11,000 lumens, it offers an extensive suite of advanced features, including motorized zoom, focus, and iris, dual prisms, two frost filters, and dual GOBO and color wheels. Its flexible optics provide a zoom range of 9° to 28°, while GOBO morphing and shake effects enhance creative output. Connectivity includes 3-pin and 5-pin DMX, RJ45 for Art-Net/sACN, and PowerLock In/Out for power chaining. The Focus Spot 6Z supports multiple dimming curves and protocols including RDM and internal programs, making it a feature-rich choice for professional productions.

Features
300W cool white LED engine with 11,000 lumens output
Motorized zoom (9°–28°), focus, and iris for precision control
Two rotating prisms: 6-facet linear and 6-facet circular, both indexable

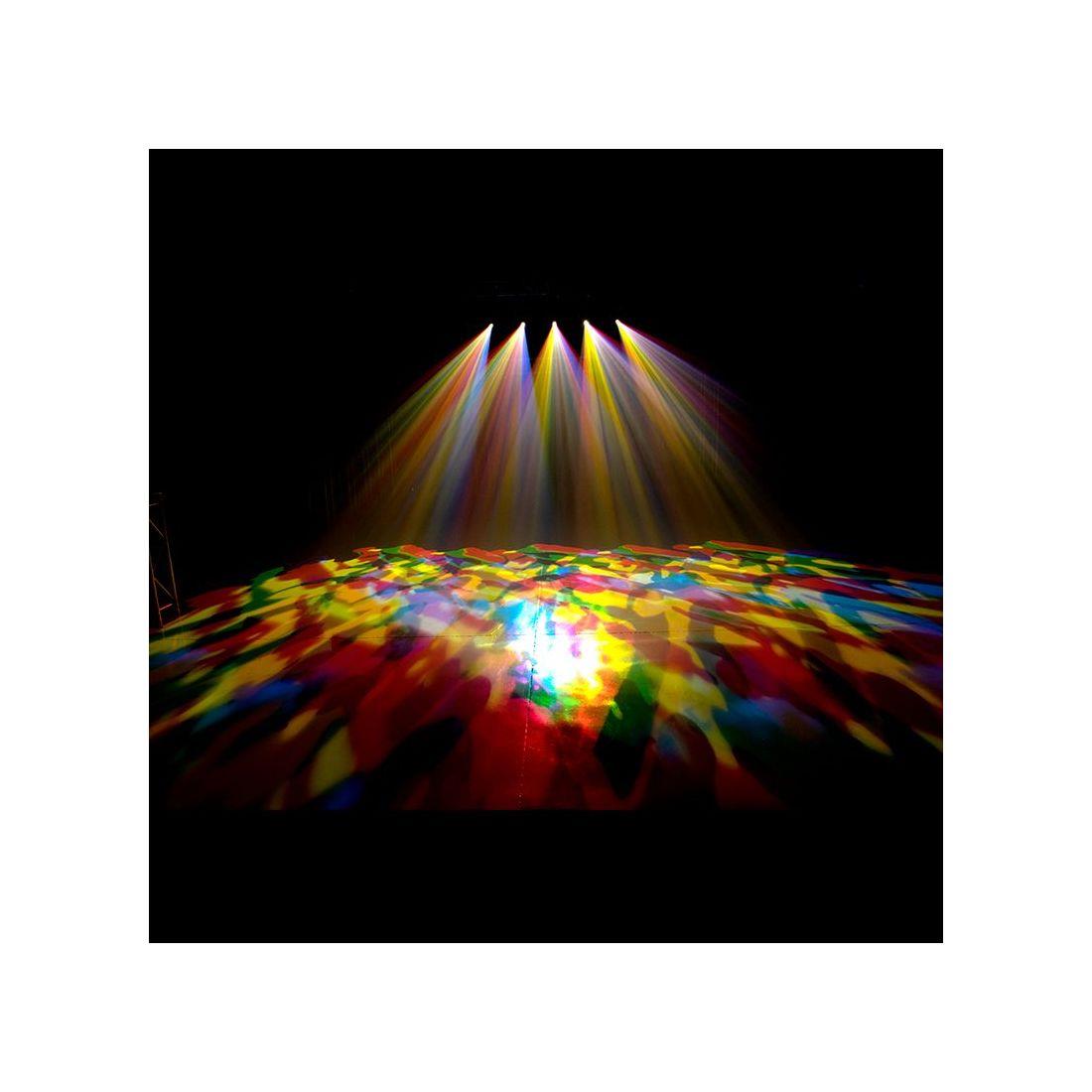

Dual color wheels (7 dichroic colors each), including CTO, CTB, and UV filters

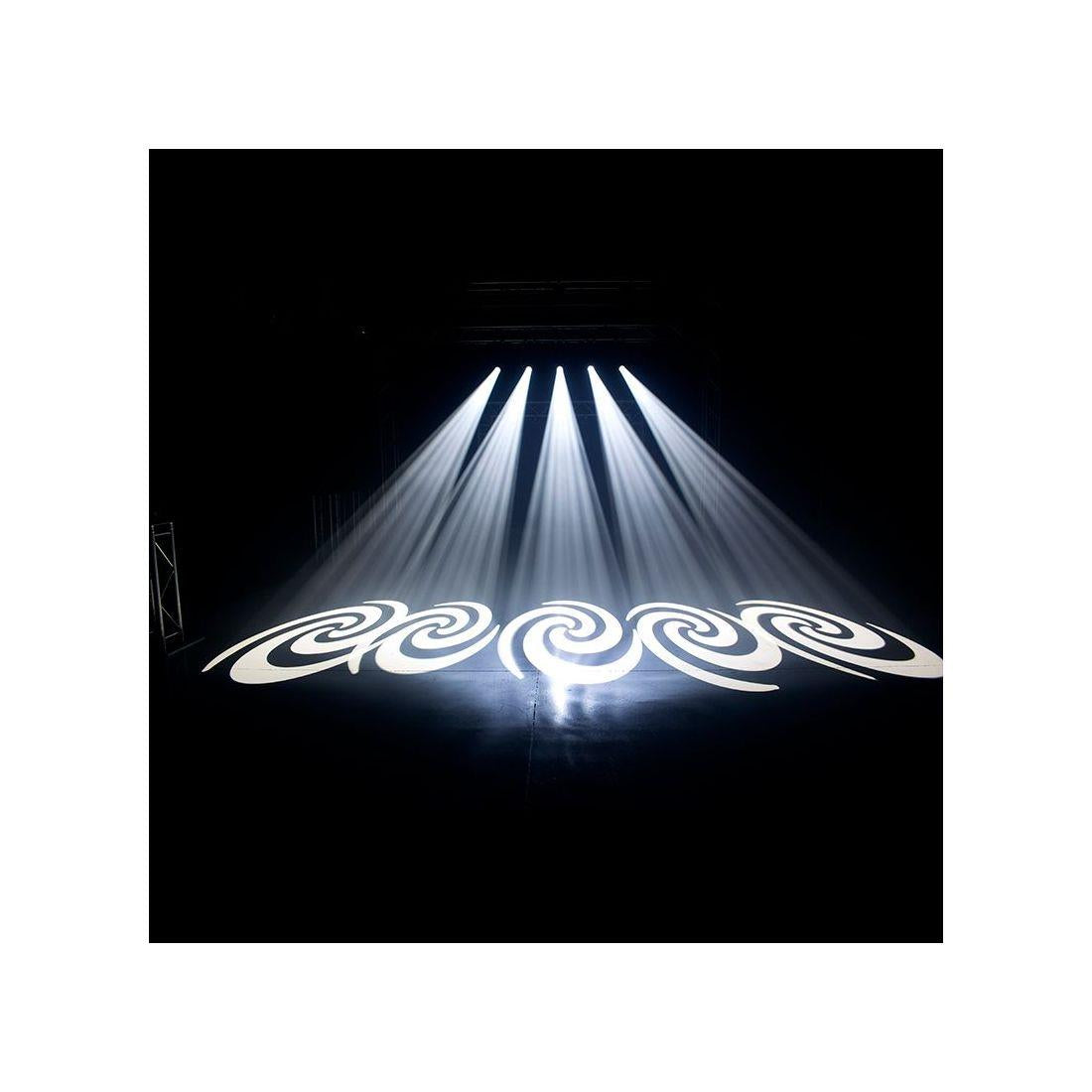

Dual GOBO wheels (7 GOBOS each) with morphing and shake effects

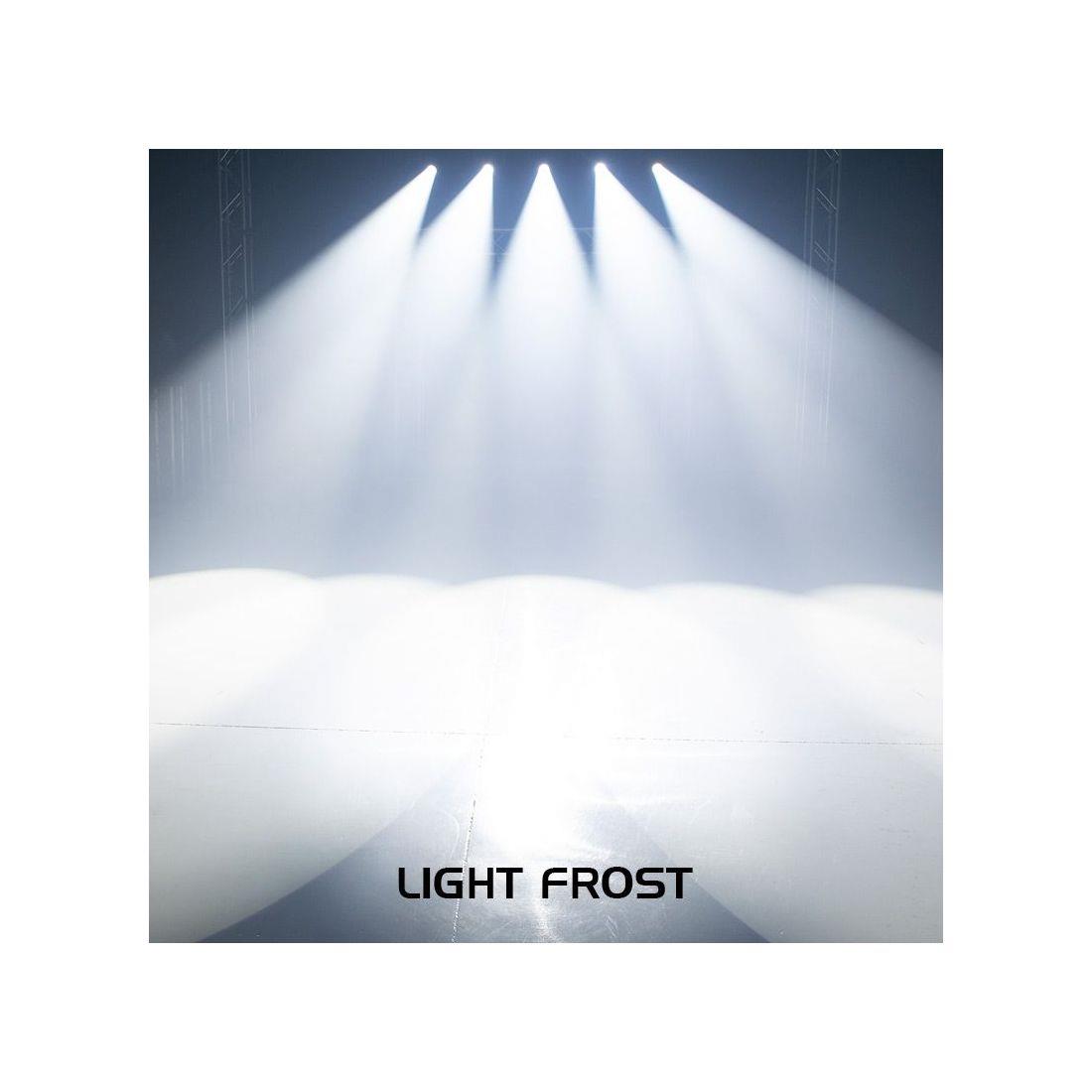

Two frost filters for light wash and soft edge effects
Smooth 0–100% dimming with 6 selectable dimming curve modes

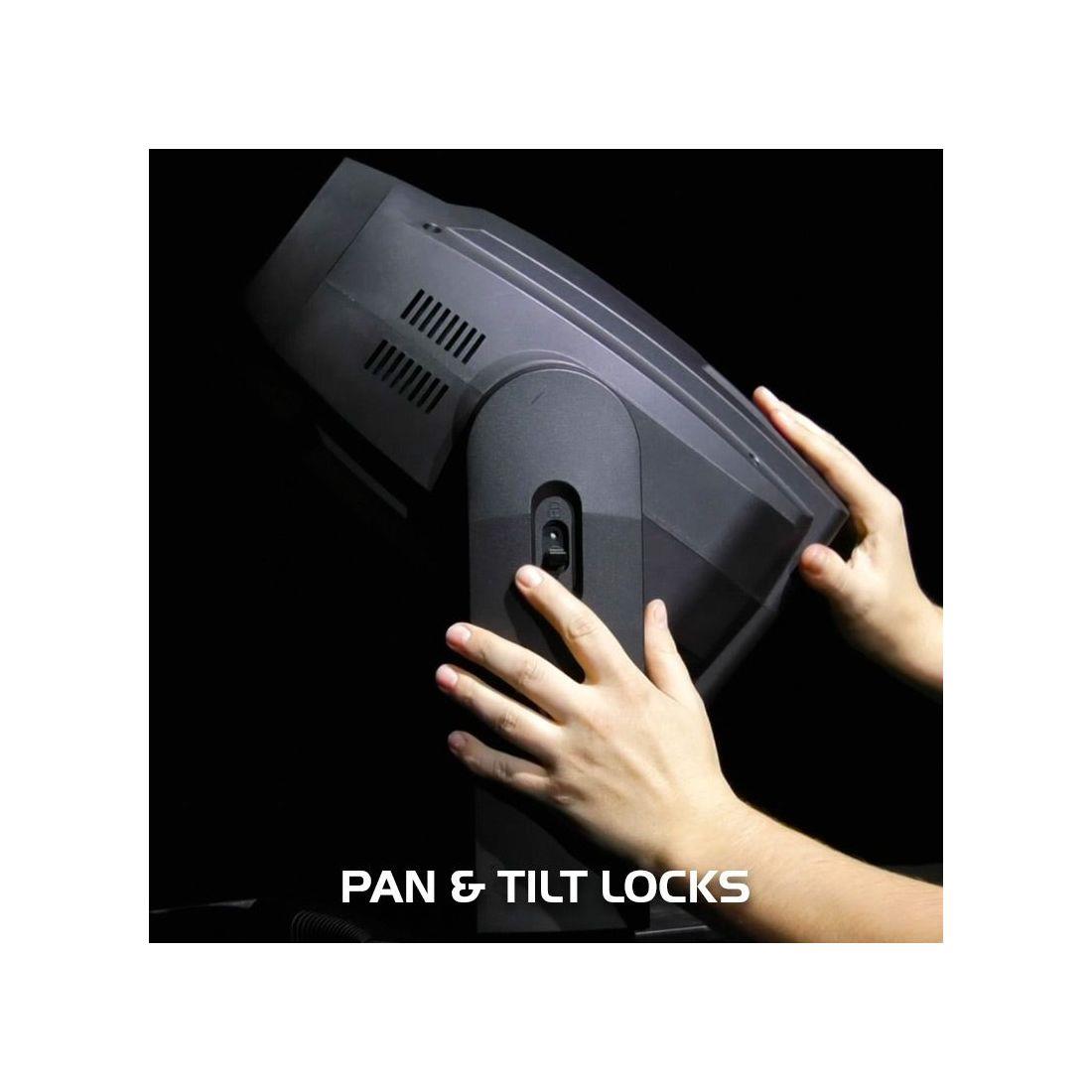

Pan: 630° / Tilt: 270°, with 16-bit fine control and locks
Control via DMX (22 or 25 channels), sACN, Art-Net, and RDM
USB port for firmware updates and wired digital communication
Multi-voltage operation with max 380W power consumption
Fits 2 units in DRC MHX road case for transport convenience

Specifications
Light source 300W cool white LED (50,000 hours lifespan)
Luminous output 11,000 lumens

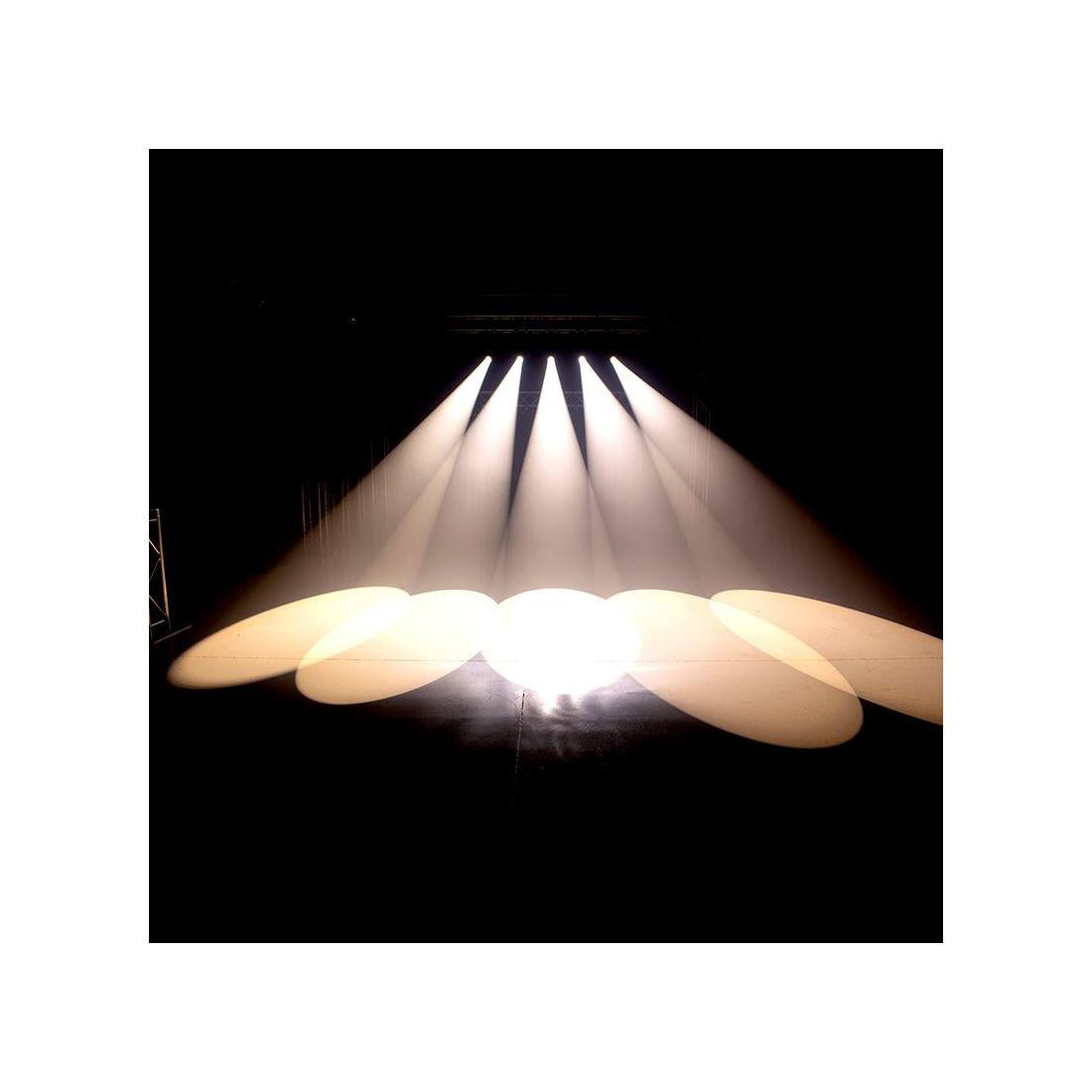

Zoom range 9° to 28° (motorized)
Color wheels 2 wheels, each with 7 dichroic colors + white
GOBO wheels 2 wheels, each with 7 GOBOS + open, GOBO morphing, shake effects
GOBOS metal: 23mm (outer), 19mm (viewable), 0.5mm (thickness); glass: 23mm (outer), 19mm (viewable), 1.6mm (thickness)
Prisms rotating 6-facet linear and 6-facet circular (indexable)
Frost filters heavy and light frost for wash and soft edge effects
DMX channel modes 22 or 25 channels
Dimming curves 6 modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
Control modes DMX512, sACN, Art-Net, Internal programs, RDM
Pan/Tilt range Pan 630°, Tilt 270°, 16-bit fine control
Display color LCD with 6-button menu

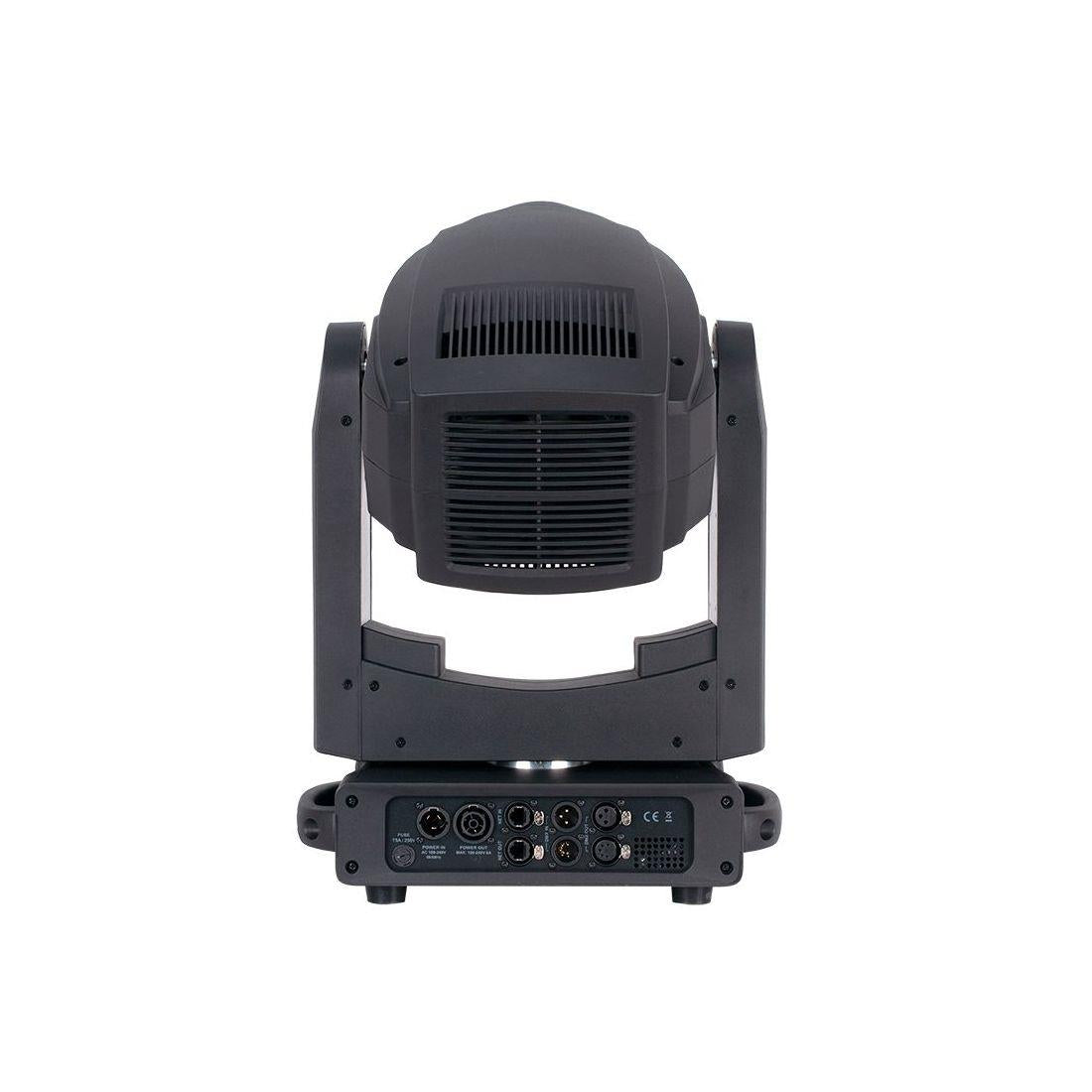

DMX connections 3-pin and 5-pin XLR In/Out
Power connections PowerLock In/Out
Network RJ45 In/Out for Art-Net and sACN
Power supply AC 90–240V, 50/60Hz
Max power consumption 380W
Dimensions 360 x 234 x 562 mm
Weight 20 kg
Approvals ETL Approved, CE Certified
Included accessories locking power cord, 2 Omega brackets, safety cable
