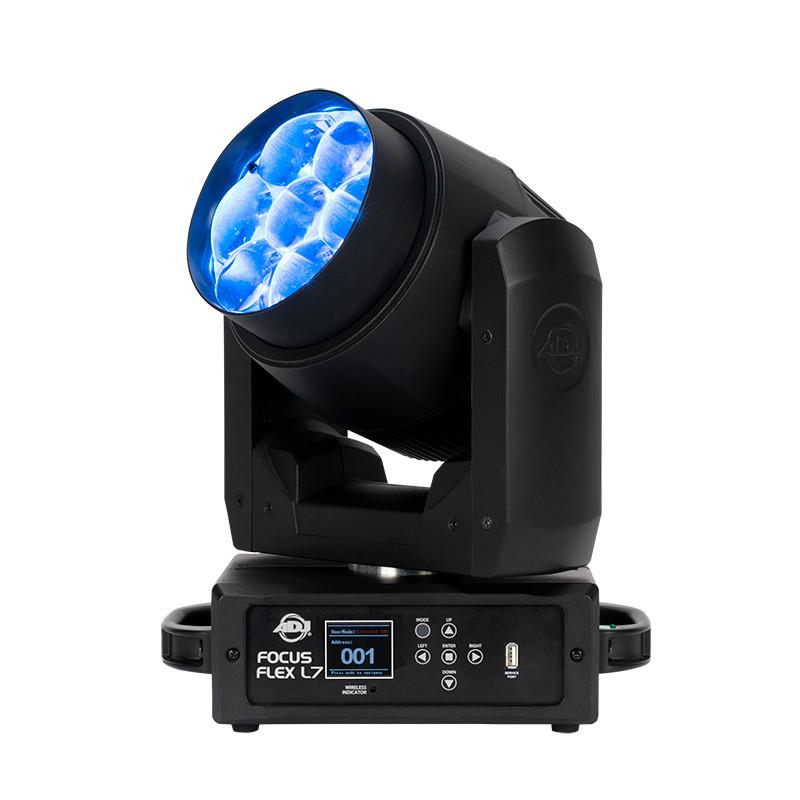

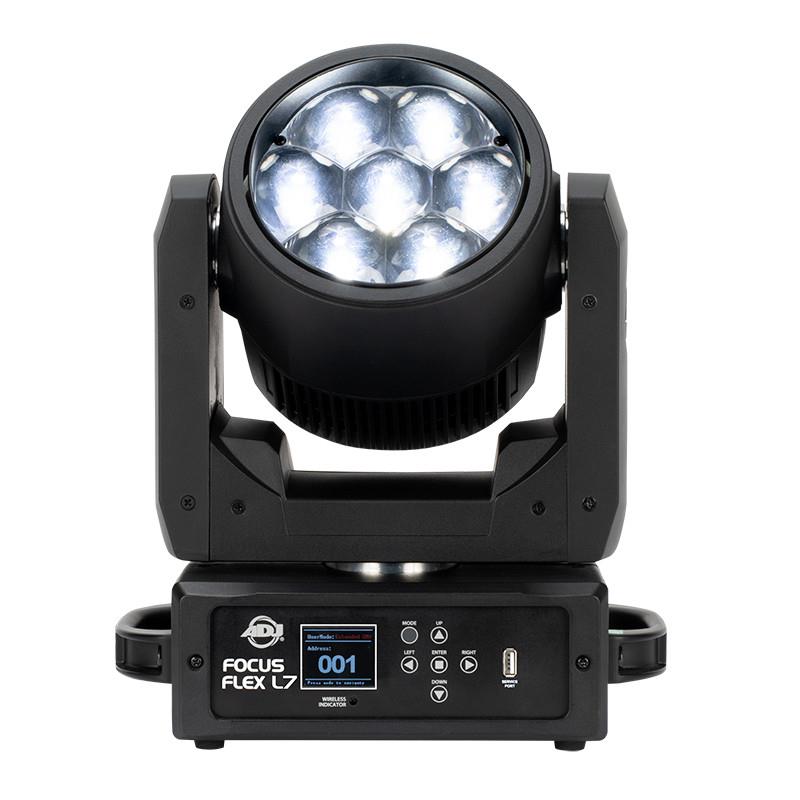

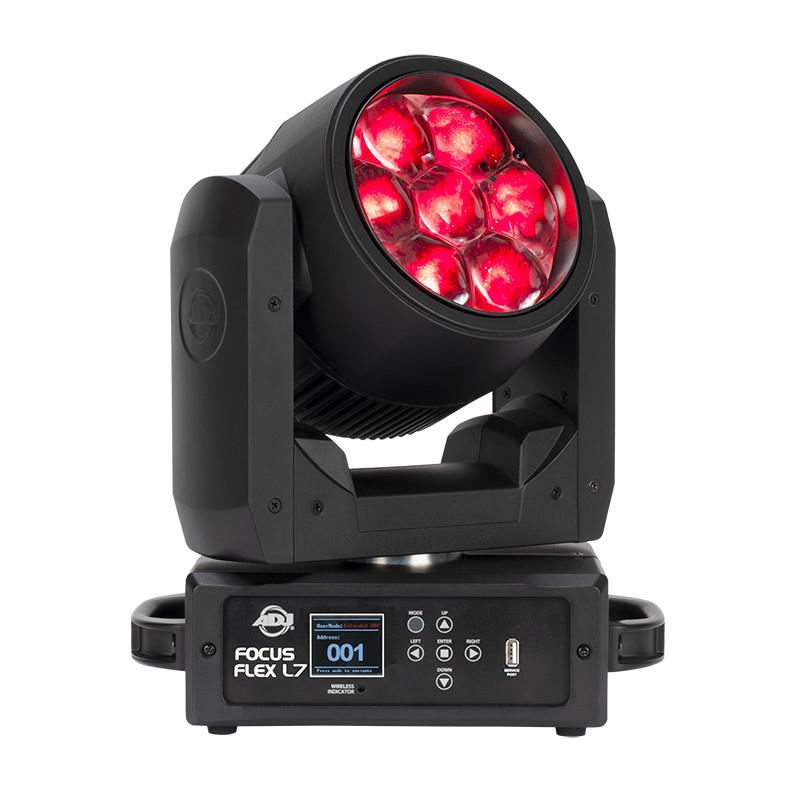

ADJ Focus Flex L7 Moving Head Light

Compact, quick and punchy, the Focus Flex L7 from ADJ Lighting is a versatile moving head luminaire capable of creating wash, beam and pixel effects. Designed to provide lighting designers with both flexibility and creative potential, it is ideal for event production and rental applications as well as for permanent installation in concert halls, theatres, nightclubs and churches.

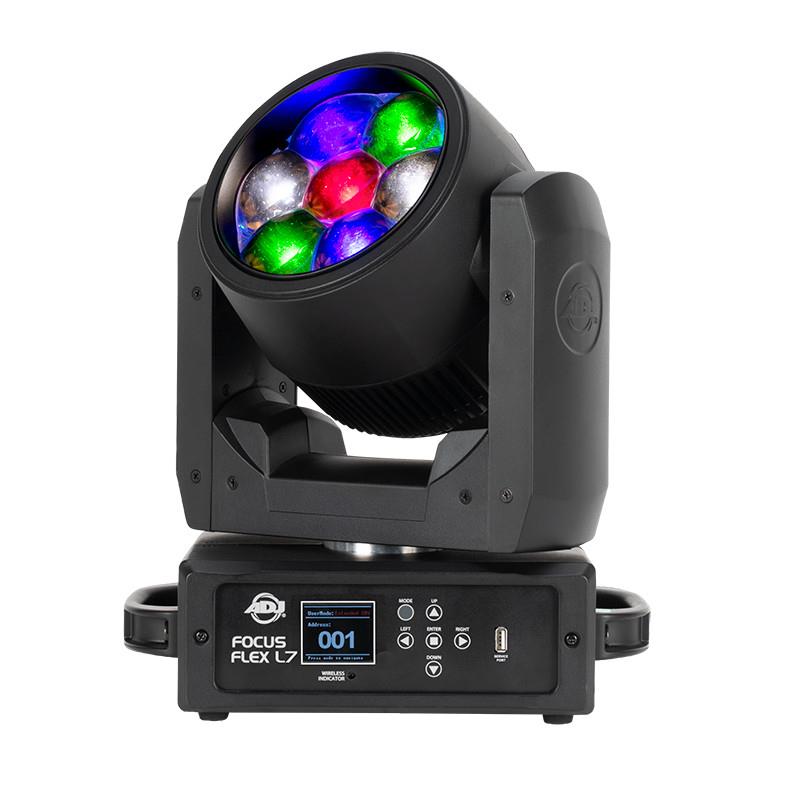

The fixture is powered by an array of seven potent 40-Watt 4-in-1 RGBL color mixing LEDs, each of which can be controlled independently. Through mixing the intensity of the primary LED colors, a huge gamut of output colors can be created to suit any mood or desired look. The fixture features a convenient Virtual CMY mode, which allows control alongside native CMY color mixing fixtures using hardware/software CMY color picker/pallete tools. It also offers Virtual Foreground and Background Color Wheel control as well as white light output with variable color temperature of between 2700K to 10,000K. This can be accessed either via linear control or a collection of 10 convenient presets. Meanwhile, through controlling the seven LEDs independently, the fixture can be used to generate impressive pixel-mapped effects. All of the LEDs used to construct the Focus Flex L7 are color calibrated to ensure uniform output of fixtures from different batches.



Motorized zoom allows the field angle of the Focus Flex L7 to be altered remotely between a wide 55-degrees and narrow 6-degrees, which allows it to be used for creating both broad washes and concise beams. Its extremely quick motor movement allows for the creation of stunning high-impact aerial effects, while 16-bit fine motor control ensures precise positioning.



A flexible fixture, the Focus Flex L7 offers a range of DMX mode options (requiring between 16 and 28 control channels), appropriate to different applications, as well as a variety of customizable options, including selectable LED refresh rate and dimming modes. These are accessed through a color LCD display panel with 6-button menu interface located on the side panel of the fixture alongside a USB port which can be utilized for easy updates of future firmware releases.

Specifications:

Source:
7 x 40-Watt RGBL LEDs (50,000 hr.)
CRI: 83.4
CT: 2700K ~ 10,000K
14.326 lux / 4° beam @ 5m
367 lux / 35° beam @ 5m
Lumens: 3500 (Zoom Out, full on)

Features:
Moving Head Pixel Wash with Pixel Effects
Electronic Strobe / Dimmer
Pan/Tilt: 540/630 x 260
Beam Angle: 4 ~ 35°
Field Angle: 6 ~ 55°
Color Calibrated Pixels so units match from batch to batch
Virtual CMY DMX Control Modes
Virtual Foreground and Background Color Wheel Control
Selectable LED Refresh Rates (900 Hz~25K Hz)
Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)
4 Dim Curves: Square, Linear, Inv. Square and S. Curve
0-100% smooth dimming
Various strobe speeds
USB firmware update port
Fan Cooled
Antenna for WiFLY EXR Wireless DMX

Colors:
Virtual CMY DMX Control Modes
Virtual Foreground and Background Color Wheel Control
Built-In Color Macros
2,700K ~ 10,000K Linear White Color Temperature Control
Color Temperature Presets: 2,700, 3,000, 3,200, 4,000, 4,500, 5,000, 5,600, 6,500, 8,000 and 10,000K

Control:
7 DMX Modes - 16/25/34/42/50/25 (CMY)/28 (CMY) Channels
Color LCD display with 6-button function menu
Control Mode: DMX512 or internal programs
Built-In Effect Pixel Programs with Speed and Fade Control
Various strobe speeds
USB firmware update port
With Wired Digital Communication Network
RDM (Remote Device Management)
WiFLY EXR Wireless DMX built-in (2500 ft. / 700M line of sight)

Pan/Tilt:
Pan: 540/630 degrees
Tilt: 265 degrees

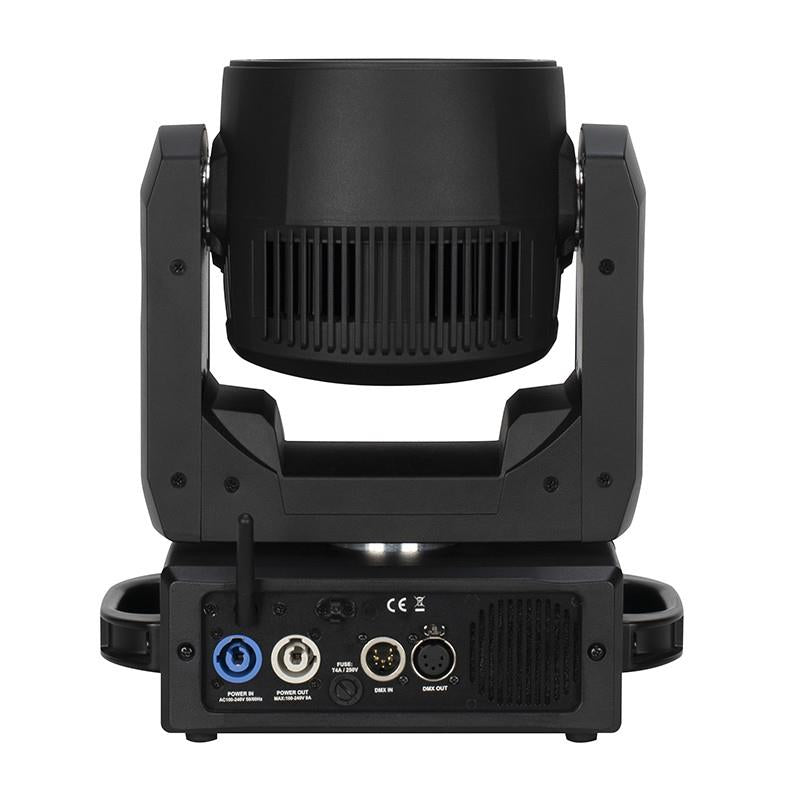

Connections:
DMX Connections: 5-pin XLR In/Out
Power Connections: Indoor Locking Power In/Out

Electrical:
Multi-voltage operation: 90-240V, 50/60Hz
Max power consumption: 337W

Dimensions & Weight:
Dimensions (LxWxH): 233x177x349mm
Weight: 7kg

What’s Included:
Omega Brackets
1.83M locking power cable
Safety Cable

Approvals / Rating:
CE Certified / ETL (Pending)
IP20
