ADJ Encore Profile Mini WW 40W Warm White Theatre Spot

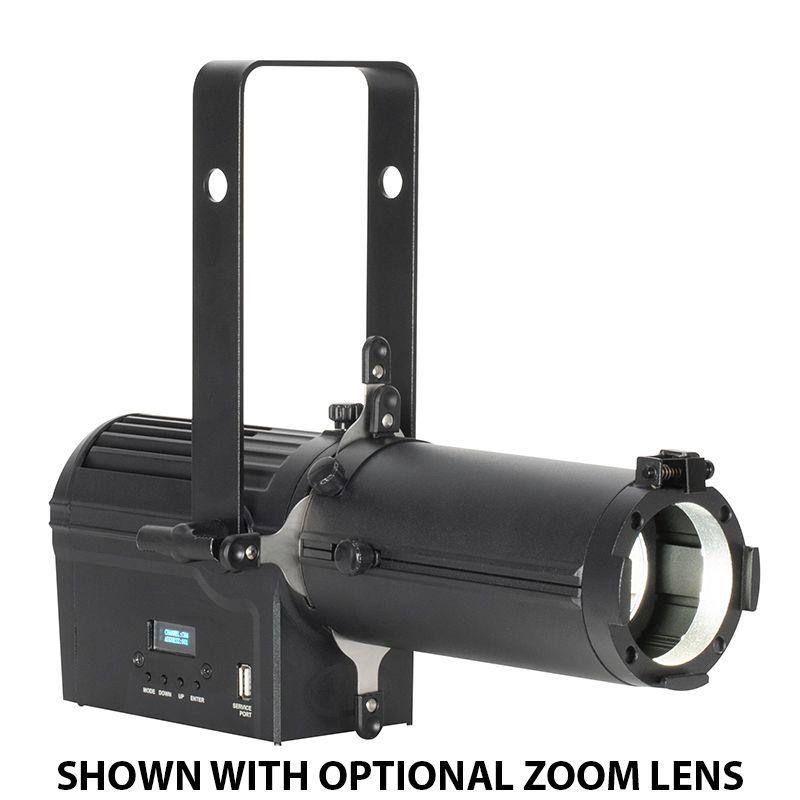

Two compatible lens options are available (sold separately), which can be used to adapt the fixture depending on the beam angle required (one of these lenses are required for the fixture to project properly). Both lenses offer manual zoom, with the EP Mini Lens 1530 option offering a variable beam angle of 15° - 30° and the EP Mini Lens 2550 version providing wider options of 25° - 50°. The fixture can also be used to project GOBO patterns and is supplied with a holder for standard “E” size GOBOs (GOBOs sold separately).

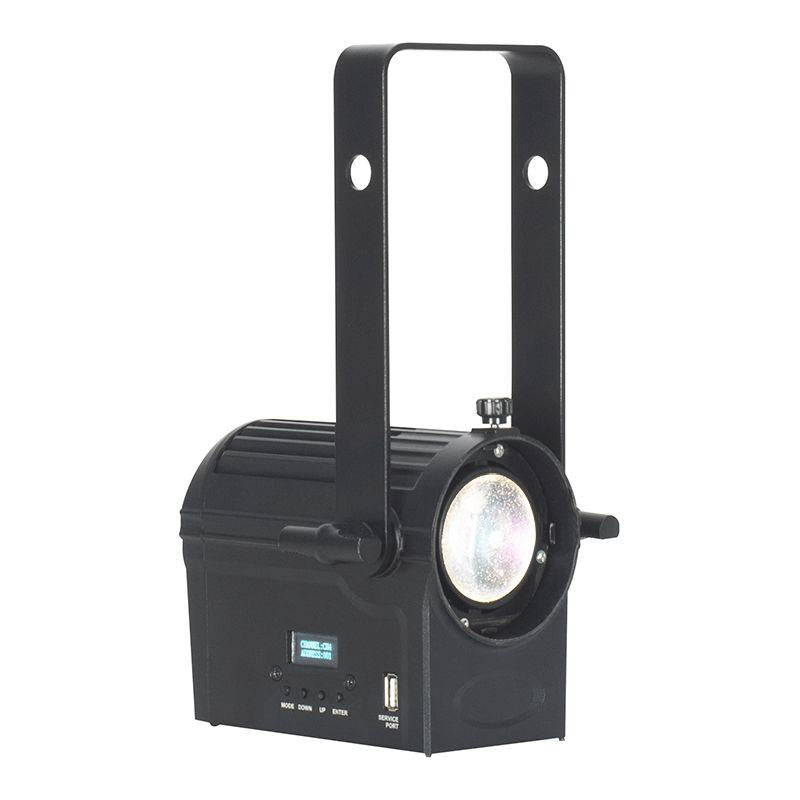

The Encore Profile Mini WW offers digital dimming with variable curves and a selection of dimming modes as well as variable speed strobing. It also supports adjustable refresh rates so that flicker can be avoided for filming applications. A convenient OLED menu display on the rear panel provides access to an intuitive menu interface for DMX addressing and configuration of the unit’s adjustable operating parameters and it is supplied with a variable angle hanging bracket that locks securely into place using a pair of large thumb tightening screws.

SOURCE:40W Warm White LED Engine (One of the two lens options must be use for the fixture to work properly - See optional accessories below)
50,000 Hour Average LED Life (LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

PHOTOMETRIC DATA:
>98CRI 900 Total Lumens
 3000K Color Temperature

EFFECTS:
Electronic Strobe and Dimming
Variable Dimming Curves and Dimming Modes

GOBOS:
Supports “E” Size GOBOs
Metal GOBO Dimensions: Outer Diameter 45mm, Image Diameter 31mm
Glass GOBO Dimensions: Outer Diameter 39.5mm, Image Diameter 31mm
GOBO Holder is included
GOBOs are sold separately

CONTROL / CONNECTIONS:
(3) DMX Channel Modes (1 / 3 / 4)
Adjustable Refresh Rates (900-1500, 25,000 Hz)
4 Button Control Panel
OLED Menu Display

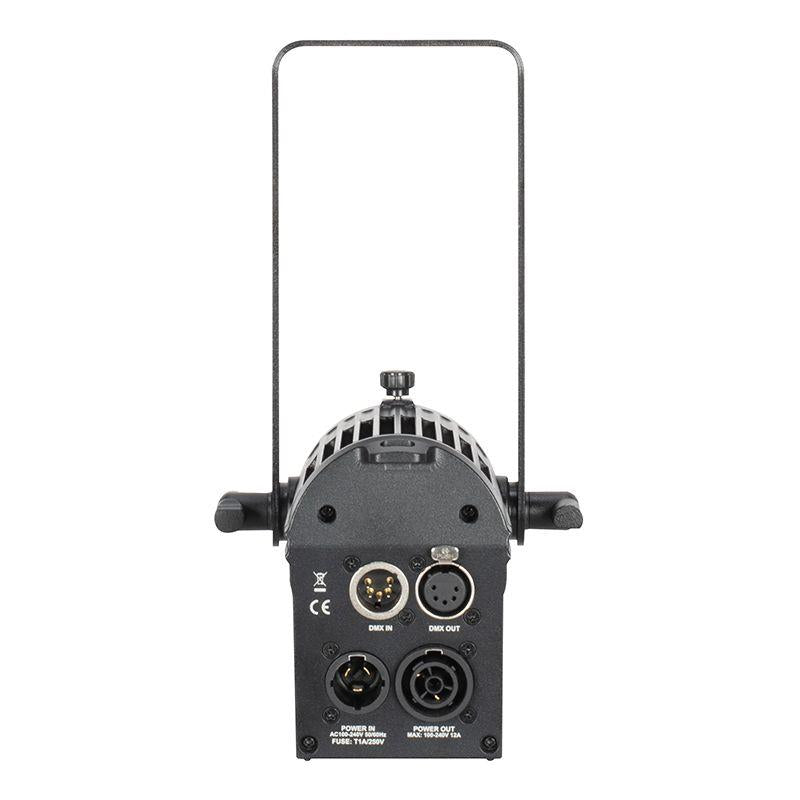

Locking 5pin XLR Connector In/Out
IP65 Locking Power In/Out
With Wired Digital Communication Network
RDM (Remote Device Management)
USB Service Port

SIZE / WEIGHT:
Length: 6.03” (153mm) (NO LENS)
Width: 5.67” (144mm)
Vertical Height: 10.75” (273mm)
Weight: 3.64 lbs. (1.65 kg)


ELECTRICAL / THERMAL:
Convection Cooled
AC 100-240V - 50/60Hz
45.6W Max Power Consumption @ 120V
45.7W Max Power Consumption @ 230V
Power Linking: 25pcs Max @120V / 53pcs Max @230V
Minimum and Maximum Ambient Temperatures: 14° to 113°F (-10° to 45°C)

APPROVALS / RATINGS:
CE | cETLus (Pending) | IP20

INCLUDED ITEMS:
(1) IP65 Locking Connector to Edison Power Cable
