ADJ ElectraPix Bar 16 Pak 4x IP65 Wireless Battery Hex LED Bars Bundle

Description

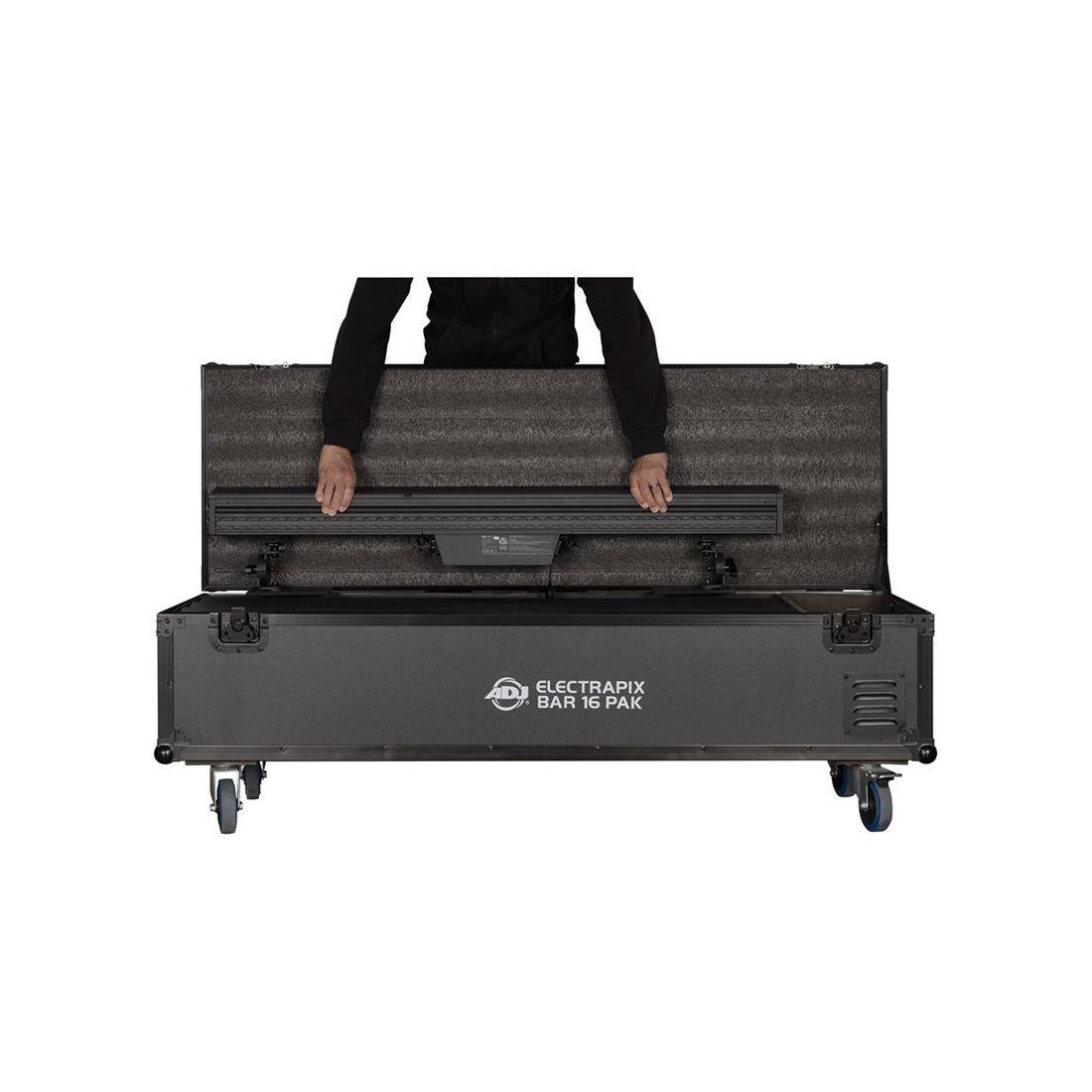

The ADJ ElectraPix Bar 16 Pak is a complete lighting package designed for professional touring and event applications. It includes four ElectraPix Bar 16 fixtures, each equipped with sixteen 20W RGBAL+UV Hex LEDs and 66 background RGB LEDs, all housed in a durable flight case with dedicated charging slots. Each fixture offers wireless DMX via the Aria X2 system, Bluetooth, and IR remote control (UCIR24 included). With a runtime of up to 20 hours on battery and IP65 weather resistance, the Bar 16 Pak is engineered for maximum versatility and performance. The flight case supports in-case charging with locking power connections, making it the perfect transport and deployment solution for production professionals.

Features

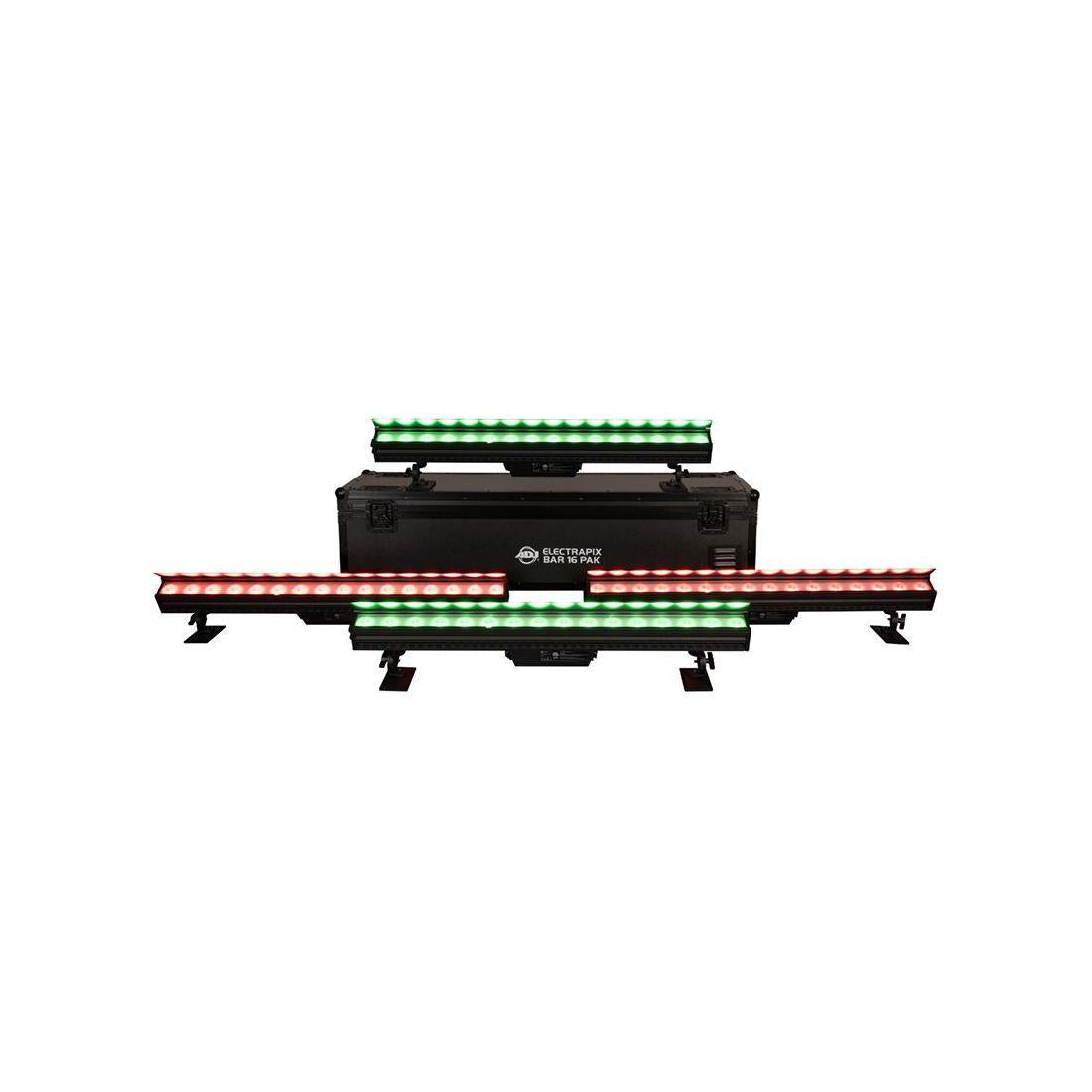

Includes 4 x ElectraPix Bar 16 fixtures with 16 x 20W RGBAL+UV LEDs each
66 x background RGB LEDs per unit for layered lighting effects
Up to 20-hour battery runtime or AC powered operation
Wireless DMX (Aria X2), Bluetooth, RDM, and IR control with included UCIR24 remote
Variable white temperature control from 2,300K to 9,900K
Built-in LED programs, pixel control, and manual operation mode
OLED display with multilingual menu and alarm system
6 dimming modes, 4 dim curves, refresh rates from 900Hz to 25kHz
Electronic strobe (0.3Hz–11Hz) and full-range dimming
Slide-lock and L-Track system for easy rigging and linking

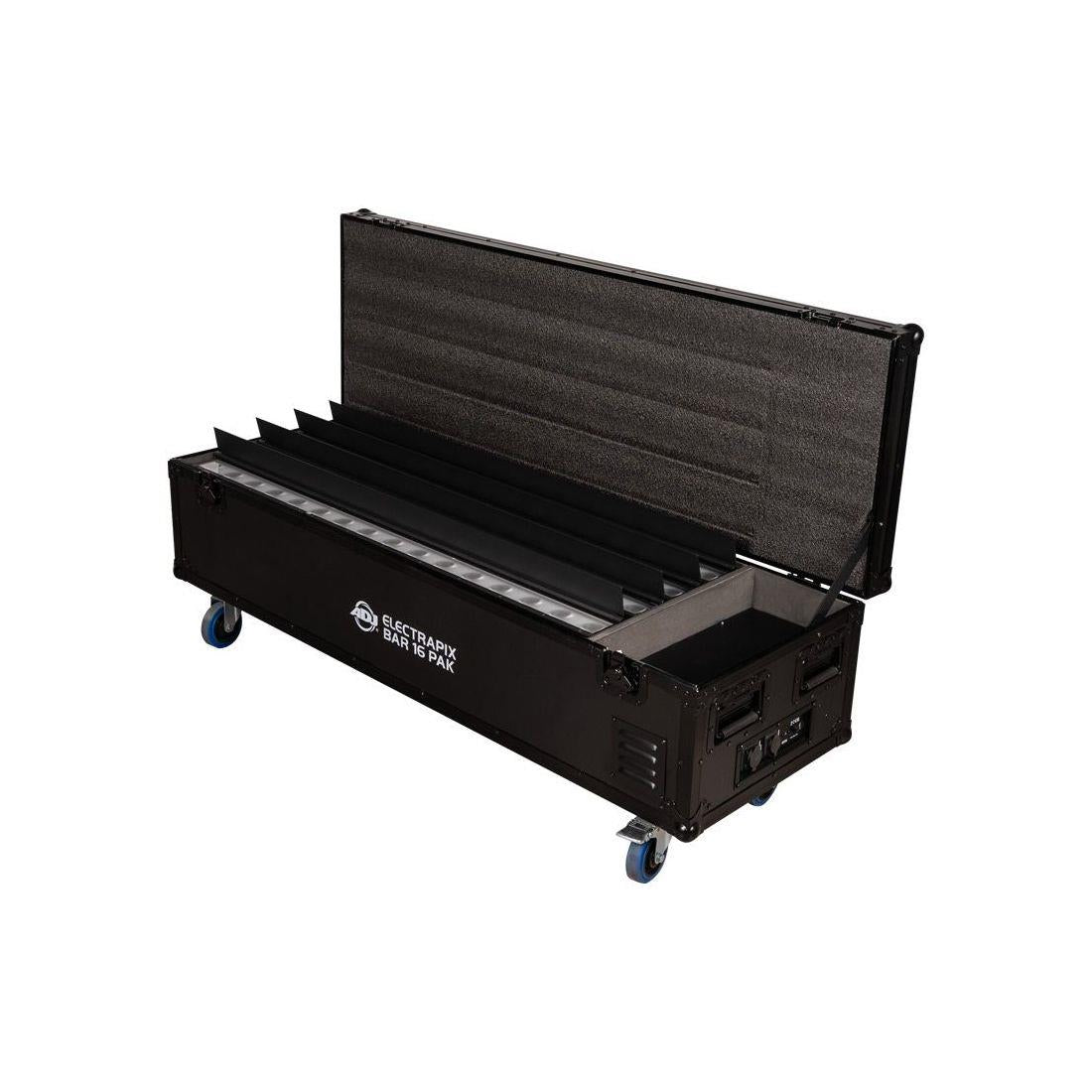

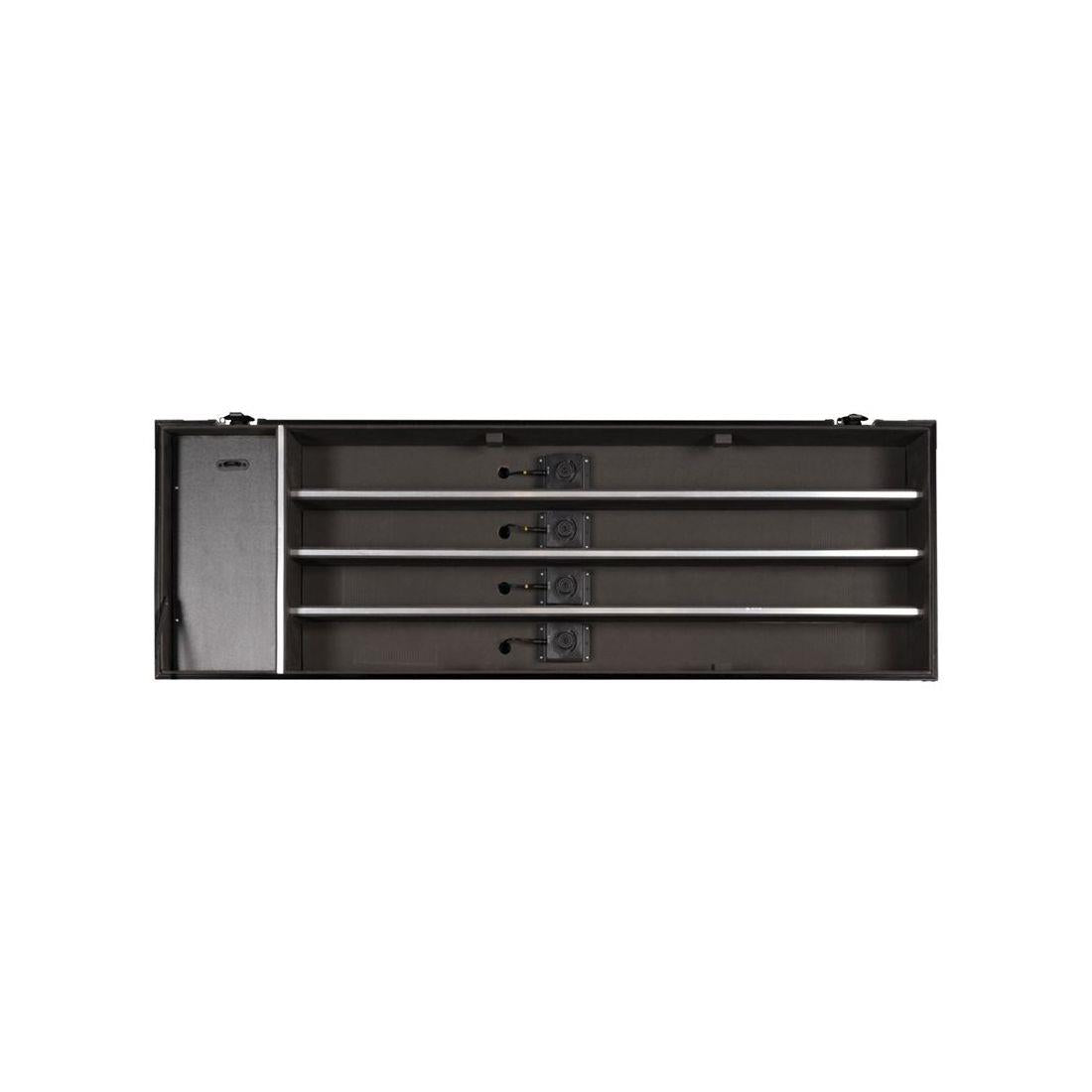

Flight case includes 4 charging bases with status indicators and locking power connections
Ideal for outdoor shows, stage lighting, or architectural use

Specifications
Light source per fixture 16 x 20W RGBAL+UV Hex LEDs, 66 x 0.2W RGB LEDs
White color temperature range 2,300K to 9,900K
Beam angle 17°
Lens size 45mm x16
Control modes DMX512, Aria X2 Wireless, Bluetooth, IR, RDM, Manual
DMX channel modes 9 modes (5, 6, 9, 13, 21, 24, 96, 99, 114)
Display OLED screen with English/Spanish menu

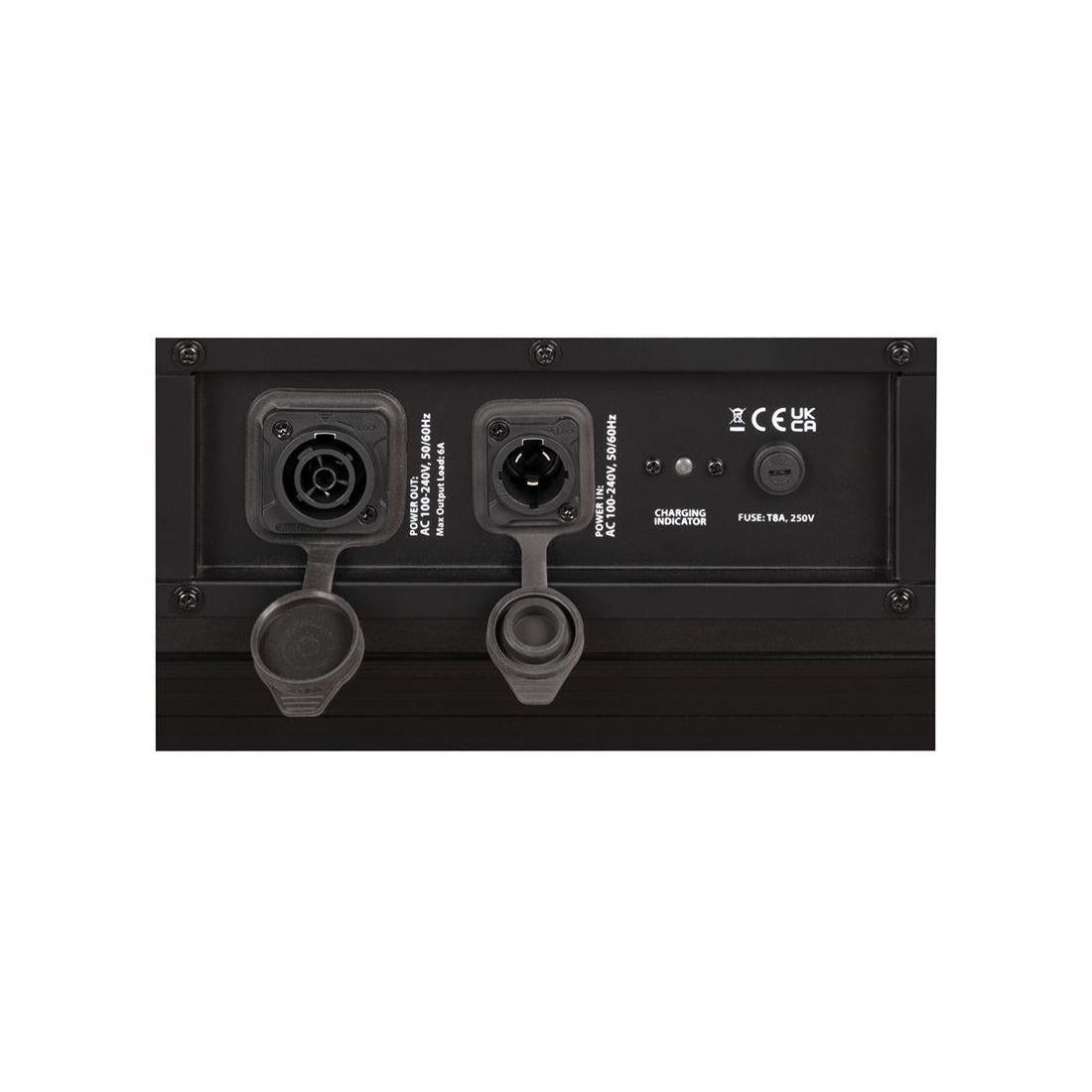

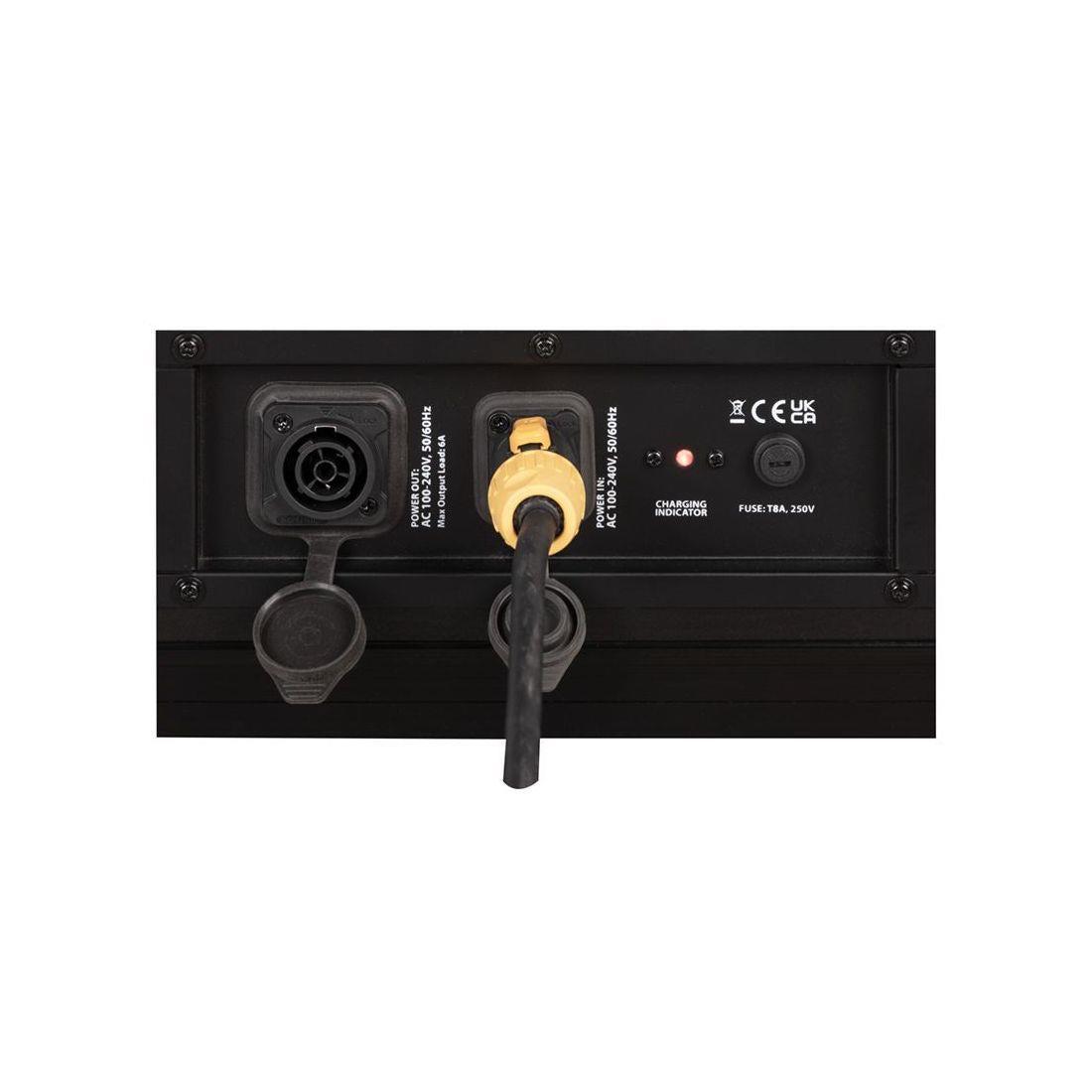

Connectivity 5-pin XLR DMX In/Out (IP-rated), outdoor locking power sockets, charge port
Battery type 14,000mAh lithium-ion, 22.2V
Battery runtime up to 20 hours
Charge time 5.5 hours (AC or in flight case)
Battery cycles 500
Fixture power consumption 90W
Fixture power linking 10 units @120V / 18 units @230V
Fixture dimensions 94.5 x 1158.7 x 268.7 mm
Fixture weight 12.2 kg (26.9 lbs)
Flight case dimensions 1443 x 498.4 x 459.9 mm
Loaded case weight 87 kg (192 lbs)
Flight case power input AC100–240V, 50/60Hz
Max power draw 400W (4A @ 120V, 2A @ 230V)
Operating temperature -20°C to 45°C (-4°F to 113°F)
Storage temperature -30°C to 45°C (-22°F to 113°F)
IP rating IP65 (outdoor use)
Certifications CE, FCC, cETLus (Control #4002034)
Included accessories 4x outdoor locking power cables, 4x charging bases, 1x UCIR24 remote, 4x 20° diffusion filters, flight case
Optional accessories Accu Stand VFB1, LTrack A2, LTrack CA2, EPIX B816 IPCB (replacement charging base and power supply)
