ADJ COB Cannon Wash ST 150W RGBA LED Par

Description:

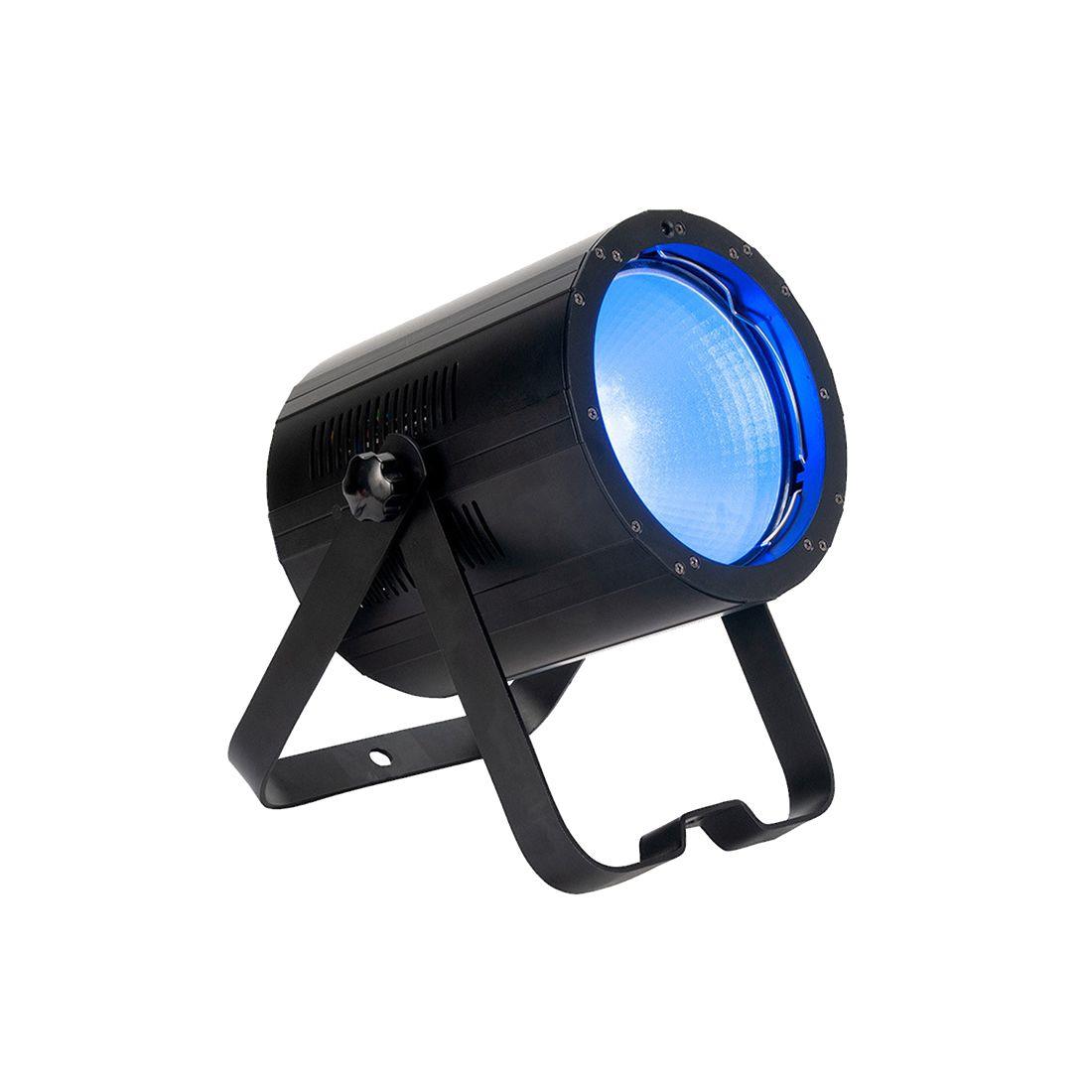

The ADJ COB Cannon Wash ST is a shorter version of the popular COB Cannon Wash fixture. It uses advanced RGBA COB (Chip On Board) technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a high output, smooth color mixing LED Par with no RGBA shadows. Designed for mobile or permanent wash lighting of stages, clubs, dance floors and churches. The COB LED engine on the COB Cannon Wash ST is a QUAD RGBA 4-In-1. It also doubles as an uplight with its scissor yoke that act as legs to set the fixture upright to wash walls and ceilings.

The COB Cannon Wash ST comes in a black casing and has massive 80-degree beam angle. Easily replaceable 40-degree and 50-degree lenses are included so that the beam angle may be changed.

It has 8 DMX Channel modes for programming flexibility, built-in color macros and 6 selectable Dim Curves. The fixture has many pro features such as: 16bit 0-100% electronic dimming, strobe/pulse effect, Flicker Free operation, 3- & 5-pin DMX and Locking Power power daisy-chaining and a 4-button DMX display. COB Cannon Wash ST may run in its stand-alone mode from built-in programs, sound actively or from a DMX controller.

Specification:

Source

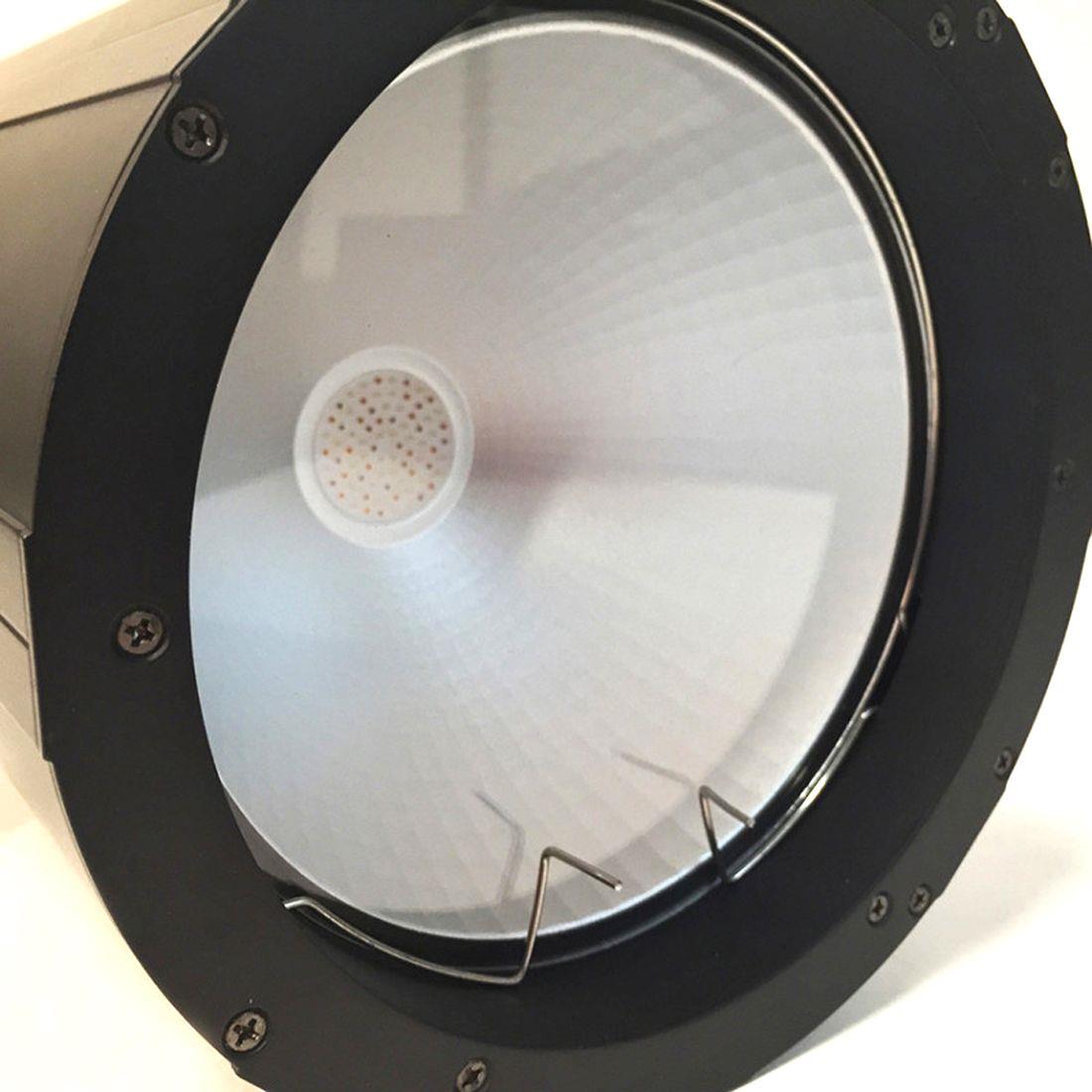

Light Source: 1 RGBA COB-LED (Red, Green, Blue & Amber)
LED wattage : 150W
Average LED lifetime : approximately 50,000 hrs.

Optics
Beam Angle: 80 degrees

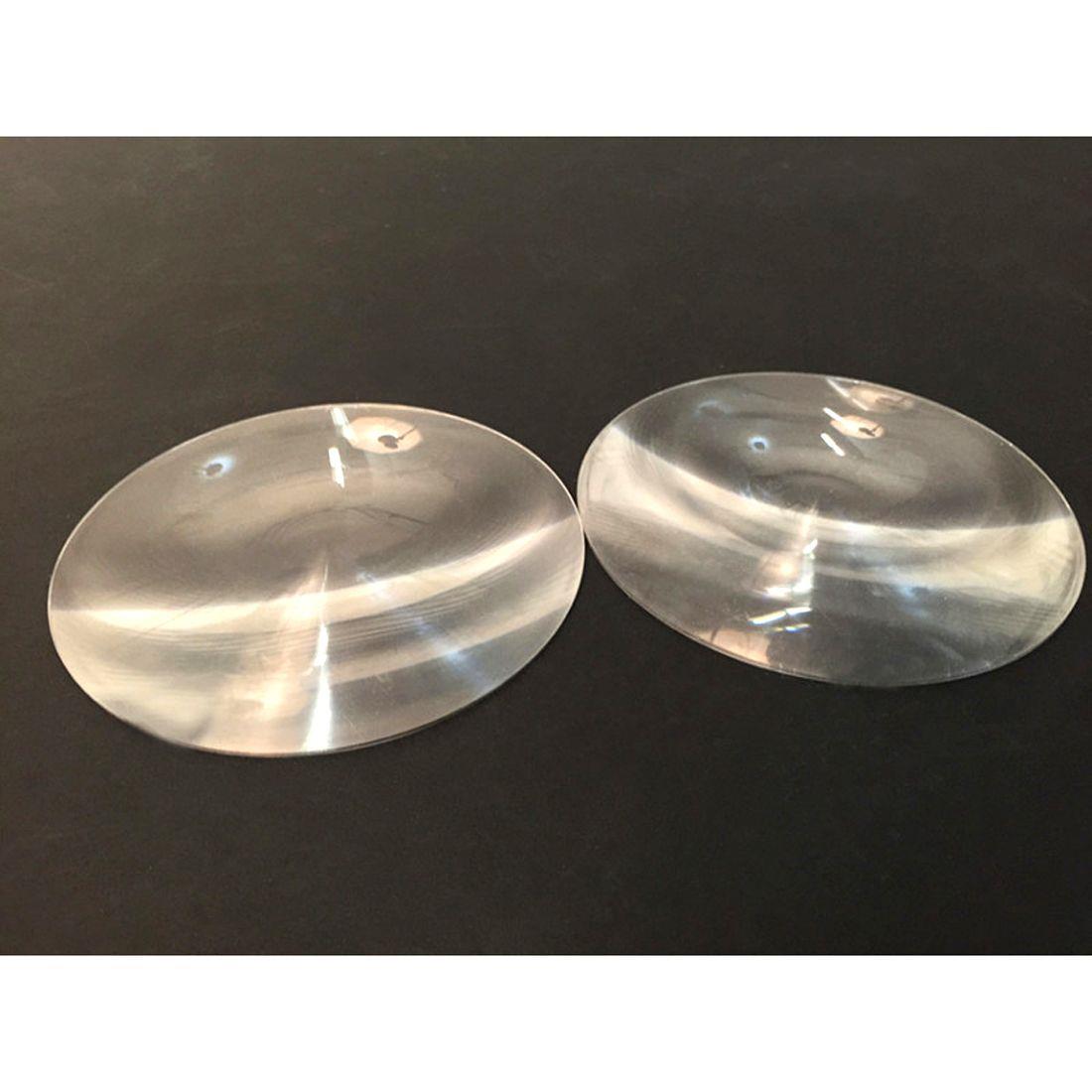

2 additional lenses included : 40 degrees & 50 degrees
Optional Barndoors (order Code 1223200047)

Control
5 operational Modes : Manual RGBA dimmer Mode, AutoRUn Mode, Sound Active, Color Macro Mode and DMX Control
8 DMX Modes: 3, 4, 6, 7, 8, 8A, 10 & 11-channel
RDM compatible
63 Color Macros
16bit Electronic Dimming: 0 - 100%
6 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre & Stage 2)
LED refresh Rate : 1000Hz
LED pulse and strobe effect

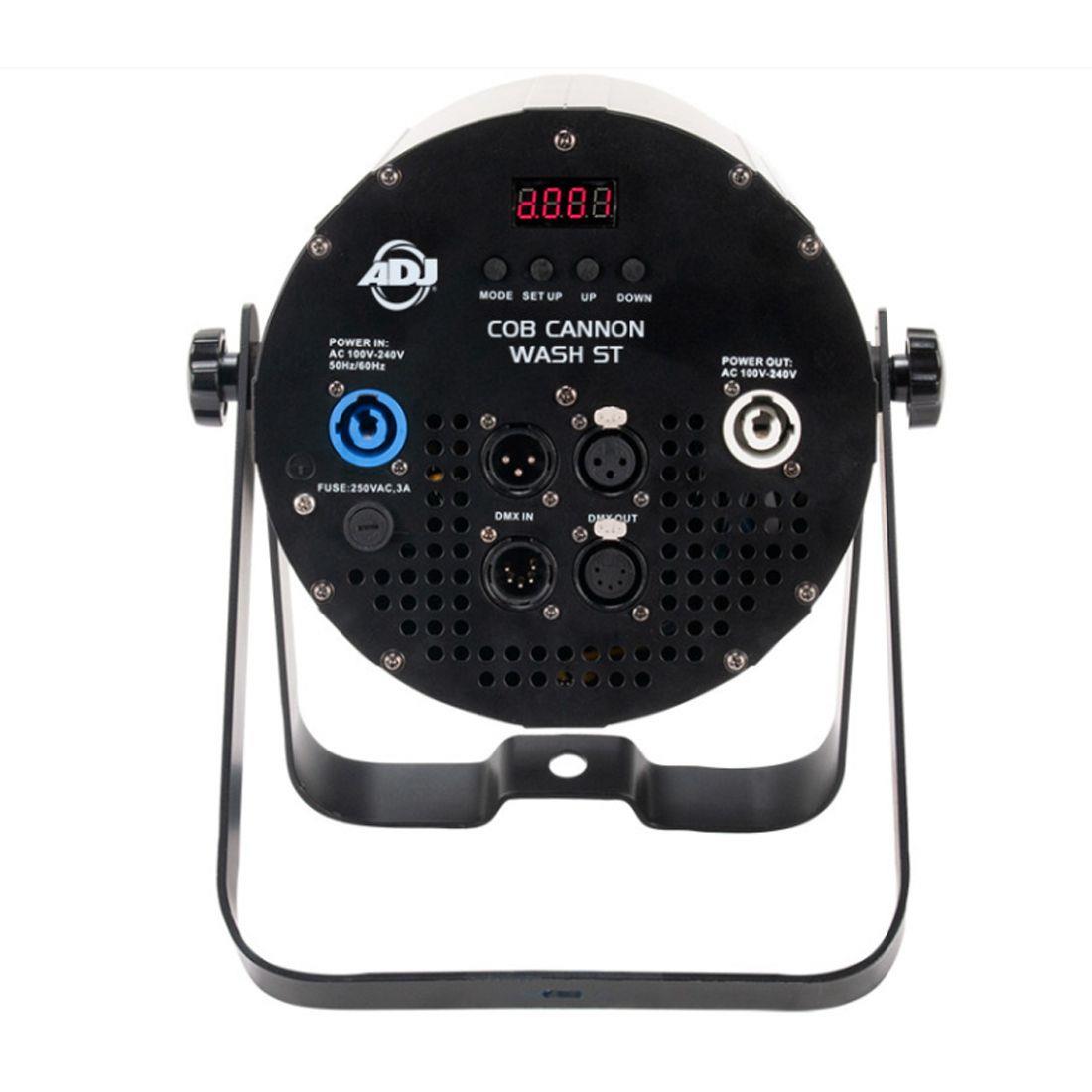

4-button, DMX digital display on rear panel

Colors
RGBA Color Mixing

Construction
Metal Housing
Scissor Yoke

Electrical
Multivoltage 100-240V 50/60Hz
Power Consumption: 148W
Connections

Dimensions & Weight
Dimensions (LxWxH): 330 x 256 x 190mm
Weight: 4,2 kg.
