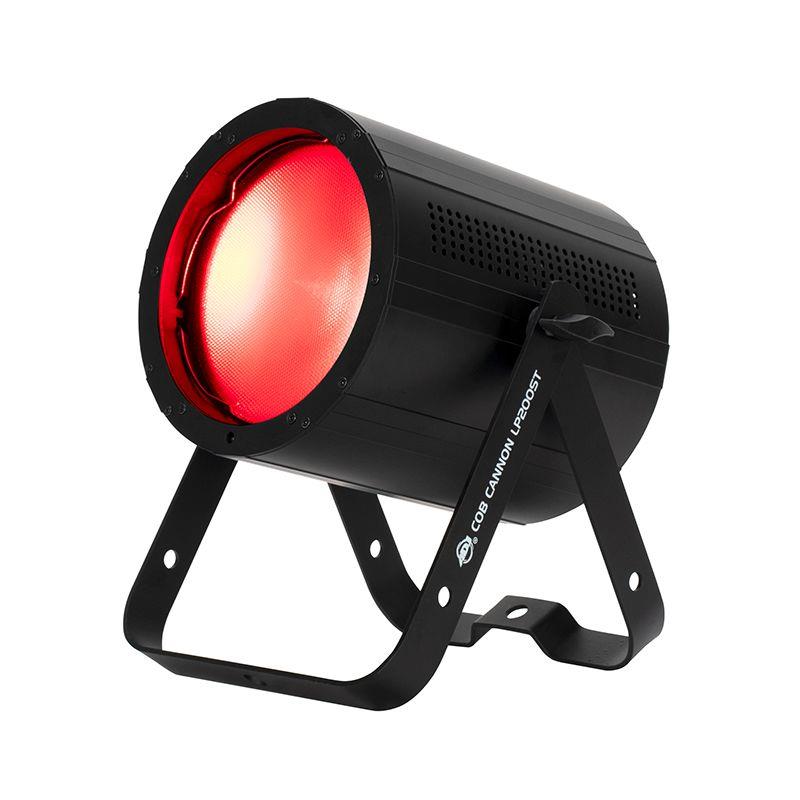

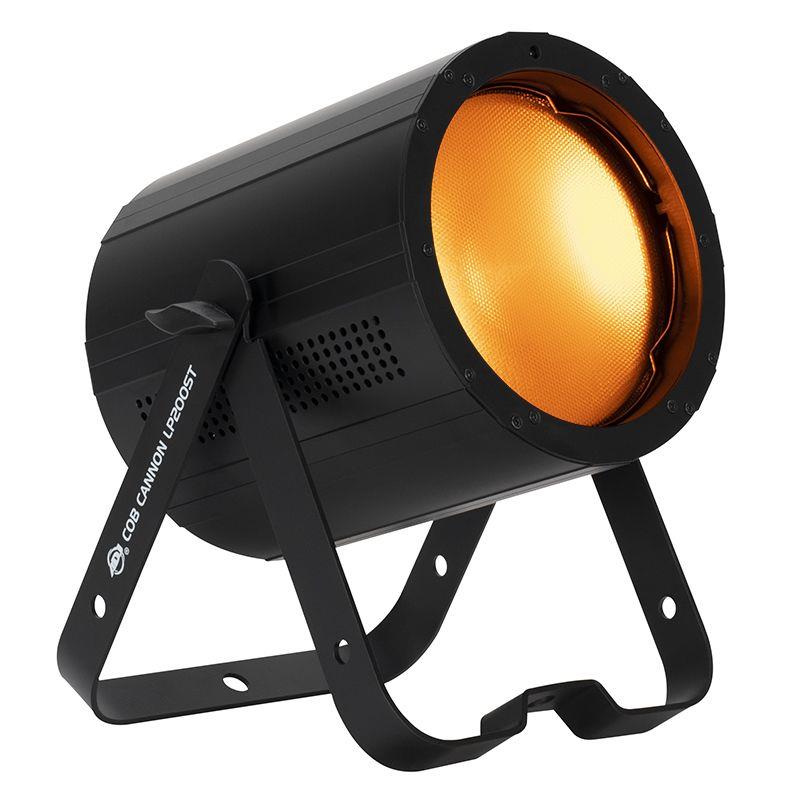

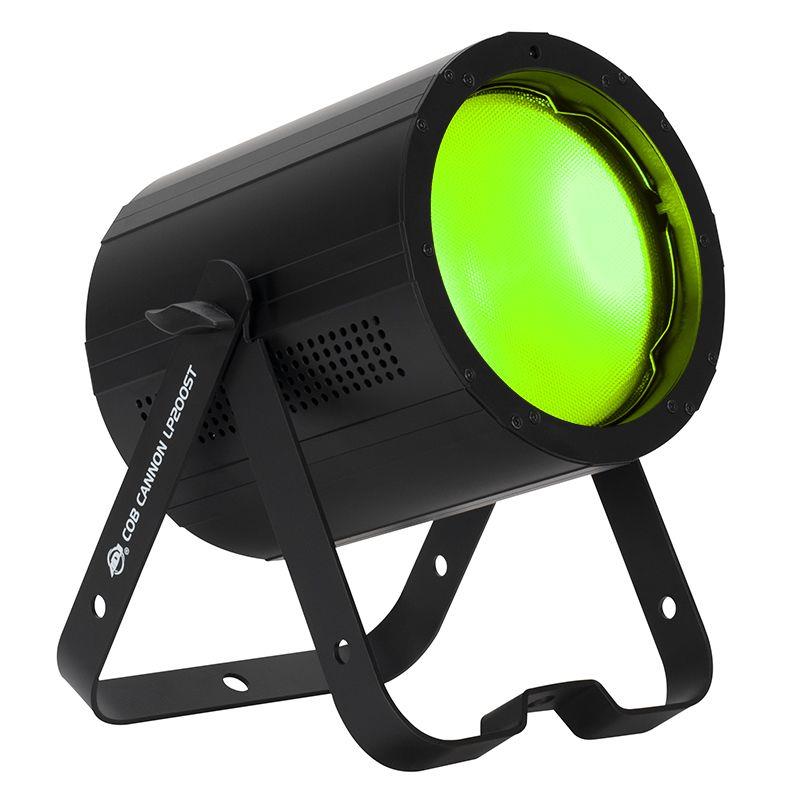

ADJ COB Cannon LP200 ST 200W LED Par

Offering a wide native beam angle of 80-degrees, allowing a large area to be washed with vibrant colored light, the fixture is also supplied with a useful lens kit. This comprises both 40-degree and 50-degree lens options, which easily and securely clip to the front of the fixture to provide a narrower beam angle when required. For easy integration into an existing control system, both 3-pin and 5-pin DMX input and output sockets are included on the unit’s rear panel. There are also locking power input and output sockets, which can be used to connect up to three fixtures to a single power outlet. It is also supplied with a flexible scissor yoke, which can either be used as a hanging bracket or floor stand, and barn doors for directing the light output are available as an optional accessory.

OPTICAL:• Light Source: 1x 200-Watt COB (Chip on Board), RGBAL (Red, Green, Blue, Amber & Lime), LED Engine

• LED Engine Life Rating: Approximately 50,000 hrs.
• CRI: >90
• Color Temperature: 2300~9900K
• 80-degree beam angle
• Includes lens kit to change to 40-degrees or 50-degrees beam angle

FEATURES:
• Primary / Secondary Mode
• Flicker Free operation (No flickering on camera)
• Produces powerful, smooth RGBAL color mixing with
   rich palettes of color
• Scissor yoke allows fixture to be mounted on truss or
   set on the ground
• Optional Barn Doors (BAR001) sold separately

 CONTROL:
• 10 DMX Channel modes (5, 8, 9, 10Ch-A, 10CH-B, 11, 12, 14, 17 and 21CH)
• Linear color temperature control via DMX
• Built-in color temperature presets accessible via DMX
• 64 built-in color macros
• 4-button OLED digital DMX display on rear panel
• Compatible with the ADJ UC IR remote control (included)
• LED pulse and strobe effect
• Electronic Dimming: 0 - 100%
• 6 selectable Dim Modes (Standard, Stage, TV,
   Architectural & Theatre)
• 4 selectable Dim Curves (Square, Linear, Inv. Squa & S.Curve)
• Adjustable selectable Refresh Rate (14 presets from 900 – 25,000Hz)

CONNECTIONS:

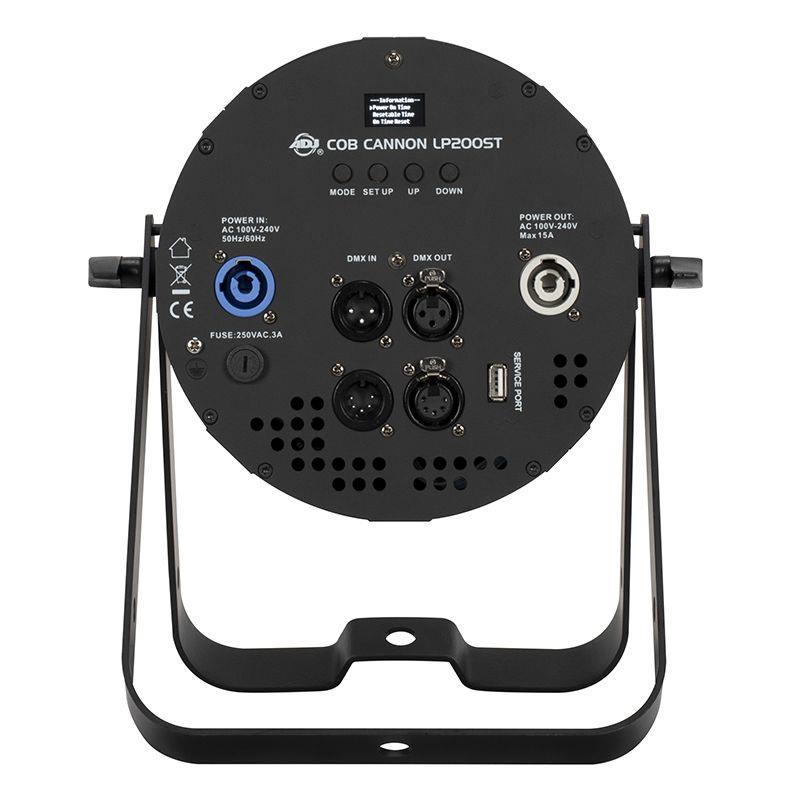

• 3-pin & 5-pin XLR connectors for DMX data linking
• Indoor locking power In & Out connections to daisy chain power
• USB Service Port

ELECTRICAL:
• Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
• Power Draw: 175W max
• Daisy chain up to 7 fixtures (120V) or 14 fixtures (230V) maximum

DIMENSIONS / WEIGHT:
• Dimensions (LxWxH): 13” x 10” x 7.5” / 330x256x190mm
   (with bracket); 8.75” x 7.5” x 7.5” / 218.5x190x190mm
   (without bracket)
• Weight: 9.26 lbs. / 4.2 kg.

WHAT’S INCLUDED:
• (1) 50-degree lens
• (1) 40-degree lens

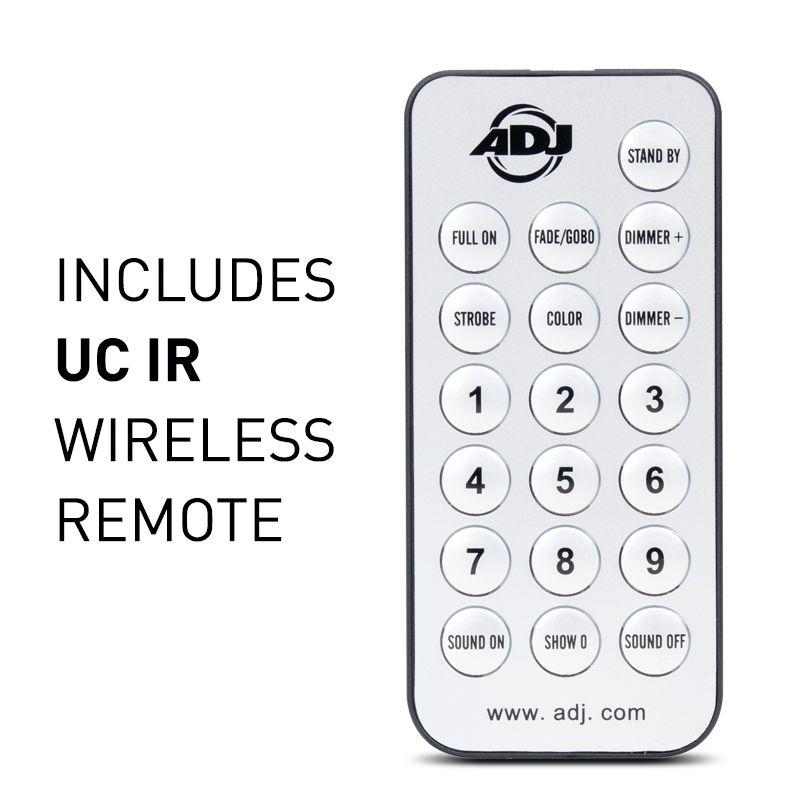

• UC IR Wireless Remote
• Power Cord
• Scissor Yoke

ACCESSORIES:
• BAR001 - COB Cannon Wash Barn Doors

RATING / APPROVALS:
• cETLus Approved (#4002034)
