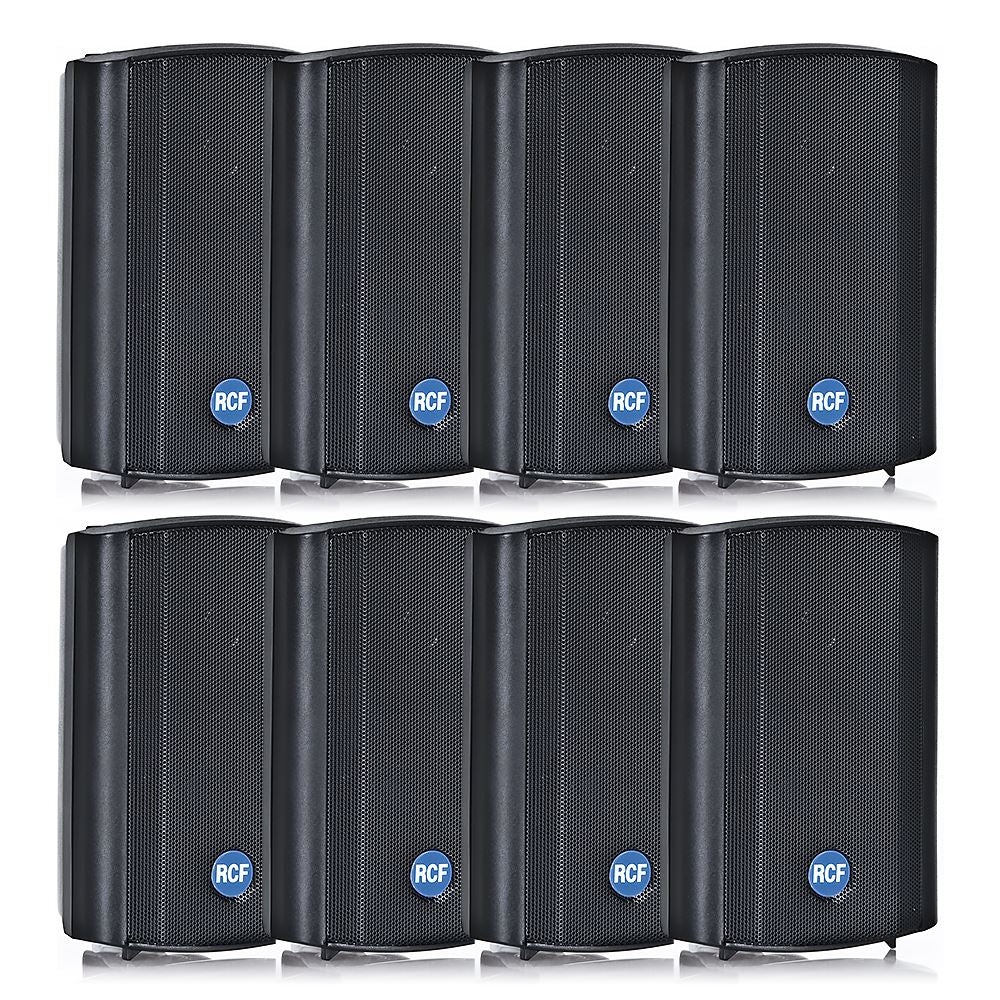

8x RCF DM41B 30W 100V IP55 Rated Background Speakers (Black)

DM 41 is a compact two-way speaker designed for constant voltage systems. The speaker provides natural, smooth sound reproduction ideal for use in business music systems and indoor/outdoor background music applications. Connections to the loudspeaker line are made by using the two wire cable coming out from the loudspeaker rear side. The enclosure includes a protective perforated grille and an accessory for the wall mounting.

3,5" woofer with mylar cone 1'' tweeter
Music power/RMS: 30 W/ 15 W
Built-in multitap transformer for constant voltage system
Body in self-extinguishing composite material
IP55 protection, suitable for outdoor use
Adjustable mounting accessory included
Each model can be connected to either a 100 V constant voltage line or a low impedance amplifier output

Specifications

Acoustical
Frequency Response (-10dB): 100 Hz ÷ 20000 Hz
Max SPL @ 1m: 102 dB
Horizontal coverage angle: 180°
Vertical coverage angle: 170°
System Sensitivity: 87 dB

Power
Nominal Impedance (ohm): 8 ohm
Power Handling: 15 W RMS
Peak Power Handling: 60 W PEAK
Recommended Amplifier: 30 W
Crossover Frequencies: 2.5 Hz
Transducers Dome Tweeter: 1.0''
Woofer: 3.5''

Input/Output
Input connectors: Cable
Output connectors: Cable
Constant Voltage Transformer: 70/100 V
Power selection 1 (100 V): 15 W - 667 ohm
Power selection 2 (100 V): 7.5 W - 1333 ohm
Power selection 3 (100 V): 5 W - 2000 ohm
Power selection 4 (100 V): 2.5 W - 4000 ohm
Power selection 5 (100 V): 1.25 W - 8000 ohm

Standard Compliance
IP protection grade: IP 55
CE marking: Yes

Physical
Cabinet/Case Material: Plastic
Hardware: Aluminium U bracket
Grille: Steel
Colour: White - RAL 9002

Dimensions
175 x 180 x 130 mm

Weight
1.96 kg (Single Unit)
