2x RCF TT 808-AS 2x8" Active Subwoofers + 2x RCF TT 515-A 2x5" Active Speakers

Description:

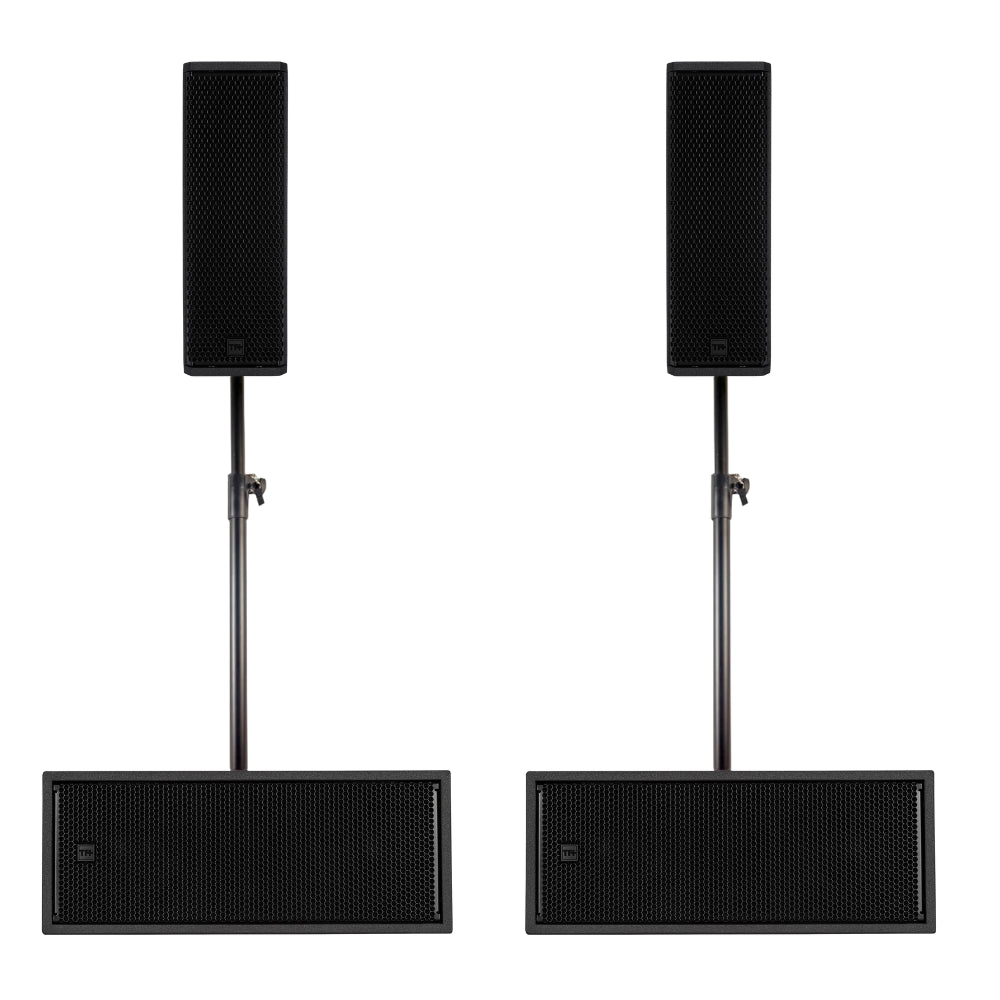

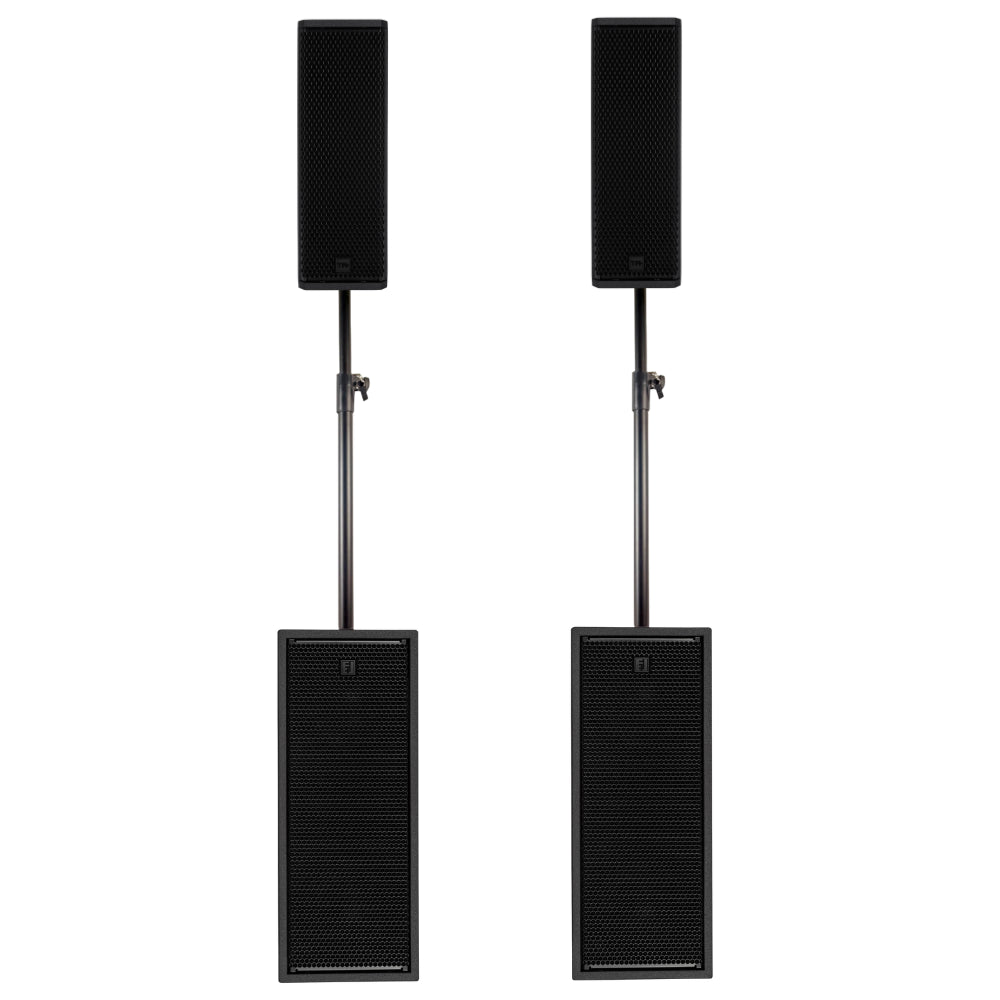

This bundle includes 2x RCF TT 808-AS Active Subwoofers and 2x RCF TT 515-A Active Speaker as well as 2x speaker poles and pole adapters.

RCF TT 808-AS Active Subwoofer:

129 dB max SPL
40 Hz to 400 Hz frequency range
1000 W RMS Class-D Amplifier
2 x 8'' neodymium woofers, 2.5'' v.c
RDNet on board
Bass Motion Control excursion management
Flexible Rigging
Rotatable TT+ Logo

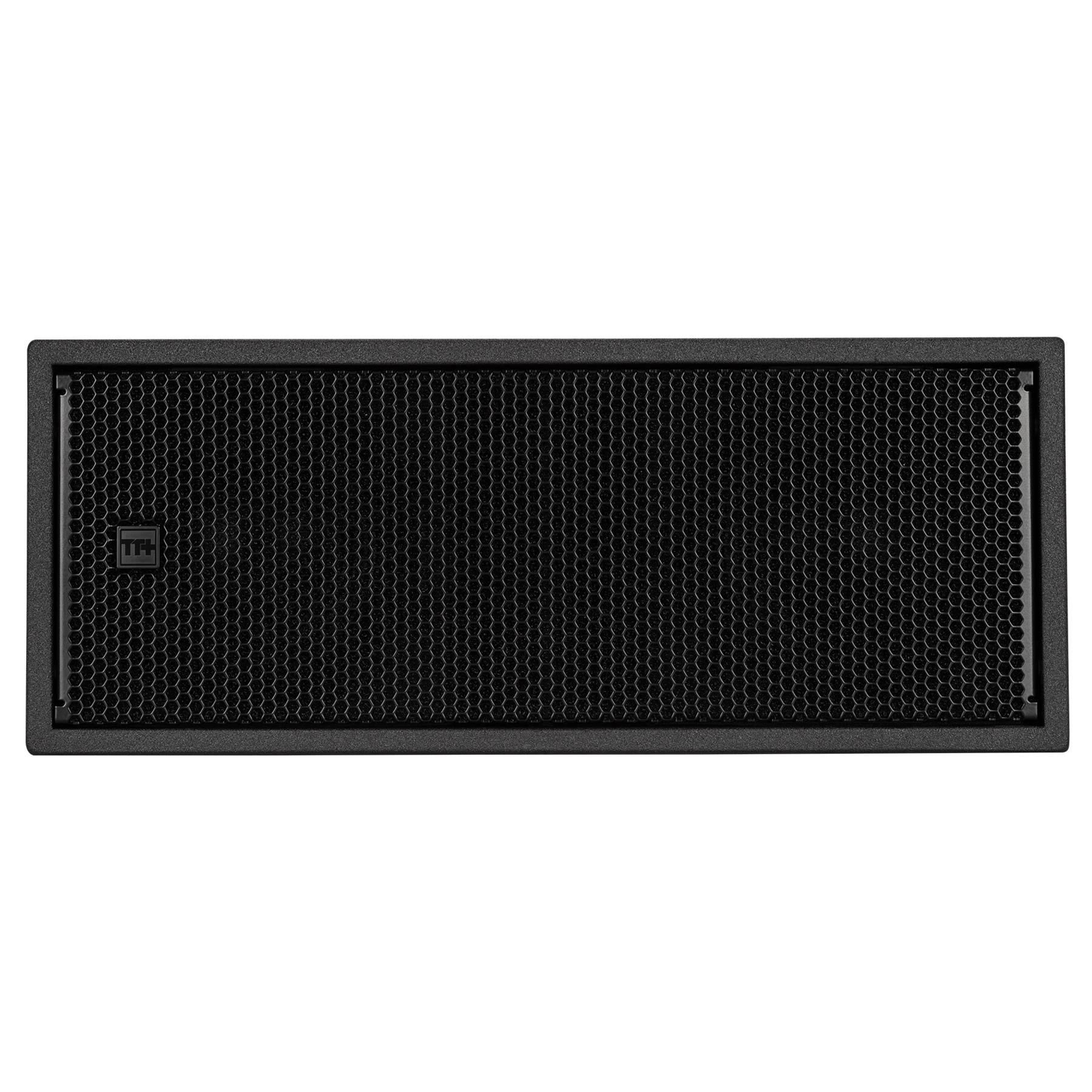

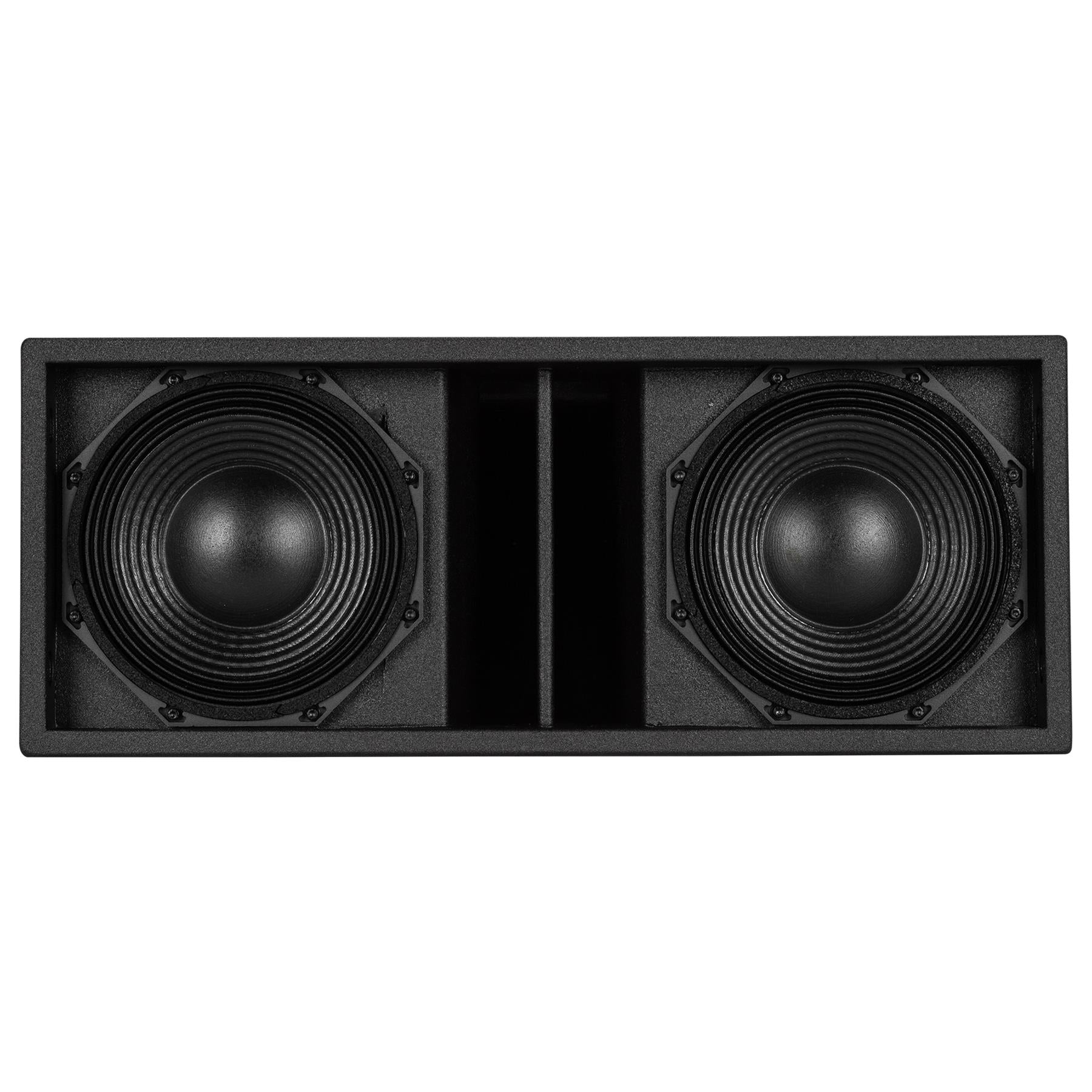

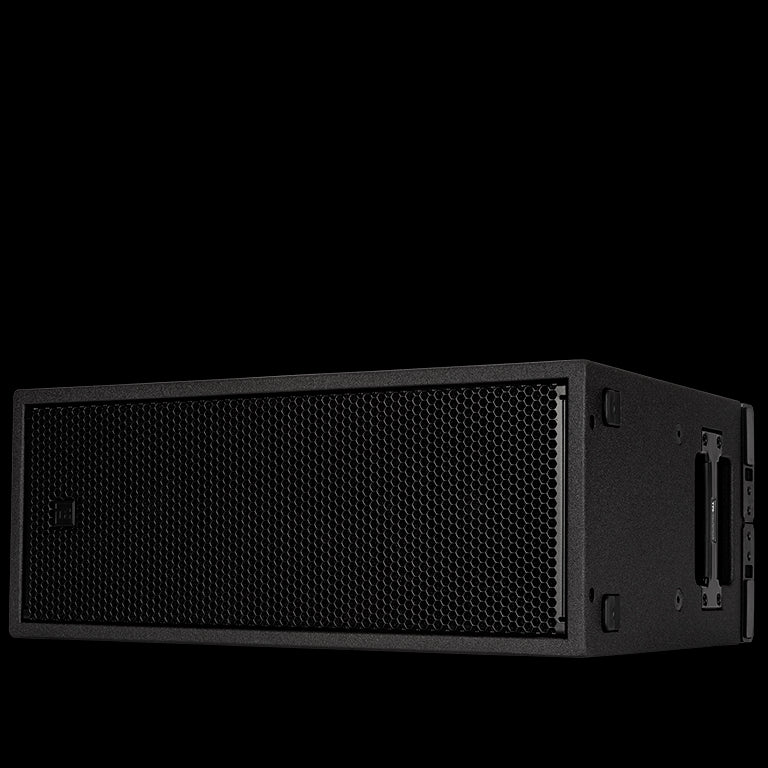

TT 808-AS is a compact low-profile high-performance active subwoofer. It features two vented-loaded 8" cone woofers powered by a 1000 Watts two-channel amplifier -one for each woofer- on a baltic birch plywood cabinet painted with black polyurea and weatherproof treatment. Management and tuning are available via RDNet software or using the two preset buttons, a polarity button, and a variable delay accessible from the back panel. The cabinet features rubber feet on two sides and two threaded pole-mounts for horizontal and vertical placement. Two stabilizing brackets make the vertical placement stable and firm. TT 808-AS can be used stand-alone, in subwoofer arrays, or as the low-frequency complement for TT 515-A speaker.

Legendary woofers
RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, smaller dimensions compared to others in its category. Self-powered design, RDNet remote control, easy configuration of subwoofer arrays (i.e. cardioid subs), and impressive size/weight to SPL output ratio create an engaging, immersive experience for any audience.

A little sub with superpowers

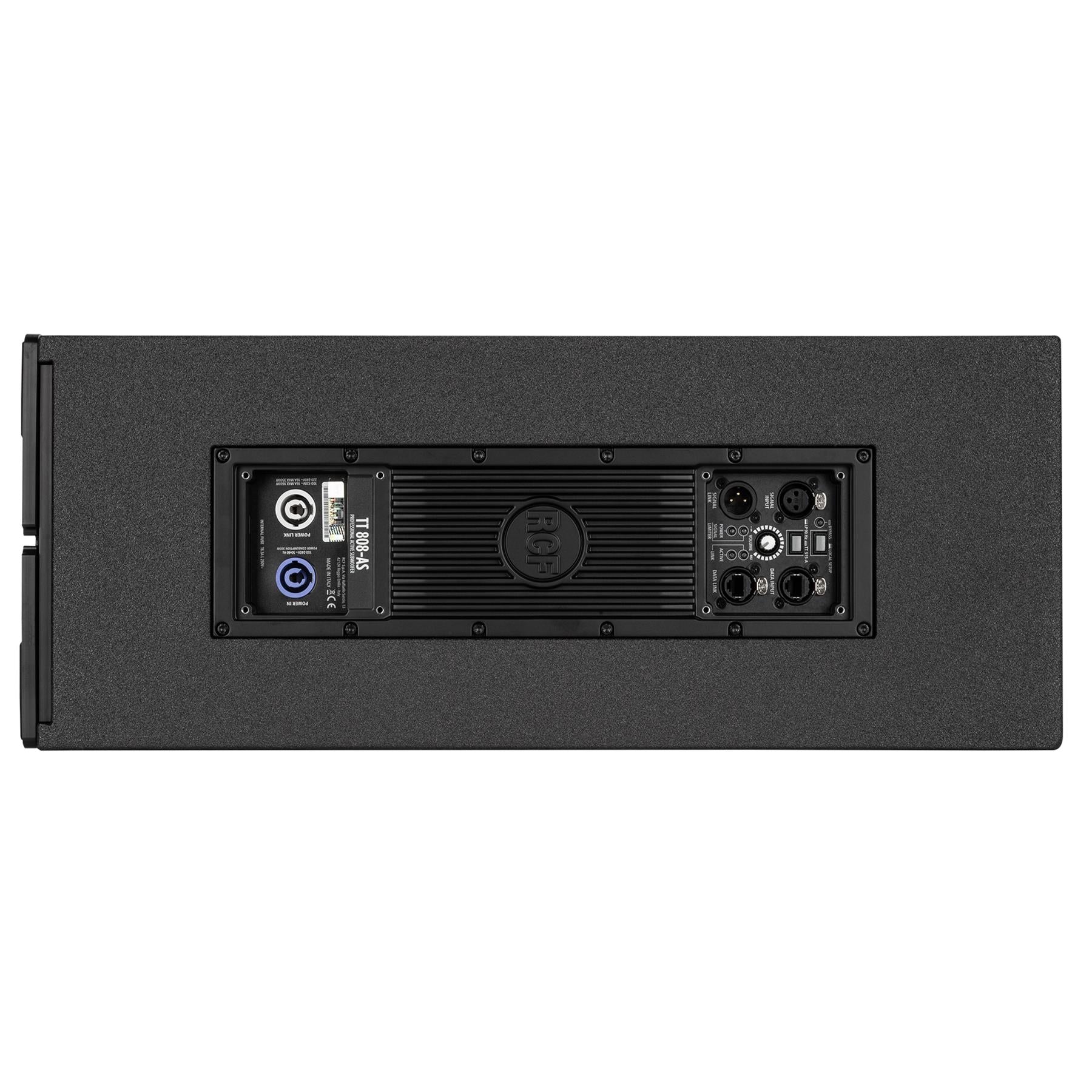

The amplifier integrates a low-noise 32-bit DSP circuit, controlled through the RCF proprietary RDNet Networked Management software. Internal DSP easily handles soft clipping limiters, RMS limits, polarity, amplitude, delay, and equalization. All settings, monitoring, and more advanced features, such as the subwoofer array configurator, are available inside RDNet. The rear control panel can be used to adjusts volume, low pass, TT 515-A custom crossover and bypass. The regulated power supply guarantees full power from 100 V to 260 V. The amplifier is housed in a unique Vibrostop floating aluminum panel for extra protection during transportation. Internal DSP processing includes multiple EQs, delays, crossovers, and a special BMC processing for a coherent distribution of sound without phase distortion and deep, tight bass at any volume.

Bass Motion Control
When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.

The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.

Built for everyday use

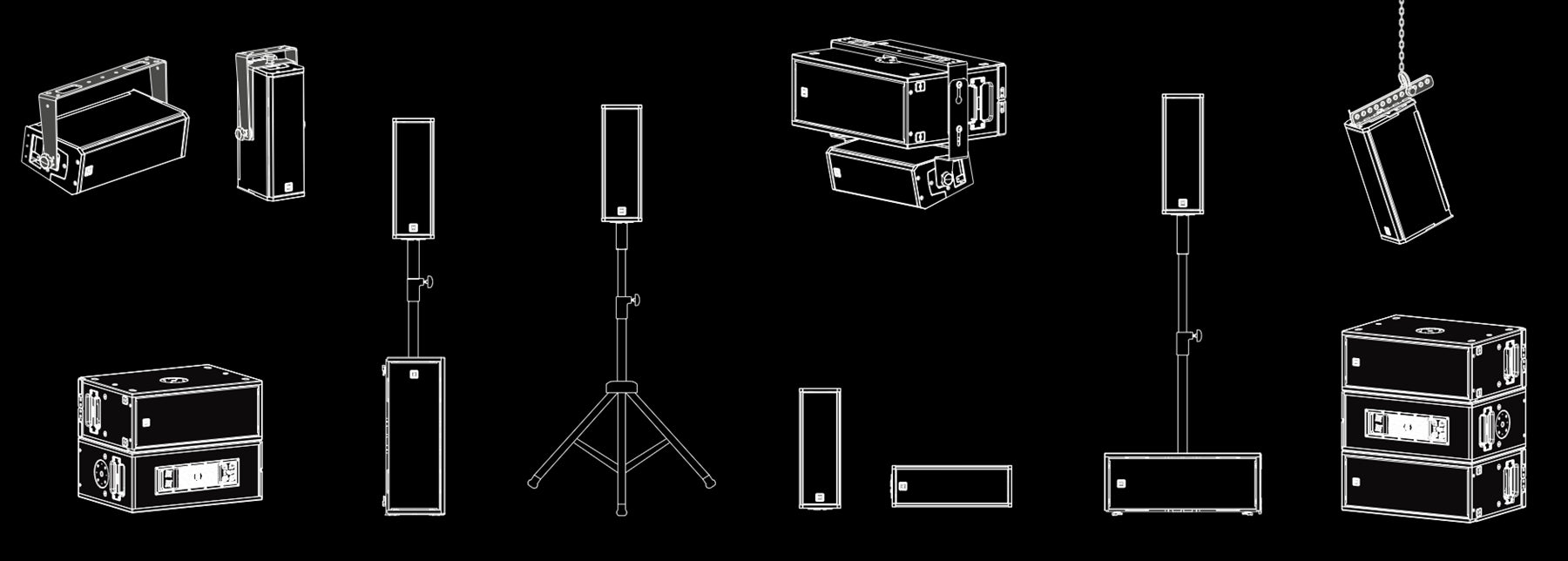

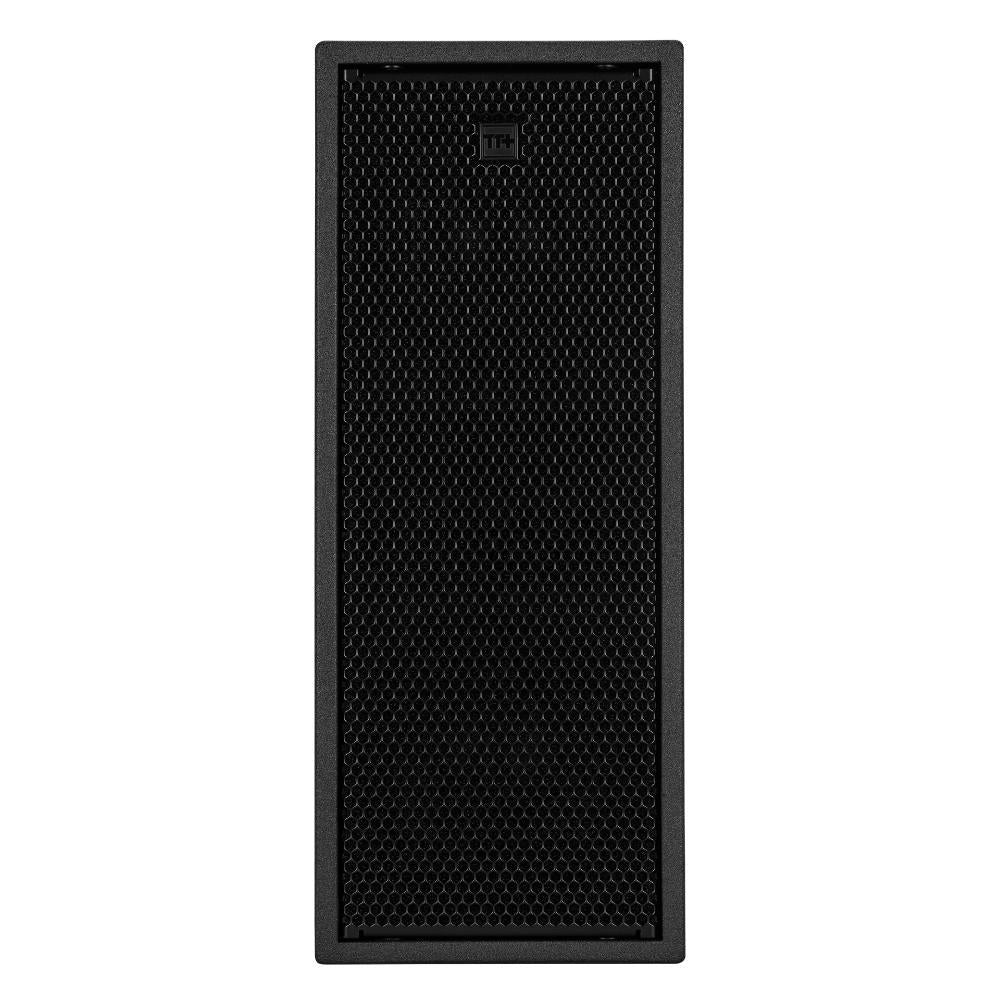

The cabinet is made of high-quality birch plywood with weather-proof outer treatment. The subs are lightweight and stackable, with eight M10 threaded inserts to allow easy rigging. Two M20 threaded pole mounts on the top and side allow the woofer to be used in vertical or horizontal configurations, with rubber feet on both sides. Two stabilizing brackets make the vertical placement stable and firm. The heavy-duty coating, the powder-coated metal grille, and the rugged structure of the cabinet withstand long-term use and transportation. Separate housing for the amplifier guarantees component efficiency and reliability. An acoustically transparent sound foam backing on the inside of the grille ensures protection from dust and humidity.

Frequency Response: 40 Hz ÷ 400 Hz
Max SPL @ 1m: 129 dB

Woofer: 2 x 8'' neo, 2.5'' v.c

Input signal:bal/unbal
Input connectors:XLR, RDNet Ethercon
Output connectors:XLR, RDNet Ethercon
Input sensitivity:-2 dBu/+4 dBu

Protections: Excurs.
Limiter: Fast Limiter
Controls: Gain, Equalization, ByPass on board
RDNet: Yes

Total Power: 2000 W Peak, 1000 W RMS
Low frequencies: 2000 W Peak, 1000 W RMS
Cooling: Convection

Connections:
Powercon IN/OUT

CE compliance: Yes

Cabinet/Case Material: Baltic birch plywood
Hardware: 2X M20 TOP AND SIDE 8X M10 2X SIDE
Handles: 1 X SIDE
Grille: Steel
Color: Black

Height: 243.5 mm / 9.59 inches
Width: 603.5 mm / 23.76 inches
Depth: 430 mm / 16.93 inches
Weight: 20 kg / 44.09 lbs

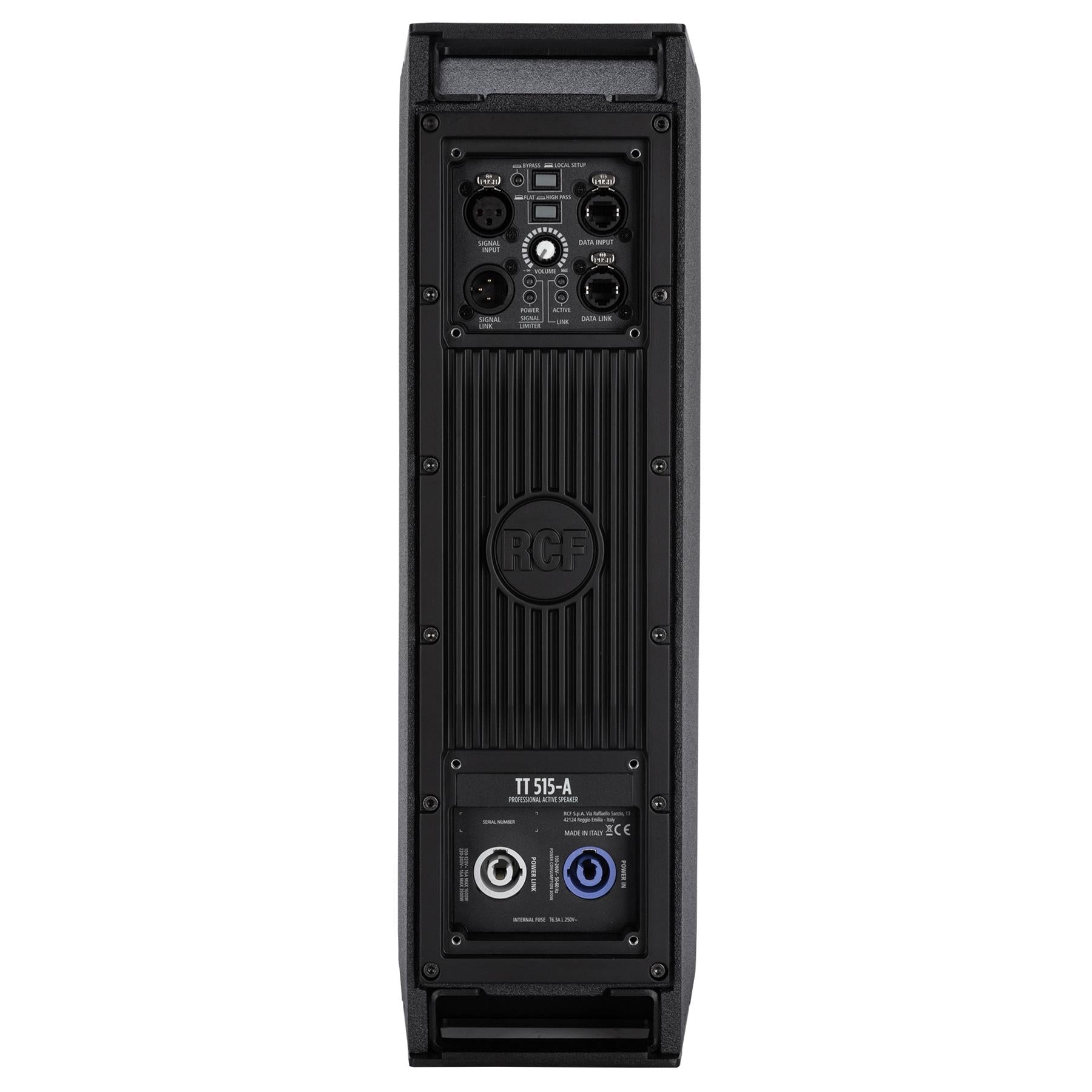

RCF TT 515-A Active Speaker:

127 dB max SPL

100° x 70° coverage

LF 2 x 5" neodymium woofer, 2” voice coil

HF 1.75” titanium comp. driver

2 x Class-D amplifiers, 1000 Watts RMS total power

70 – 20.000 Hz frequency range

RDNet on board

FiRPHASE and Bass Motion Control

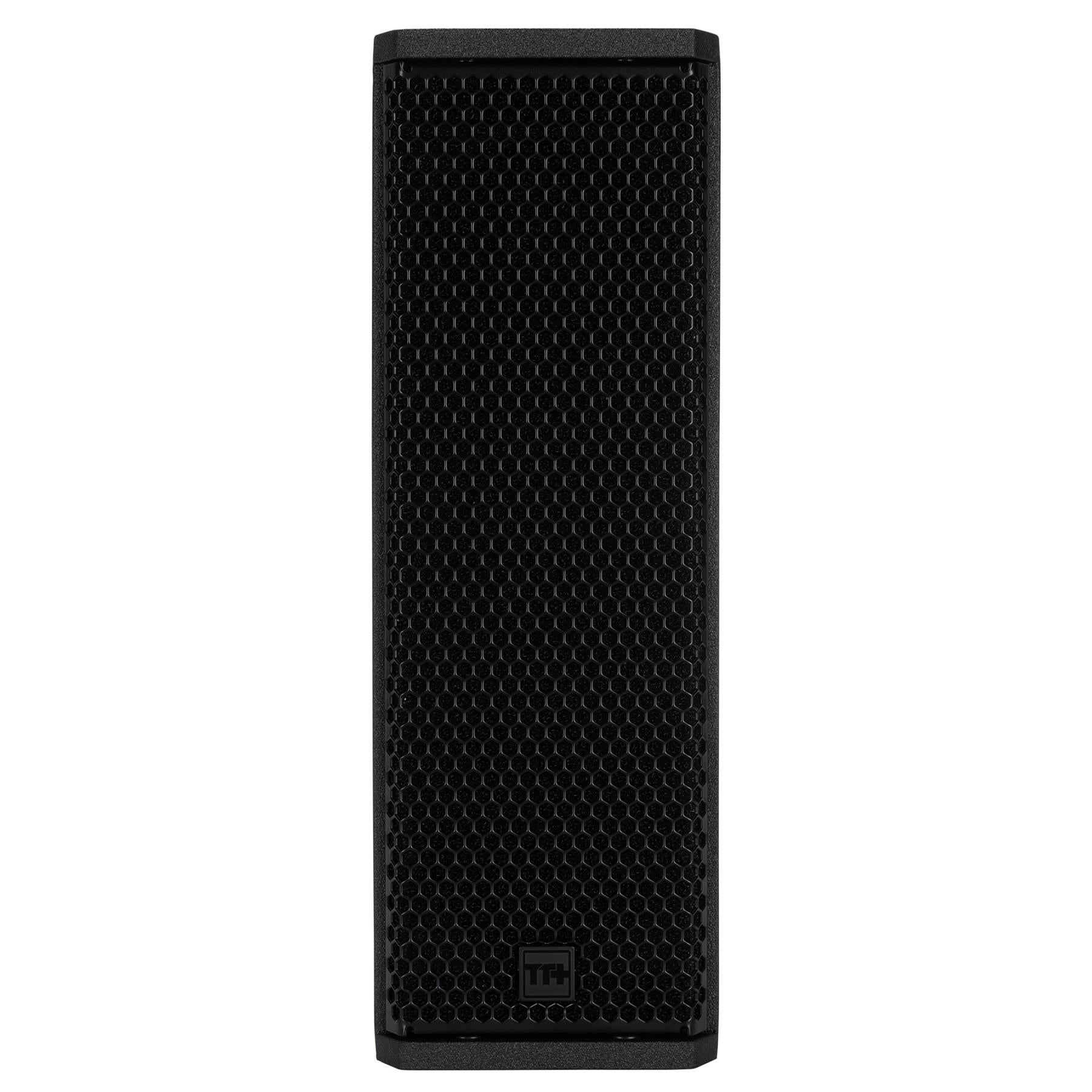

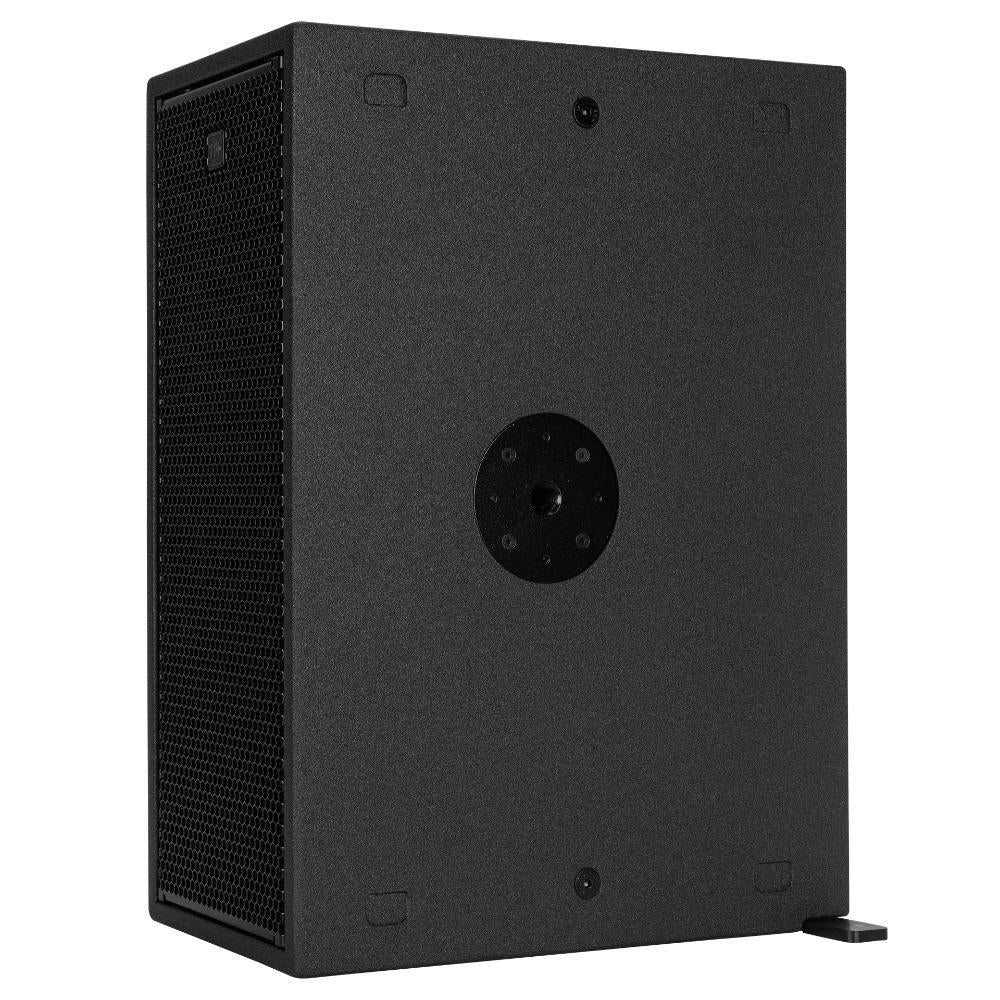

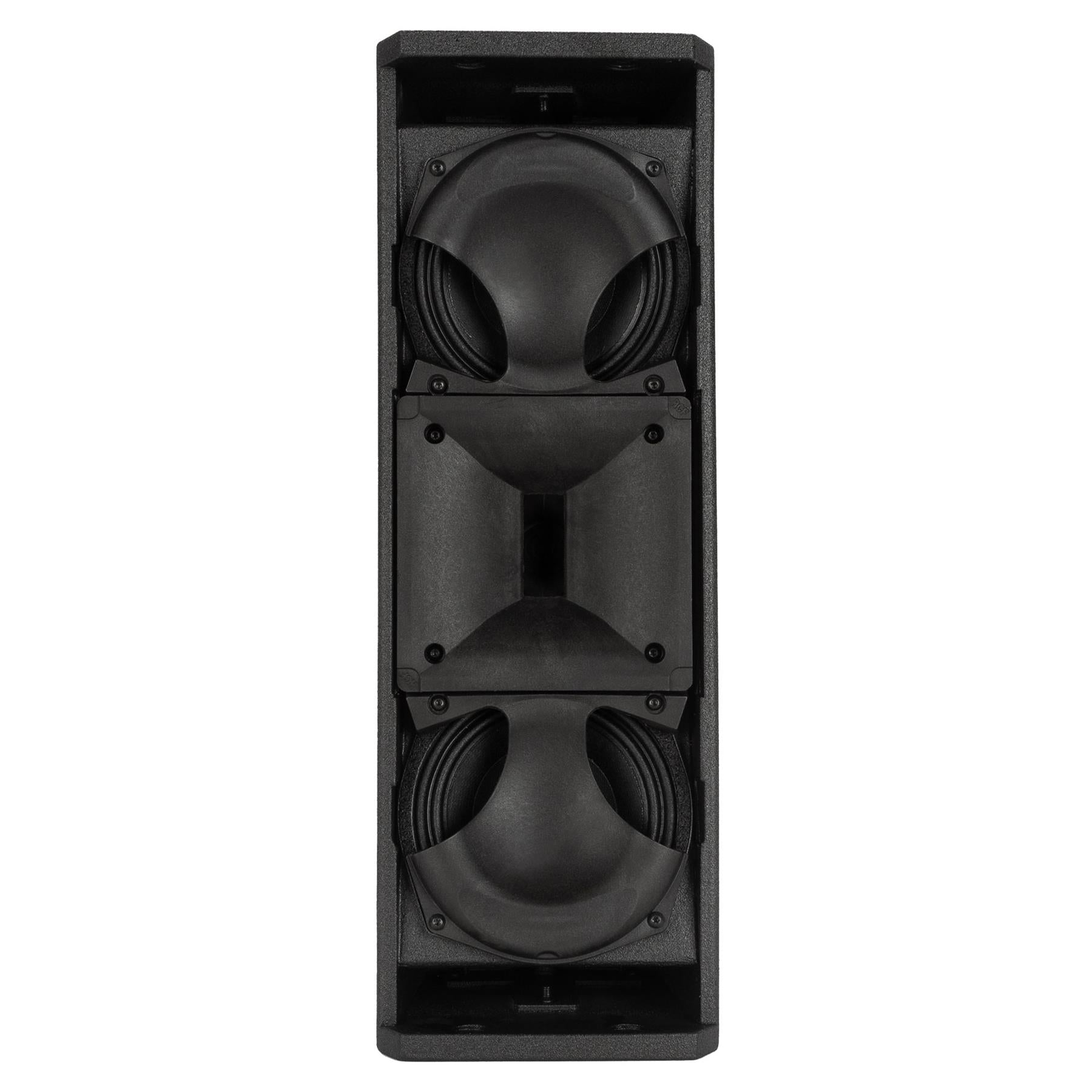

Flexibility, power, and compactness make the TT 515-A ideal for installed and portable professional applications where size and weight are critical factors. This approach combines the advantages of TT+ technology such as controlled dispersion, outstanding clarity and extreme power, multiple flexible rigging accessories, weatherproof protection, and RDNET real-time monitoring and management software with recallable presets. Its transducer configuration pairs two custom-loaded 5-inch cone drivers to a rotatable CMD waveguide surrounding a titanium 1.75-inch high-frequency compression driver. Whether it’s used as a compact main system, as fills, or surrounds in a larger system, TT 515-A is quick to deploy and fast to tune.
