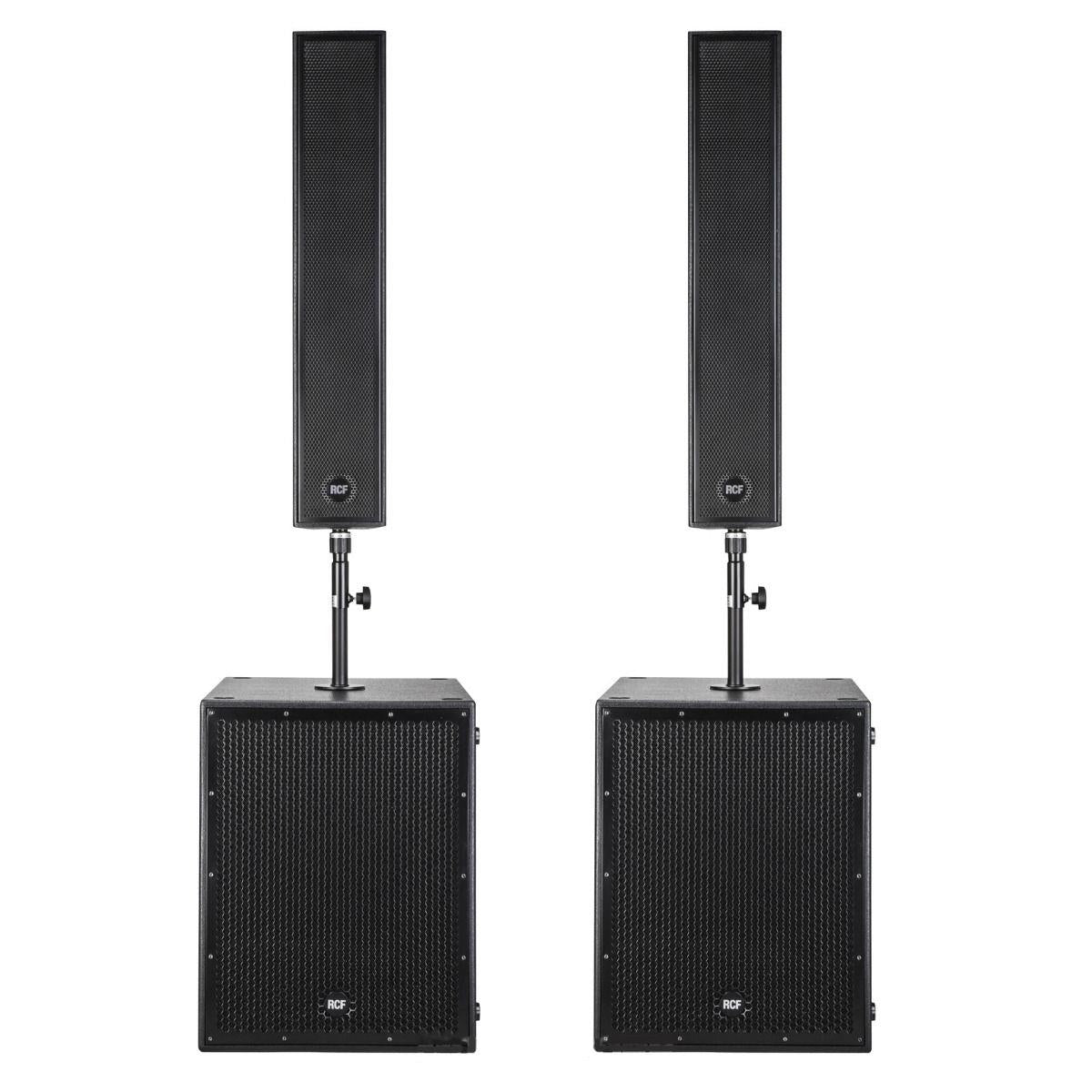

2x RCF NXL 44-A MK2 Line Array Speakers with 2x SUB 8004-AS Subwoofers and Mounting Poles

Description:

Bundle of 2x RCF NXL 44-A MK2 Line Array Speakers with 2x SUB 8004-AS Subwoofers and mounting poles.

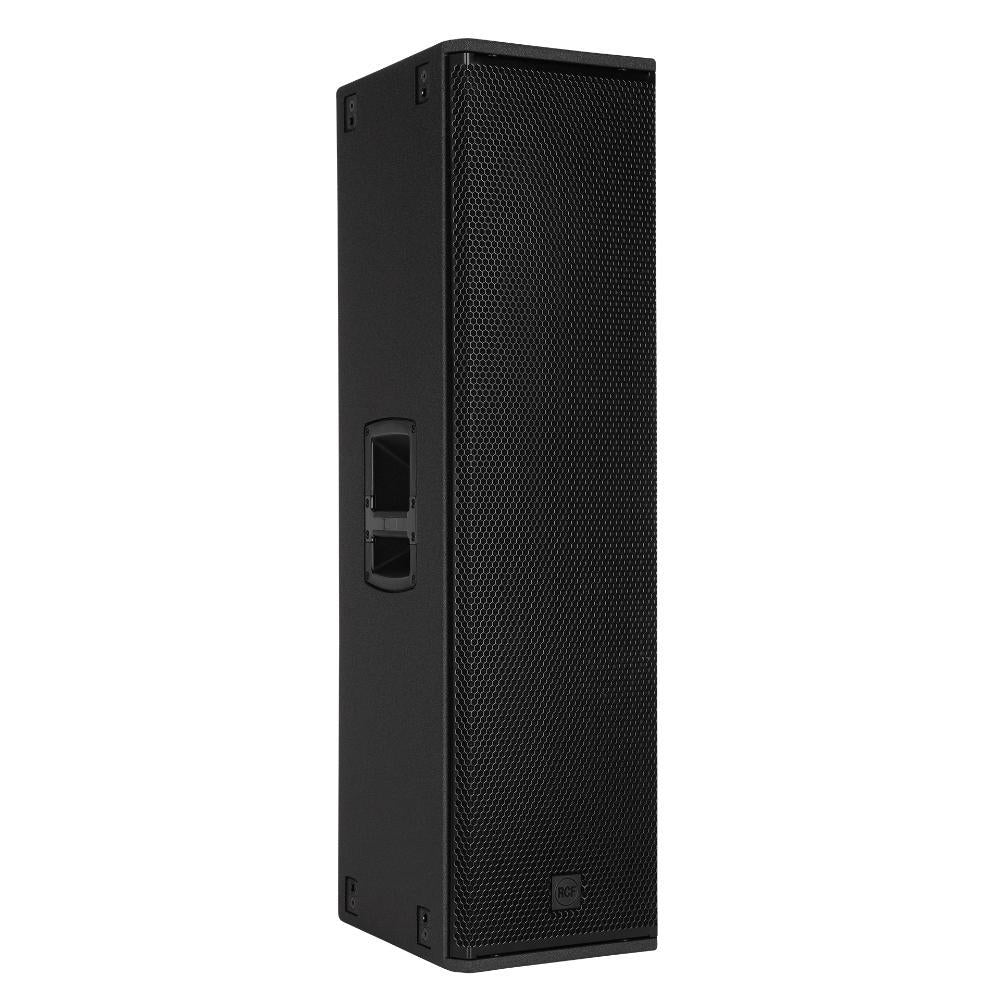

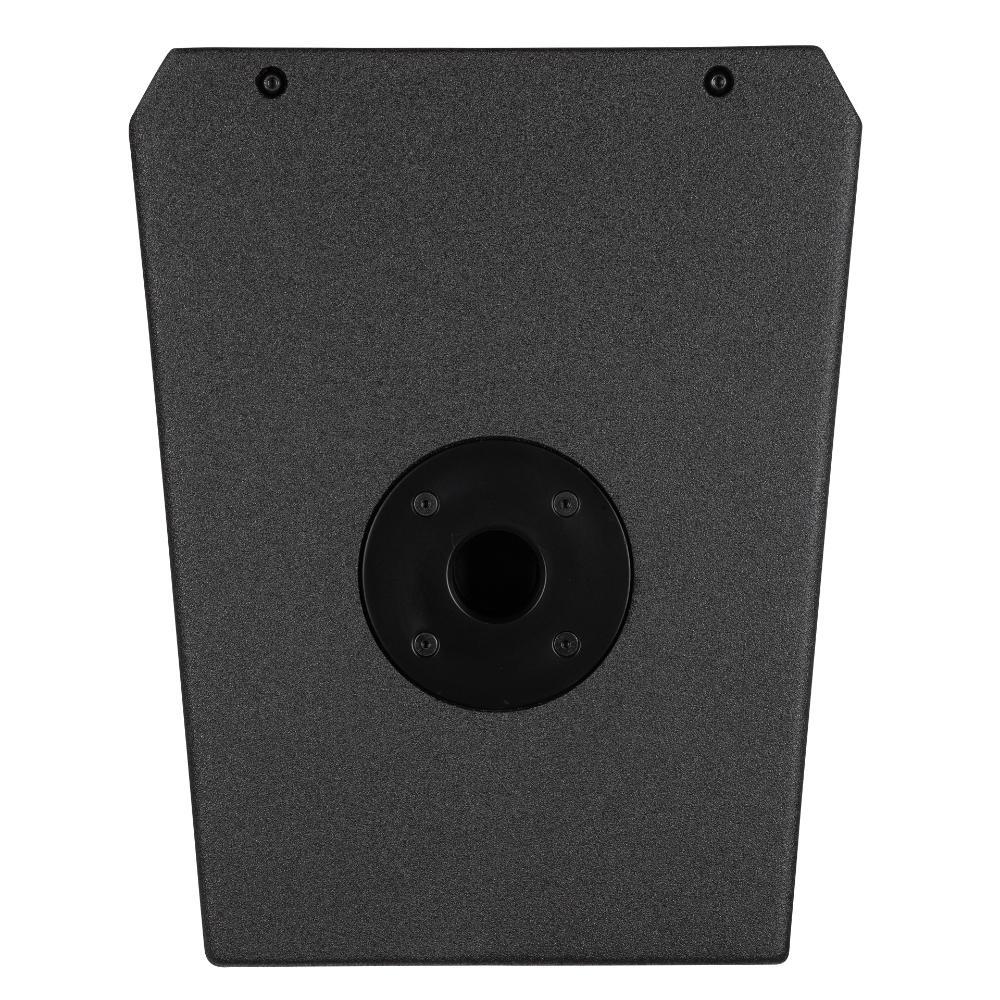

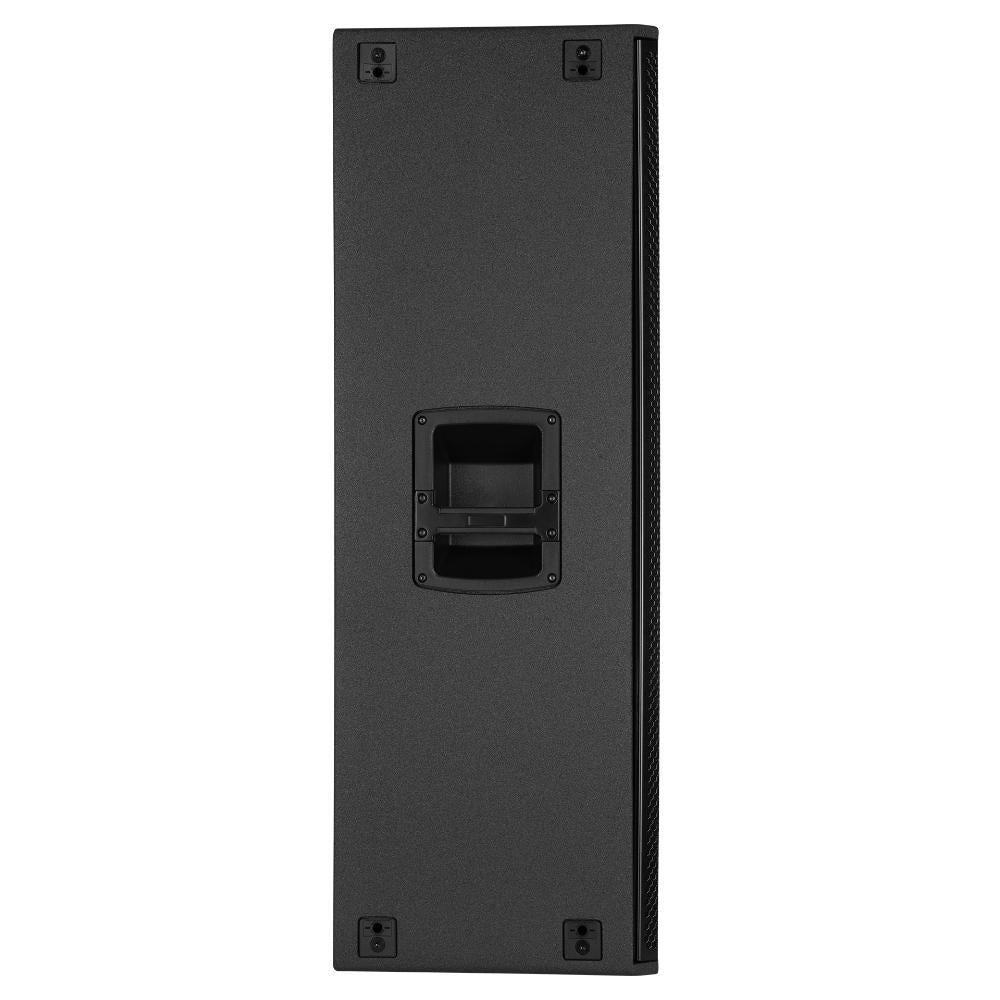

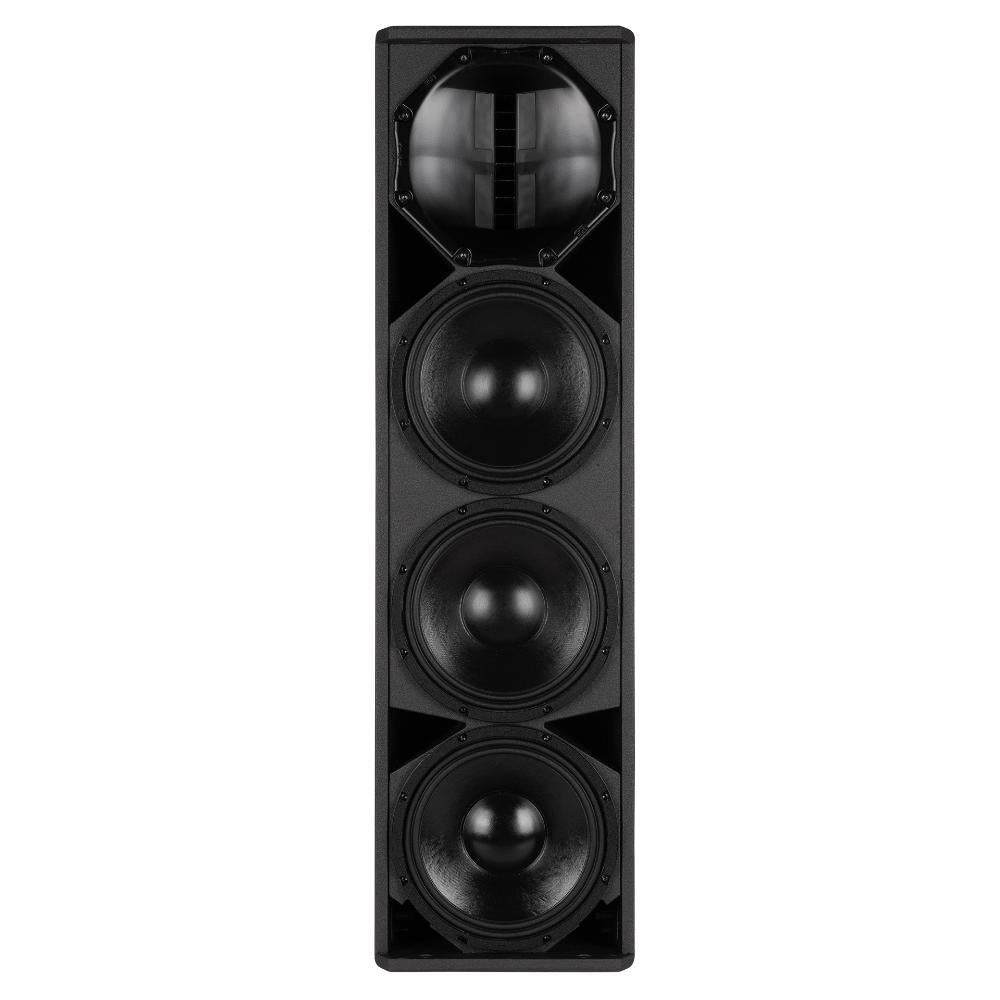

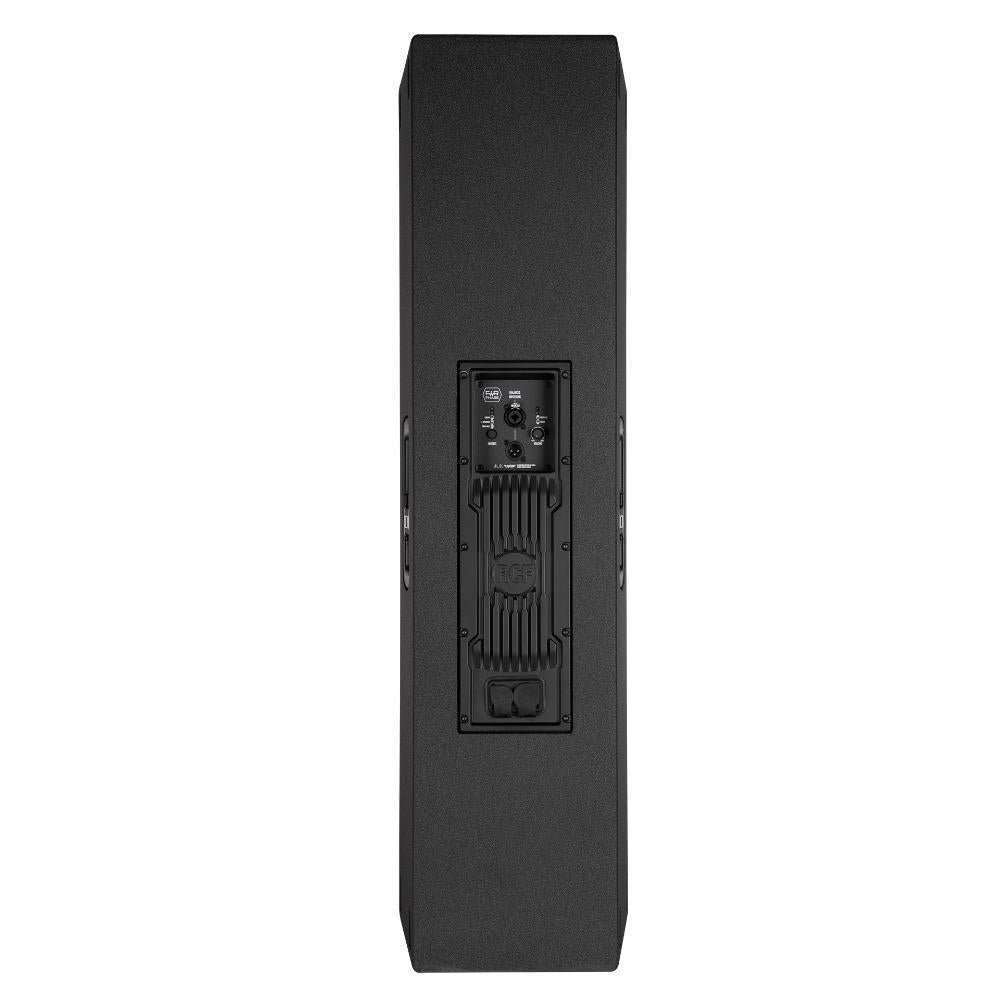

NXL 44-A MK2 3x10" 2-Way Active Column Loudspeaker Array 2100W:

NXL 44-A MK2 is a line array column speaker masterfully engineered from the ground up to deliver stellar audio performance for Bands, DJs, Clubs, and Rental Companies. The best-in-class combination of premium RCF transducers and a 2,100W two-channel amplifier produce coherent 100° x 25° coverage for the listening area up to 135 dB SPL. The two-way design features three 10” neodymium woofers and a 3” driver on a waveguide. The speaker delivers an extended frequency range down to 45 Hz and can be used as a stand-alone speaker, flown, or coupled with another NXL 44-A MK2 for extended coverage. Blending RCF proprietary FiRPHASE and Bass Motion Control DSP processing, the NXL 44-A MK2 speaker is perfectly tuned for absolute sound clarity and deep, powerful bass response. The rugged, tour-ready, plywood cabinet is easy to carry and installed securely using the dedicated rigging points. Pairing the speaker with subwoofers delivers full-range power for medium-sized concerts and DJ systems.

Features:

Up to 135 dB Sound Pressure Level
2100W Class-D Amplifier
100° x 25° Constant Directivity Coverage Angle
3" Titanium Neodymium Compression Driver
3 x 10" High Power Neodymium Woofers
45-20000 Hz linear Frequency Response
Bass Motion Control and FiRPHASE processing
8 x M8 Rigging Points and 8 x Quick Lock
IP Rated Powercon TRUE1 TOP IN/OUT

Specifications:

Acoustical specifications
Frequency Response:  45 Hz ÷ 20000 Hz
Max SPL @ 1m:  135 dB
Horizontal coverage angle:  100°
Vertical coverage angle:  25°
Transducers
Compression Driver:  1 x 1.4'' neo, 3.0'' v.c
Woofer:  3 x 10'' neo, 2.5'' v.c
Input/Output section
Input signal:  bal/unbal
Input connectors:  Combo XLR/Jack
Output connectors:  XLR
Input sensitivity:  -2 dBu/+4 dBu
Processor section
Crossover Frequencies:  800
Protections:  Thermal, Excurs., RMS
Limiter:  Soft Limiter
Controls:  Linear, 2 Speakers, High-Pass, Volume
Power section
Total Power:  2100 W Peak
High frequencies:  700 W Peak
Low frequencies:  1400 W Peak
Cooling:  Convection
Connections:  Powercon TRUE1 TOP IN/OUT
Standard compliance
CE marking:  Yes
Physical specifications
Cabinet/Case Material:  Baltic birch plywood
Hardware:  8 x M8, 8 x quick lock
Handles:  2 side
Pole mount/Cap:  Yes
Grille:  Steel
Colour:  Black
Height:  1080 mm / 42.52 inches
Width:  297.5 mm / 11.71 inches
Depth:  373 mm / 14.69 inches
Weight:  33.4 kg / 73.63 lbs

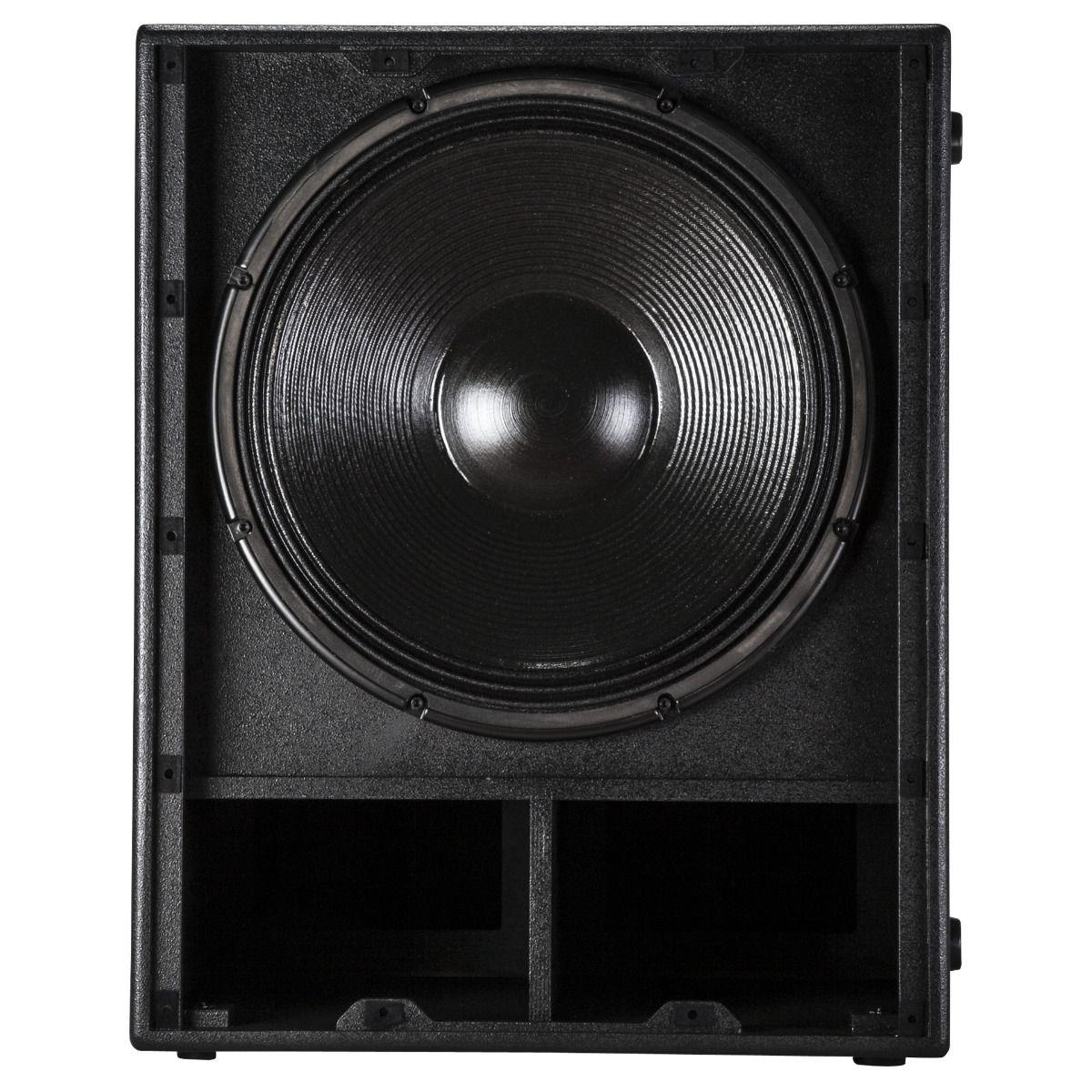

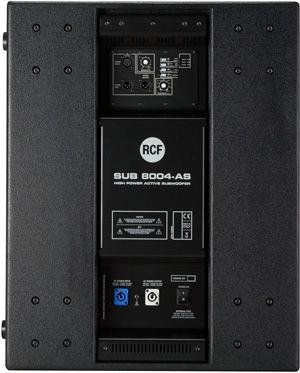

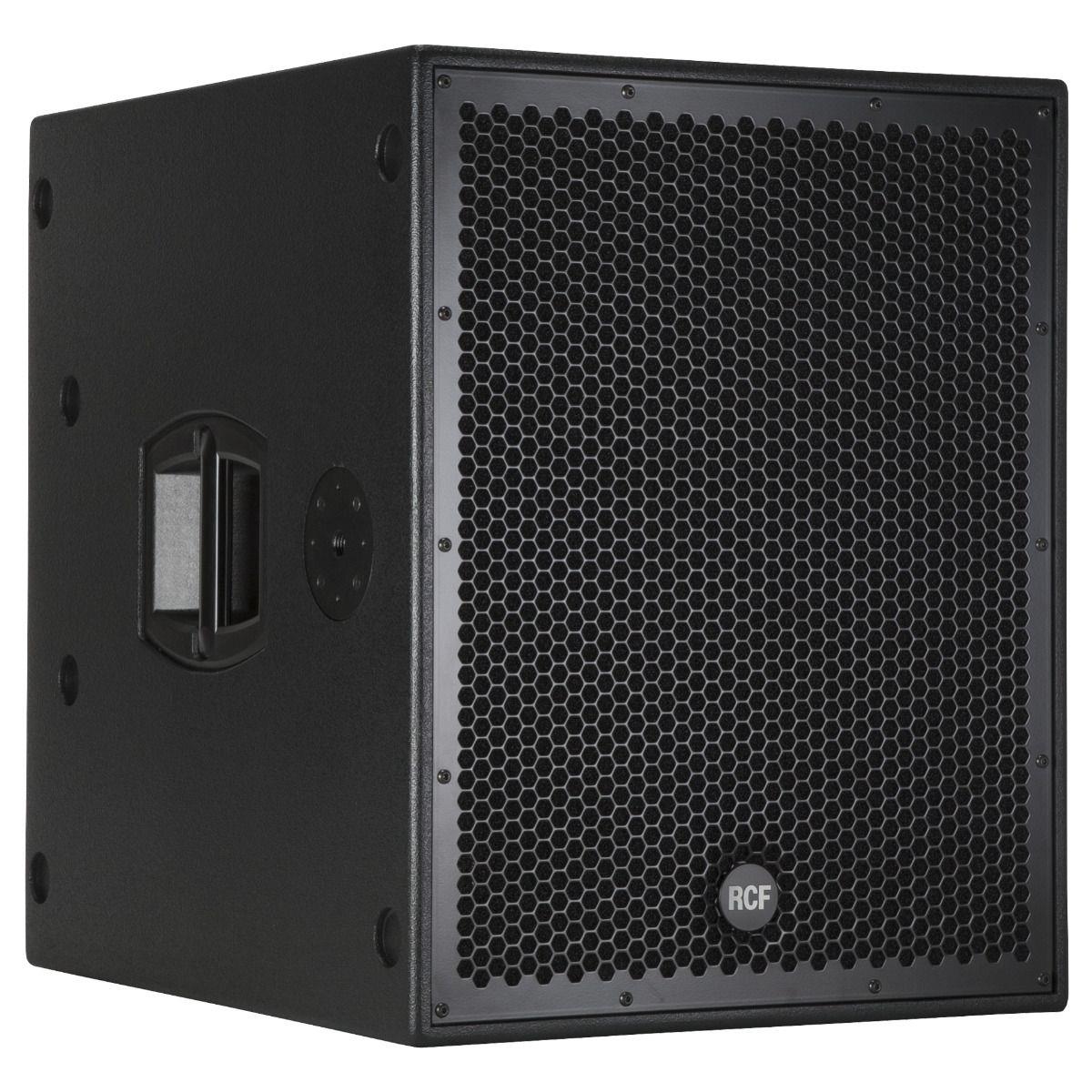

SUB 8004-AS 18" Active High-Power Subwoofer 1250W Black:

The SUB 8004-AS is one of the most powerful 18” subwoofers in pro-sound category.

Featuring a high power, hypervented 18” woofer, with 4” inside/outside voice coils, this cabinet is designed to deliver a serious amount of low frequency. Powered by a 1250W digital amplifier module, the SUB 8004-AS can perform in the most demanding situations. The input board includes volume control, deep/punch switch, high pass switch, phase switch, cardioid, time delay.

Features:

2500 Watt Peak, 1250 Wat RMS
136 dB max SPL
30 Hz - 120 Hz frequency response
18" Woofer, 4.0" voice coil vented woofer
DSP controlled Input section with selectable presets
Delay control
Baltic birch tour grade cabinet
Compatible with NXL23-A (stacking)
Compatible with NXL24-A (stacking)
Multiple configurations with HDL 10-A and HDL 20-A

Specifications:

General
Acoustical SpecificationsFrequency Response -3 dB: 30 Hz ÷ 120 Hz
Max SPL: 136 dB
Woofer: 18", 4.0" v.c.
Input/Output SectionInput signal: bal/unbal
Input connectors: XLR
Output connectors: XLR
Input sensitivity: -2 dBu / +4 dBu
Processor SectionCrossover frequencies: Selectable 90 Hz - 120 Hz Hz
Protections: Thermal, RMS
Limiter: Fast limiter
Controls: Xover, Phase switch, Deep/Punch, Output Delay Settings, Cardioid
Amplifier SpecificationsTotal power: 2500 W PEAKLow frequencies: 2500 W PEAK
Total power: 1250 W RMSLow frequencies: 1250 W RMS
Cooling: Convection
Connections: Powercon in-out
Cabinet
Cabinet Material: Baltic Birch
Hardware: 2xM20, 4 x wheels mounting points
Handles: 2 side
Colour: Black
Physical & Dimensions
Height: 700mm
Width: 557.5mm
Depth: 700mm
Weight: 51.0kg
