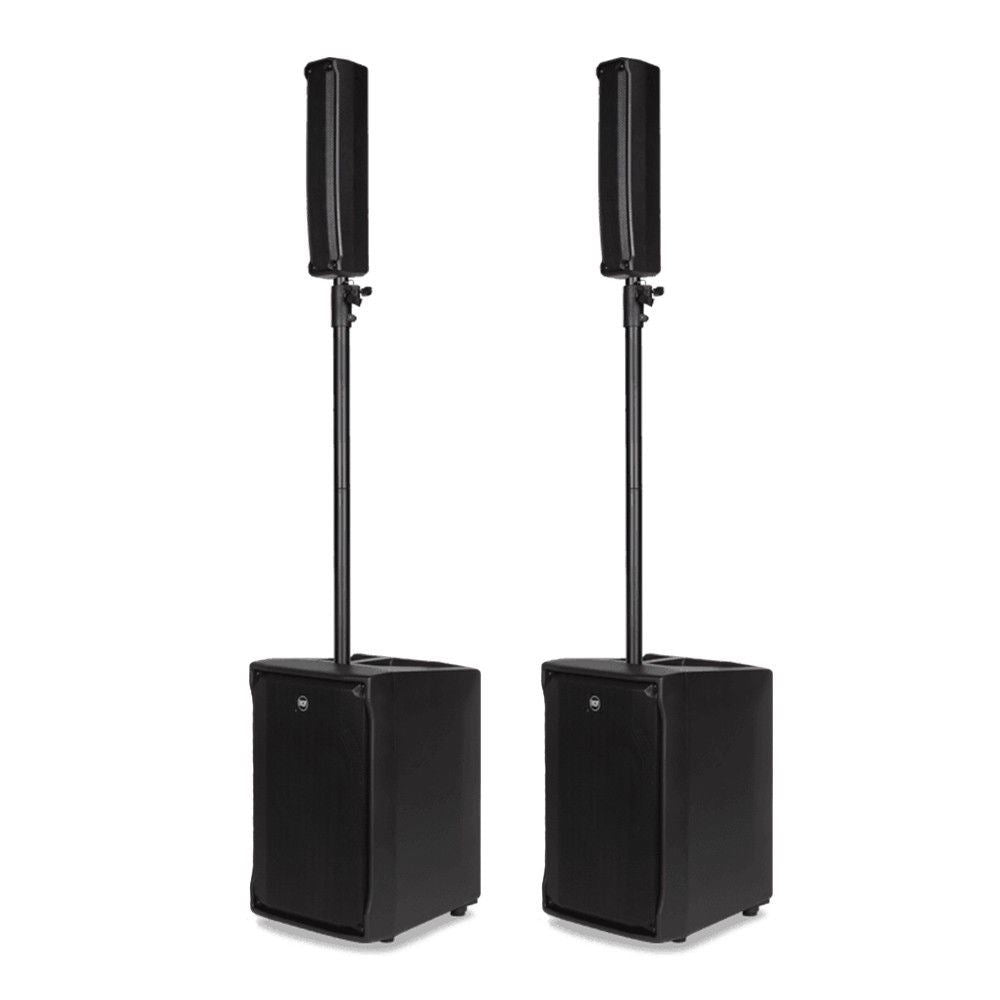

2x RCF EVOX JMIX8 Active 2Way Line Array System inc. Covers

Taking the EVOX J Series one step further, RCF has added an 8-input Digital Mixer to the system. The onboard processing power of the innovative Z. CORE DSP provides not only full mix functions; it includes high-quality instrument FX and AMP simulations. An EVOX iOS/Android-compatible app allows to manage the JMIX8. Adding Bluetooth audio and Hi-Z instrument input, the EVOX JMIX8 combines the quality and reliability of RCF transducers and amplification with a powerful remote controllable 8-channel digital mixer

128 dB Max SPL
1400 Watt 2-way peak power
8 IN Digital Mixer with multiple FX, Amp Simulator and Remote Control
DSP Processing with FiRPHASE
12\" woofer, high power 2.5\" voice coil
8 x 2\" ultra-compact full range 1.0\" voice coil

Specifications

Acoustical
Frequency response: 40 Hz ÷ 20000 Hz
Horizontal coverage angle: 120°
MAX SPL @ 1M: 128 dB
Vertical coverage angle: 30°

Transducers
Full range: 8 x 2.0'', 1.0'' v.c
Woofer: 12'', 2.5'' v.c

Input/Output
Input connectors: XLR, Jack
Input sensitivity: -2 dBu/+4 dBu
Input signal: bal/unbal
Output connectors: XLR

Processor
Controls: Volume, Boost, Mic/Line
Crossover frequencies: 220 Hz
Limiter: Soft Limiter
Protections: Thermal, RMS

Power
Connections: VDE
Cooling: Convection
High frequencies: 400 W Peak, 200 W RMS
Low frequencies: 1000 W Peak, 500 W RMS
Total power: 1400 W Peak, 700 W RMS

Electronic
Frequency response: 20 Hz ÷ 20 Hz
THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED): 0.004

Processing
A/D-D/A conversion: 24 Bit @ 48.0 kHz
Dynamic range: 108
Processing channels: 8
Signal processing: 32 Bit Floating Point

Inputs
A/D dynamic range (DB): 108 dB
Gain range: 0 dB ÷ 45 dB
Gain selection: 0 dB ÷ 45 dB
Stereo line gain selection: 0 dB ÷ 45 dB
HI-Z line inputs impedance (MOHM): 1 Mohm
HI-Z line inputs: 1
Mic inputs impedance (KOHM): 3 kohm
Line: 4
Line input impedance (KOHM): 11 kohm
Low cut: 20 Hz ÷ 1000 dB
Mic: 4
Phantom power +48V: Yes
Remote controlled storable gain: Yes
Stereo line: 2
Stereo line input impedence (KOHM): 11 kohm

Outputs
AUX output: 1
AUX send: 1
AUX out impedance (OHM): 150 ohm
AUX out level (DBU): 19 dBu
D/A dynamic range (DB): 1084 dB
Main out impedance (OHM): 150 ohm
Main out level (DBU): 19 dBu

Compressors
RCF COMPRESSORS: 4 mono (6 preset)

EQ
3 Band EQ: High and Low band shelving, Mid Band with sweepable frequency
Graphic 7 Band EQ on Main Mix and AUX send.
Input channels EQ: 1 Semi Parametric / 2 Shelving

Auxiliary Sends
AUX: 1 PRE/POST
FX post: 1
Internal Effects
MultiFX insert effects: 1
Send effects: 1

Mastering Processors
Main out processors: 1
USB audio
Play trk: 2
Other features
Footswitch: Yes

Electrical
Power supply: Internal

Standard Compliance
CE marking: Yes

Physical
Cabinet/case material: PP Composite
Colour: Black
Grille: Steel
Handles: 1 Top

Dimensions
2350 x 350 x 450 mm

Weight
24.4 kg
