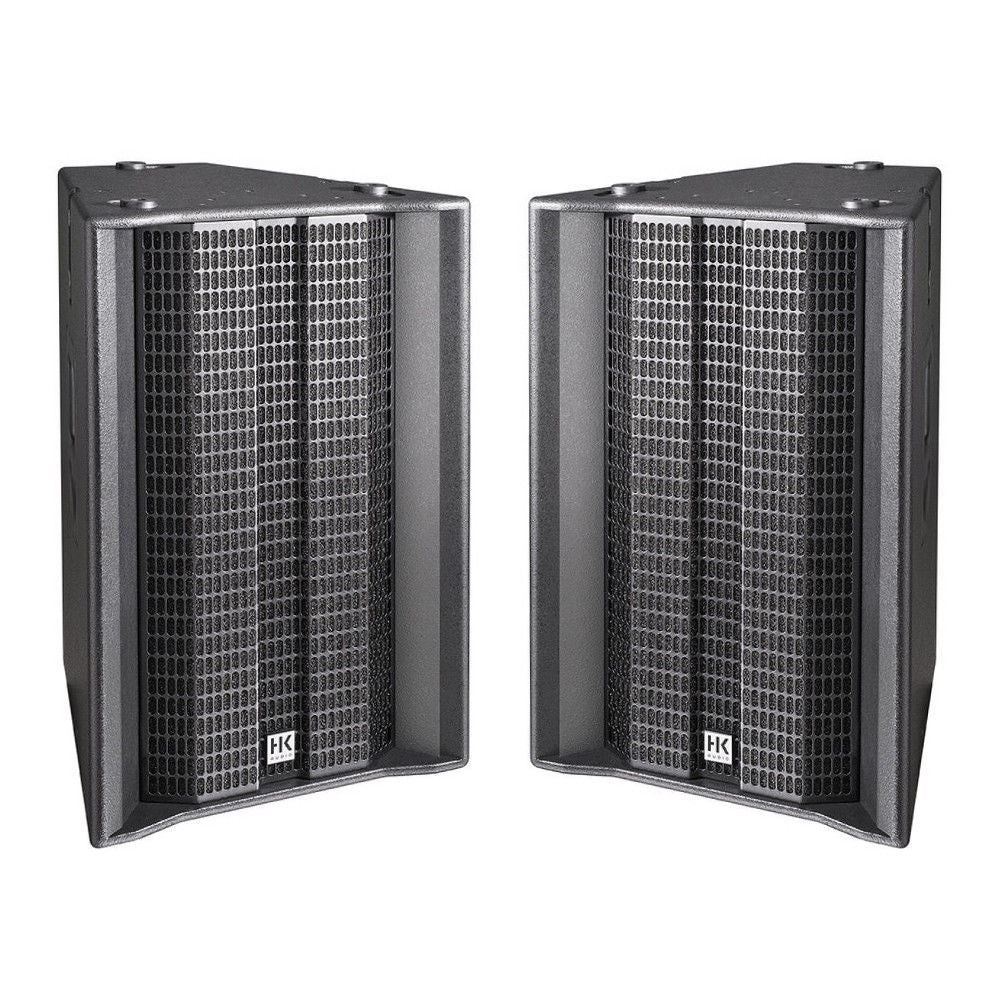

2x HK Audio L5LTSA Linear 5 Long Throw Active Speaker 2000W

What does it take to throw the entire frequency spectrum over 30 meters and beyond? Only large line arrays pack a punch powerful enough to deliver that kind of performance. Until now, that is. LINEAR 5 LTS A has arrived, and it’s the first speaker to deliver real long throw performance in an ultra-compact format. Now you can hit the road with fewer speaker components in tow, saving valuable space on your truck. What’s more, you can set up, stack and fly rigs that much faster and easier. The new LINEAR 5 LTS A is not only the easiest way of treating audiences of up to 3,000 to the best sound; it’s also the most economical option out there.

Ultra-compact long throw system
Economical (cost-performance ratio, saves truck space)
Innovative Multicell Transformer Technologie (MCT)
Vertical asymmetrical directivity (+5° / -25°)
Acoustically correct headstacking
1.000 Watt (650 W + 350 W, bi-amped)
138 dB Halfspace

Specifications
Max SPL 133 dB half space (@10% THD)
Max SPL peak 138 dB half space (@10% THD)
Max SPL calculated 141 dB half space
Frequency response +/- 3 dB 115 Hz – 14 kHz
Frequency response -10 dB 100 Hz – 20 kHz
Power Rating 1000 W
Amplifier Class D – Biamped
Active protection circuits Undervoltage Protection, Thermoprotection, Short Circuit Protection, Overcurrent Protection, Subsonic 24 dB/oct., Peak limiter, DSP-Input limiter
Low/Mid Speaker 3 x 8" Neodymium
HF Driver 1" Neodymium
Horn characteristics 60° x +5°/-25° MCT horn
Cut-off Frequency active 1.7 kHz FIR X-Over with 48 dB/oct.
Connections 1 x XLR–1/4"-Combo In, 1 x XLR-Thru
Input Sensitivity +4 dBu @ Gain Centerclick / L5 System Level
Pole mount MonoTilt 0°
Rigging points 7x M8
Handles 2, Integrated
Enclosure Birch multiplex
Grille 2 mm metal grille backed with black acoustic foam
Finish Acrylic enamel, black
Optional accessories Protective cover, Tilt Bracket, Tilt Bracket Head Stack Extension Pack, Cluster Plate (Pick Point), AP-8 Rigging Point

Dimensions
440 x 680 x 460 mm

Weight
24.9 kg (Single Unit)
