2X dB Technologies OPERA 12 1200W 12" Active Speakers + 2X dB Technologies SUB 618 18" Subwoofer Bundle
- £2,255.00
- £2,255.00
- Unit price
- per

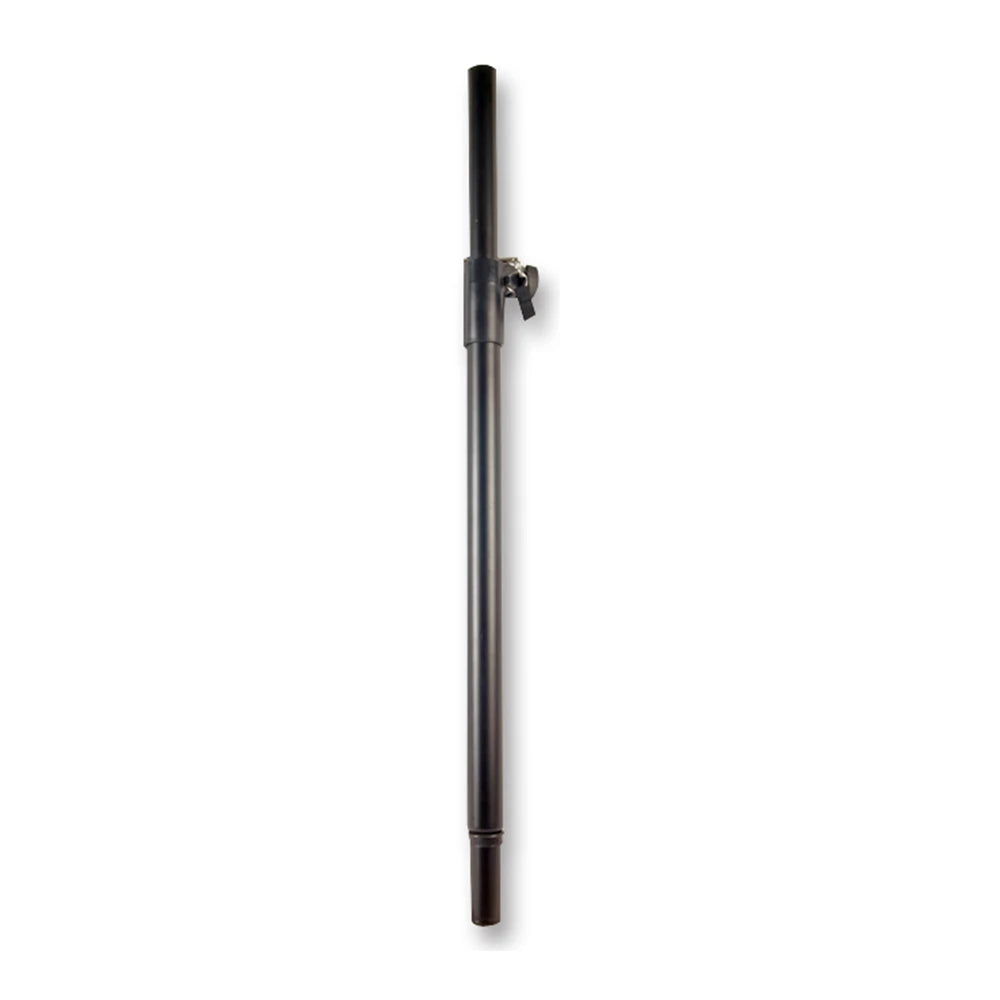

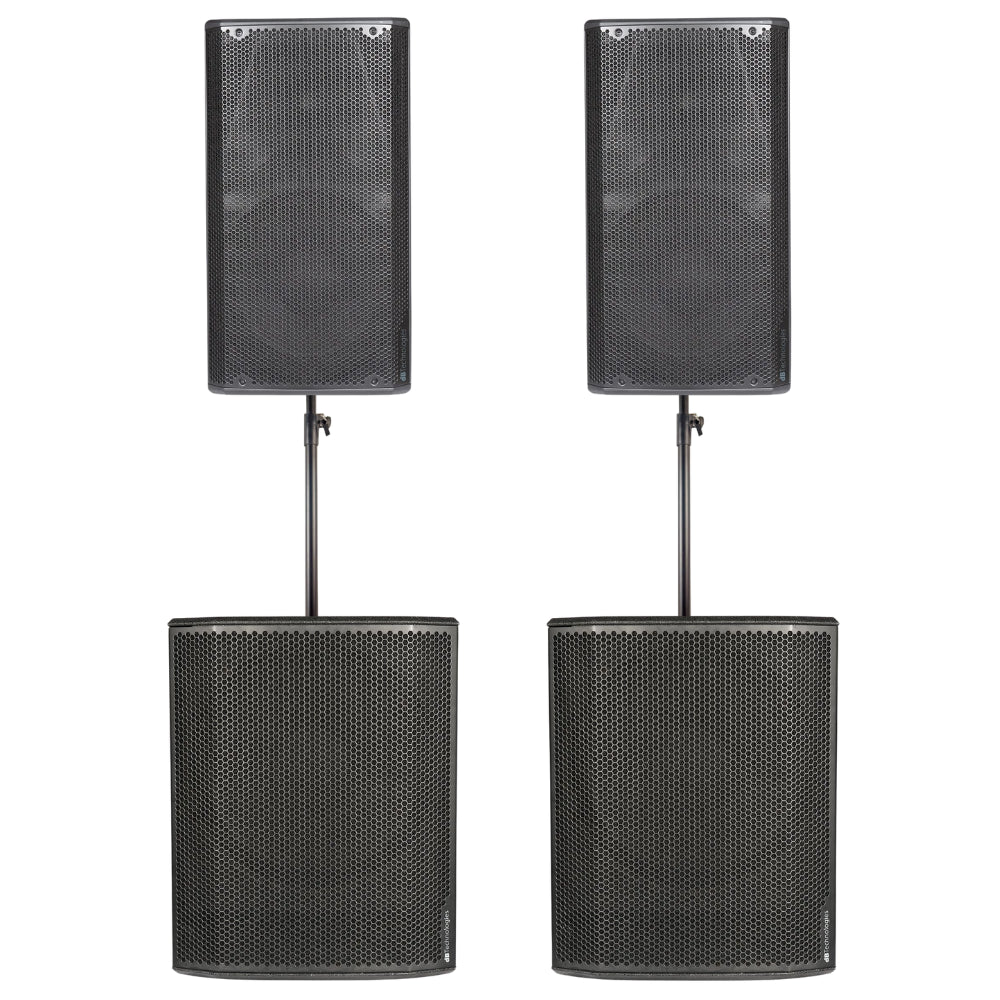

This bundle includes 2X dB Technologies OPERA 12 1200W 12" Active Speakers + 2X dB Technologies SUB 618 18" Subwoofer + 2X Thor Speaker Pole.
iFrame
Description:
This bundle includes 2X dB Technologies OPERA 12 1200W 12" Active Speakers + 2X dB Technologies SUB 618 18" Subwoofer + 2X Speaker Pole.

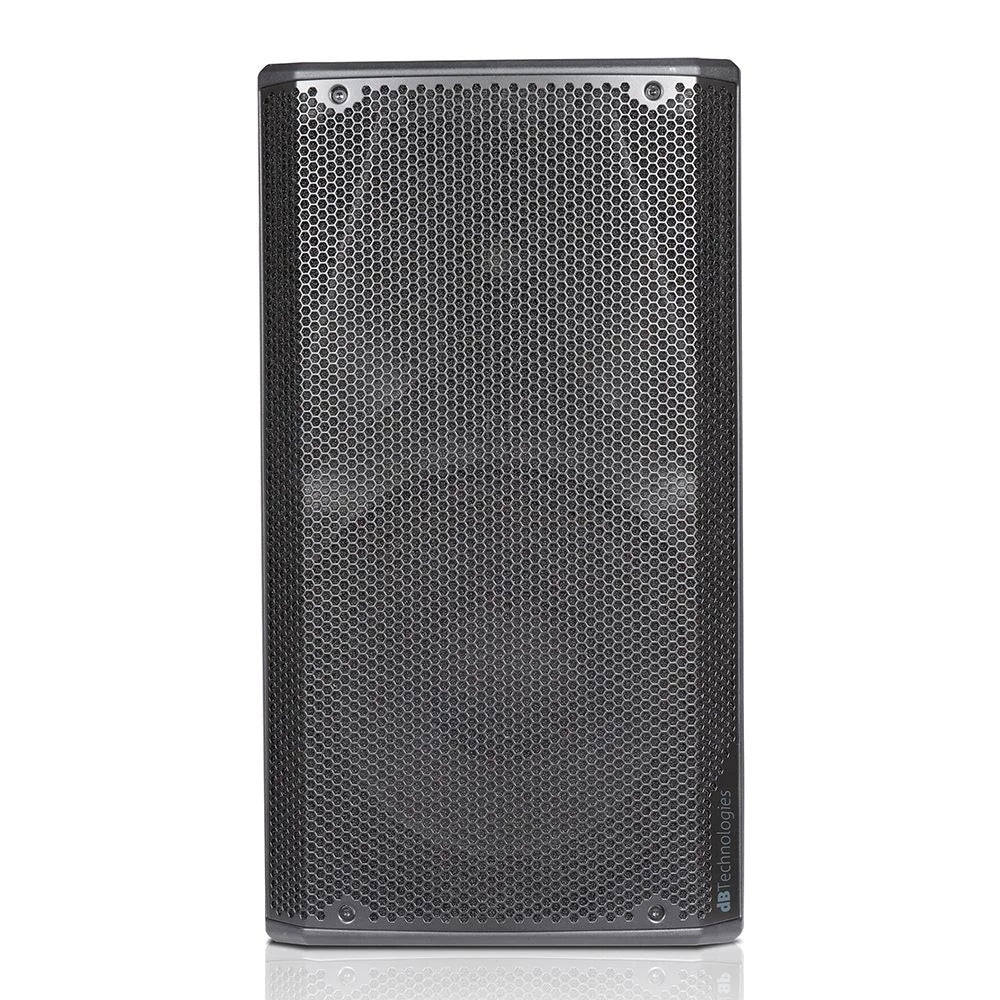

dB Technologies OPERA 12 1200W Active Speaker:
With the new OPERA series, dBTechnologies succeded once again in packing leading edge DSP processing, advanced design features and user-friendliness in an unrivalled cabinet in its price range.
Exceptional power and a unique acoustic design combine in order to deliver a vigorous yet pristine sound, successfully adaptable to both playback and live music applications.
Opera’s asymmetrical horn has been completely redesigned in order to obtain both an asymmetrical vertical dispersion and a double horizontal dispersion, ensuring an optimized throw pattern.
The system is equipped with a powerful Class D 600 W amplifier featuring advanced DSP processing where FIR filters allow the systems to deliver a coherent audio performance, uniform and crystal-clear from every listening position.
Specifications
Speaker Type2-Way Active Speaker
Acoustical data
Frequency Response [-10dB]52 - 20.000 Hz
Frequency Response [- 3dB]67 - 19.600 Hz
Max SPL129 dB
HF1" Exit, 1.4 v.c.
Type HFCompression driver
Horizontal Directivity100° (85° up/120° down)
Vertical Directivity85° (+ 25°/-60°)
HornAsymmetrical Horn
LF12", 2" v.c.
Amplifier
Amp TechnologyAmp SMPS Power supply dual range
Amp ClassClass D
RMS Power600 W
Peak Power1200 W
Processor
ControllerDSP 56 bit
AD/DA Converter24 bit/48 kHz
System PresetsRotary Encoder (8 Presets)
CrossOver Frequency2000 Hz
LimiterPeak, RMS, Thermal
Advanced DSP FunctionsLinear Phase FIR Filters
Input
Signal Input1xCombo (XLR/Jack 6.3 mm) MIC/Line
1xCombo (XLR/Jack 6.3 mm) MIC/Inst
Signal Output1x XLR Male (CH1 Link/Mix OUT)
Selectable
Mechanics
HousingPolyporpylene PP
GrilleFull grille
Handles1 on left Side, 1 on Top
Rigging Points2XM10 on Top + 1x M10 on Back
Pole MountD36 mm
Angles upMonitor use 45°
Width350 mm (13.78 in)
Height642 mm (25.28 in)
Depth349 mm (13.74 in)
Weight14.3 kg (31.53 lbs)
Dimensions
350 x 642 x 349mm
Weight
14.3kg

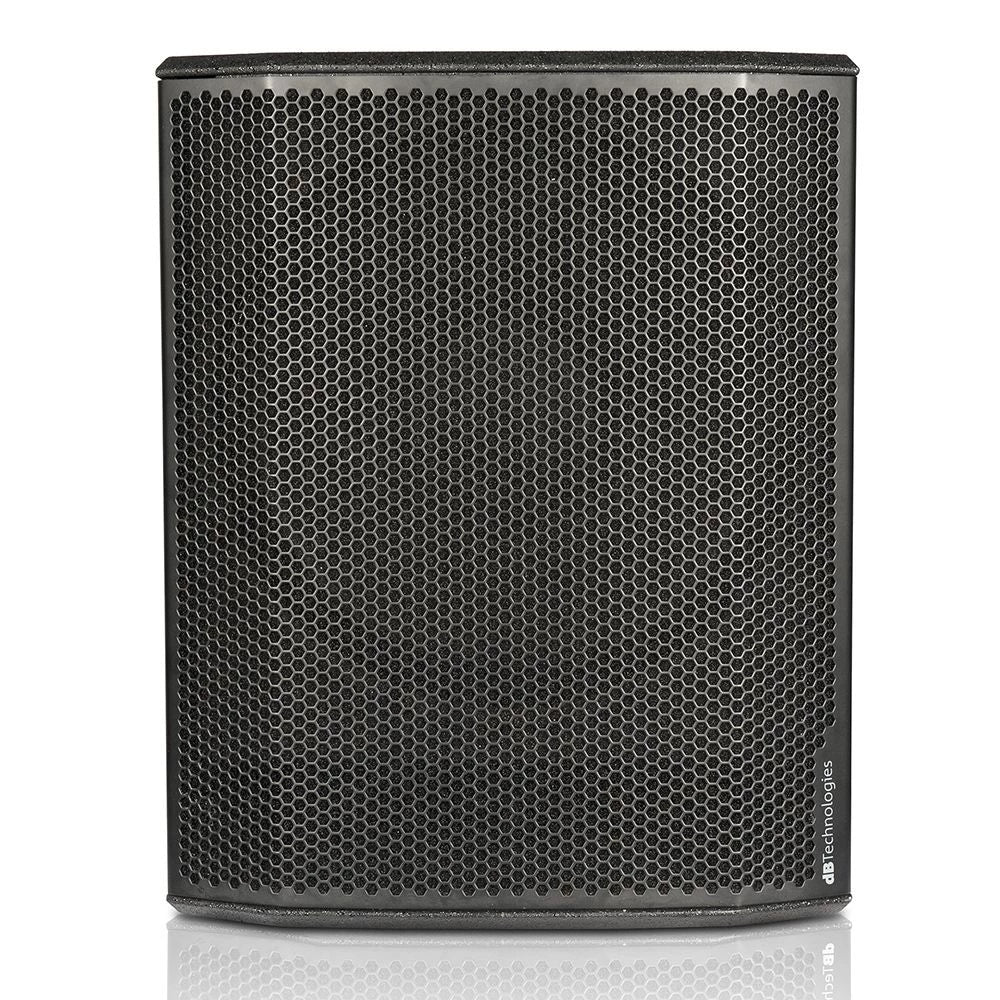

dB Technologies SUB 618 18" Subwoofer:
SUB618 is a bass-reflex active subwoofer featuring a 600W RMS Class D Power Amplifier with SMPS and is equipped with an 18” transducer.
The system delivers outstanding sound pressure levels (up to 133dB) in spite of its compact housing while providing a clean, impressively precise low-end reproduction.
Sub 600s’ outstanding audio performance allows the user to build most of the PA systems with 1 single sub and 2 full-range speakers, avoiding any external processing or crossover thanks to a balanced Xover signal to left and right speakers.
Controls on the amp panel allow the user to operate with Mono or Stereo audio feed, activate polarity inversion and choose Outputs link mode (True Bypass or Xover). Whenever a further punch is needed, a low-frequencies boost EQ can be set thanks to the Sub Mode switch.
The series comes with a full grille design in a lightweight wood cabinet (total weight 31kg /68 lbs) strengthened with a hardwearing, scratch-resistant black covering. Carved side handles enhance portability. The design of the top side eases subs stacking in larger systems and features an M20 pole mount thread to stack full-range speakers.
Specifications
Speaker TypeActive Subwoofer
Acoustical data
Frequency Response [-10dB]35 - 130 Hz
Max SPL (1 m)133 dB
Directivityomnidirectional
LF18"
LF Voice Coil2.5"
Amplifier
Amp TechnologySMSP digital amplifier
Amp ClassClass D
RMS Power600 W
Peak Power1200 W
Processor
Controller28/56 bit DSP
LimiterPeak, Thermal, RMS
ControlsSubwoofer level, Outputs mode, Polarity, Subwoofer mode
Input
Signal Input2x XLR (balanced)
Signal Output2x XLR (balanced)
Mechanics
HousingPlywood
GrilleFull metal grid
Pole MountM20
Dimensions
500 x 625 x 690mm
Weight
31.1kg
