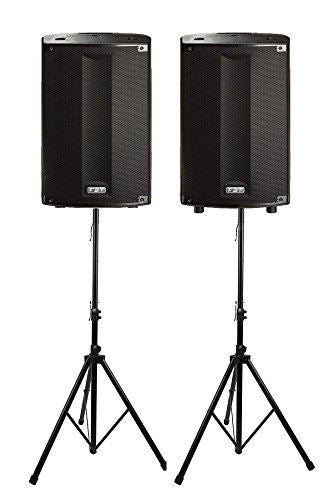

2x FBT ProMaxX 114A 14" 900w Active Speakers inc. Tripod Speaker Stands

With a specially developed polypropylene cabinet and stylish full grille aesthetic, the new PROMAXX by FBT represents the next step in the evolution of a portable sound classic.

Equipped with custom FBT speakers complete with B&C’s renowned compression driver technology, PROMAXX combines true made-in-Italy quality and style. At its heart is a purpose-built FBT amplifier module with a switch-mode power supply. For the low-frequency section, 700W RMS is driven via a highly efficient Class-D topology, boasting extremely low THD. For HF, meanwhile, 200W RMS is delivered by a Class-H / AB design chosen to ensure the highest definition of audio performance at high frequencies.

PROMAXX offers 6 presets to cater for a broad variety of uses, each crafted by FBT engineers. Employing powerful DSP, the presets ensure reliability while eliminating distortion.

2-way, bi-amplified, bass reflex design cabinet
Bi-amped: 700W RMS LF, 200W RMS HF, power amplifiers in Class D for LF and in Class H/AB for HF with switch mode power supplies
Digital signal processor with a graphic display
Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
2 x M10 suspension points, 35 mm (1,3/8”) top-hat speaker stand socket, wall bracket mount flange plate
90°H x 60°V constant directivity horn
Front of House or Stage Floor Monitor: with 12°, 40° and 55° monitoring angles
3550mm (14") LF woofer with 64mm (2.5") voice coil, custom made for FBT
35mm (1.4") throat exit B&C HF magnet compression driver with 34mm (1.4”) voice coil
Frequency response from 45Hz to 20KHz
Sturdy, gas-injected polypropylene molded enclosures, engineered to contain undesired resonance
Extremely light only 17.4kg
Compact Dimensions: ProMaxX 114A uses the same size gas-injected polypropylene molded enclosure as the ProMaxX 112A, but features our 14” LF Woofer for lower frequency SPL

Specifications
Code: 40603
Configuration: 2 Way
Built-in amplifier: 900w (700w LF + 200w HF)
Built-in amplifier peak: 1800w (1400w LF + 400w HF)
Frequency Response: 45Hz - 20kHz -6dB
Low-Frequency Woofer: 14"
High-Frequency driver: 1.4"
Maximum SPL continuous/peak: 127/135.5dB SPL
Input Impedance: 22kOhm
AC power requirements: 640VA
Input Connector: XLR/Jack Combo socket with XLR link out, RCA stereo input

Dimensions
402 x 644 x 345 mm

Weight
17.5 kg (Single Unit)
