Yamaha DBR12 Active Speaker 12" 1000w Max Output

Description:

The DBR12 Active PA speaker features the same Yamaha state-of-the-art DSP technology inherited from its predecessors, ensuring superior performance and versatility, and safe, consistent operation. The DBR12 can project deep bass, clear midrange and accurate high frequencies to the outer-most edges of a very wide coverage area and can boast 1000W of power. The design incorporates an optimised 50°　wedge angle for floor monitoring use and is also, for its size, the most portable powered speaker currently offered by Yamaha.

Features:

Custom designed transducers and wide-dispersion constant directivity horn

DSP Features of DSR-Series
FIR-X tuning simultaneously optimises frequency and phase response
Multiband dynamic processor for consistent clarity at any output Level
Extensive DSP protection functions for maximum output level
2-channel mixer with XLR, TRS Phone and RCA inputs

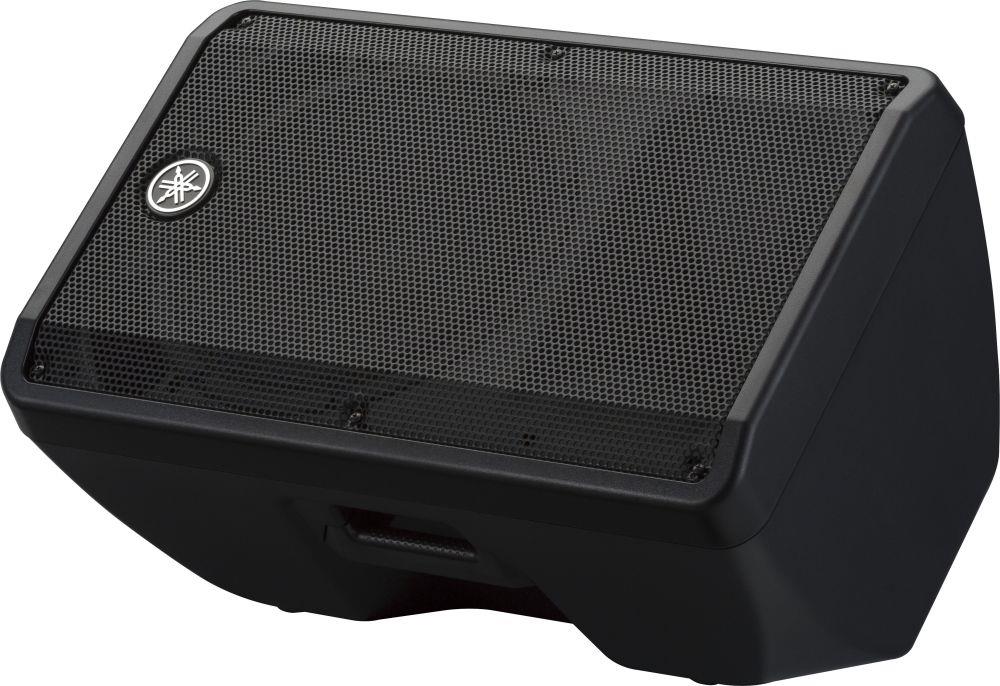

50°degree wedge angle & symmetrical mirror-mode floor monitoring
3x M8 Rigging Points for standard eye-bolts (Brackets available as an option)
Speaker covers available as an option

Specifications:

DBR12
Speaker type 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB) 52Hz – 20kHz
Nominal coverage
Horizontal 90°
Vertical 60°
Components Low Frequencies
Diameter:12" cone, Voice Coil:2", Magnet:Ferrite
High Frequencies
Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
Crossover 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
Output power Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
Maximum output level (1m; on axis) 131dB SPL

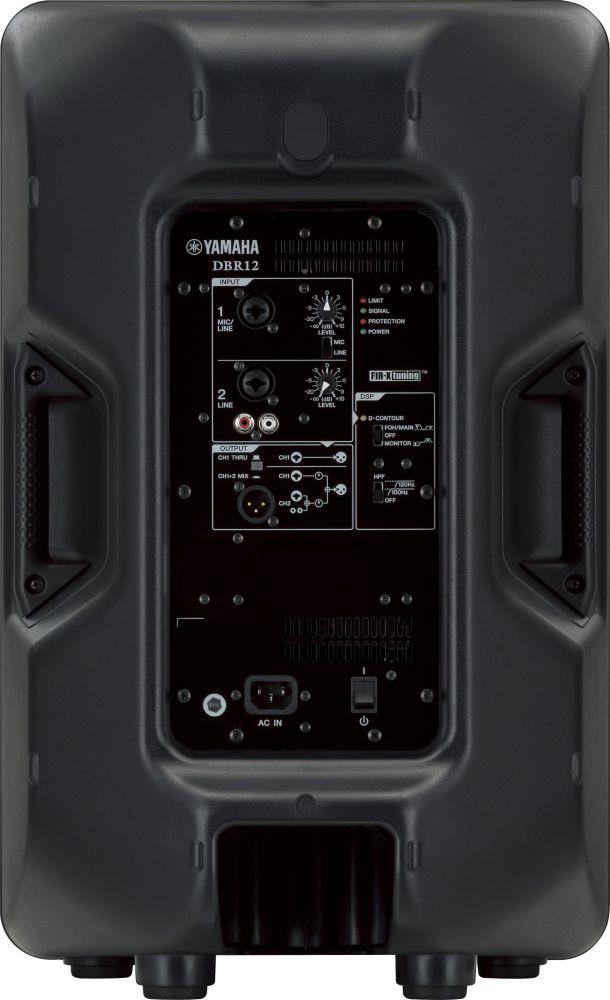

I/O connectors INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Processors D-CONTOUR: FOH/MAIN, MONITOR, OFF
Heat dissipation Fan cooling, 4 speeds
Power requirements 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
Power consumption 74W(1/8 Power Consumption), 18W(Idle)
Cabinet material Plastic

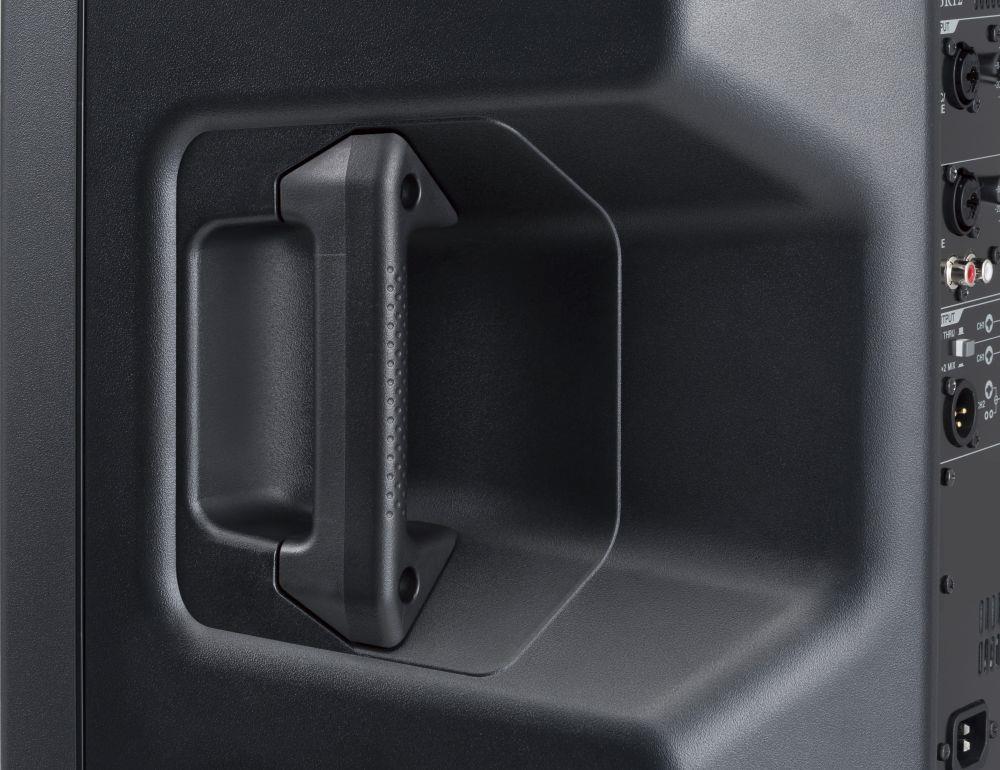

Handle Side x 2
Flying and mounting hardware Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
Pole socket 35mm (Bottom x 1)
Dimensions
Width 376mm (14.8")
Height 601mm (23.7")
Depth 348mm (13.7")
Net weight 15.8 kg (34.8 lbs)
Optional Accessories BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket)
