Showtec Melodist Install DMX-controllable WAV Player

£213.00
£213.00

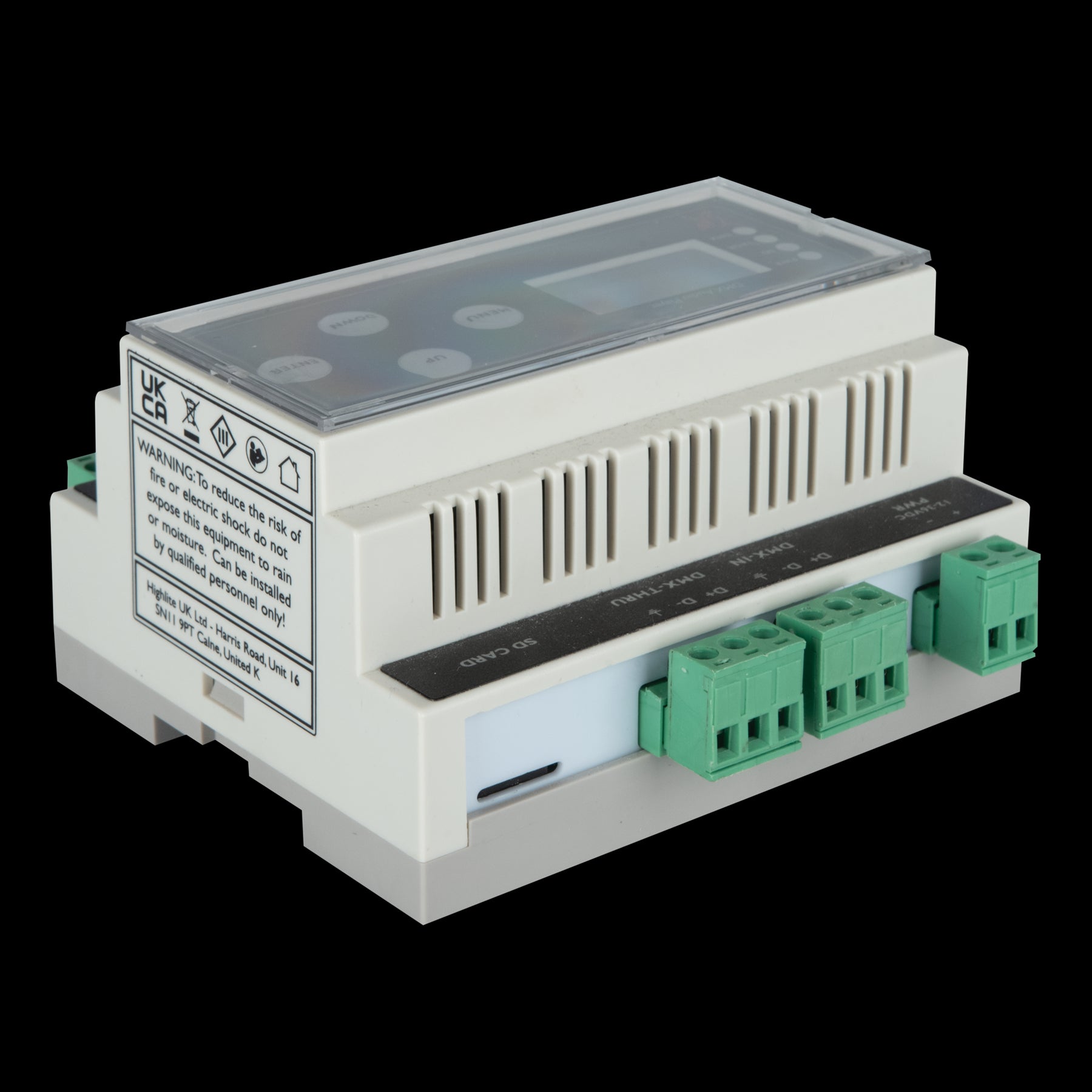

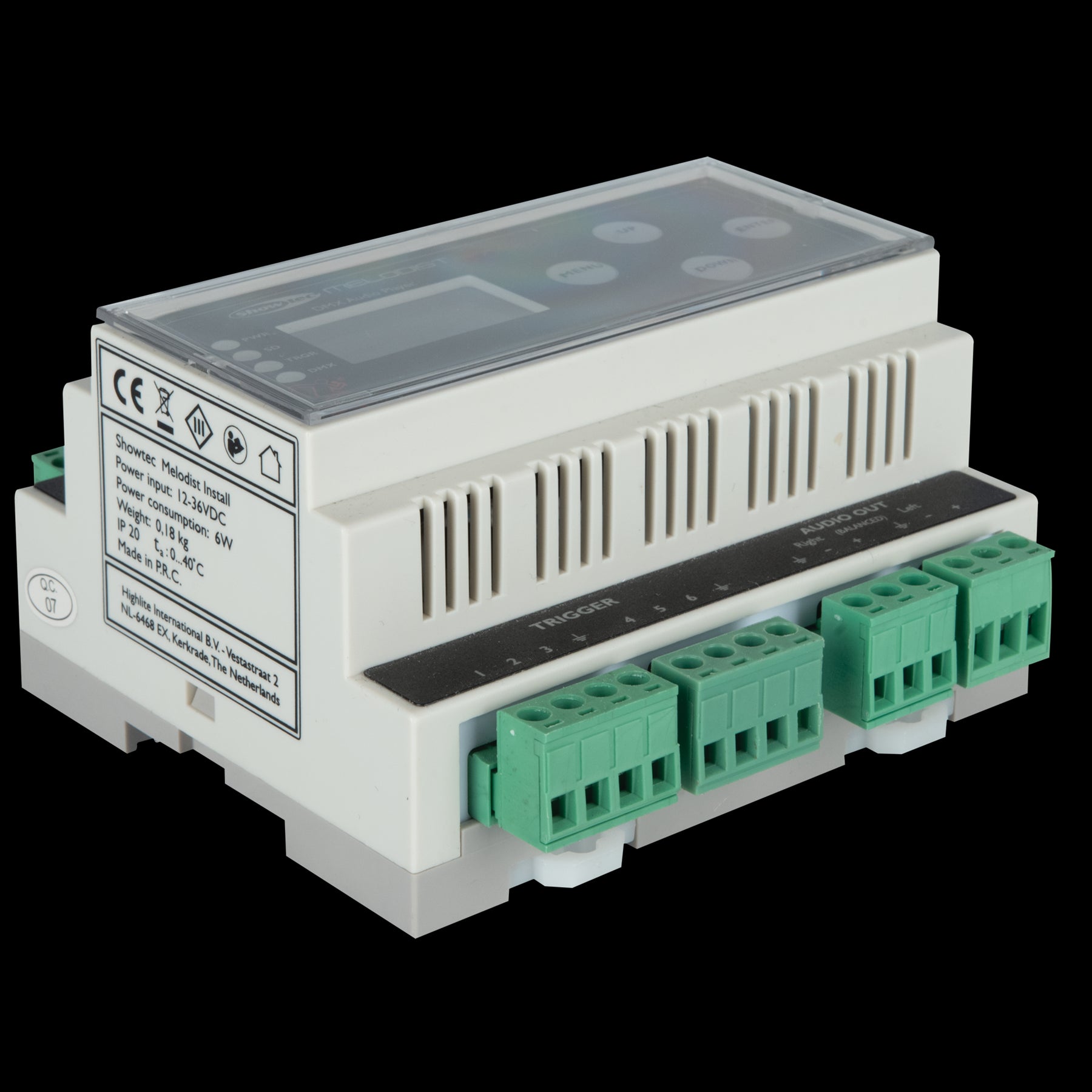

The Showtec Melodist Install is a DMX controllable WAV media player for DIN rail mounting.
Vendor: Showtec
SKU: 129-50421
Icon Out of Stock Out Of Stock
iFrame
×

Description:

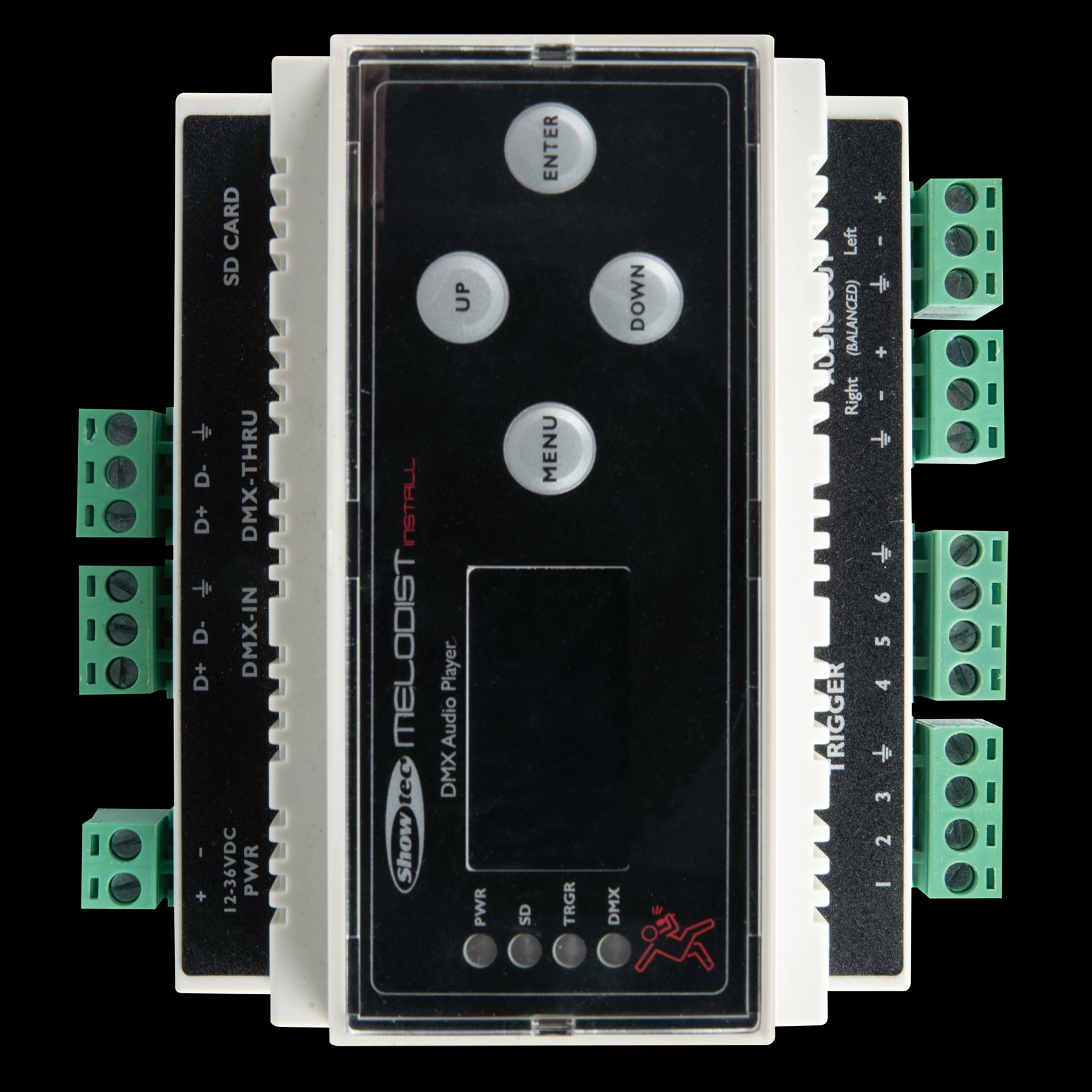

The Showtec Melodist Install is a DMX controllable WAV media player for DIN rail mounting. It plays stereo WAV files from a micro SD card via two balanced outputs. It has a trigger mode and a player mode. Settings and play modes can be adjusted using the front panel LCD and control buttons. Four status LEDs indicate the status of the player and control signals.

In trigger mode, the Melodist Mobile plays up to 10 WAV files simultaneously, which can be started, paused and stopped via 10 channels of DMX. An additional DMX channel controls the output volume. If no DMX signal is present, the six terminal inputs can be used as triggers to start the first six audio files.
In player mode, it plays one audio file at a time, just like a normal media player. In this mode the terminal input allows control of start/stop/pause, track select, folder select, play mode and volume. Four play modes are available: single continuous, single shot, continuous loop and continuous random.

Specifications:

Electrical Specifications and Connections
Power Supply 12-36 V DC
Power Consumption 6 W
Power Connector In Phoenix
DMX Connector
Phoenix In/Out
DMX Connector In Phoenix
DMX Connector Out Phoenix
Mechanical Specifications
Length (mm) 106 mm
Width (mm) 87 mm
Height (mm) 58 mm
Weight 0.18 kg
IP Rating IP20 (indoor use only)
Housing Plastic
Colour Gray
Product Properties LED Indicators
Operation mode, Power, Signal
Thermal Specifications
Maximum Ambient Temperature 40 °C
Control and Programming
Control Mode DMX, GPIO
DMX Channels 5, 11
Protocols DMX
Display OLED
