Showgear Tree & Pole Mounting Bracket MKII 50mm Lighting Speaker Bar

Description:

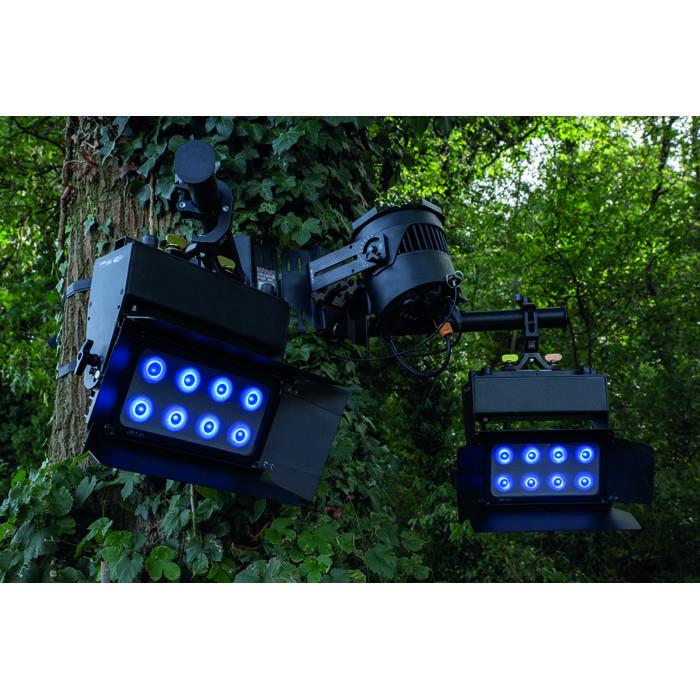

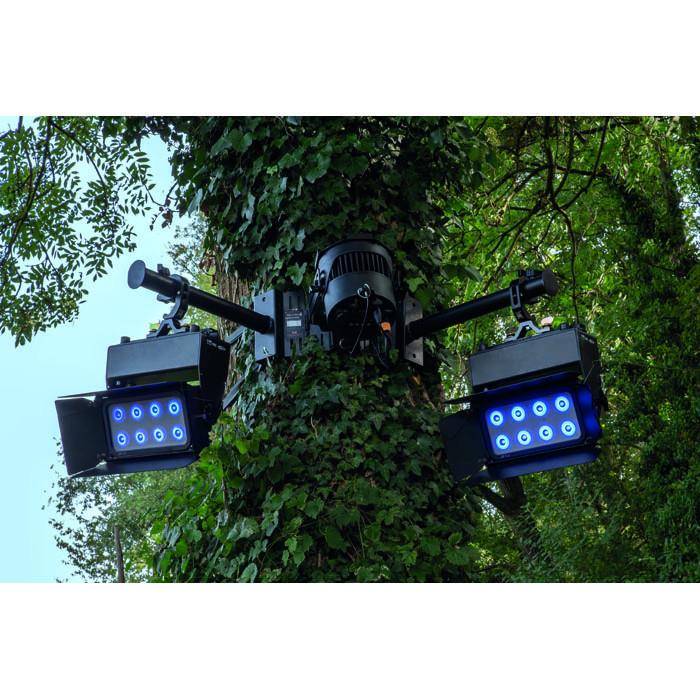

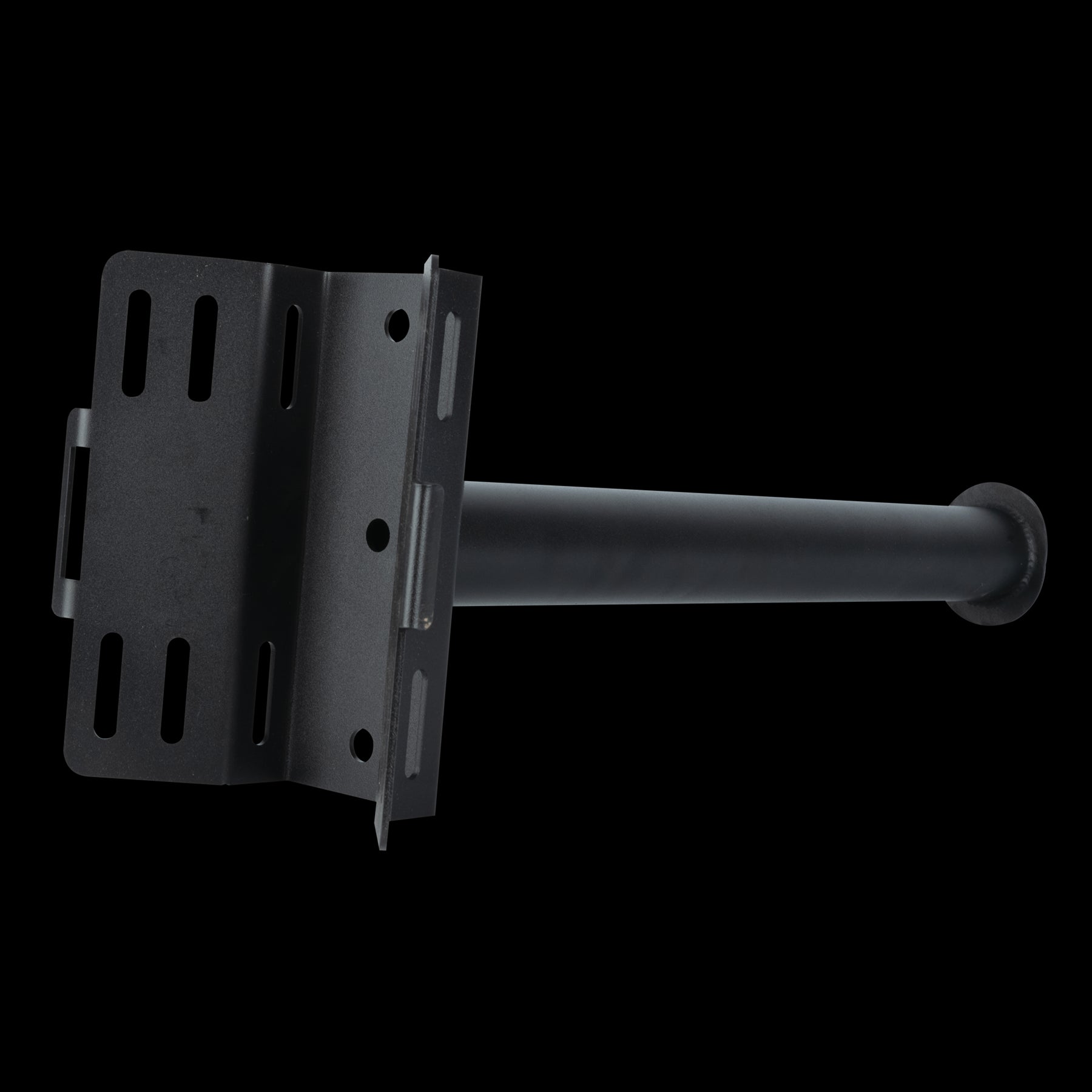

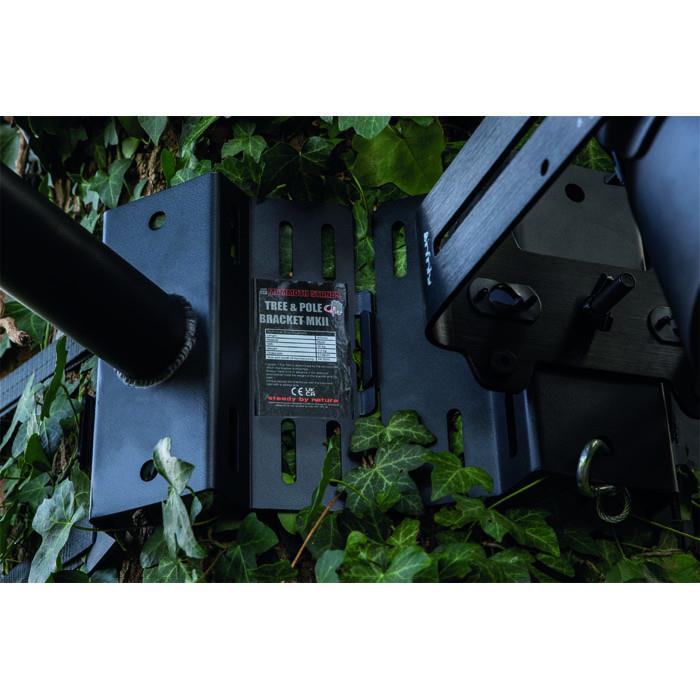

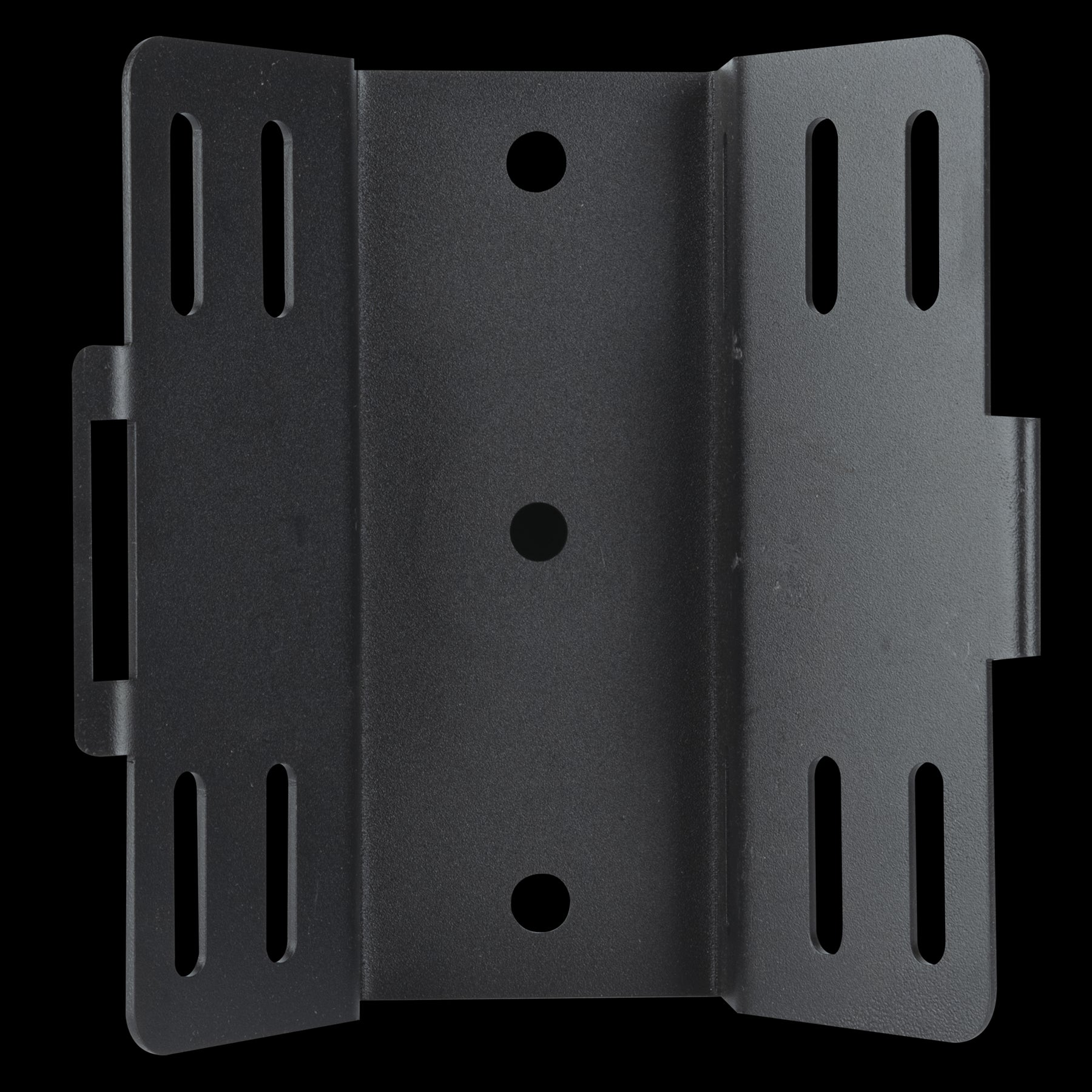

The Showgear Tree/Pole Mounting Bracket MKII allows you to easily mount lighting fixtures against a pole or tree. This is possible with the help of two supplied 2-meter endless ratchet straps. The bracket has a 47.5 cm long steel tube on which objects weighing up to 50 kg can be mounted by using 48–50 mm clamps. Hooks on the side of the bracket make it possible to attach brackets to each other.

Please note that the working load limit depends on the mounting. ALWAYS check whether the object to which you attach the bracket is suitable. ALWAYS use safety cables when mounting at height, both for the bracket itself and for the fixture to be hung.

Specifications:

WLL (kg): 50 kg (110.231 lb)
Material: Steel
Finish: Powder Coating
Colour: Black
Length (mm): 559 mm (22.008″)
Height (mm): 200 mm (7.874″)
Width (mm): 188 mm (7.402″)
Diameter: 50 mm (1.969″)
Weight: 1.97 kg (4.343 lb)

Lashing
Lashing type: Endless ratchet strap
Lashing capacity (LC): 800 daN
Standard hand force: 50 daN
Standard tension force (STF): 80 daN
Webbing material: Polyester (PES)
Endless ratchet strap: 2 M
Max. elongation: 7%

Thermal Specifications
Minimum Ambient Temperature: -20 °C (-4 °F)
Maximum Ambient Temperature: 60 °C (140 °F)

Included Items
Included Accessories: Strap Handle
