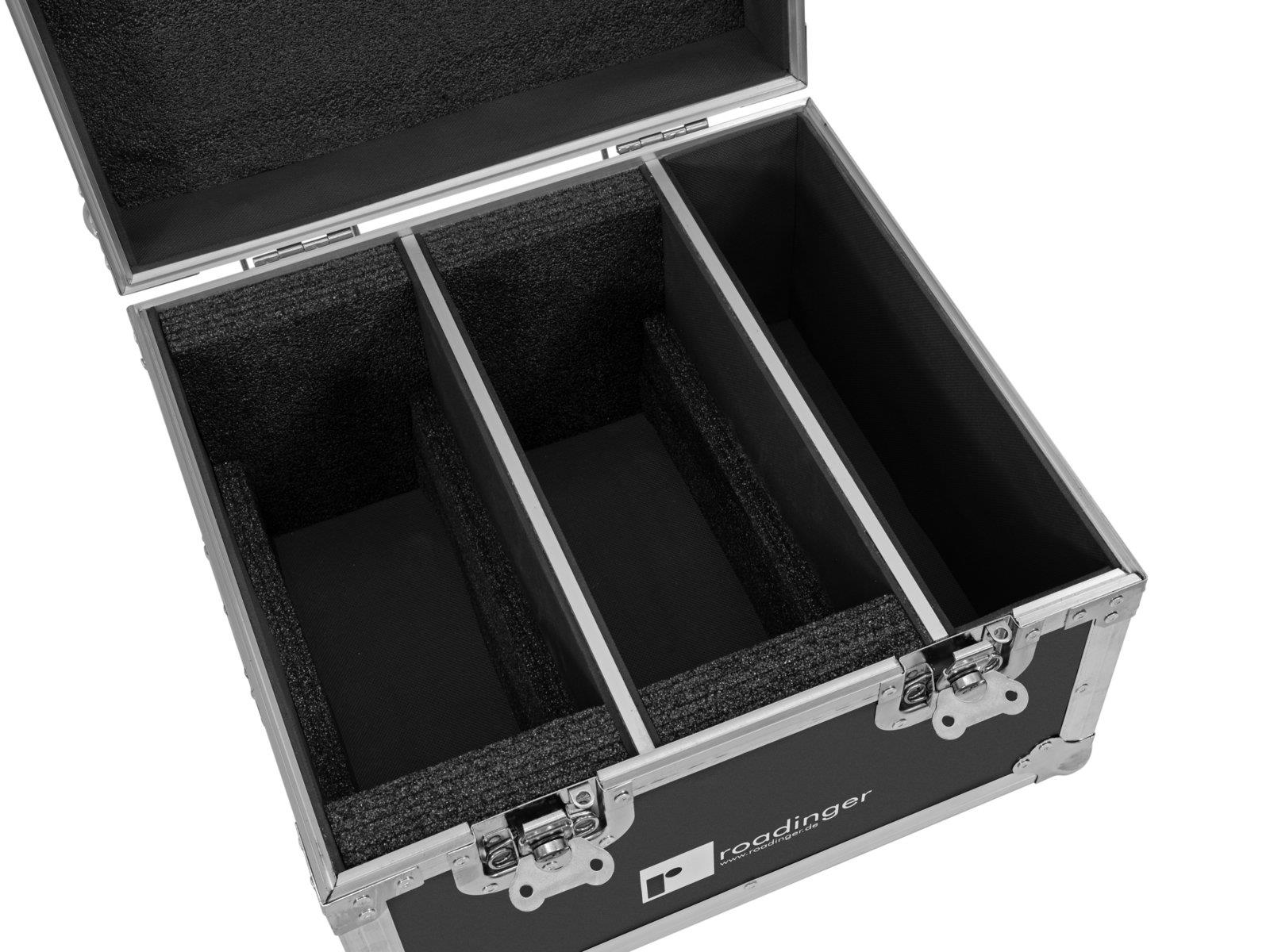

Roadinger Flightcase 2x LED PLL-384 Panel Light

Description:

DMX-controlled surface light with 384 dual white LEDs, QuickDMX port, diffuser and barn doors

192 powerful LEDs 0,5 W SMD 5730 cold white (CW)
192 powerful LEDs 0,5 W SMD 5730 warm white (WW)
Energy-saving, durable and environmentally friendly
Additional frost filter provides a wide, soft and homogeneous light
4 barn doors to avoid blinding the audience and for protection during transport
Variable color temperature 2700 K - 5700 K
Very quiet working noise
Direct color temperature selection for 69 preset values
Dimmer electronic
The device is cooled by temperature-controlled fan
Control via Quick select potentiometer for brightness and color temperature; DMX; Master/slave function; stand-alone; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional)
Flicker-free
With a beam angle of 120°
Very high color rendering index (CRI)
With Mounting bracket
LCD display
For application areas such as: Video and photography; Stage
Preprogrammed in Light Captain
Rubber feet
Mains input and output for power linking up to 8 units
Package contents

1 x spotlight, 1 x power cord, 1 x diffusor cover, 2 x knurled screw, 1 x user manual

Specifications:

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 100 W
IP classification: IP20
Protection class: Protection class I
Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output: P-Con (gray), mounting version
Fuse: T 3,15 A Fuse fix on board
Lamp type: LED lamp
LED:
192 x 0,5 W SMD 5730 cold white (CW)
192 x 0,5 W SMD 5730 warm white (WW)
Color temperature: 2700K - 5700K adjustable
Flash rate: 1 - 20 Hz
DMX channels: 2-1; 2-2; 3-1; 3-2; 4
DMX input: 1 x 3-pin XLR (M) mounting version
DMX output: 1 x 3-pin XLR (F) mounting version
Cooling: Temperature-controlled fan
Control:
Quick select potentiometer for brightness and color temperature; DMX; Master/slave function; stand-alone; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional)
Preprogrammed in: Light Captain
Beam angle: 120°
Beam angle (1/2 peak): 120°
Color rendering index (CRI): 94 Ra
Illuminance in Lux (lx):
Wide cold white (CW) 1m: 2324 lx, 3m: 276 lx, 6m: 83 lx
Wide warm white (WW) 1m: 2277 lx, 3m: 249 lx, 6m: 76 lx
Wide all 1m: 3530 lx, 3m: 407 lx, 6m: 124 lx
Narrow cold white (CW) 1m: 2789 lx, 3m: 327 lx, 6m: 98 lx
Narrow warm white (WW) 1m: 2542 lx, 3m: 297 lx, 6m: 94 lx
Narrow all 1m: 4167 lx, 3m: 508 lx, 6m: 150 lx
Housing color: Black
Attachment system: Mounting bracket
Display type: LCD display
Transport aid: Rubber feet
Material: Metal
Dimensions:
Length: 34,7 cm
Width: 13,8 cm
Height: 21,1 cm
Weight: 3,52 kg
Noise classification:
Class 1 (very slight noise, suitable for noise-sensitive environments)
Power cord
Cable construction: 3 x 1,0 mm² H05VV-F
Cable length: Approx. 1,2 m
Mounting bracket
Diameter mounting holes: 1 x Ø11mm; 2 x Ø8mm; 8 x Ø15mm
Material: Metal, 2 mm
Legal specifications
Special product: Not designed for household room illumination
Intended use: Show effect lighting
