RCF JMIX8 1400w Active Speaker with Onboard Mixer + Evox J8 1400w Active Speaker

Description:

Bundle including both the RCF EVOX JMIX8 Speaker with Onboard Mixer and the EVOX J8

RCF EVOX JMIX8 Active Array Speaker with Integrated Mixer:

Taking the EVOX J Series one step further, RCF has added an 8-input Digital Mixer to the system. The onboard processing power of the innovative Z.CORE DSP provides not only full mix functions; it includes high-quality instrument FX and AMP simulations. An EVOX iOS/Android-compatible app allows to manage the JMIX8. Adding Bluetooth audio and Hi-Z instrument input,the EVOX JMIX8 combines the quality and reliability of RCF transducers and amplification with a powerful remote controllable 8-channel digital mixer

128 dB Max SPL
1400 Watt 2-way power
8 IN Digital Mixer with multiple FX, Amp Simulator and Remote Control
DSP Processing with FiRPHASE
12" woofer, high power 2.5" voice coil
8 x 2" ultra compact fullrange 1.0" voice coil
2350x350x450 mm 92.5x13.77x17.71 in (HxWxD)
24,4/53.8 kg/lbs

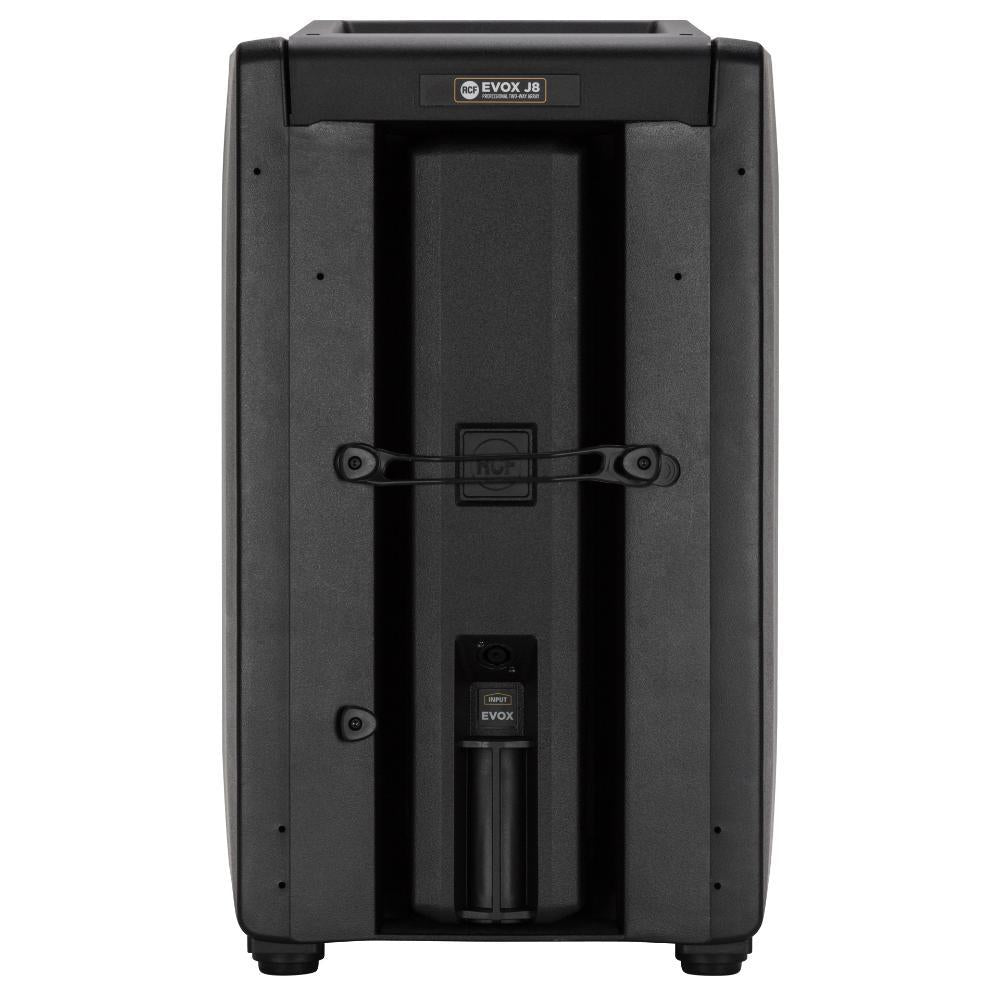

RCF EVOX J8 Active Array Speaker:

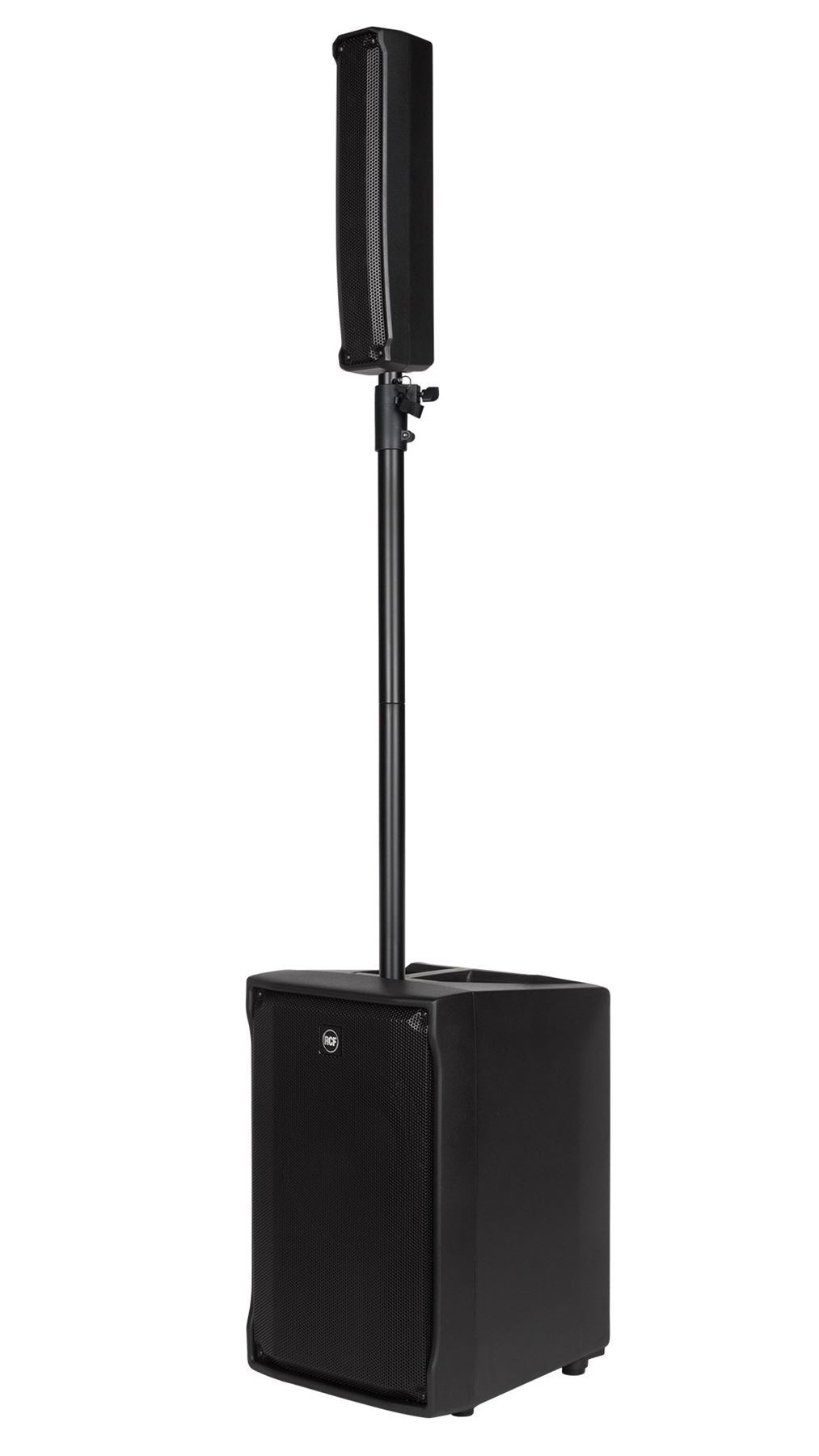

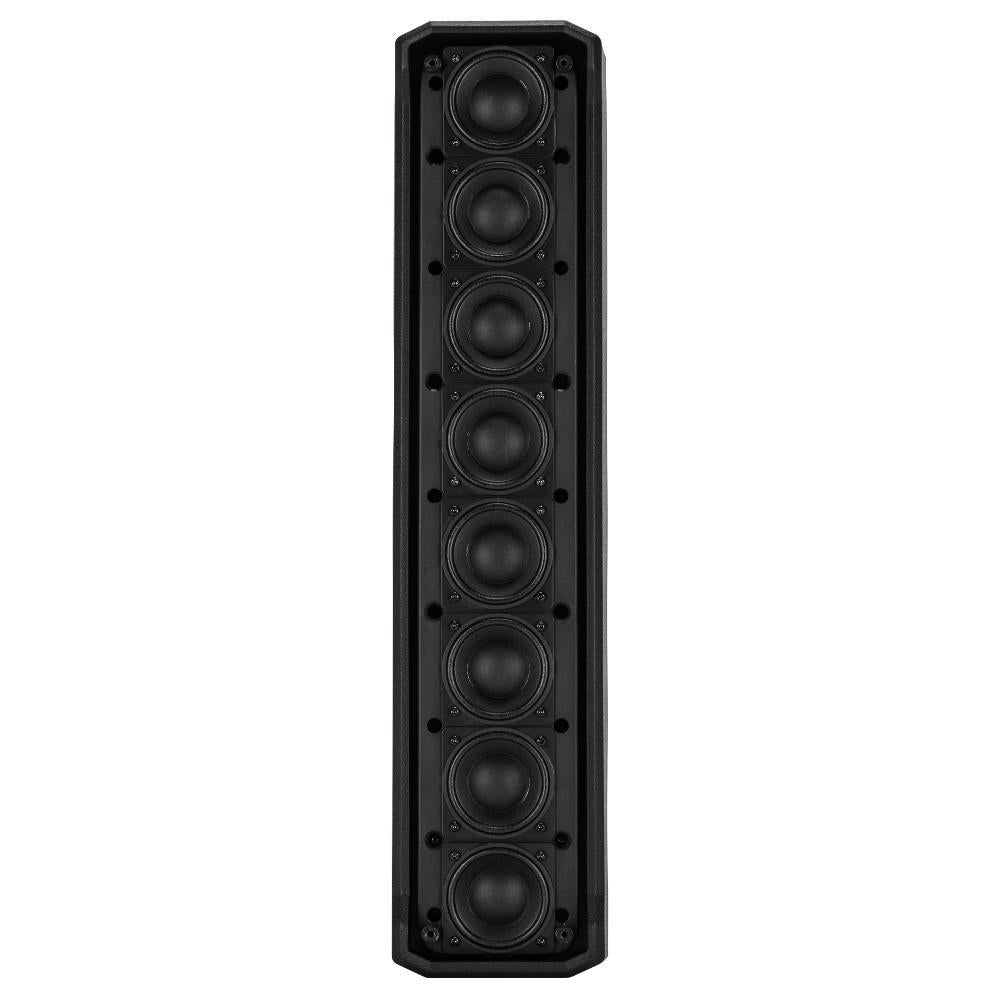

The RCF J8 features a line source satellite module with eight 2” full-range drivers paired with a high-powered 12” woofer in a bass reflex enclosure. All powered by on-board 1400 W Class D amplification. The EVOX J Series maintains a similar footprint to the original EVOX systems, now in a portable composite enclosure. The system offers stunning sound performance with crystal-clear vocal reproduction and unparalleled musical response.

Powerful class d amplifier
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. D-Line amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. The EVOX J amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

Superior transducers

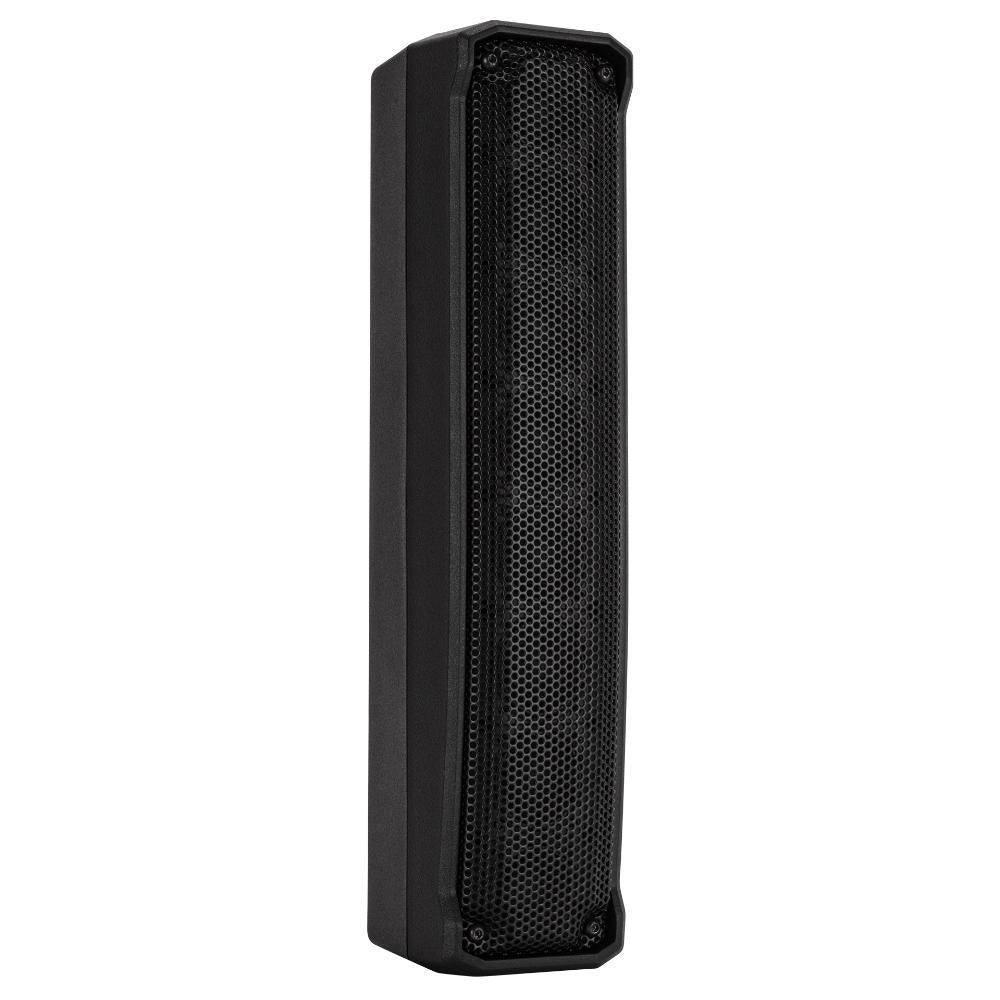

HIGH FREQUENCIES - The ultra-compact full-range 2” RCF drivers are capable of handling high SPL and power with a stunning sound performance.

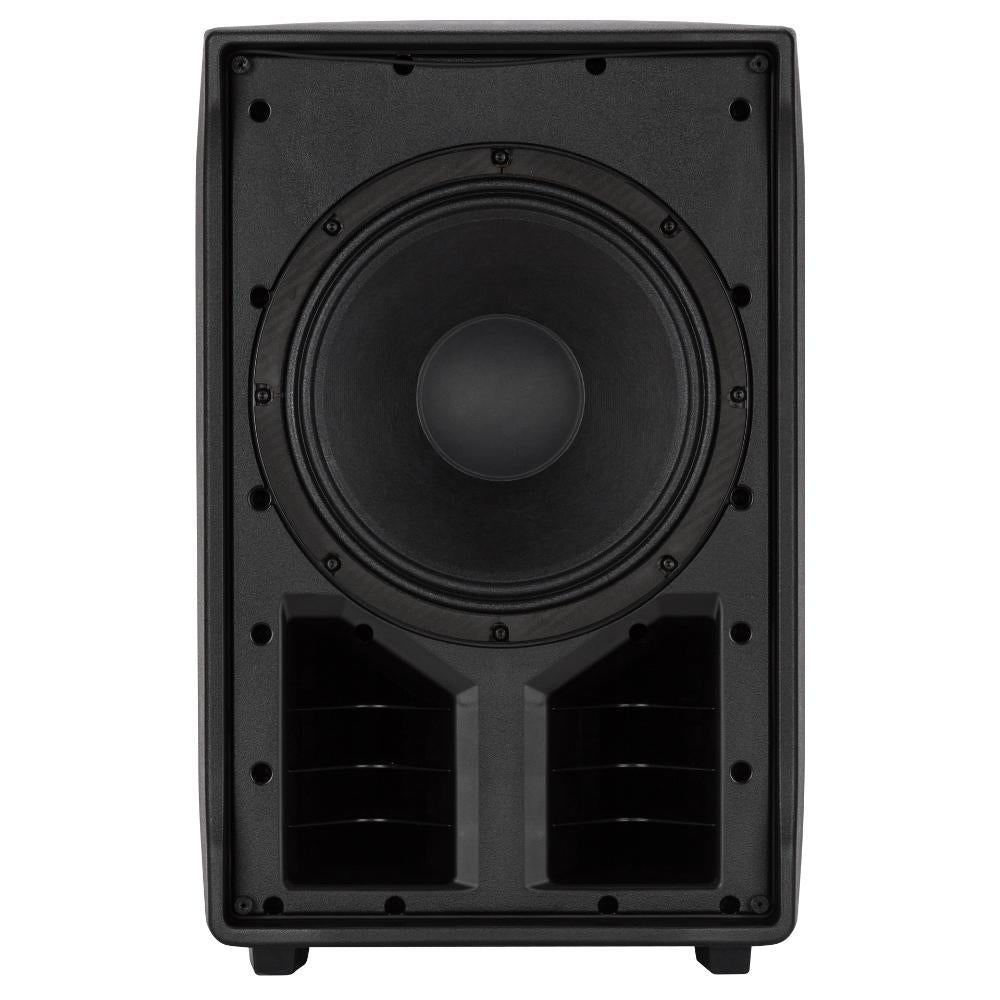

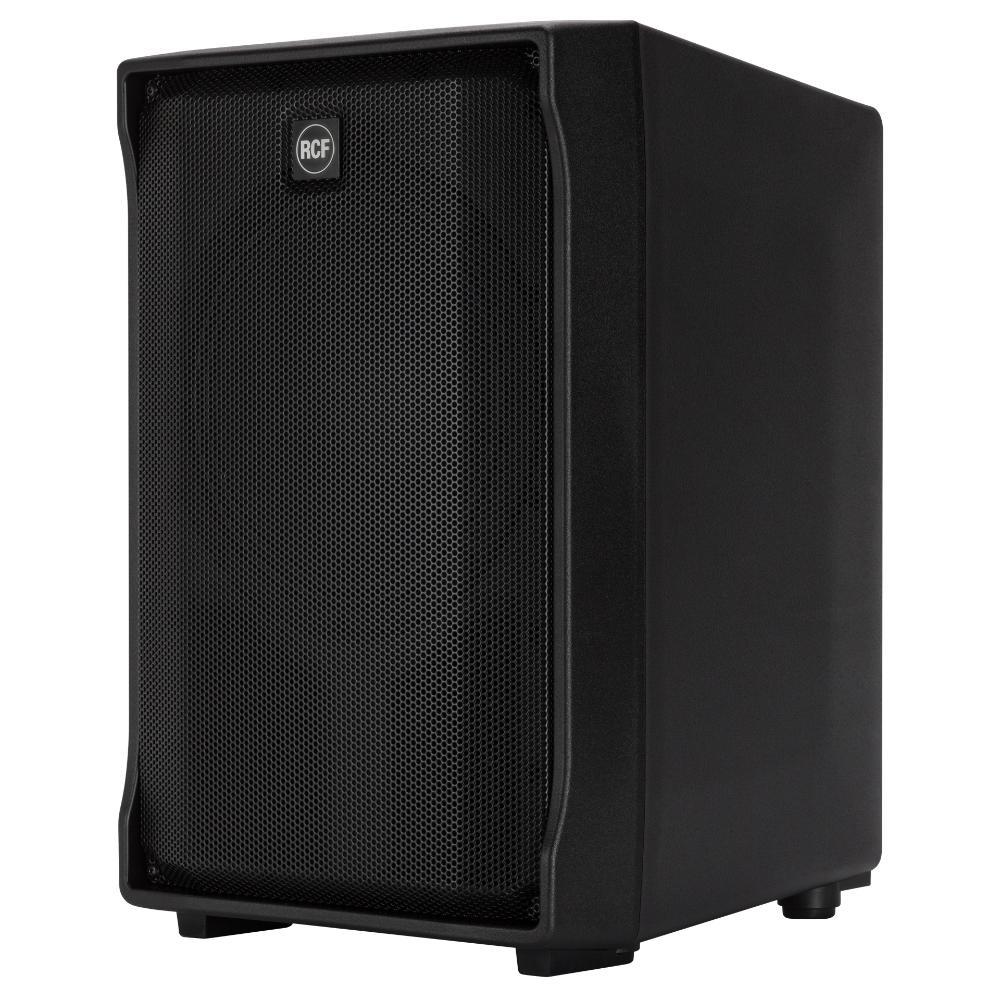

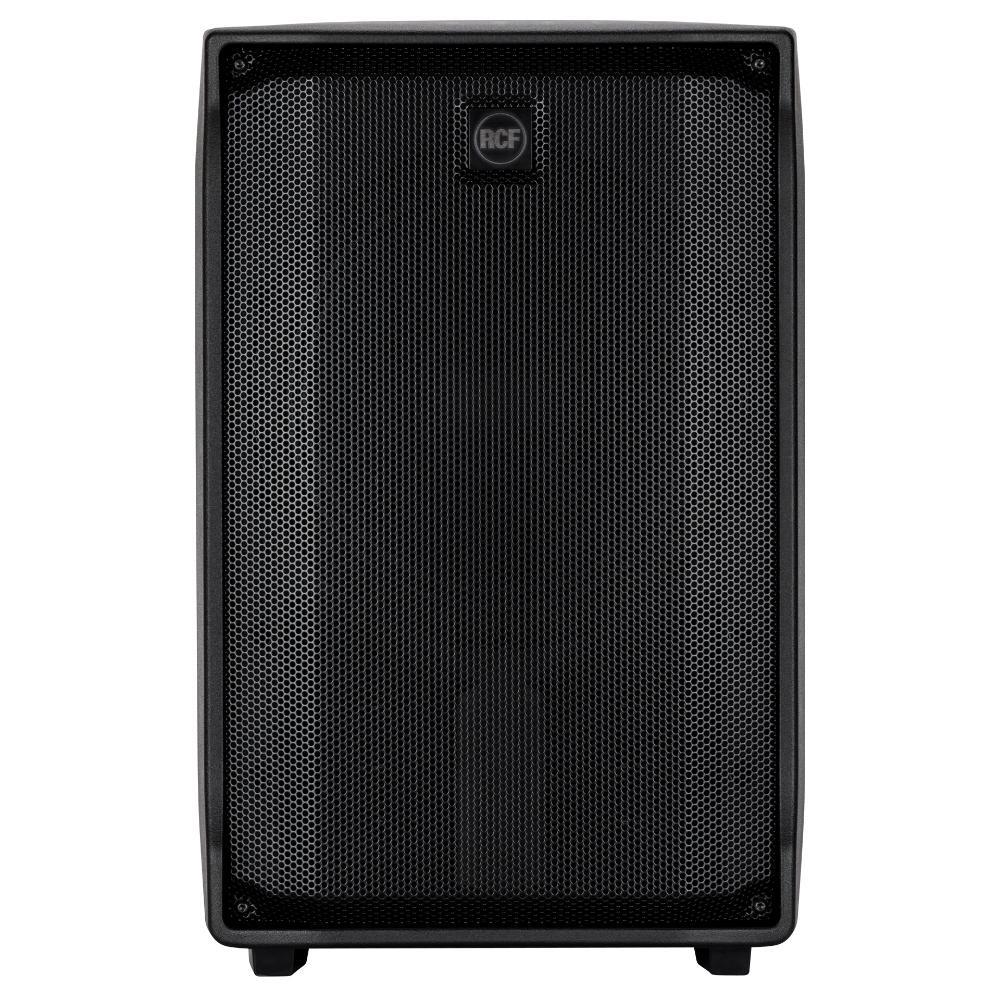

LOW FREQUENCIES - The high excursion 12” RCF woofer extends to the lowest frequencies offering quick and precise punch. The bass-reflex port design avoids air turbulence reducing distortions. The EVOX design features constant directivity coverage of 120°x30°(HxV), providing a perfect coverage pattern. The vertical array is progressively shaped to guarantee consistent sound coverage from the first row to the last.

Ready to play in a few simple steps

PORTABILITY In addition to the handle on top of the woofer’s cabinet, transportation is made easy thanks to the trolley, that is fully integrated into the optional cover of the speaker. During transportation, the metal pole is safely attached to the trolley with the cover’s handles.

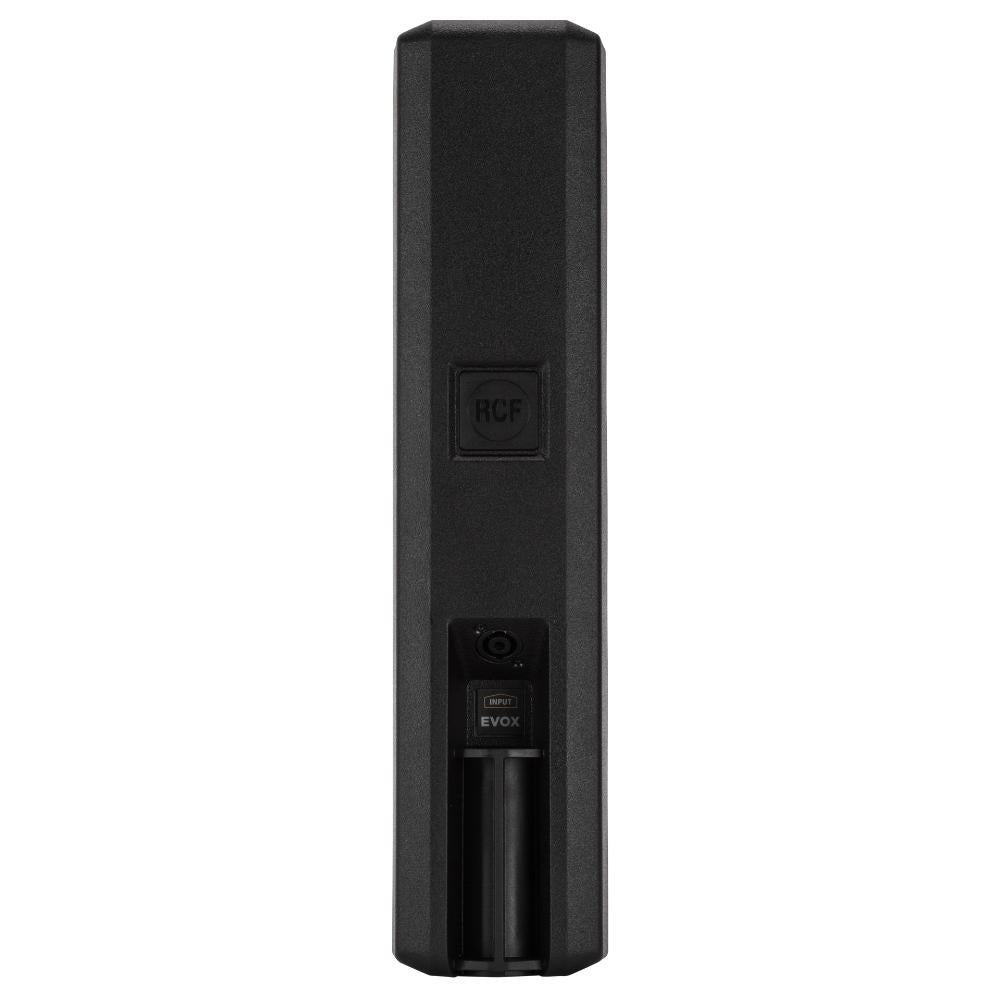

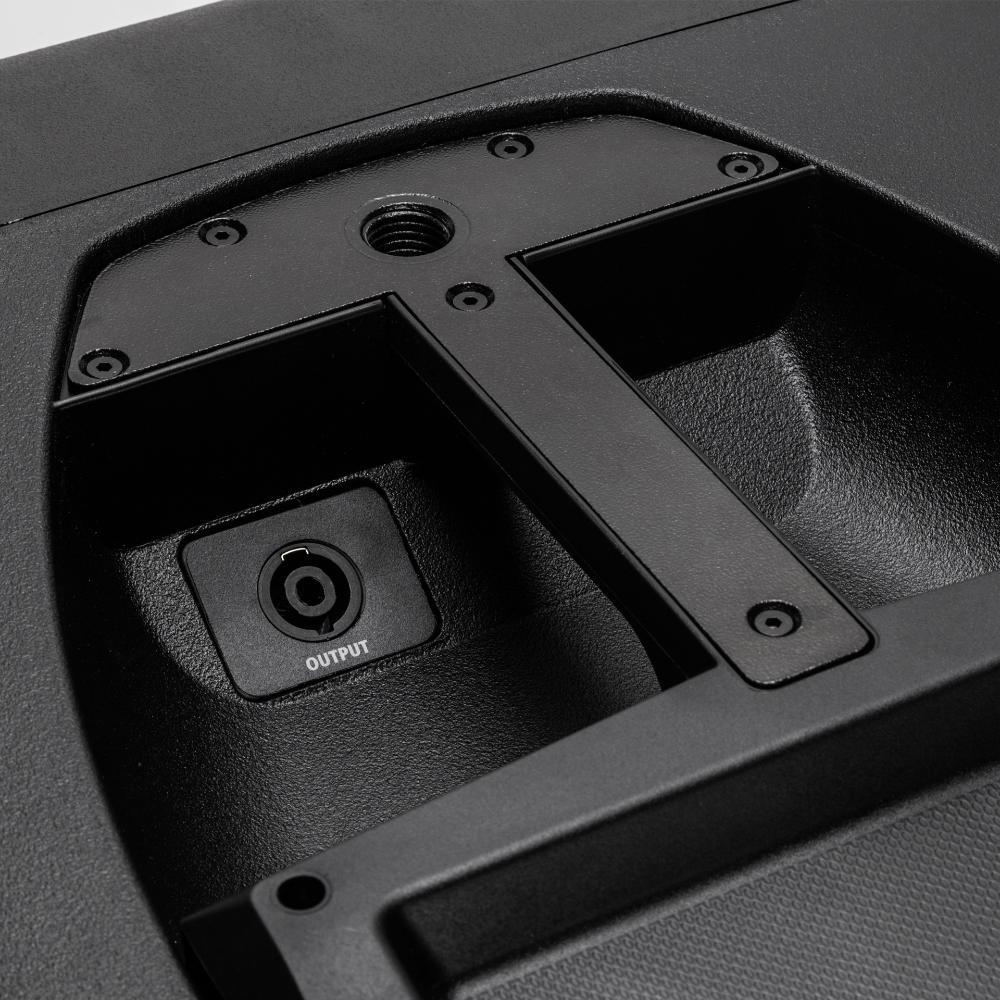

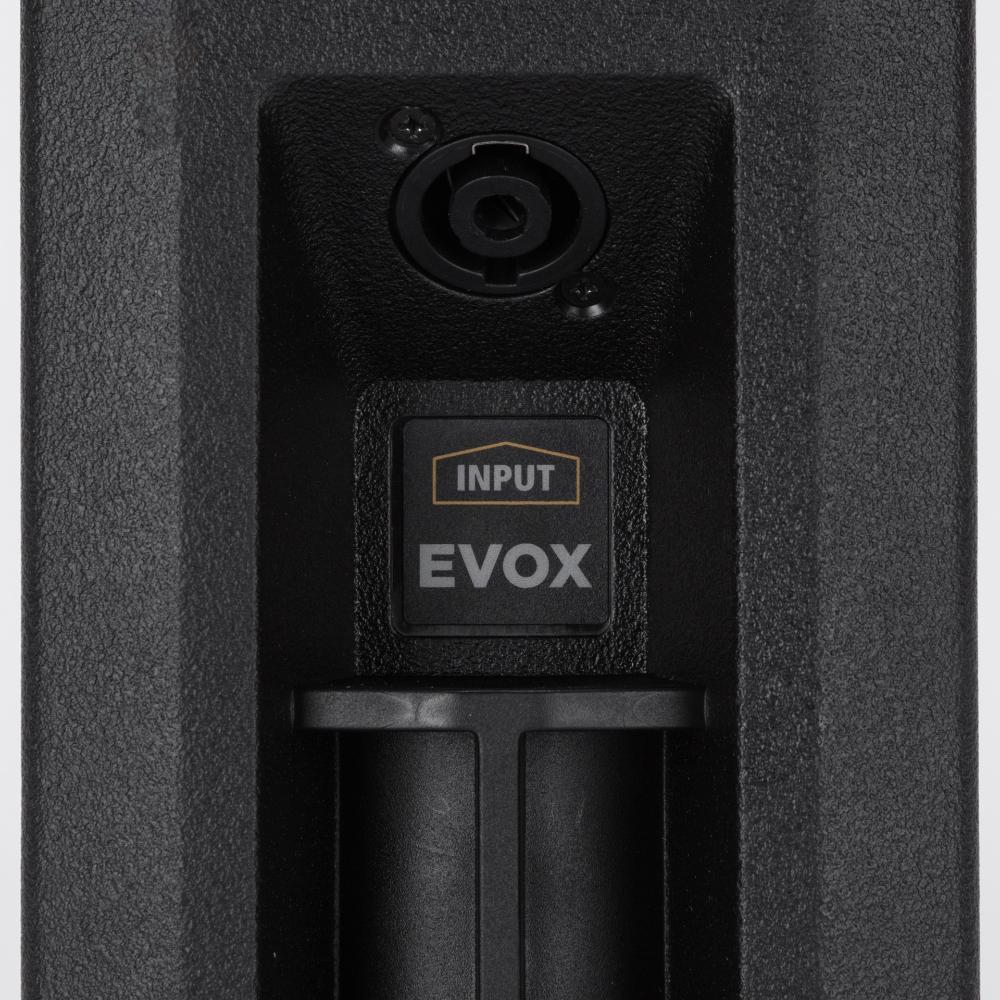

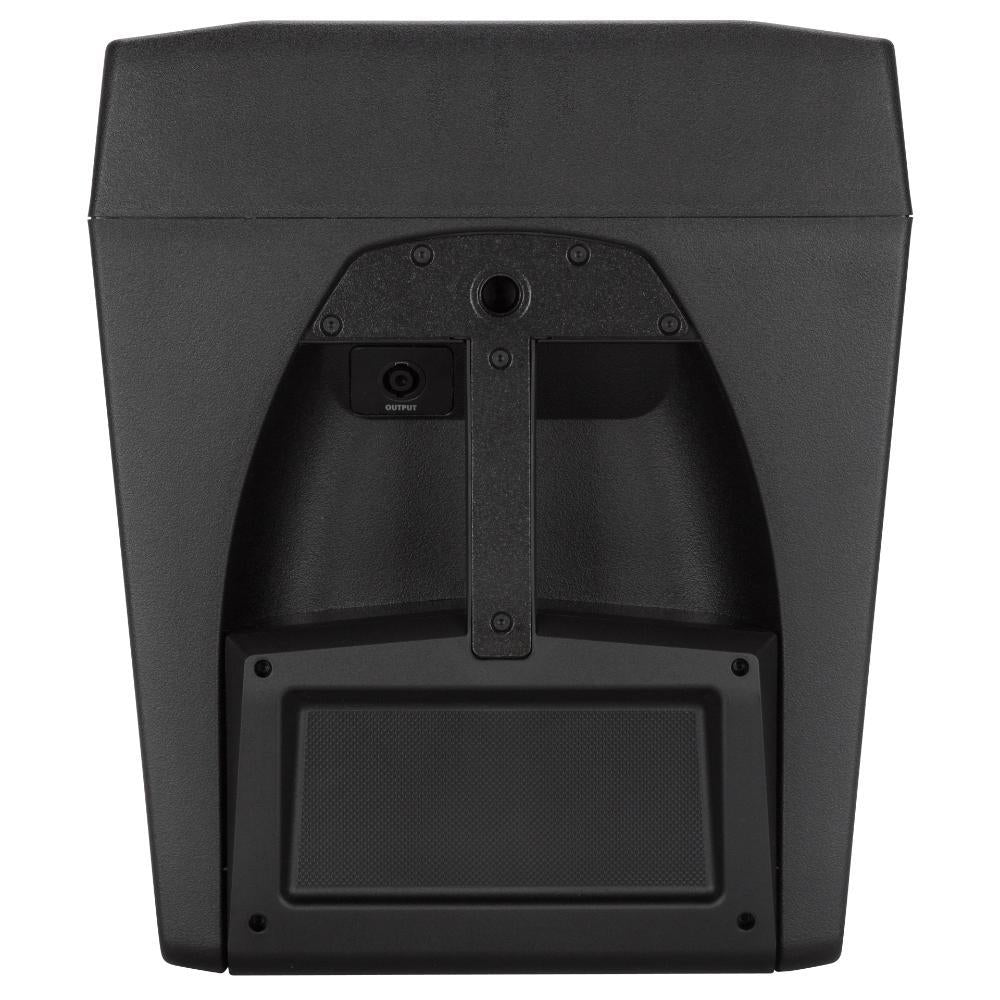

MOUNTING Screw the pole into the pole mount on top of the subwoofer. Insert the top column, connect the SpeakOn and it’s done! An adjustable fastener allows the pole’s length to be adapted.

PLAY! Carrying and mounting your audio system has never been so quick.

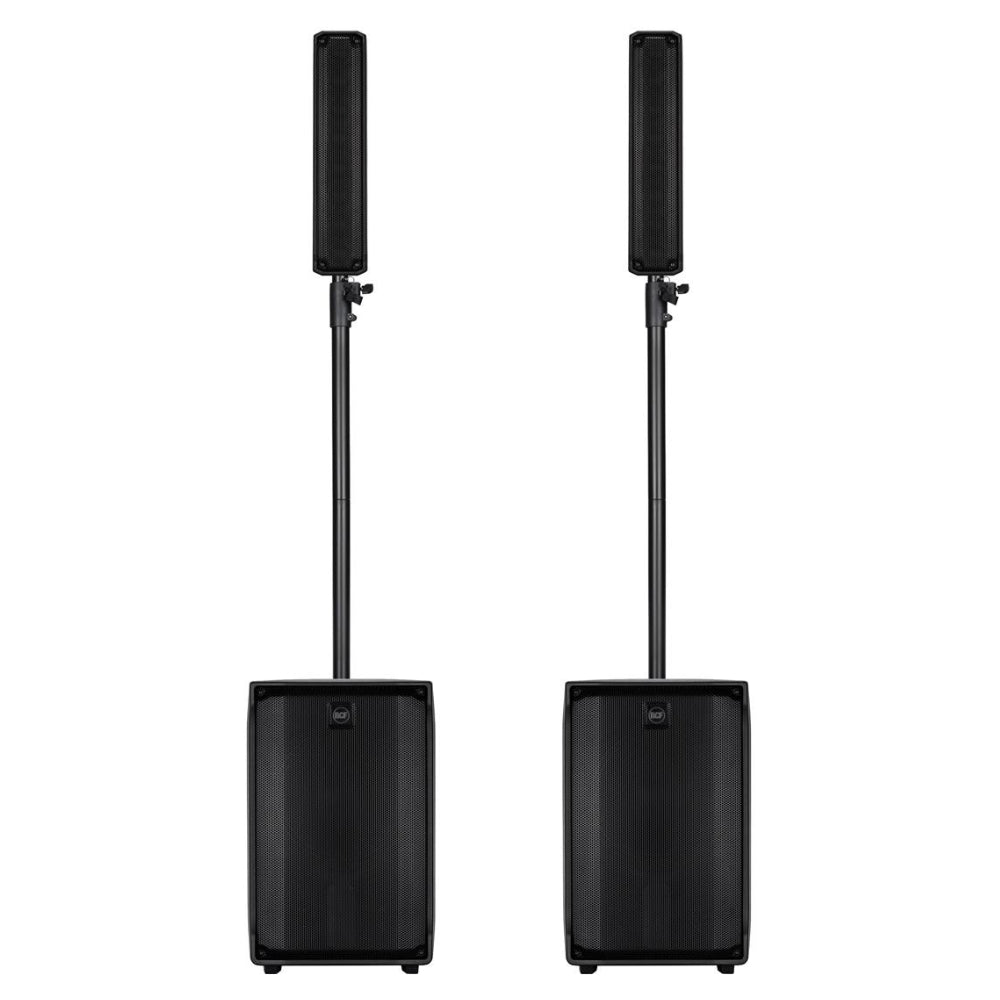

J System configurations
From solo musicians to big DJ parties, the EVOX J system flexibility is a must. Thanks to the multiple outputs and the FiRPHASE processing with 0° phase response, reaching the best listening experience on any venue is an easy task.

Specifications:

Frequency Response: 40 Hz ÷ 20000 Hz
Max SPL @ 1m: 128 dB
Horizontal coverage angle: 120°

Fullrange: 8 x 2.0'', 1.0'' v.c
Woofer: 12'', 2.5'' v.c

Input signal: bal/unbal
Input connectors: XLR, Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu

Crossover Frequencies: 220 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Boost, Mic/Line

Total Power: 1400 W Peak, 700 W RMS
High frequencies: 400 W Peak, 200 W RMS
Low frequencies: 1000 W Peak, 500 W RMS
Cooling: Convection
Connections: VDE

Cabinet/Case Material: PP Composite
Handles: 1 Top
Grille: Steel
Color: Black, White

Height: 2285 mm / 89.96 inches
Width: 400 mm / 15.75 inches
Depth: 460 mm / 18.11 inches
Weight: 20.2 kg / 44.53 lbs
