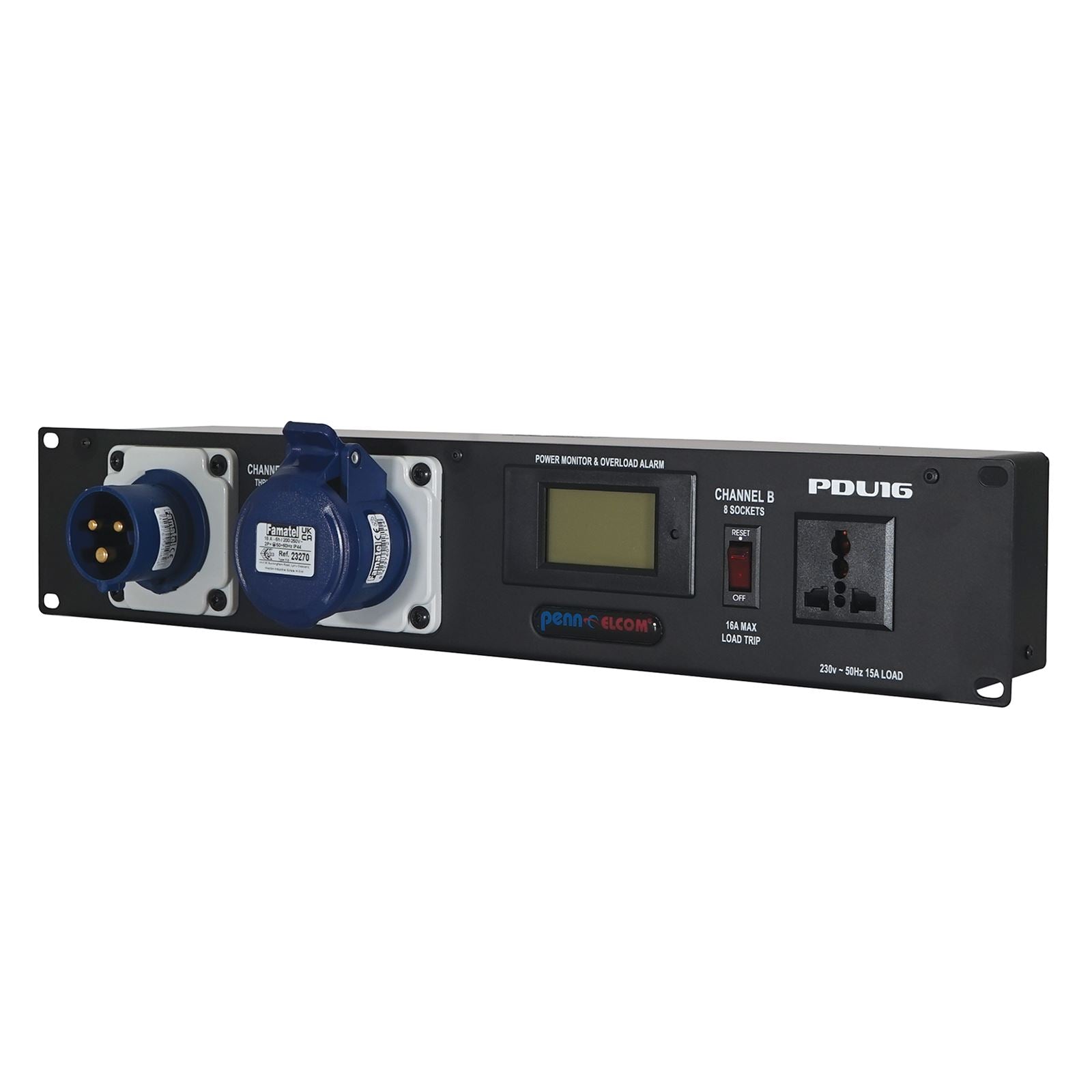

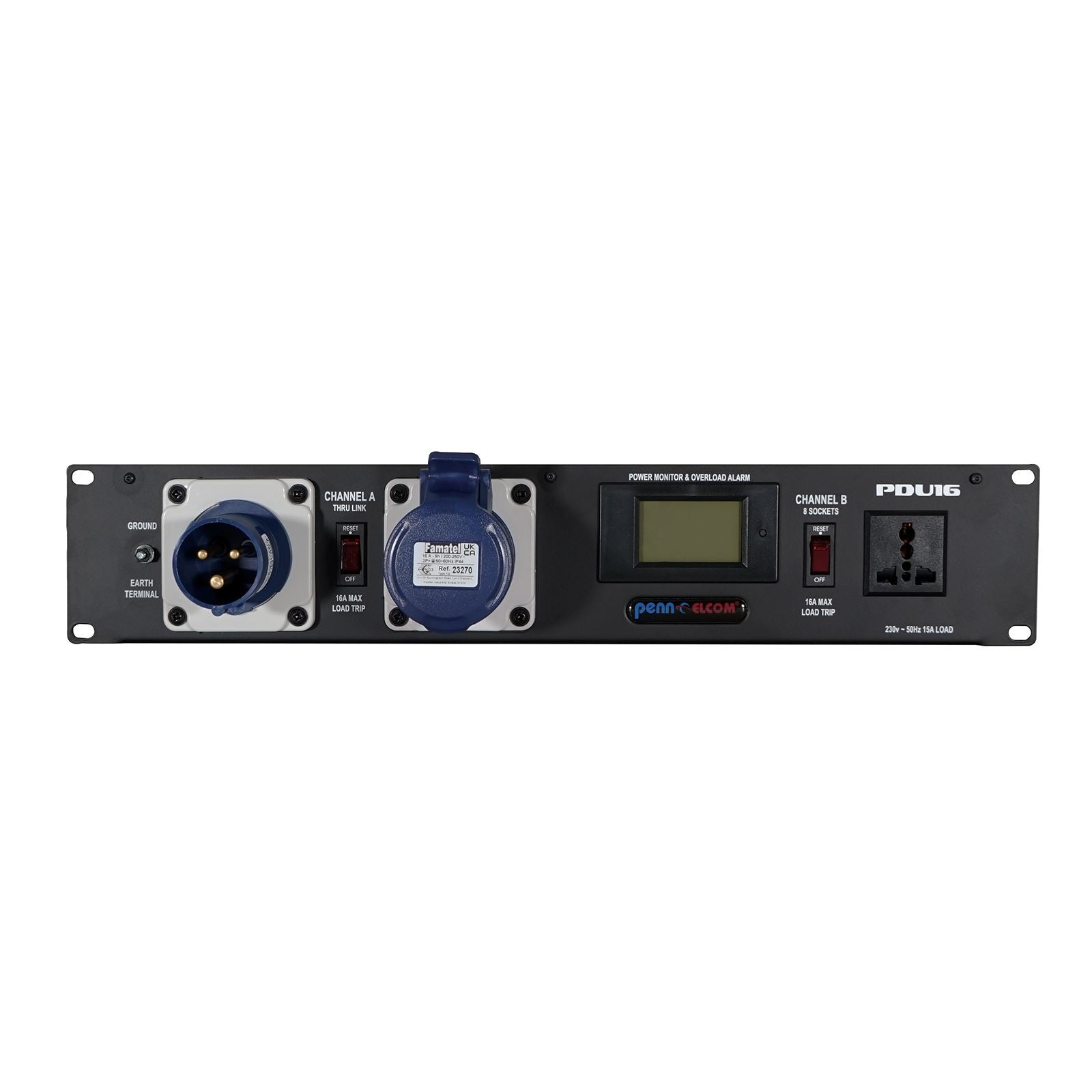

Penn Elcom 2U Rackmount Power Distribution Unit (PDU16-UN)

2U 16A rack mount PDU with power monitor and C-FORM in/out with overload trip switch. 8 x world wide universal outlet sockets with 16A overload trip switch. Ideal solution for fast power distribution in stage, studio and touring environments.

Features:

Circuit A
Main input: C-FORM 240V 16A IP44 panel mount appliance inlet
Protection: Illuminated 16A circuit breaker for overload protection
Output: C-FORM 240V 16A IP44 panel mount appliance outlet
Circuit B

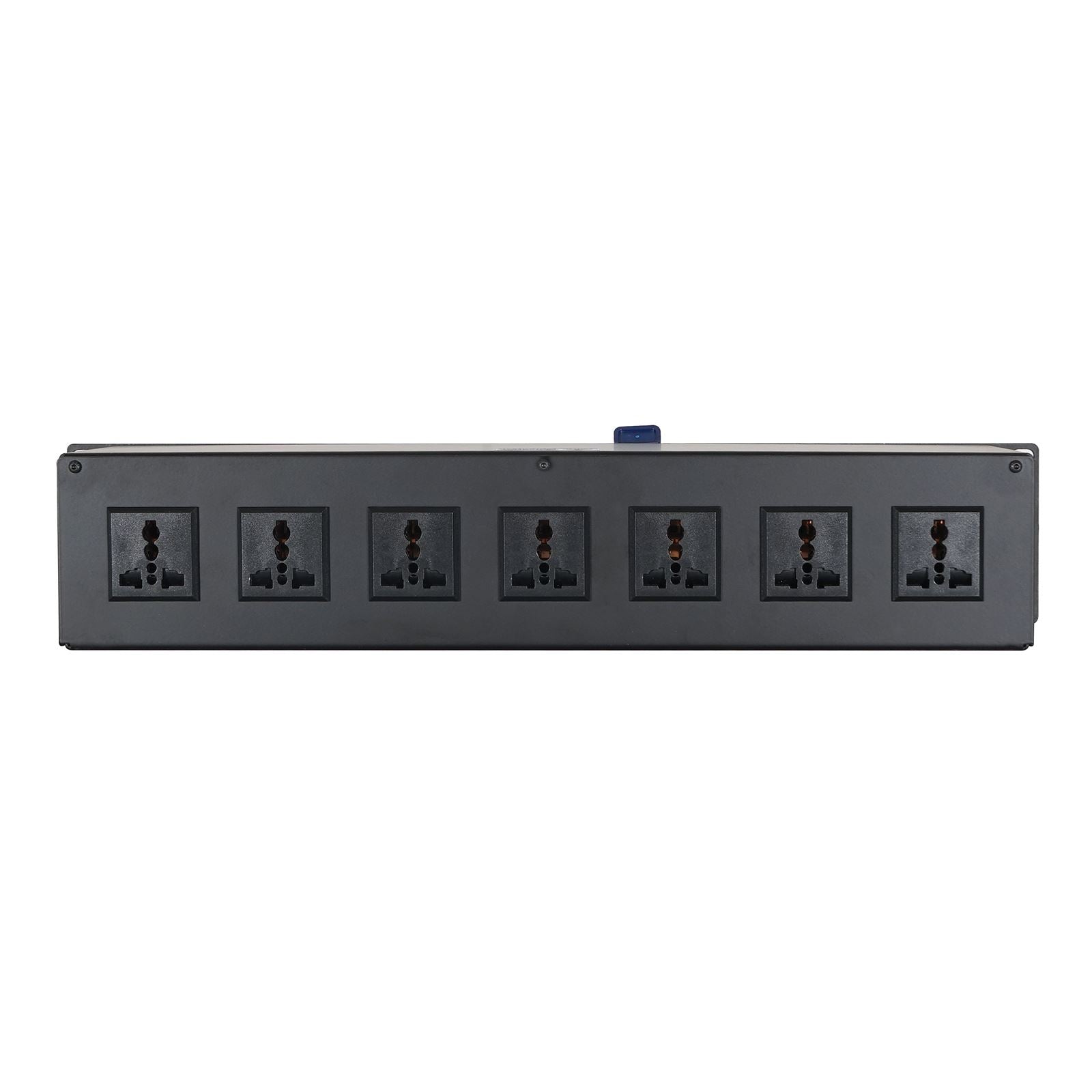

Output: 8 x Universal sockets useable with plugs from the UK, US, Europe and Australia, with a maximum 16A combined load (Schuko type plugs have a 2-Pin connection only)
Protection: Illuminated circuit breaker 16A overload protection

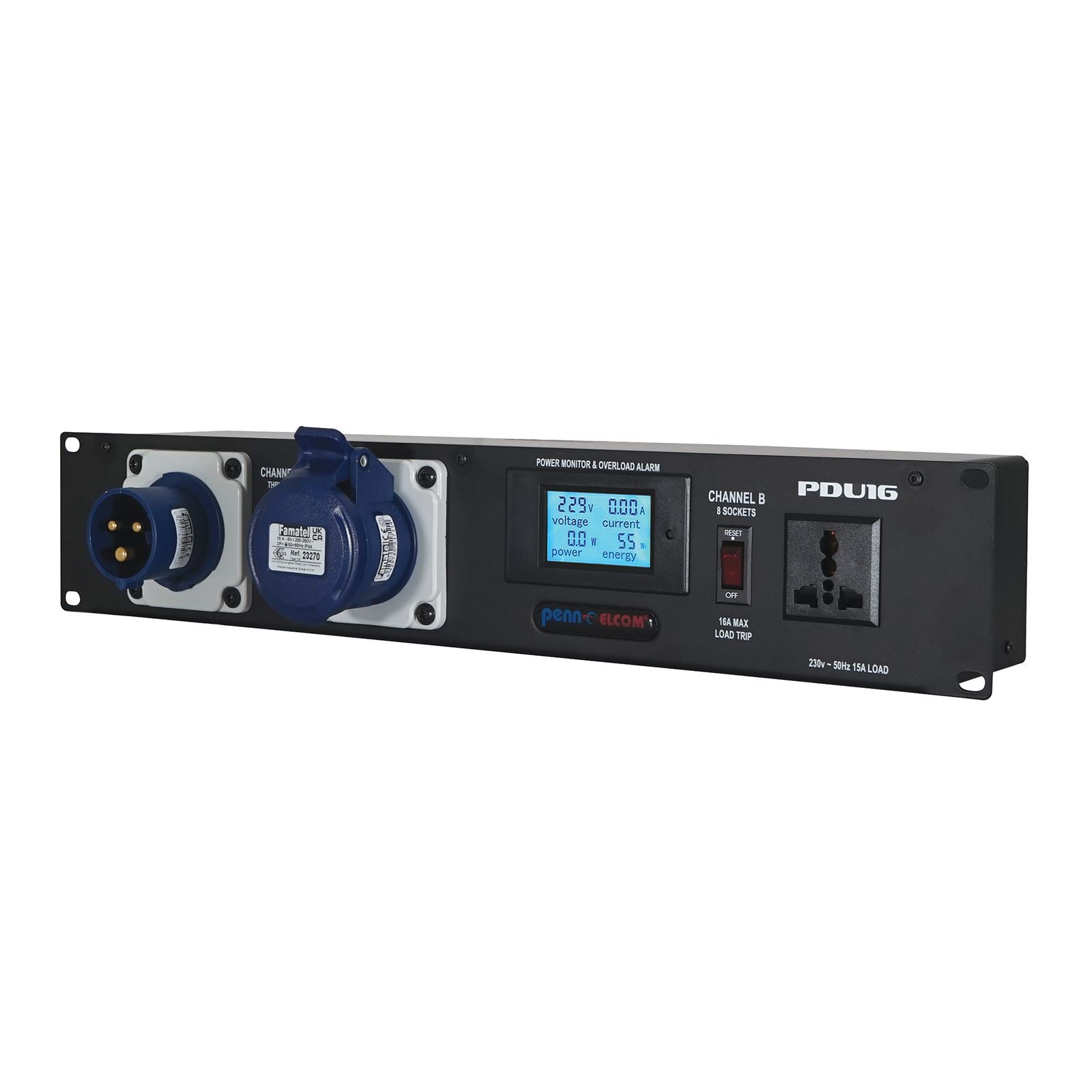

LCD monitor: LCD power monitor giving voltage, current, power, energy levels and overload alarm
Earth link: M4 screw terminal for rack grounding

Specifications:

Compliance: All components used in this conform to current RoHS, CE and UL certification - E&OE (EMI:EN55022 (CISPR22) Class B; EN61000-3-2,3 EMS:EN61000-4-2,3,4,5,6,8,11; Light industry level, criteria A)
Nominal voltage: 110V~230V
Usable voltages: 110V~240V full range
Frequency: 50/60HZ full range
Max. AC output current: 16A
Dimensions (H x W x D): 90 x 436 x 100mm (Overall width including rack ears 483mm)
Weight: 2.7kg
