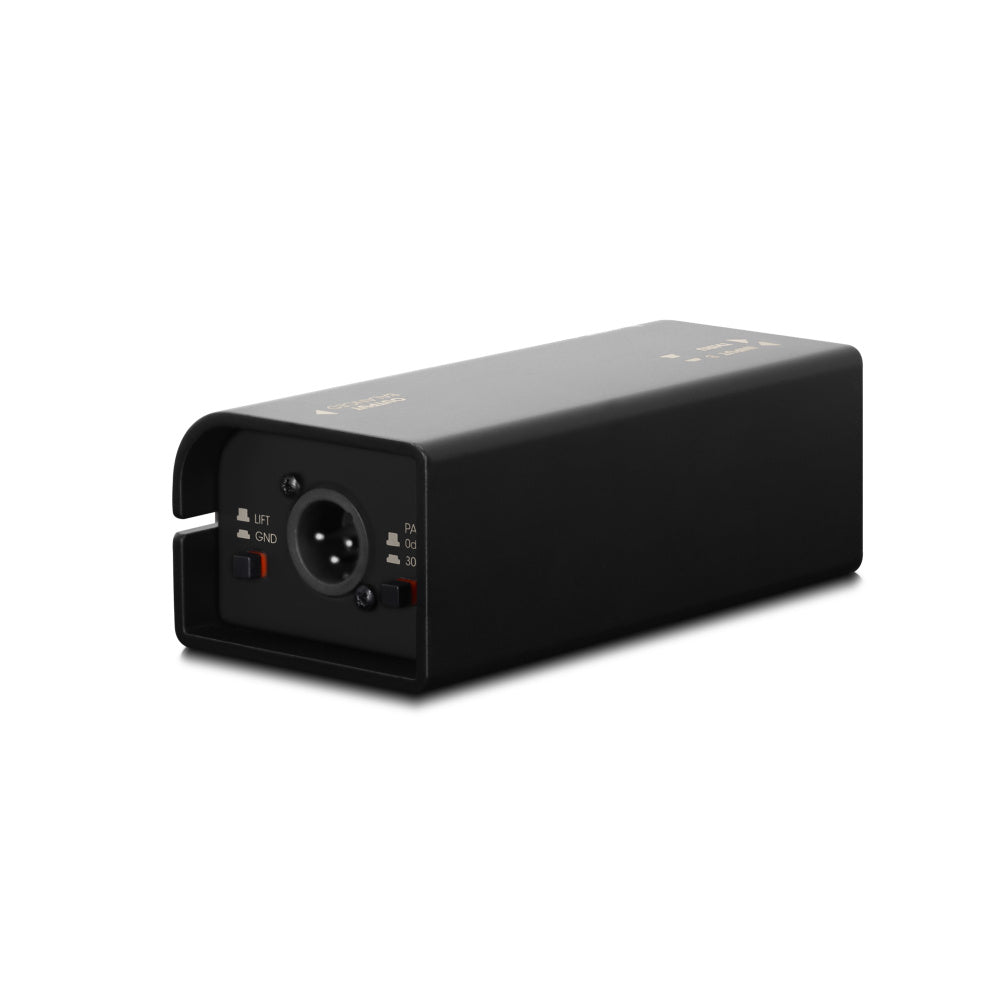

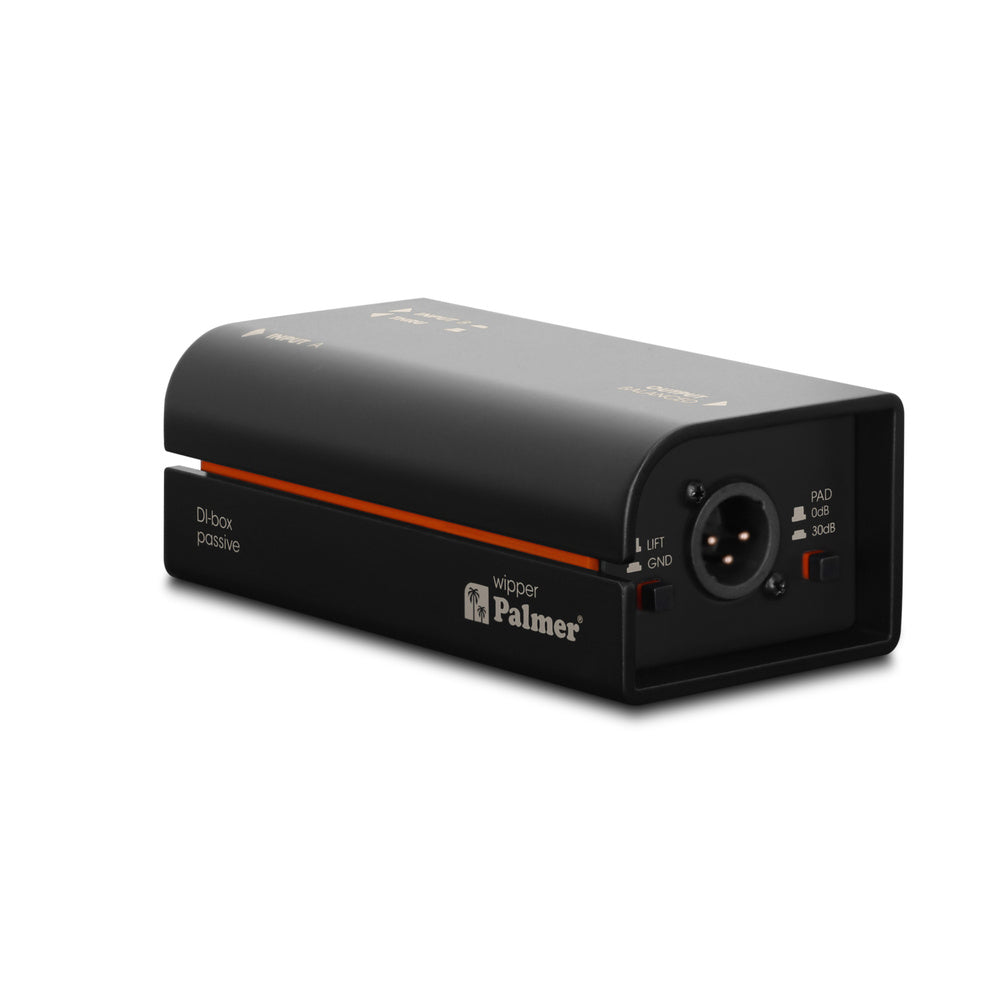

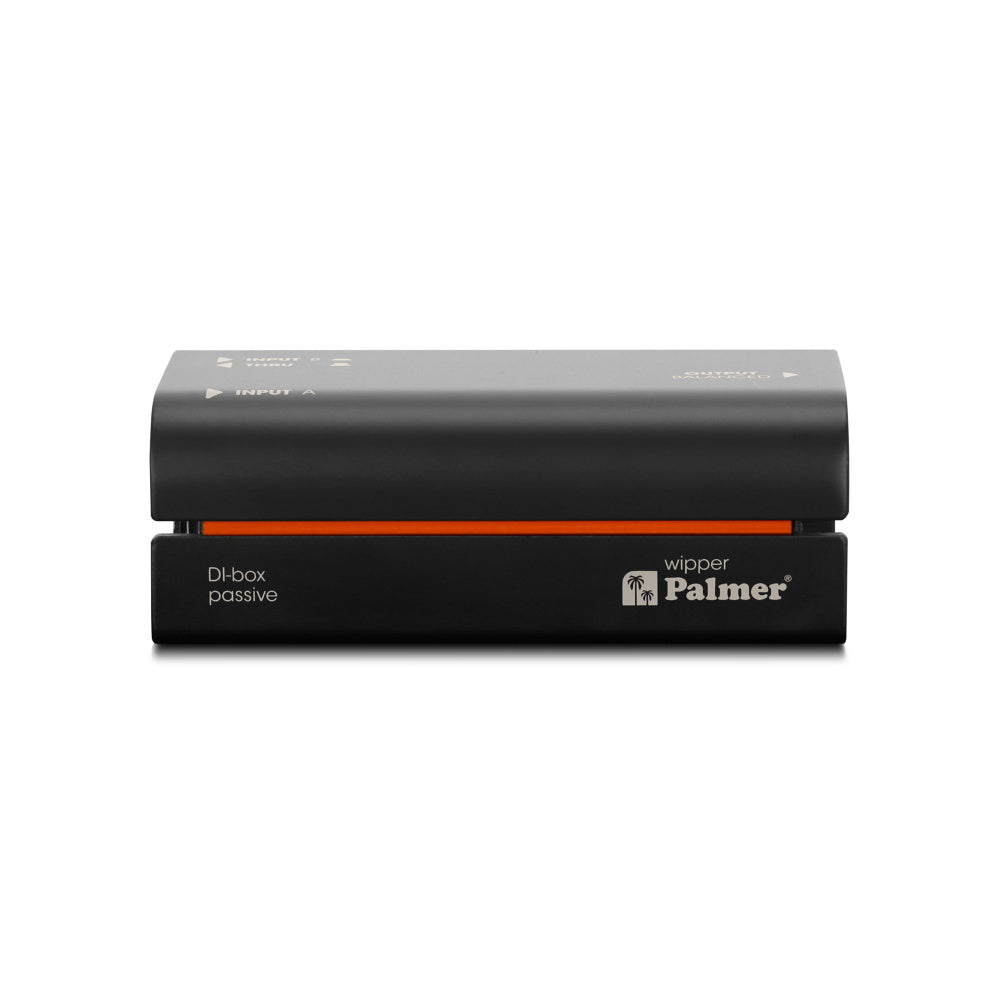

Palmer RIVER wipper Passive DI Box

Description:

If you need to pick up the pure sound of your guitar, bass or keyboard, you need a high-quality DI box which does not alter the natural sound or add any noise.

The Palmer wipper is a single channel passive DI box with a high-quality transformer, which also handles high levels without distorting or losing the pure sound of your instrument. With a ratio of 10:1, it can be used for optimal impedance and level adjustment to connect instrument signals from guitars, bass, keyboards or synthesisers to a balanced microphone input. At the same time galvanic isolation prevents ground loop hum, so that the signal remains pure, clear and ultra-low noise, without any interference. Thanks to a switchable 30 dB pre-attenuation, the wipper can also be looped in between amplifier output and the loudspeaker.

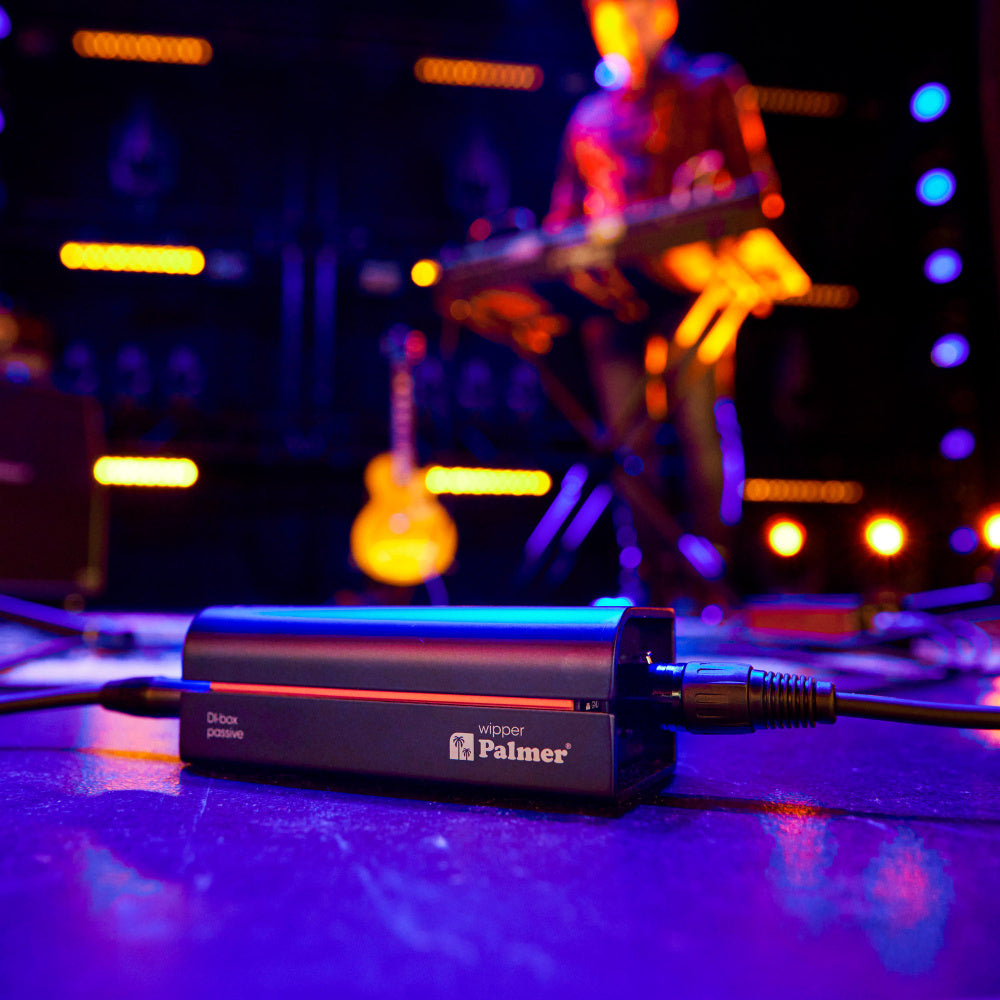

The Palmer wipper is an easy-to-use problem solver. Its passive construction means it does not need any batteries or a phantom power. This makes it extremely fail-safe and also virtually indestructible thanks to its aluminum and steel casing. With its ability to retain the natural sound of your instrument, it also cuts a fine figure studio and live environments. This way you can simply be true to your sound.

Features:

Balancing and impedance matching for guitar, bass, keyboards & synthesizers
Eliminates ground loop hum thanks to galvanic transformer isolation
Extremely fail-safe, no power supply required

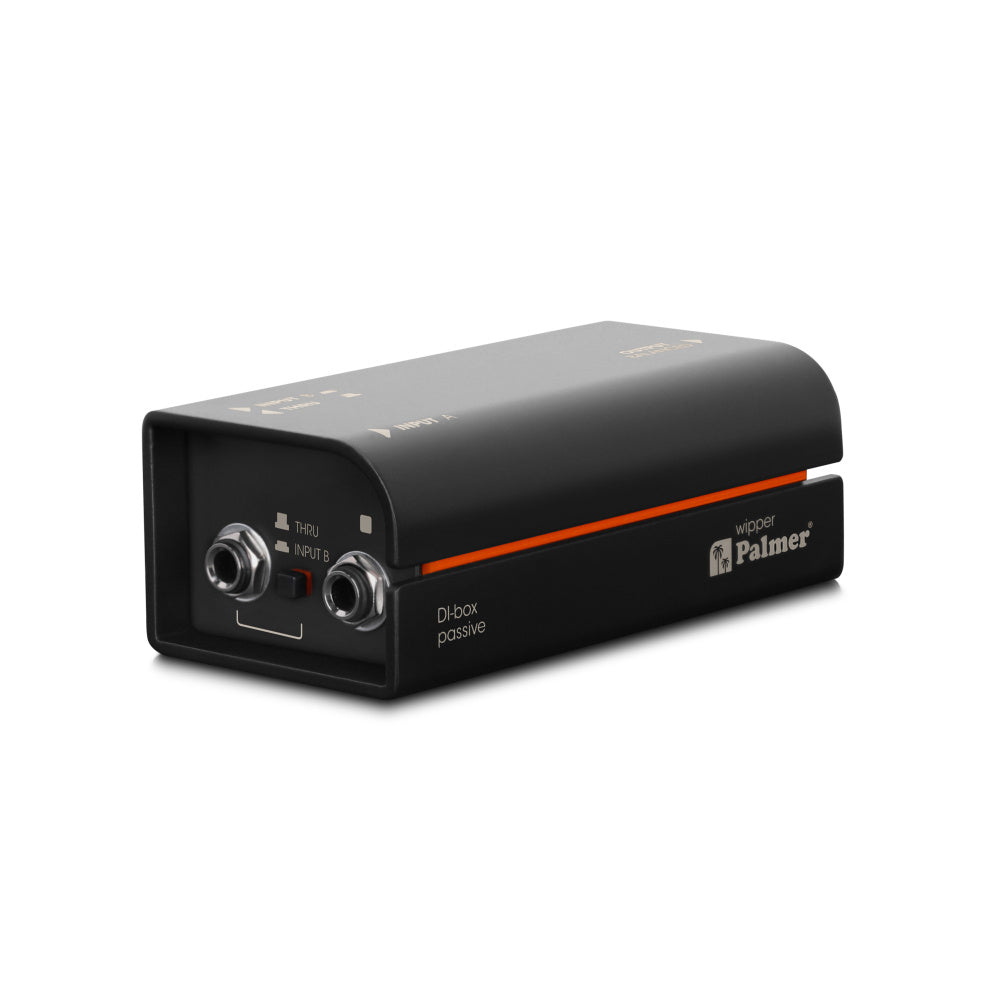

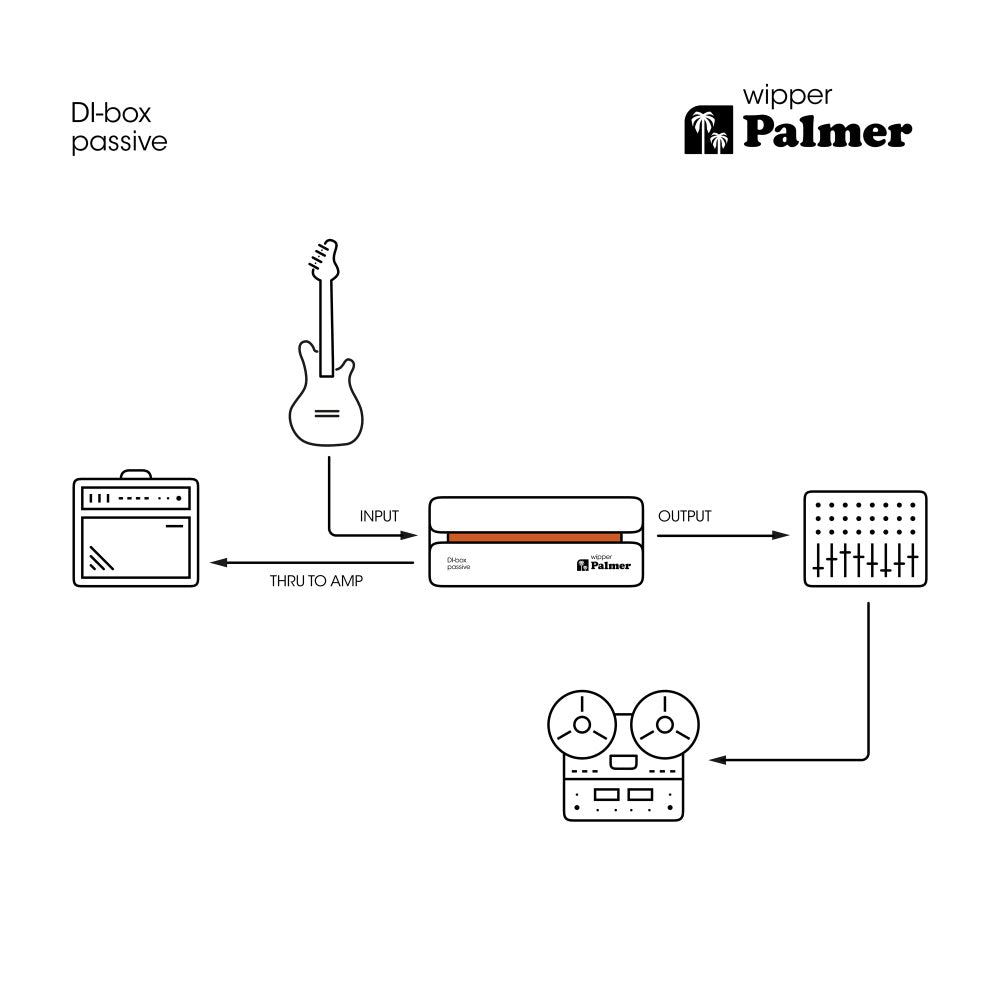

THRU-output for passing the input signal to the amplifier

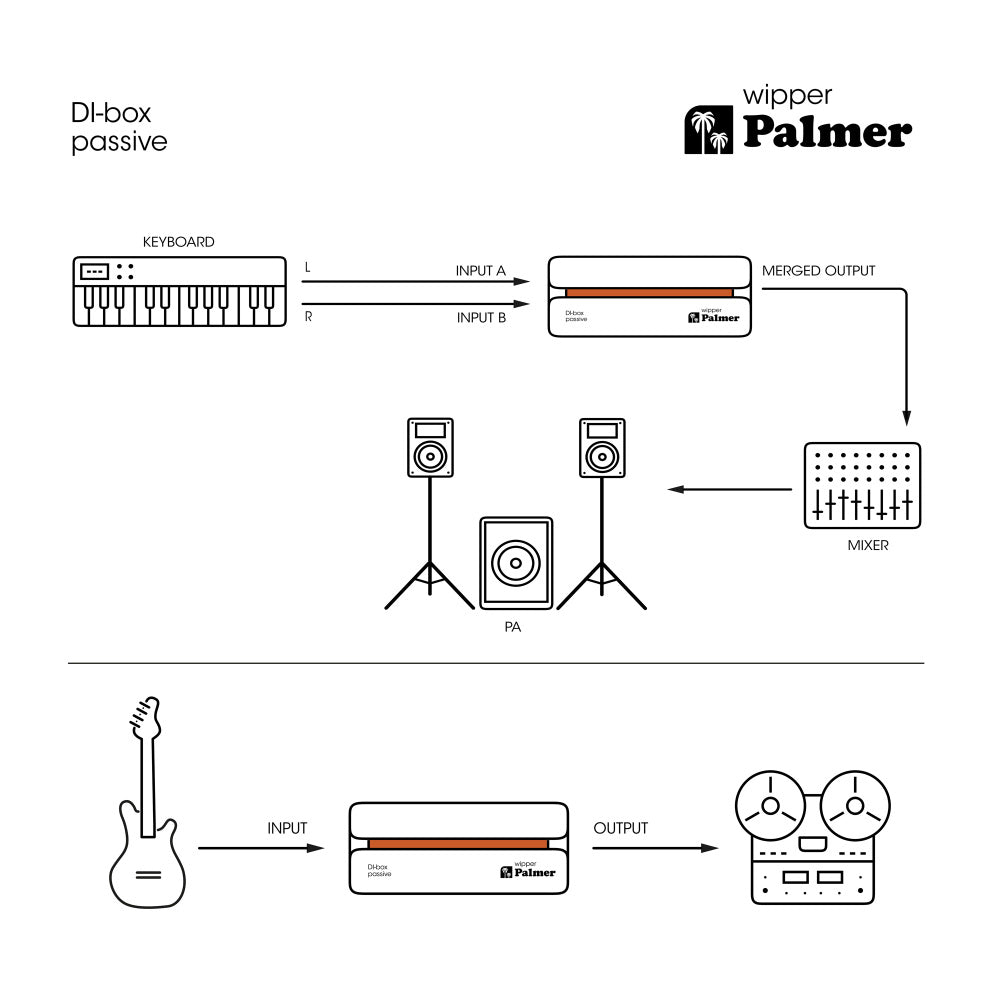

THRU-output jack can also be used as second input to sum two input signals
Pure and unaltered low-noise audio
Handles even high-level inputs without distortion
Switchable 30 dB pad for extremely high input levels (e.g. amplifier output)
Solid casing made of aluminium and steel

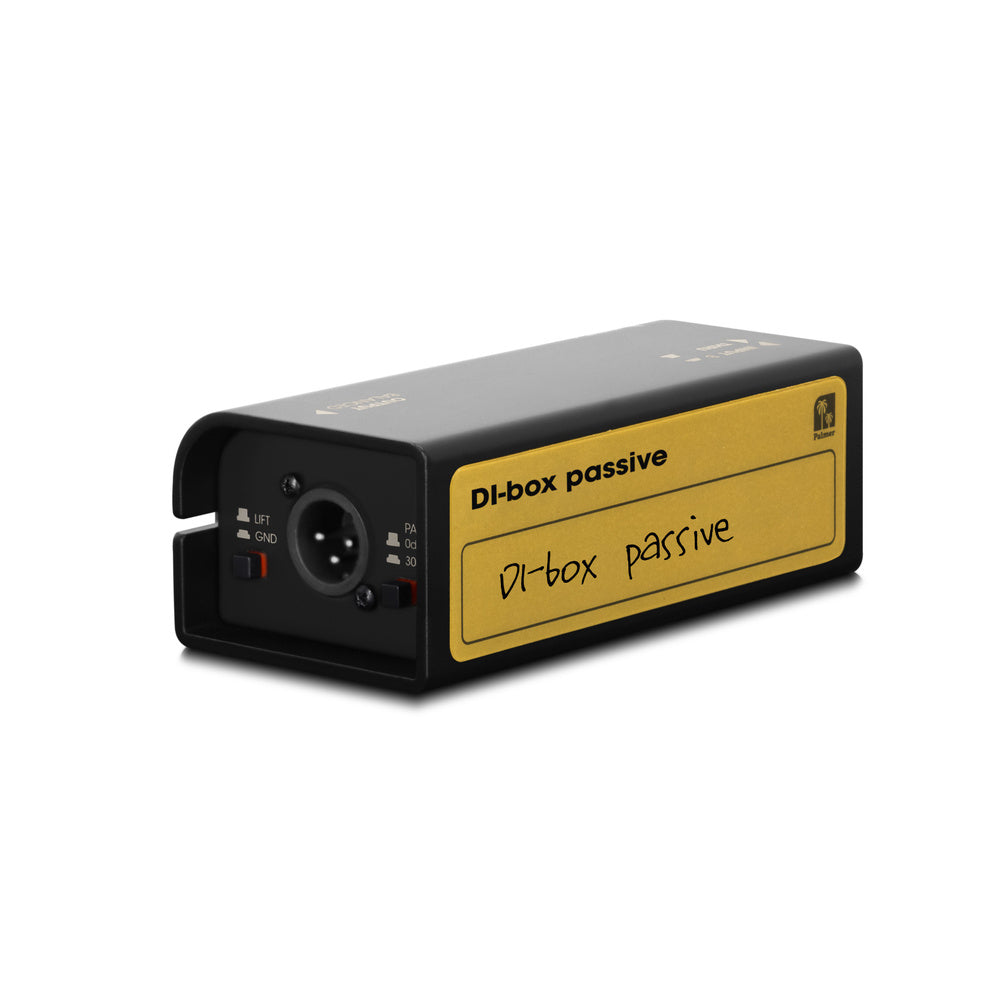

Incl. rewritable tour label for attachment onto the back of the wipper
Engineered in Germany

Specifications:

General
Product type: DI box
Type: Passive
Channels: 1
Transformer isolated: Yes

Number of inputs
Number of inputs: 2
Input type: Unbalanced
Input connectors: 6.3 mm jack

Number of outputs
Number of outputs: 1
Output type: Balanced
Output connectors: XLR
THRU outputs per channel: 1

Input attenuation (Pad): 0 / 30 dB

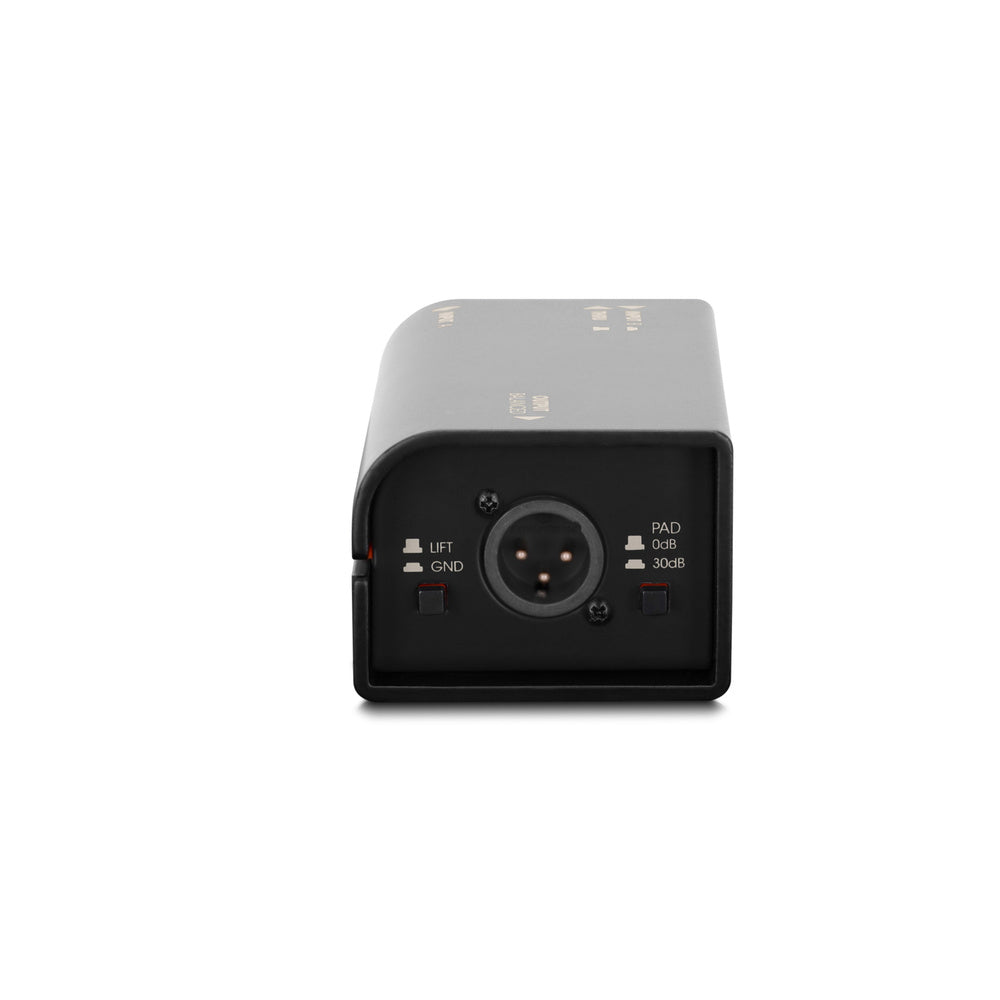

Ground lift switch: Yes

Additional Features: Mono merge

Housing
Housing: Aluminium continuous casting
Dimensions (W x H x D): 50 x 140 x 68 mm
Weight: 0.43 kg

Environmental
Ambient temperature (in operation): -20 - 70 °C
Relative humidity: < 80% (non-condensing)

Accessories (included)
Accessories: Inscription label (tour label), Rubber feet

Audio
Max. input level (< 1% THD, 20 Hz): +24 dBu
Max. input level (< 1% THD, 1 kHz): +32 dBu
Frequency response (±0.2 dB, relative 1 kHz): 10 Hz - 60 kHz
Input impedance (1 kHz, Setting: 0 dB Pad, THRU): 47 kΩ
Output impedance (1 kHz, Setting: 0 dB Pad, THRU): 33 Ω
THD (30 Hz, +4 dBu, unity, unweighted): < 0.02%
THD (1 kHz, +4 dBu, unity, unweighted): < 0.0007%
IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu): < 0.002%
Transformer ratio: 10:1
